Description
The ASRock J4125M is an energy-efficient and compact motherboard, equipped with an Intel Celeron J4125 quad-core processor. From a technical SEO perspective, it’s important to clearly state that this motherboard supports both HDMI and VGA outputs, making it easy to connect multiple displays. For peripherals, USB 3.2 Gen1 and USB 2.0 ports are available, along with a Gigabit LAN connection for fast network access. Additionally, the ASRock J4125M features SATA3 ports for storage devices and DDR4 memory slots that support dual-channel configuration. This combination of connectivity makes the motherboard suitable for both office environments and light multimedia setups.

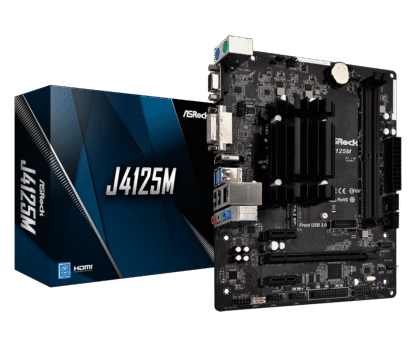

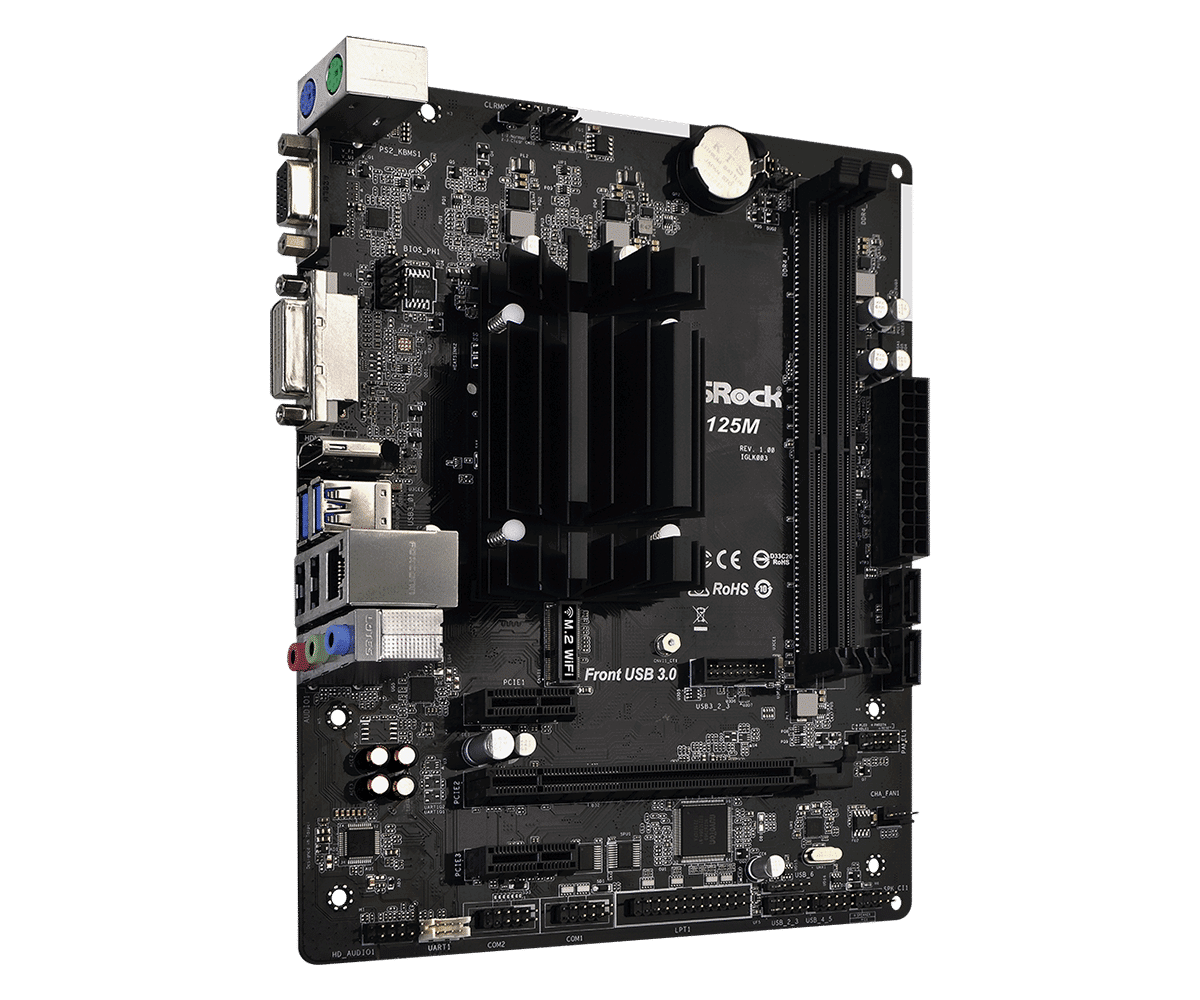

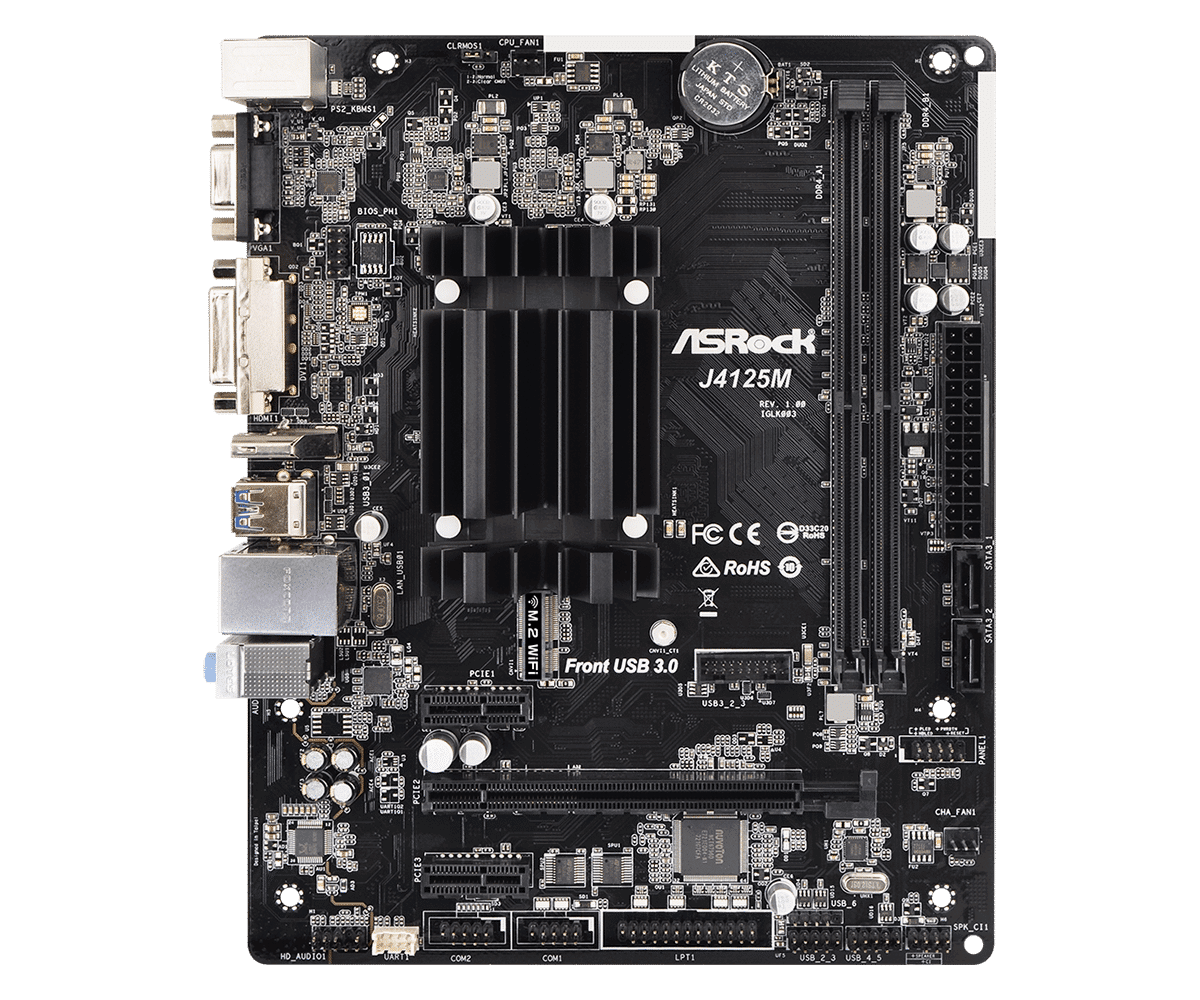

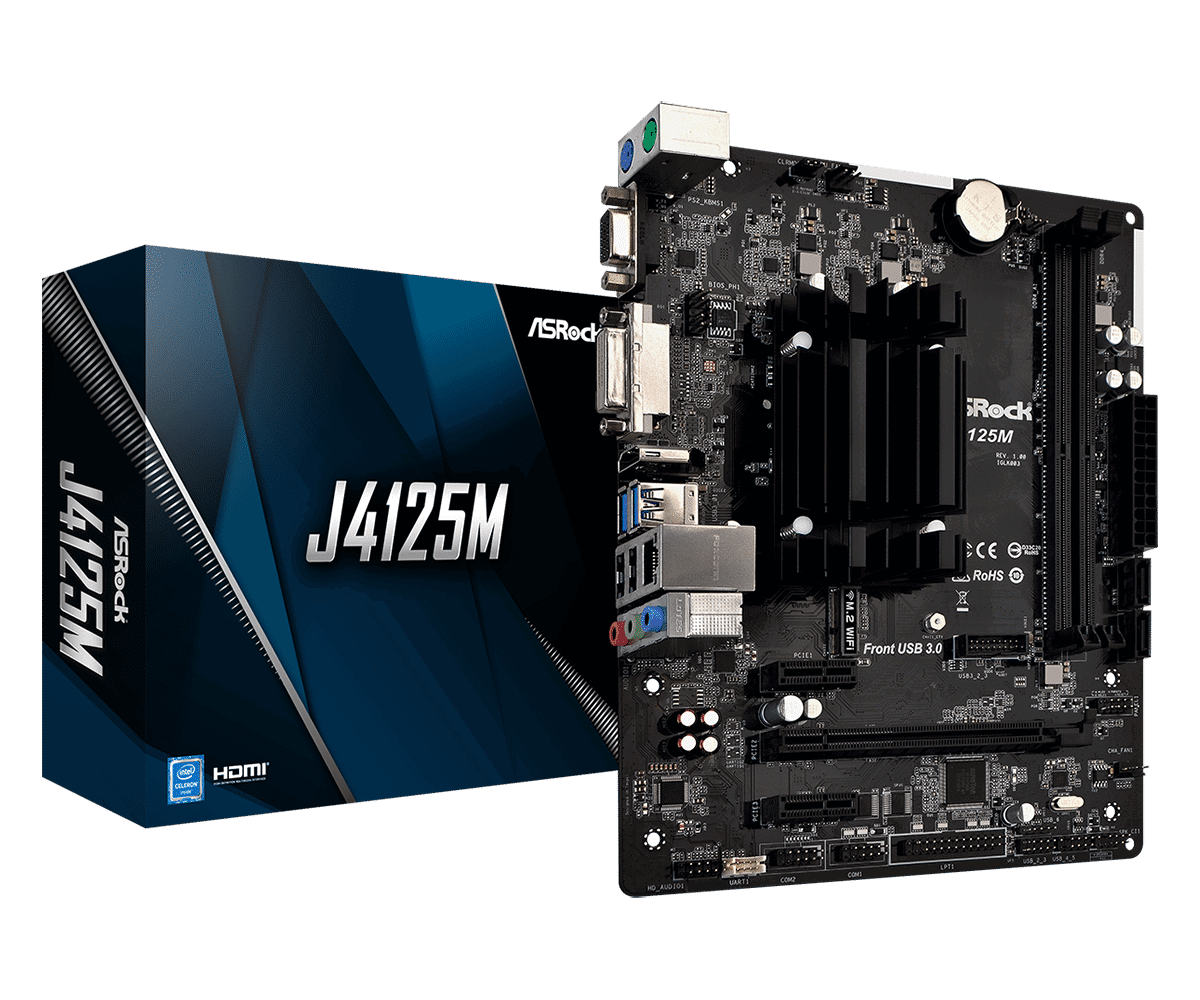

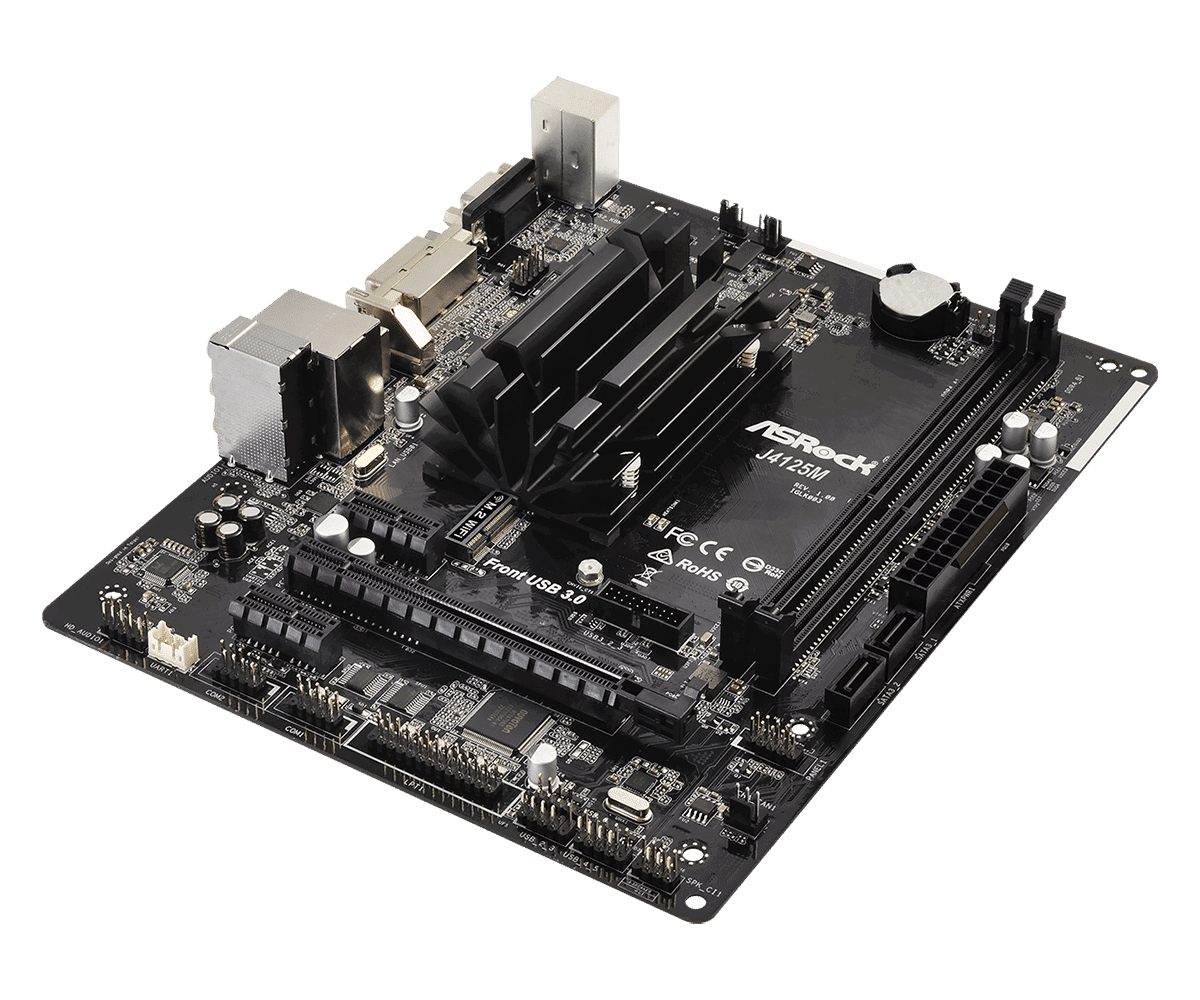

ASRock J4125M Motherboard
Type: Motherboard
Socket: Integrated Dual-Core J4125 Processor
Brand: ASRock
Condition: Refurbished
Warranty: 6 months
EAN: 4710483930324
Manufacturer Code: 90-MXBCA0-A0UAYZ
Drivers for the ASRock J4125M
Package Contents
- ASRock J4125M motherboard
- IO-Shield
- No manual, driver CD, or cables included
Unique Feature
ASRock Super Alloy
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
– Intel® Quad-Core Processor J4125 (up to 2.7 GHz)
Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots*
– Supports DDR4 2400 / 2133 non-ECC, un-buffered memory
– Max. capacity of system memory: 8GB
*2GB DRAM per module is not supported.
Intel® Extreme Memory Profile (XMP) is not supported
BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports Plug and Play
– ACPI 5.0 compliant wake up events
– Supports jumperfree
– SMBIOS 3.0 support
Graphics
– Integrated Intel® UHD Graphics 600: 12 EUs inside (Up to 750MHz)
– DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2
– HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit
– HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
– Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
– Supports HDCP 2.2 with DVI-D and HDMI 2.0 Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 2.0 Ports
Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Supports Surge Protection
– ELNA Audio Caps
*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE2: x1 mode)
– 2 x PCI Express 2.0 x1 Slots
– 1 x M.2 Socket (Key E), supports type 2230 Intel® CNVi (Integrated WiFi/BT)*
*M.2 PCI Express module is not supported
Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
– 1 x Print Port Header
– 2 x COM Port Headers
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (3-pin)
– 1 x Chassis Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x Front Panel Audio Connector
– 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

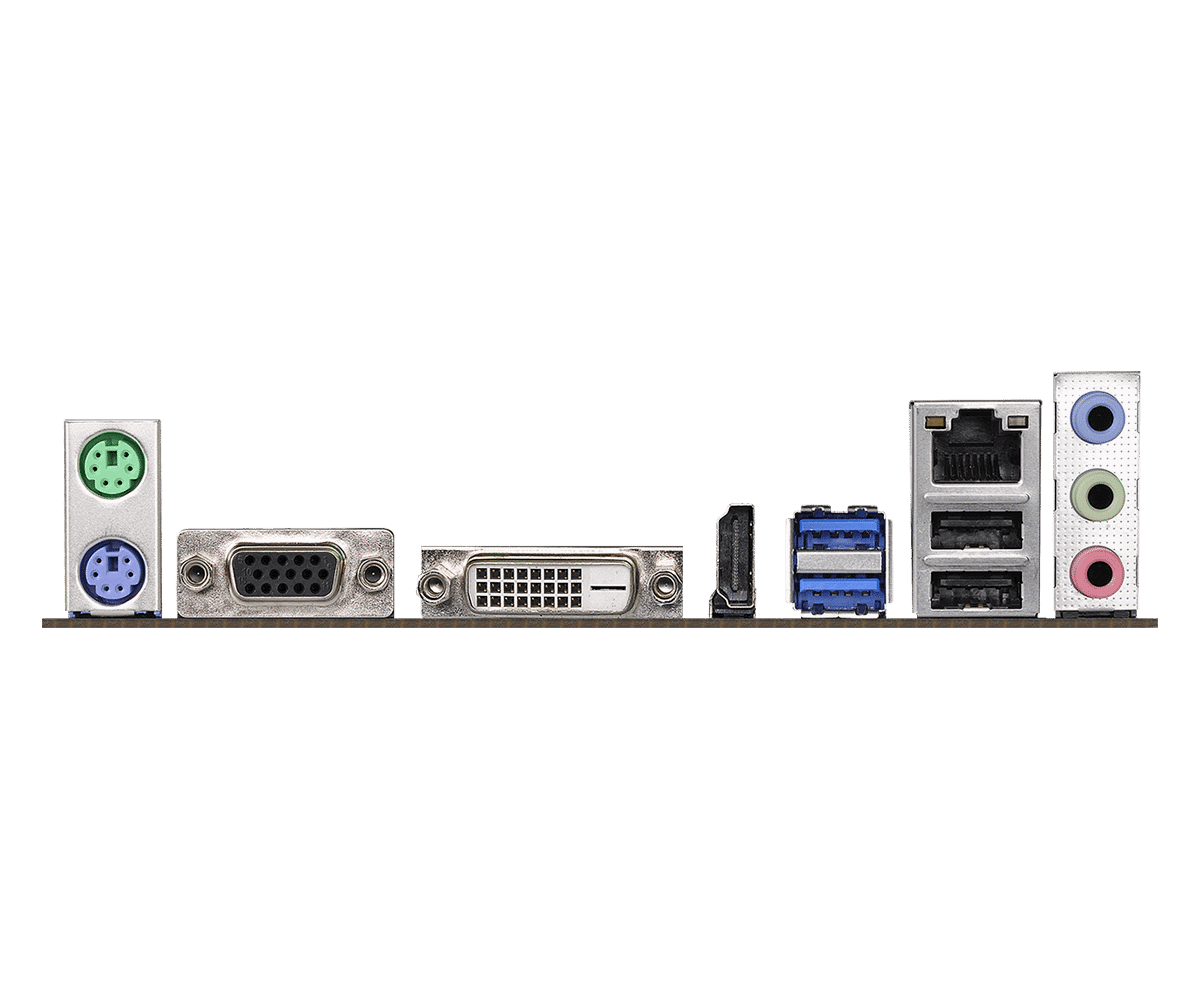

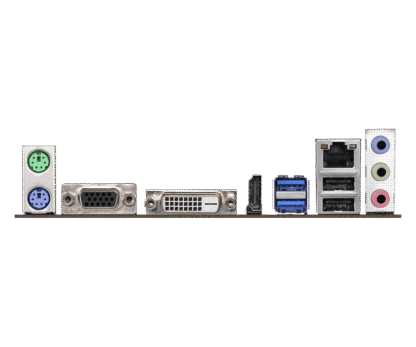

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
UEFI
– ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories
– I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
Hardware Monitor
– CPU/Chassis temperature sensing
– CPU/Chassis Fan Tachometer
– CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU/Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
– Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm
– Solid Capacitor design
OS
– Microsoft Windows® 10 64-bit / 11 64-bit
*Supports UEFI mode only
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
