Description
The ASRock D1800M is a compact and efficient motherboard equipped with an integrated Intel Dual-Core Celeron J1800 processor. This energy-efficient CPU offers a clock speed of 2.41 GHz, which can dynamically boost to 2.58 GHz thanks to Burst Technology. This motherboard supports DDR3 memory modules and features versatile connectivity options, including HDMI, VGA, and DVI for display connectivity, as well as USB 3.0 and USB 2.0 ports for peripherals. Additionally, SATA3 connections are available for fast data transfer to hard drives and SSDs. The combination of a powerful built-in processor and extensive connectivity makes the ASRock D1800M an ideal choice for compact desktop solutions.

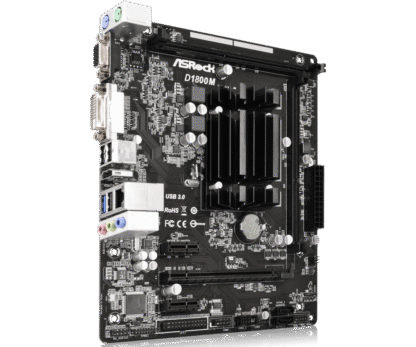

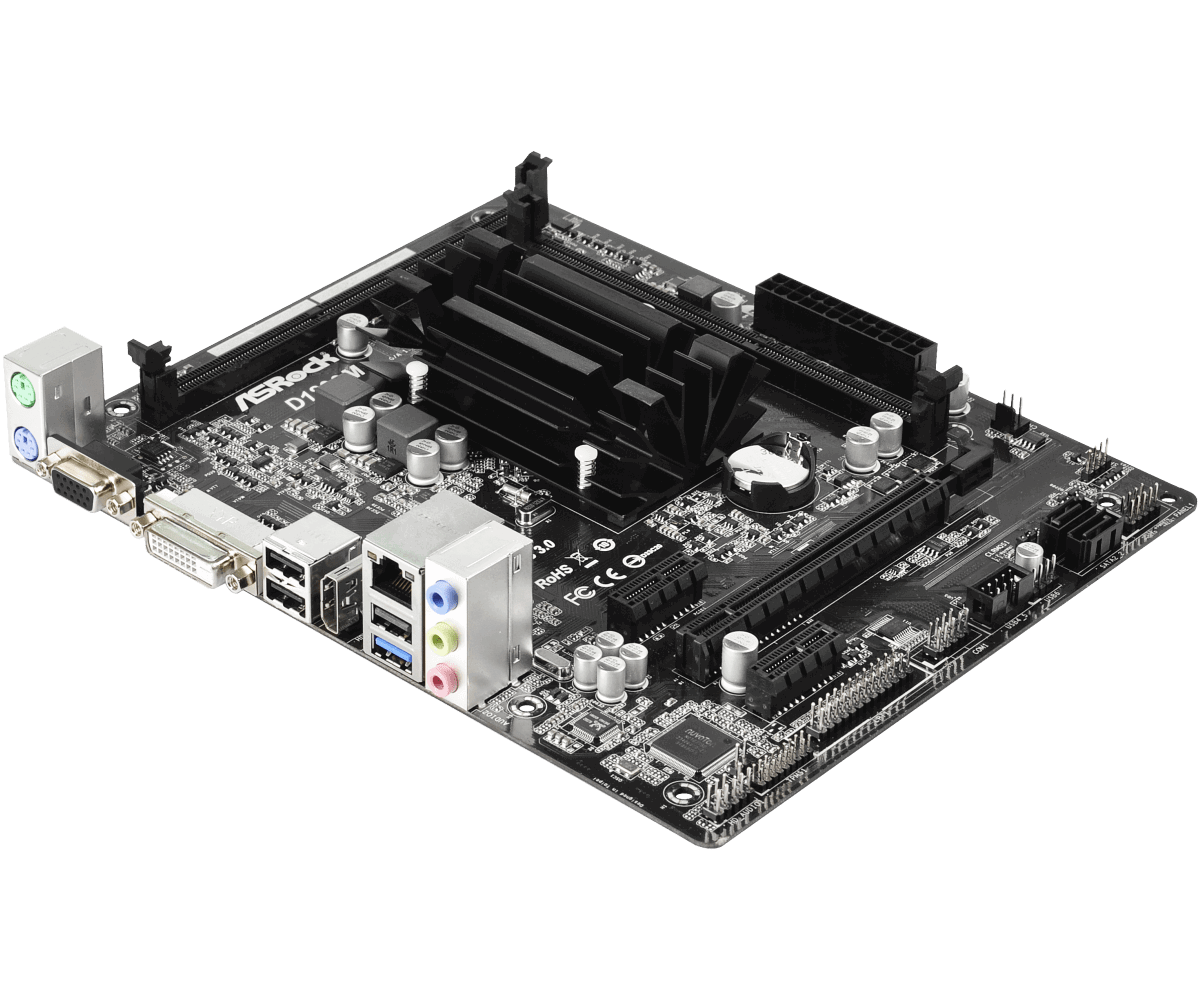

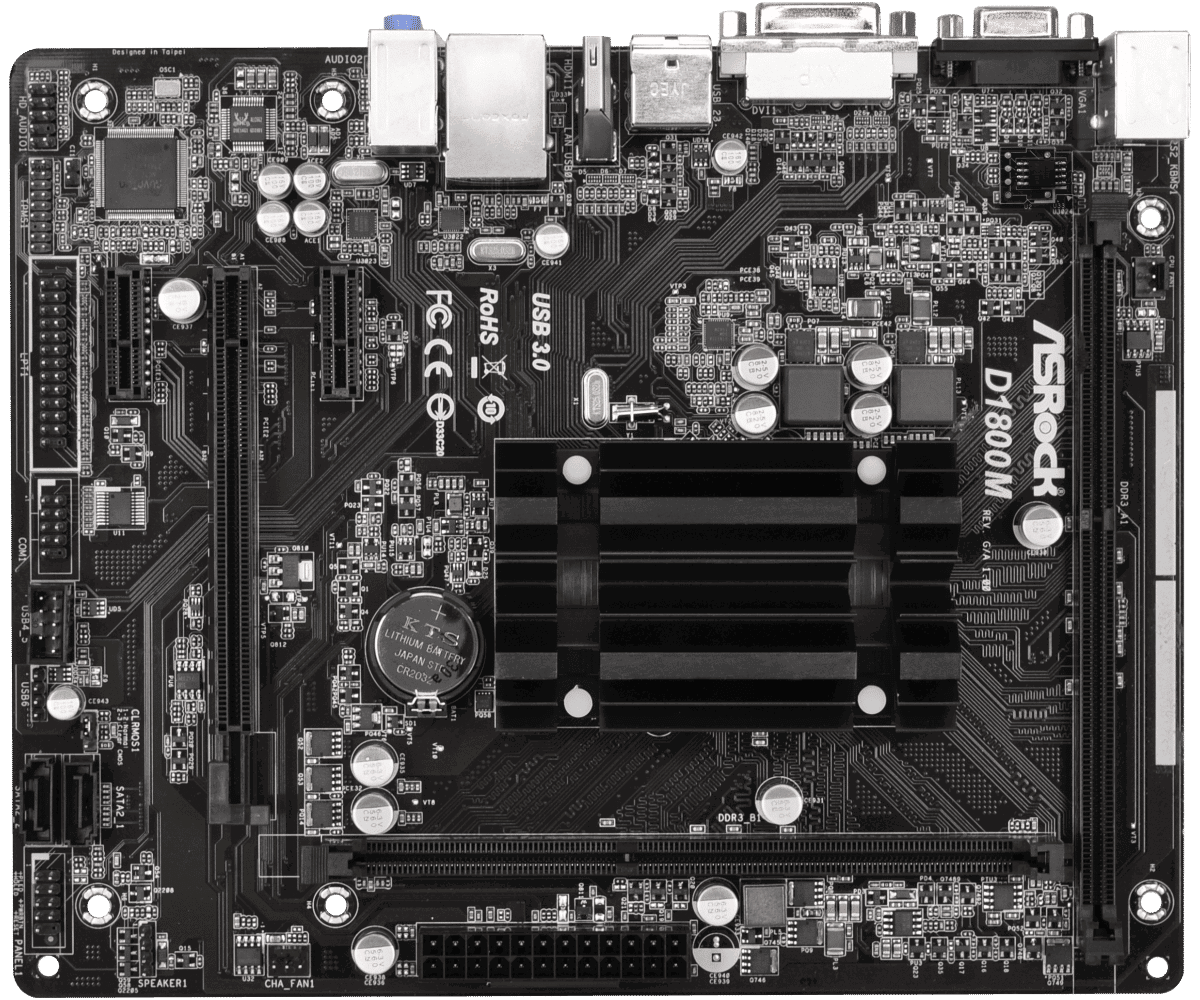

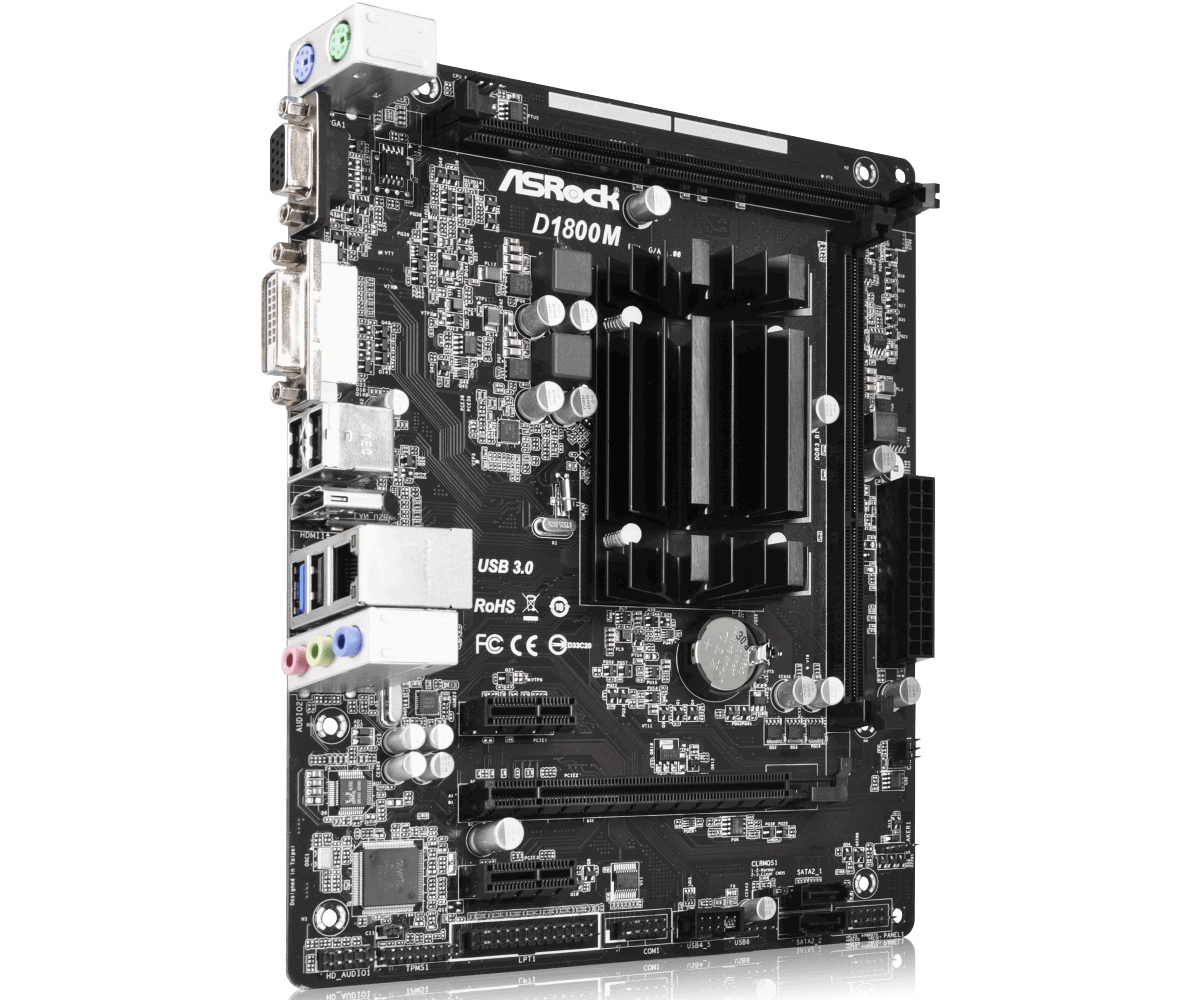

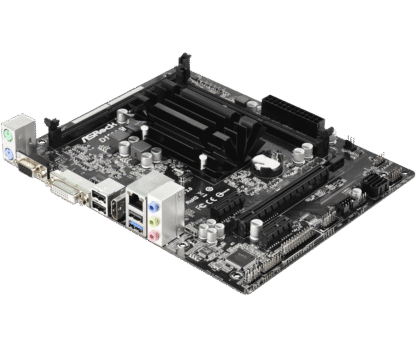

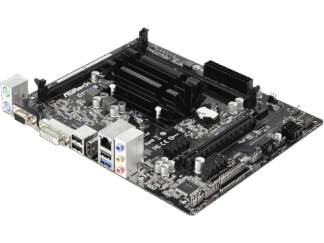

ASRock D1800M Motherboard
Type: Motherboard
Socket: Integrated Dual-Core J1800 Processor
Brand: ASRock
Condition: Refurbished
Warranty: 6 months
EAN: 4717677323238
Manufacturer code: 90-MXGUK0-A0UAYZ, D1800M
Drivers for the ASRock D1800M
Package Contents
- ASRock J4005M motherboard
- IO-Shield
- No manual, driver CD, and cables
Unique Feature
– ASRock Full Spike Protection
– ASRock Cloud
CPU
– Intel® Dual-Core Processor J1800 (2.41 GHz)
Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L DIMM Slots
– Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**If only one DIMM module is installed, please install it into DDR3_A1.
BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports Plug and Play
– ACPI 5.0 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.7 Support
Graphics
– Intel® 7th generation (Gen 7) graphics
– DirectX 11.0, Pixel Shader 5.0
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– Supports Surge Protection (ASRock Full Spike Protection)
LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)
– 2 x PCI Express 2.0 x1 Slots
Storage
– 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion Header
– 1 x CPU Fan Connector (3-pin)
– 1 x Chassis Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

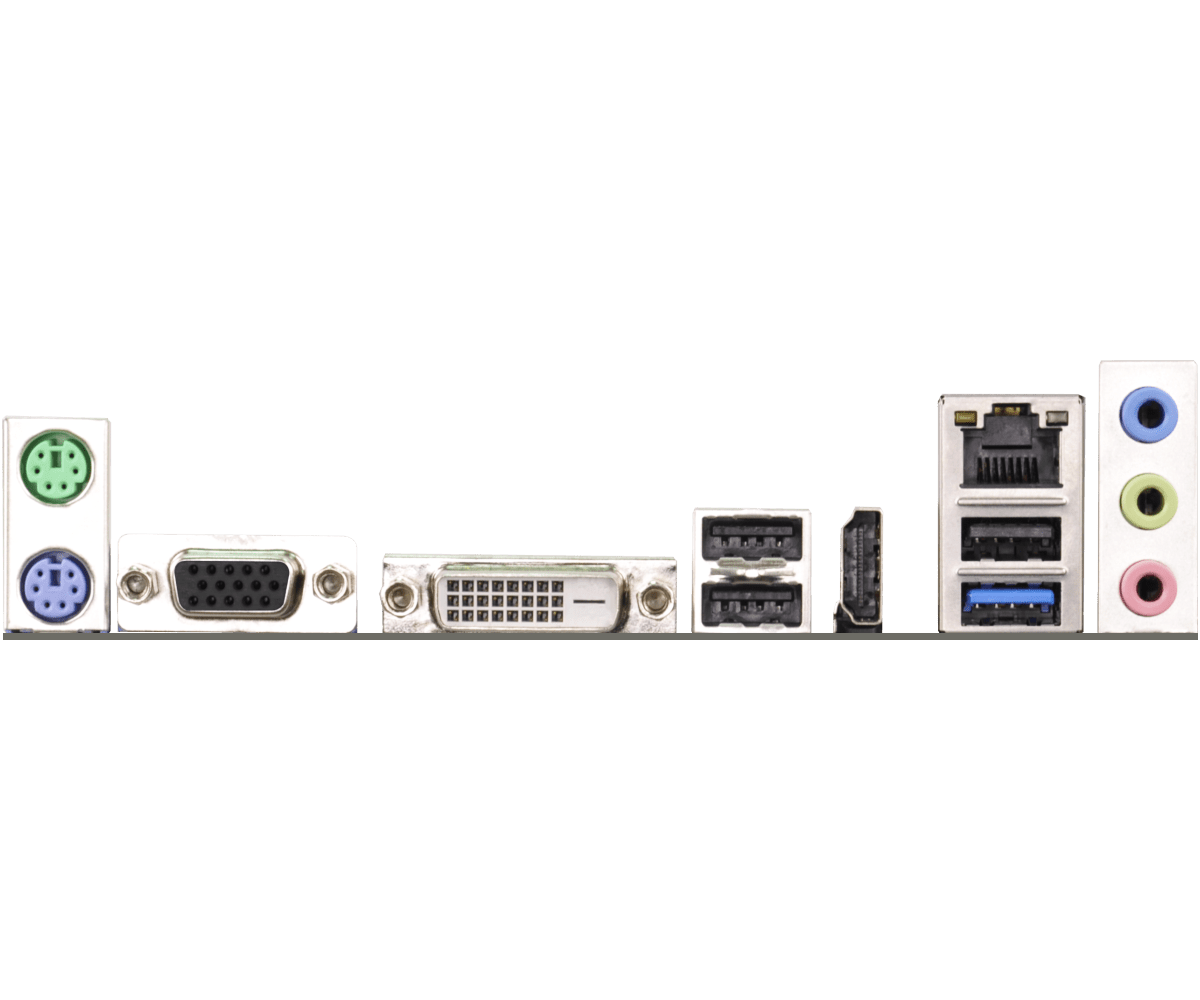

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock A-Tuning
– ASRock APP Shop
– ASRock USB Key
– ASRock XFast RAM
– ASRock Restart to UEFI
UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
Accessories
– I/O Shield
Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Supports CPU Fanless
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
– Micro ATX Form Factor
– All Solid Capacitor design
– High Density Glass Fabric PCB
OS
– Microsoft Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
