Description
dual-channel DDR5 geheugensloten met een maximale capaciteit van 192GB RAM. Verder beschikt het ASRock Z690 Phantom Gaming 4/D5 moederbord over PCI Express 5.0 x16 en PCI Express uitbreidingssloten en meerdere M.2 sloten voor snelle NVMe SSD’s. Het ASRock Z690 Phantom Gaming 4/D5 LGA1700 moederbord beschikt daarnaast over SATA3 6.0 Gb/s aansluitingen, USB 3.2 poorten, HDMI, 2.5 Gigabit LAN en HD Audio.

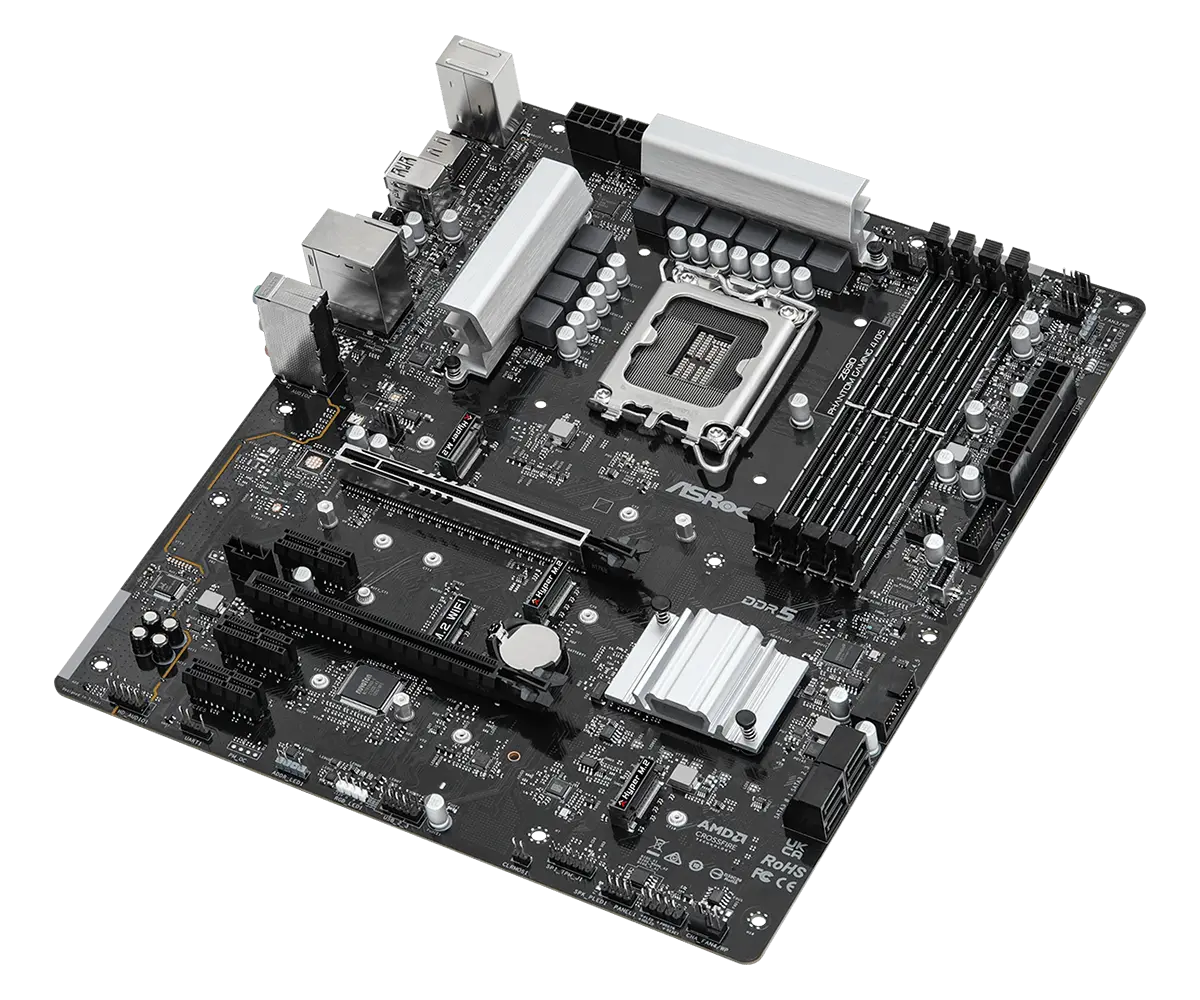

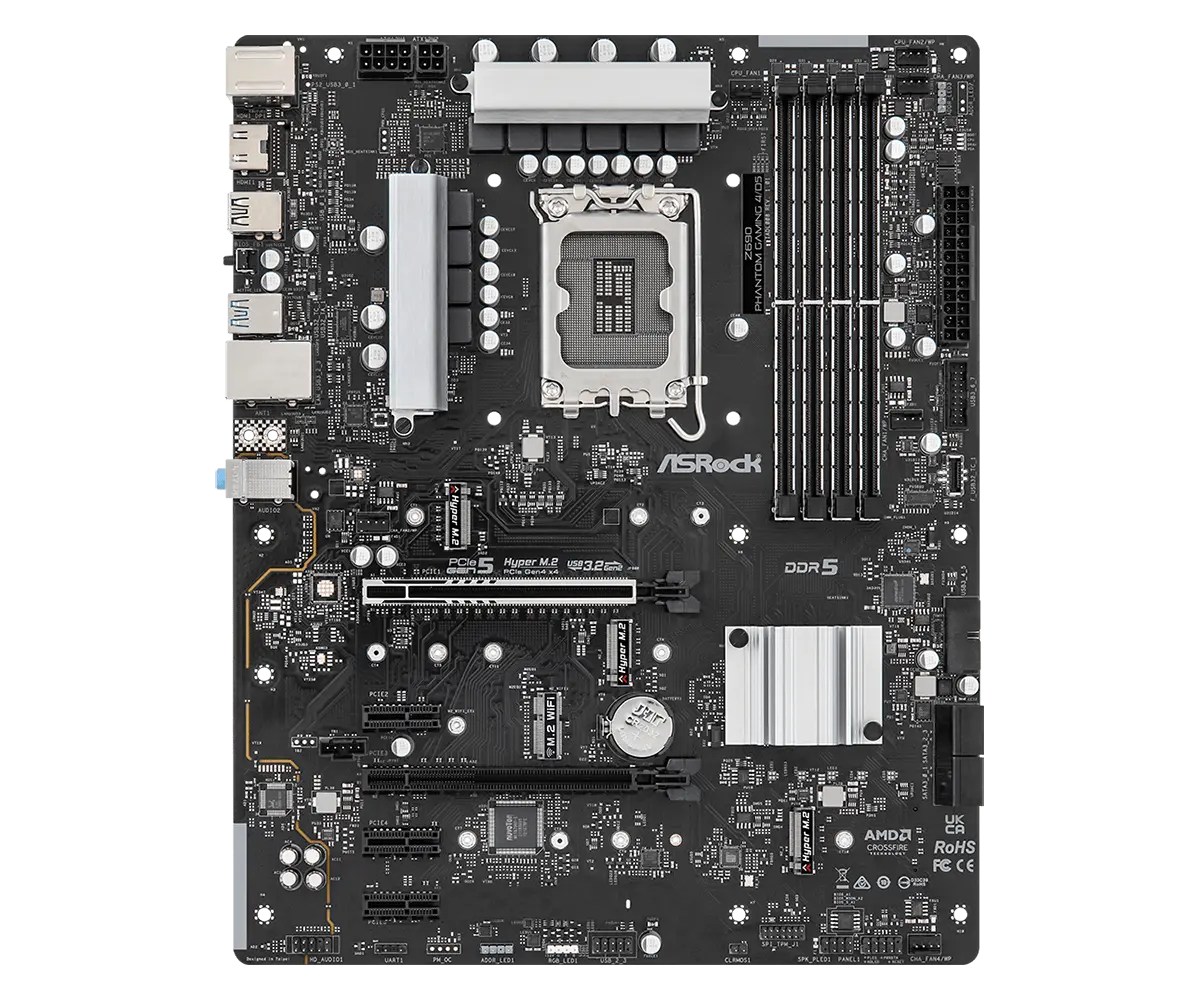

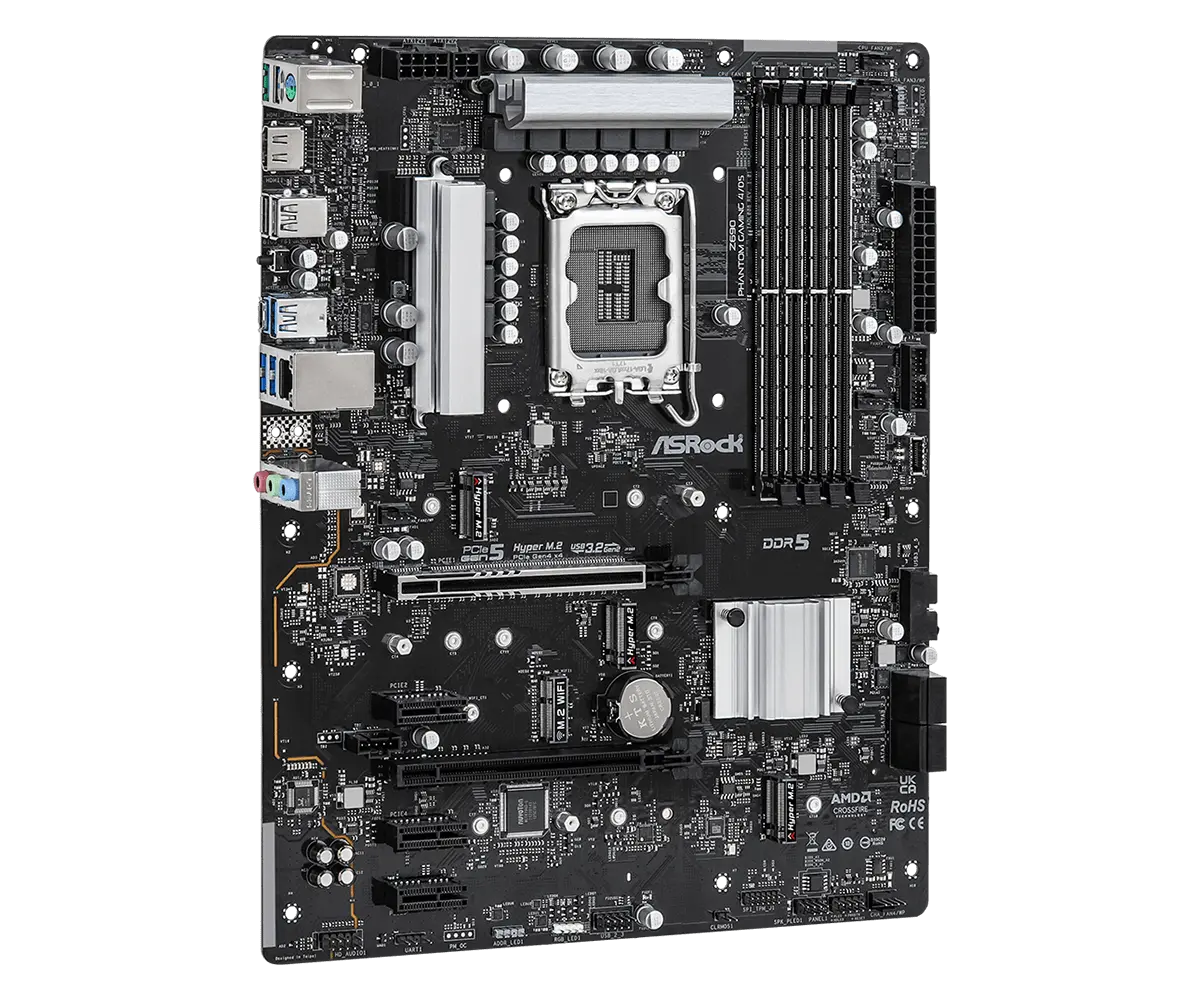

ASRock Z690 Phantom Gaming 4/D5
Product: ASRock Z690 Phantom Gaming 4/D5
Socket: LGA1700
Categorie: Moederborden
Merk: ASRock
Staat: Refurbished
EAN: 4710483936166
SKU: 90-MXBI60-A0UAYZ, Z690 Phantom Gaming 4/D5
Garantie: 6 maanden
Drivers voor de ASRock Z690 Phantom Gaming 4/D5
Processoren die worden ondersteund door de ASRock Z690 Phantom Gaming 4/D5
Pakketinhoud:
– Moederbord (ASRock Z690 Phantom Gaming 4/D5)
– I/O-Shield (metalen achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels
Unieke kenmerken
ASRock USB 3.2 Gen2
– ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s)
– ASRock USB 3.2 Gen2 Type-A-poort (10 Gb/s)
– ASRock USB 3.2 Gen2 Type-C-poort (10 Gb/s)
ASRock Super Alloy
– Premium Power Choke
– 50A Dr.MOS
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Steel Slot
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (voor alle USB-, audio- en LAN-poorten)
ASRock Live Update & APP Shop
CPU
– Ondersteunt Intel® Core™-processoren van de 14e, 13e en 12e generatie (LGA1700)
– 9-fasen voedingsontwerp
– Ondersteunt Intel® Hybrid Technology
– Ondersteunt Intel® Turbo Boost Max 3.0 Technology
Chipset
– Intel® Z690
Geheugen
– Dual Channel DDR5-geheugentechnologie
– 4 x DDR5 DIMM-slots
– Ondersteunt DDR5 non-ECC, unbuffered geheugen tot 5800+(OC)*
– Maximale capaciteit van het systeemgeheugen: 192GB
– Ondersteunt Intel® Extreme Memory Profile (XMP) 3.0
*Ondersteunt standaard DDR5 4400 (1DPC) / 3600 (2DPC).
BIOS
– 128Mb AMI UEFI Legal BIOS met meertalige grafische interface
– Ondersteunt ACPI 6.0 wake-up events
– Ondersteunt SMBIOS 2.7
– Multi-adjustment voor CPU Core/Cache, CPU GT, VDD2, DRAM, VCCIN AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH en +1.05V PCH-spanningen
Grafisch
– Intel® Xe Graphics Architecture (Gen 12)
– Ondersteunt HDMI 2.1 TMDS Compatible met een maximale resolutie tot 4K x 2K (4096×2160) @ 60Hz
– Ondersteunt HDCP 2.3 via de HDMI 2.1 TMDS Compatible-poort
*Intel® UHD Graphics en de video-uitgangen worden alleen ondersteund bij processoren met een geïntegreerde grafische processor.
Audio
– 7.1-kanaals HD Audio (Realtek ALC897 Audio Codec)
– Ondersteunt overspanningsbeveiliging
– Nahimic Audio
LAN
– Gigabit LAN 10/100/1000 Mb/s
– Intel® I219V Giga PHY
– Ondersteunt Wake-On-LAN
– Ondersteunt bliksem- en ESD-bescherming
– Ondersteunt Energy Efficient Ethernet 802.3az
– Ondersteunt UEFI PXE
Uitbreidingssloten
CPU:
– 1 x PCIe 5.0 x16-slot (PCIE1), ondersteunt x16-modus*
Chipset:
– 1 x PCIe 4.0 x16-slot (PCIE3), ondersteunt x4-modus*
– 3 x PCIe 3.0 x1-slots (PCIE2, PCIE4 en PCIE5)*
– 1 x M.2 Socket (Key E), ondersteunt type 2230 WiFi/BT PCIe WiFi-module en Intel® CNVi (geïntegreerde WiFi/BT)
– Ondersteunt AMD CrossFire™
*Ondersteunt NVMe SSD’s als opstartschijf
Opslag
CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), ondersteunt type 2260/2280 PCIe Gen4x4 (64 Gb/s)*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), ondersteunt type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s)*
– 1 x Hyper M.2 Socket (M2_3, Key M), ondersteunt type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s)*
– 4 x SATA3 6.0 Gb/s-aansluitingen
*Ondersteunt Intel® Optane™ Memory H Series (M2_2 of M2_3)
Ondersteunt Intel® Volume Management Device (VMD)
Ondersteunt NVMe SSD’s als opstartschijf
Ondersteunt ASRock U.2 Kit
RAID
– Ondersteunt RAID 0, RAID 1, RAID 5 en RAID 10 voor SATA-opslagapparaten
– Ondersteunt RAID 0, RAID 1 en RAID 5 voor M.2 NVMe-opslagapparaten
Interne aansluitingen
– 1 x SPI TPM-header
– 1 x Power LED- en speakerheader
– 1 x RGB LED-header*
– 2 x Addressable LED-headers**
– 1 x CPU-ventilatorconnector (4-pins)***
– 1 x CPU/waterpomp-ventilatorconnector (4-pins) (Smart Fan Speed Control)****
– 4 x chassis/waterpomp-ventilatorconnectors (4-pins) (Smart Fan Speed Control)*****
– 1 x 24-pins ATX-voedingsconnector
– 1 x 8-pins 12V-voedingsconnector (Hi-Density Power Connector)
– 1 x 4-pins 12V-voedingsconnector (Hi-Density Power Connector)
– 1 x frontpaneel-audioconnector
– 1 x Thunderbolt™ AIC-connector (5-pins) (ondersteunt ASRock Thunderbolt™ 4 AIC Card)
– 1 x USB 2.0-header (ondersteunt 2 USB 2.0-poorten) (met ESD-bescherming)
– 2 x USB 3.2 Gen1-headers (ondersteunen 4 USB 3.2 Gen1-poorten) (met ESD-bescherming)
– 1 x Front Panel Type-C USB 3.2 Gen2x2-header (20 Gb/s) (met ESD-bescherming)
*Ondersteunt in totaal maximaal een 12V/3A, 36W LED-strip
**Ondersteunt in totaal maximaal een 5V/3A, 15W LED-strip
***De CPU-ventilatorconnector ondersteunt een CPU-ventilator met een maximaal vermogen van 1A (12W).
****De CPU/waterpomp-ventilatorconnector ondersteunt een waterkoelingsventilator met een maximaal vermogen van 2A (24W).
*****De chassis/waterpomp-ventilatorconnectors ondersteunen waterkoelingsventilatoren met een maximaal vermogen van 2A (24W).
CPU_FAN2/WP en CHA_FAN1~4/WP detecteren automatisch of een 3-pins of 4-pins ventilator wordt gebruikt.

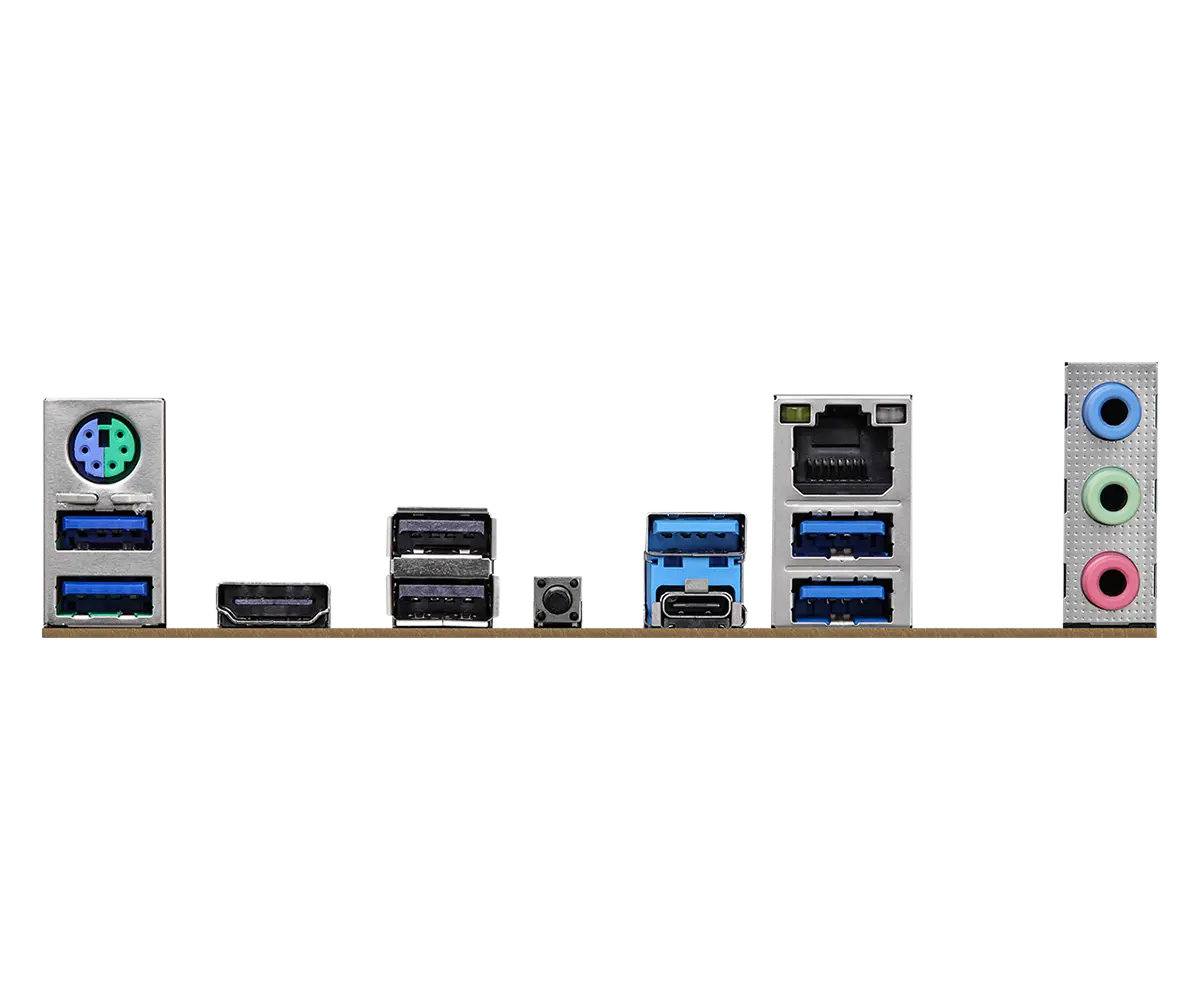

Aansluitingen achterzijde
– 3 x antennebevestigingspunten
– 1 x PS/2 muis/toetsenbord-poort
– 1 x HDMI-poort
– 1 x USB 3.2 Gen2 Type-A-poort (10 Gb/s) (ReDriver) (met ESD-bescherming)
– 1 x USB 3.2 Gen2 Type-C-poort (10 Gb/s) (ReDriver) (met ESD-bescherming)
– 4 x USB 3.2 Gen1-poorten (met ESD-bescherming)
– 2 x USB 2.0-poorten (met ESD-bescherming)
– 1 x RJ-45 LAN-poort met LED (ACT/LINK LED en SPEED LED)
– 1 x BIOS Flashback-knop
– HD Audio-aansluitingen: Line-in / Front Speaker / Microfoon
Software en UEFI
Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Polychrome SYNC
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer
*Deze hulpprogramma’s kunnen worden gedownload via ASRock Live Update & APP Shop.
Accessoires
– I/O-Shield
Hardwaremonitor
– Ventilatortoerentalmeting: CPU, CPU/waterpomp en chassis/waterpompventilatoren
– Quiet Fan (automatische regeling van de chassisventilatorsnelheid op basis van de CPU-temperatuur): CPU, CPU/waterpomp en chassis/waterpompventilatoren
– Meervoudige ventilatorsnelheidsregeling: CPU, CPU/waterpomp en chassis/waterpompventilatoren
– Spanningsbewaking: CPU Vcore, VCCSA, VDD2, +1.05V PROC, +0.82V PCH, ATX+5VSB, VCCIN AUX, PCH, +12V, +5V, +3.3V
Formaat
– ATX-formaat: 12,0 x 9,6 inch (30,5 x 24,4 cm)
– Solid Capacitor-ontwerp
Besturingssysteem
– Microsoft Windows® 10 64-bit / Windows 11 64-bit
Certificeringen
– FCC, CE
– ErP/EuP Ready (een ErP/EuP-compatibele voeding is vereist)
The ASRock Z690 Phantom Gaming 4/D5 Motherboard is an ATX motherboard based on the Intel Z690 chipset and supports 12th, 13th and 14th Gen Intel® Core™ processors with the LGA1700 socket. The motherboard features dual-channel DDR5 memory slots with a maximum capacity of 192GB RAM. Furthermore, the ASRock Z690 Phantom Gaming 4/D5 motherboard features PCI Express 5.0 x16 and PCI Express expansion slots and multiple M.2 slots for fast NVMe SSDs. The ASRock Z690 Phantom Gaming 4/D5 LGA1700 motherboard also features SATA3 6.0 Gb/s connectors, USB 3.2 ports, HDMI, 2.5 Gigabit LAN and HD Audio.
ASRock Z690 Phantom Gaming 4/D5
Product: ASRock Z690 Phantom Gaming 4/D5
Socket: LGA1700
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4710483936166
SKU: 90-MXBI60-A0UAYZ, Z690 Phantom Gaming 4/D5
Warranty: 6 months
Drivers for the ASRock Z690 Phantom Gaming 4/D5
Processors supported by the ASRock Z690 Phantom Gaming 4/D5
Package Contents:
– Motherboard (ASRock Z690 Phantom Gaming 4/D5)
– I/O Shield (metal backplate)
– No manual
– No driver CD
– No cables
Unique Features
ASRock USB 3.2 Gen2
– ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s)
– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– Premium Power Choke
– 50A Dr.MOS
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Steel Slot
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio and LAN Ports)
ASRock Live Update & APP Shop
CPU
– Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– 9 Power Phase design
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
– Intel® Z690
Memory
– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 5800+(OC)*
– Max. capacity of system memory: 192GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0
*Supports DDR5 4400 (1DPC) / 3600 (2DPC) natively.
BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– Supports ACPI 6.0 compliant wake-up events
– Supports SMBIOS 2.7
– CPU Core/Cache, CPU GT, VDD2, DRAM, VCCIN AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH and +1.05V PCH Voltage Multi-adjustment
Graphics
– Intel® Xe Graphics Architecture (Gen 12)
– Supports HDMI 2.1 TMDS Compatible with a maximum resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
*Intel® UHD Graphics and the video outputs are only supported with processors featuring integrated graphics.
Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
– Nahimic Audio
LAN
– Gigabit LAN 10/100/1000 Mb/s
– Intel® I219V Giga PHY
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports UEFI PXE
Expansion Slots
CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
– 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE4 and PCIE5)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
– Supports AMD CrossFire™
*Supports NVMe SSDs as boot disks
Storage
CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s)*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s)*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s)*
– 4 x SATA3 6.0 Gb/s Connectors
*Supports Intel® Optane™ Memory H Series (M2_2 or M2_3)
Supports Intel® Volume Management Device (VMD)
Supports NVMe SSDs as boot disks
Supports ASRock U.2 Kit
RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Internal Connectors
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 2 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24-pin ATX Power Connector
– 1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4-pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
*Supports in total up to 12V/3A, 36W LED Strip
**Supports in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports a CPU fan with a maximum power of 1A (12W).
****The CPU/Water Pump Fan Connector supports a water cooling fan with a maximum power of 2A (24W).
*****The Chassis/Water Pump Fan Connectors support water cooling fans with a maximum power of 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can automatically detect whether a 3-pin or 4-pin fan is being used.
Rear Panel I/O
– 3 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
– 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line-in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Polychrome SYNC
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
– I/O Shield
Hardware Monitor
– Fan Tachometer: CPU, CPU/Water Pump and Chassis/Water Pump Fans
– Quiet Fan (automatically adjusts chassis fan speed based on CPU temperature): CPU, CPU/Water Pump and Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump and Chassis/Water Pump Fans
– Voltage monitoring: CPU Vcore, VCCSA, VDD2, +1.05V PROC, +0.82V PCH, ATX+5VSB, VCCIN AUX, PCH, +12V, +5V, +3.3V
Form Factor
– ATX Form Factor: 12.0 x 9.6 in (30.5 x 24.4 cm)
– Solid Capacitor design
Operating System
– Microsoft Windows® 10 64-bit / Windows 11 64-bit
Certifications
– FCC, CE
– ErP/EuP Ready (an ErP/EuP compatible power supply is required)
