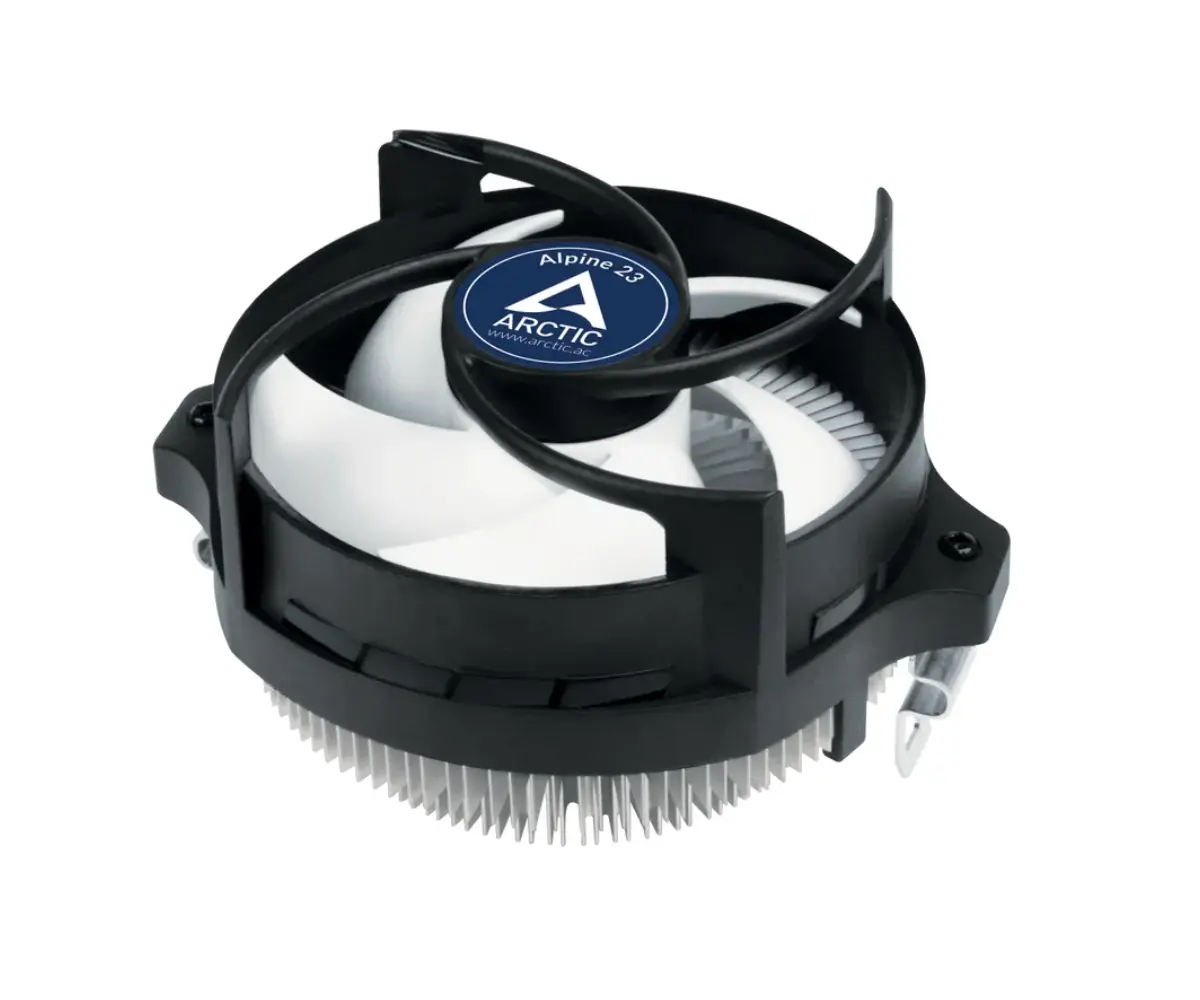

Arctic Alpine 23

The ARCTIC Alpine 23 is a compact CPU air cooler specifically designed for AMD processors using the AM4 and AM5 sockets. With an installation height of only 65 mm, the cooler is an excellent choice for compact desktop computers and cases where space is limited.

The Alpine 23 uses a compact aluminium radial heatsink featuring 50 Y-shaped cooling fins. This design increases the available cooling surface for efficient heat dissipation. The integrated 90 mm PWM fan offers a wide speed range from 100 to 2000 RPM, allowing the fan speed to automatically adjust according to CPU load.

For easy installation, the ARCTIC Alpine 23 comes with pre-applied ARCTIC MX-4 thermal compound. The cooler mounts directly onto the existing AMD retention module and provides unlimited RAM clearance.

Product: ARCTIC Alpine 23
Type: CPU Air Cooler
AMD Socket: AM5 / AM4
Fan: 90 mm PWM
Fan Speed: 100 – 2000 RPM
Noise Level: 0.3 Sone
Bearing: Fluid Dynamic Bearing
Heatsink: Aluminium
Thermal Paste: ARCTIC MX-4 pre-applied
Dimensions: 98.6 x 121 x 65 mm
Weight: 275.5 g
SKU: ACALP00035A
EAN: 4895213702829

Package Contents:

ARCTIC Alpine 23 CPU cooler
Pre-applied ARCTIC MX-4 thermal compound
Mounting hardware for AMD AM4 / AM5

Key Features

Compact AMD Design
– Compatible with AMD AM4
– Compatible with AMD AM5
– Installation height of only 65 mm
– Ideal for compact desktop systems
– Unlimited RAM clearance

Efficient Aluminium Heatsink
– Radial heatsink
– Aluminium construction
– 50 Y-shaped cooling fins
– Heatsink outer diameter: 93.4 mm
– Efficient cooling in a compact design

90 mm PWM Fan
– Fan diameter: 90 mm
– Fan speed: 100 – 2000 RPM
– Automatic PWM speed control
– Fluid Dynamic Bearing
– Noise level: 0.3 Sone
– 4-pin connector
– Current: 0.06A

Easy Installation
– Uses the existing AMD retention module
– Easy mounting system
– MX-4 thermal compound pre-applied
– No separate thermal paste required

Socket Compatibility

– AMD AM5
– AMD AM4

*The ARCTIC Alpine 23 is designed exclusively for the listed AMD sockets and is not compatible with Intel sockets.

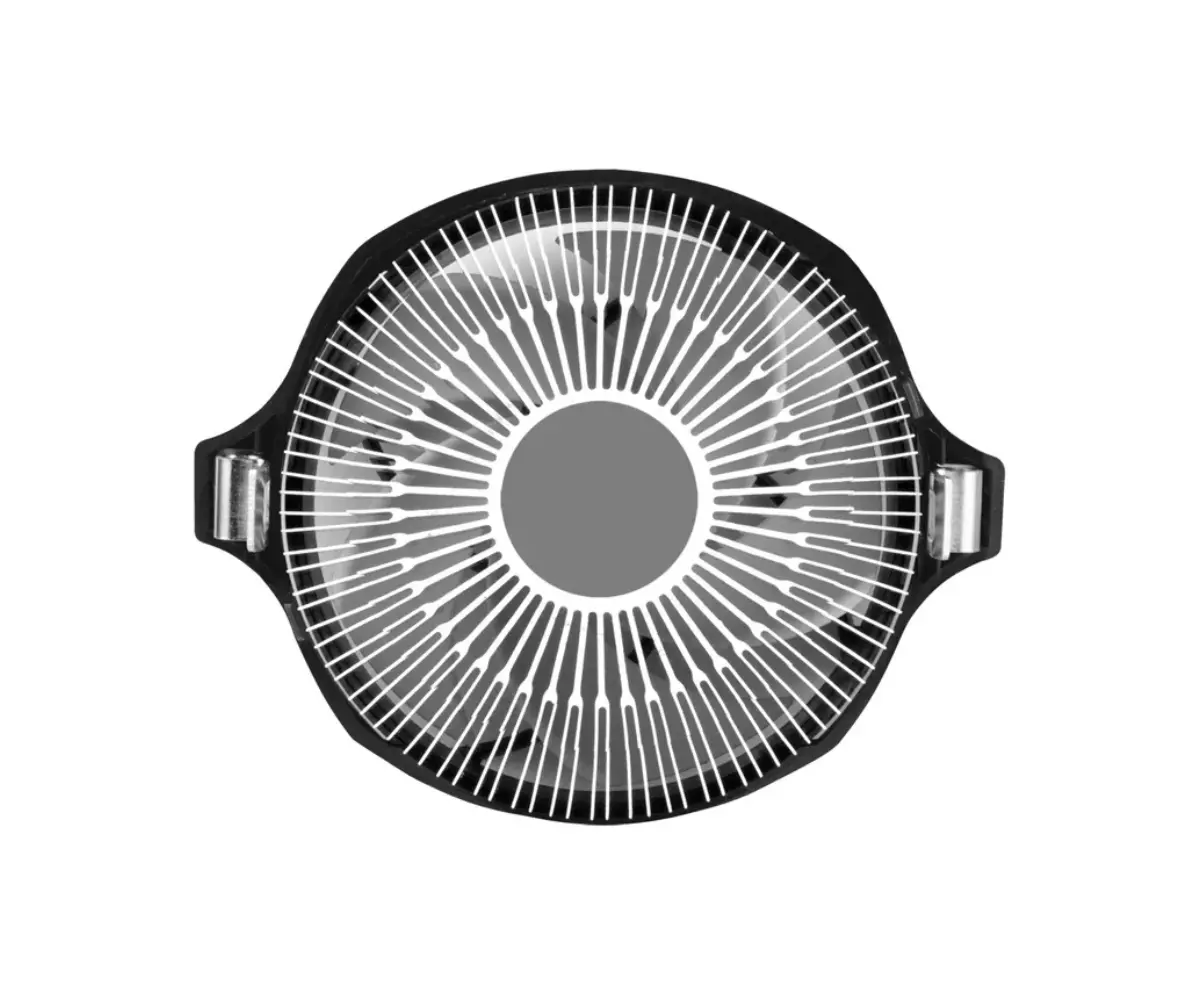

Heatsink

– Type: Radial heatsink
– Material: Aluminium
– Number of fins: 50
– Fin design: Y-shaped
– Outer diameter: 93.4 mm
– Compact design
– Unlimited RAM clearance

Fan

– Fan diameter: 90 mm
– Speed: 100 – 2000 RPM
– Speed control: PWM
– Bearing: Fluid Dynamic Bearing
– Noise level: 0.3 Sone
– Connector: 4-pin
– Current: 0.06A

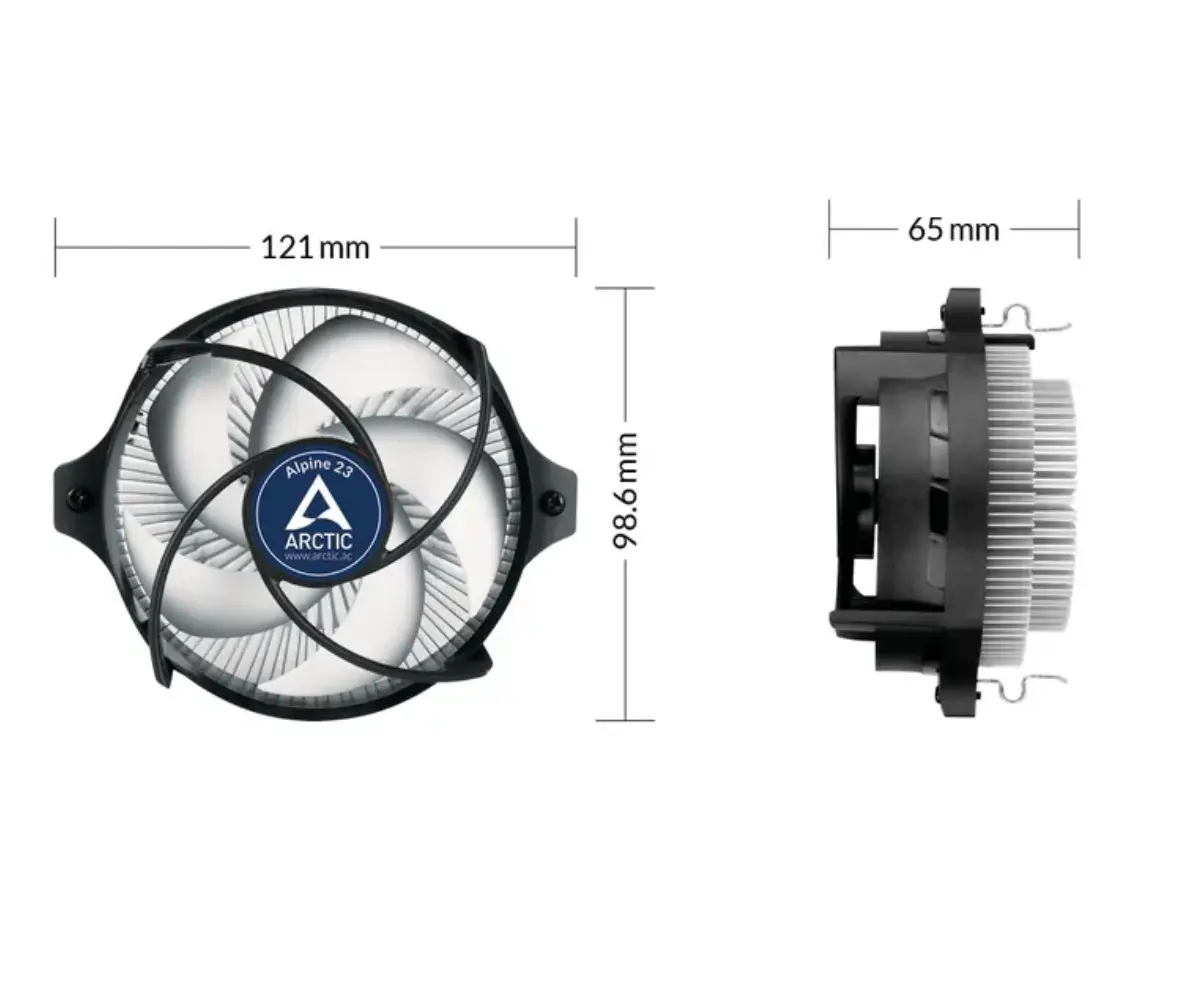

Dimensions and Weight

– Length: 98.6 mm
– Width: 121 mm
– Height: 65 mm
– Installation height: 65 mm
– Weight: 275.5 g

Product Information

Manufacturer: ARCTIC
Model: Alpine 23
SKU: ACALP00035A
EAN: 4895213702829
UPC: 840033400626
Type: CPU Air Cooler
Socket: AMD AM5 / AM4
Fan: 90 mm PWM
Thermal Paste: ARCTIC MX-4 pre-applied
