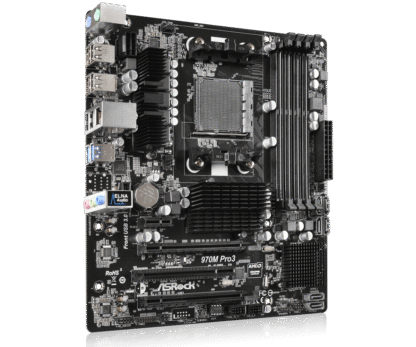

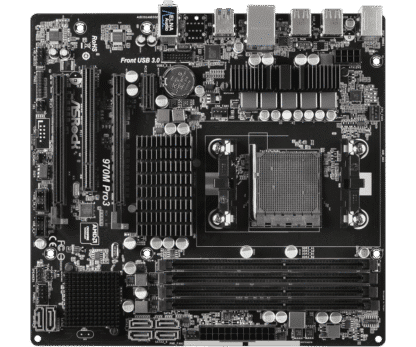

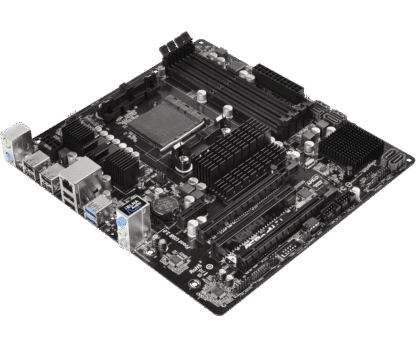

ASRock 970M Pro3 AMD AM3+ motherboard

  • Support for Socket AM3+ / AM3 Processors
  • Solid Capacitor design
  • Supports Dual Channel DDR3 2400+(OC)
  • 2 PCIe 2.0 x16, 1 PCIe 2.0 x1, 1 PCI
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 6 SATA3
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear), 10 USB 2.0 (4 Front, 6 Rear)
  • 1 TPM Header, 1 IR Header
  • Supports ASRock Full Spike Protection, X-Boost, APP Shop, High Density Glass Fabric PCB

Out of stock

Vergelijk
SKU: ASRock 970M Pro3 Categories: , , Tags: , , ,

Description

ASRock 970M Pro3:  motherboard | Micro ATX | AMD AM3(+) | AMD 970 Chipset | 4x DDR3 (max. 64GB) | PCI Express 2.0 x16 | PCI Express 2.0 x1 | PCI | SATA3 | USB 2.0 | USB 3.1 Gen1 | Supports AMD Quad CrossFireX™ ​​and CrossFireX™


Product:ASRock 970M Pro3
Socket:
AMD AM3(+)
Category: Motherboards
Brand: ASRock
Condition: Refurbished – Latest available BIOS version installed
EAN: 4717677325775
SKU:
0-MXGXE0-A0UAYZ, 970M Pro3
Warranty: 6 months


package content:
– Motherboard (970M Pro3)
– Backplate (blende)
no manual
no driver CD
no cables


Unique Feature
ASRock Super Alloy
– Sapphire Black PCB
ASRock Full Spike Protection
ASRock APP Shop


CPU
– Supports Socket AM3+ processors
– Supports Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
– Supports 8-Core CPU
– Supports UCC feature (Unlock CPU Core)
– 4+1 PowerPhase design
– Supports CPU up to 140W
– Supports AMD’s Cool ‘n’ Quiet Technology
– FSB 2400MHz (4.8GT/s)
– Supports Untied Overclocking Technology
– Supports Hyper-Transport 3.0 (HT 3.0) Technology


Chipset
– Northbridge: AMD 970
– Southbridge: AMD SB950


Memory
– Dual Channel DDR3 Memory Technology
– 4 x DDR3 DIMM Slots
– Supports DDR3 2400+(OC) / 2100(OC) / 1866(OC) / 1800(OC) / 1600(OC) / 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
– Supports AMD Memory Profile Technology (AMP) up to AMP 2400

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Support “Plug and Play”
– ACPI 1.1 Compliant wake up events
– Supports jumper free
– SMBIOS 2.3.1 support
– CPU, VCCM, NB Voltage multi-adjustment


Graphics
– n/a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 2 x PCI Express 2.0 x16 Slots (PCIE2: x16 mode; PCIE3: x4 mode)
– 1 x PCI Express 2.0 x1 Slot
– 1 x PCI Slot
– Supports AMD Quad CrossFireX™ ​​and CrossFireX™


Storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug*

*RAID 5 is not supported with Windows® 7 and Widows 10


Connector
– 1 x IR Header
– 1 x TPM Header
– 1 x Power LED Header
– 1 x CPU Fan Connector (4 pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x Power Fan Connector (3 pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header by Etron EJ188H (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

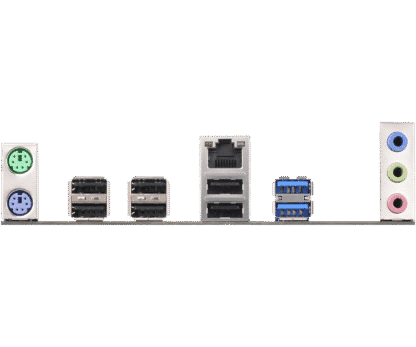

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 6 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Etron EJ188H) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock Extreme Tuning Utility (AXTU)
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
– ASRock X Boost
UEFI
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– Turbo 50 / Turbo 60 Overclocking


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Voltage


Form Factor
– Micro ATX Form Factor
– Solid Capacitor design
– High Density Glass Fabric PCB


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Additional information

Weight 1 kg
AMD-en

AM3(+)

Brand

Asrock

Form Factor

Micro-ATX

Chipset

AMD 970

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

Ethernet (RJ-45), USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

Model

970M Pro3

Length

24.4 cm

Width

24.4 cm

package content

Motherboard and Backplate (Blende)
