Product information

ASRock A75 Pro4: Motherboard | ATX | AMD FM1 | 4x DDR3 | SATA 600 | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | eSATA | Firewire 400 (6 pin) | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | DVI-D | HDMI | VGA (D Sub)

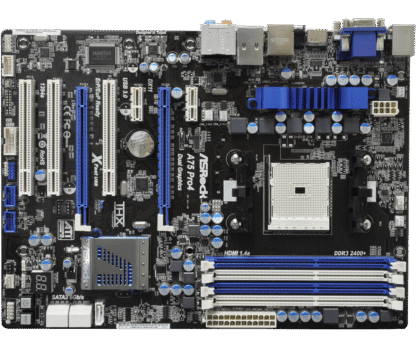

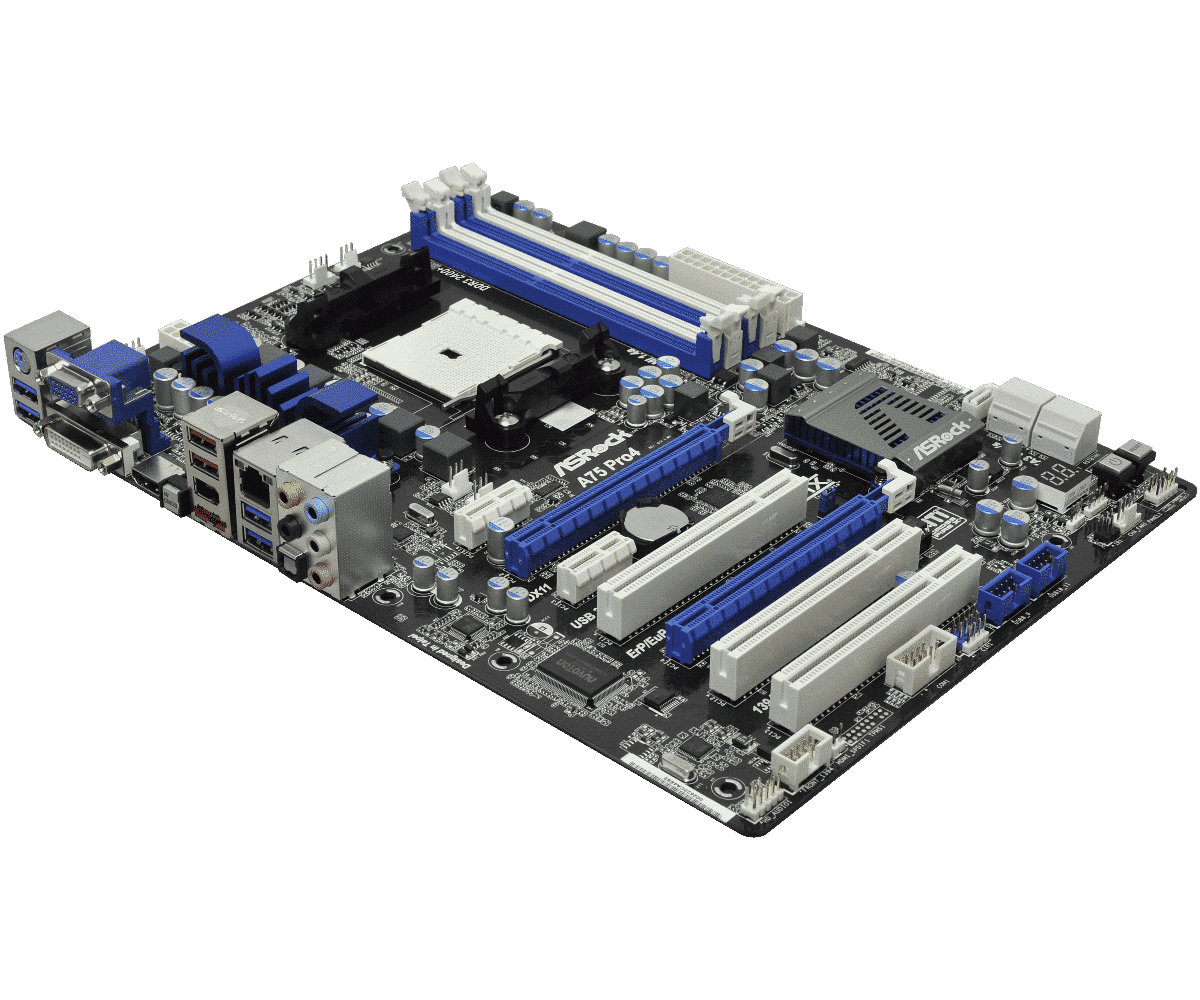

Product: ASRock A75 Pro4
Connection: AMD FM1
Category: motherboards
Brand: ASRock
EAN: 4711140877594
State: Refurbished – BIOS updated to the latest version
SKU: 90-MXGJAO-A0UAY1Z, A75 PRO4
Warranty: 6 months

package content:
– Motherboard (ASRock A75 Pro4)
– IO-Shield (Tin back plate)
– No manual
– No drivers CD
– cables

CPU
– Support for Socket FM1 100W processors
– V4 + 1 Power Phase Design
– Supports AMD’s Cool ‘n’ Quiet Technology
– UMI Link GEN2

Chipset
– AMD A75 FCH (Hudson-D3)

Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 2400+(OC)/1866/1600/1333/1066/800 non-ECC, unbuffered memory
– Max. capacity of system memory: 32GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Support “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumper free
– SMBIOS 2.3.1 Support
– DRAM, VDDP, VDDR, SB Voltage Multi-adjustment

Graphics
– Integrated AMD Radeon HD 65XX/64XX graphics in Llano APU
– DirectX 11, Pixel Shader 5.0
– Max. shared memory 512MB
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports Dual-link DVI with max. resolution up to 2560×1600 @ 75Hz
– Supports D-Sub with max. resolution up to 1920×1600 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
– Supports Blu-ray Stereoscopic 3D with HDMI
– Supports AMD Steady Video™: New video post processing capability for automatic jitter reduction on home/online video
– Supports HDCP function with DVI and HDMI ports
– Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

*Some of AMD FM1 CPU (i.e AMD Athlon/Sempron family FM1 CPU) does not have integrated graphics processor. When this kind of CPU is installed, a discrete VGA card is required.

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray audio support

LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 2 x PCI Express 2.0 x16 slots (PCIE2 @ x16 mode; PCIE4 @ x4 mode)
– 2 x PCI Express 2.0 x1 slots
– 3 x PCI slots
– Supports AMD Quad CrossFireX™, CrossFireX™ ​​and Dual Graphics

Connector
– 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug functions
– 1 x IR header
– 1 x CIR header
– 1 x COM port header
– 1 x HDMI_SPDIF header
– 1 x IEEE 1394 header
– 1 x Power LED header
– CPU/Chassis/Power FAN connector
– 24 pin ATX power connector
– 8 pin 12V power connector
– Front panel audio connector
– 3 x USB 2.0 headers (support 6 USB 2.0 ports)
– 1 x Dr. Debug with LED*

*Check the Dr. Debug code list here.

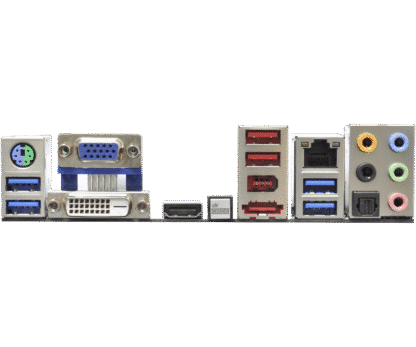

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports
– 1 x eSATA3 Connector
– 4 x USB 3.1 Gen1 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x IEEE 1394 Port
– 1 x Clear CMOS Switch with LED
– HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature
– ASRock Extreme Tuning Utility (AXTU)
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock On/Off Play Technology
– Hybrid Booster:
– ASRock U-COP

Smart Switch
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– 1 x Clear CMOS Switch with LED

Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial

Accessories
– I/O Shield
– 4 x SATA Data Cables

Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor
– ATX Form Factor: 12.0-in x 8.8-in, 30.5cm x 22.4cm
– All Solid Capacitor design

OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)
