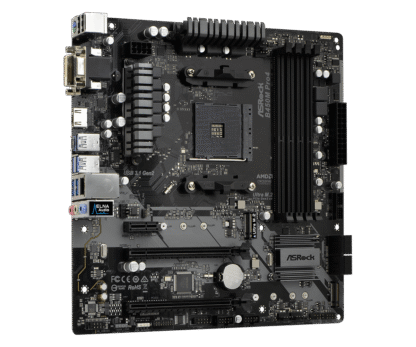

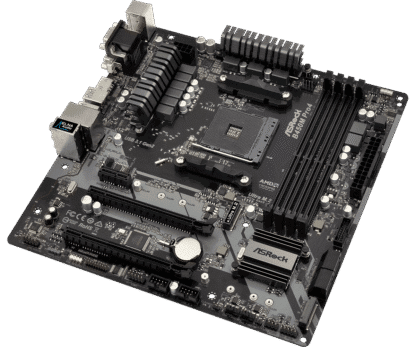

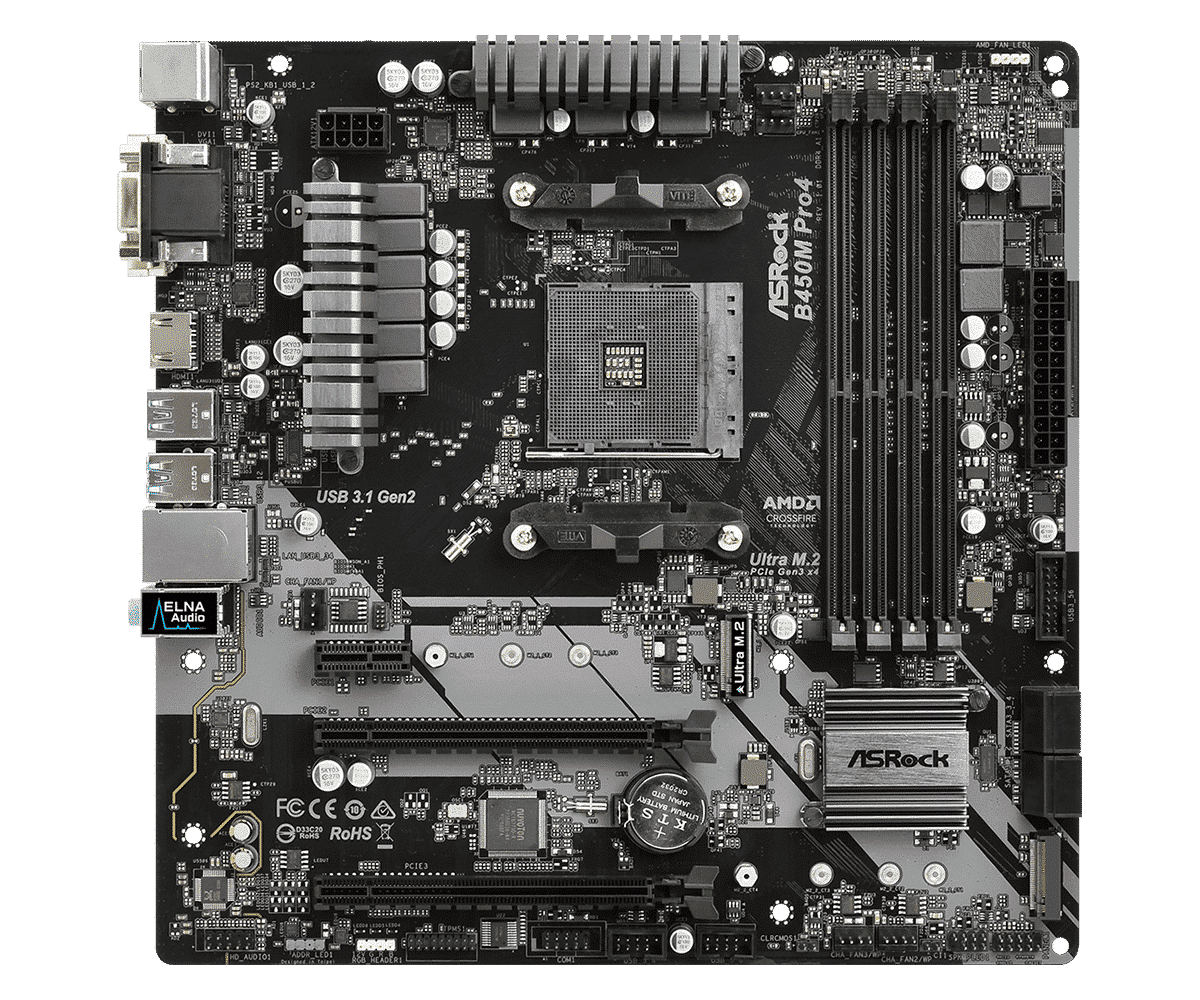

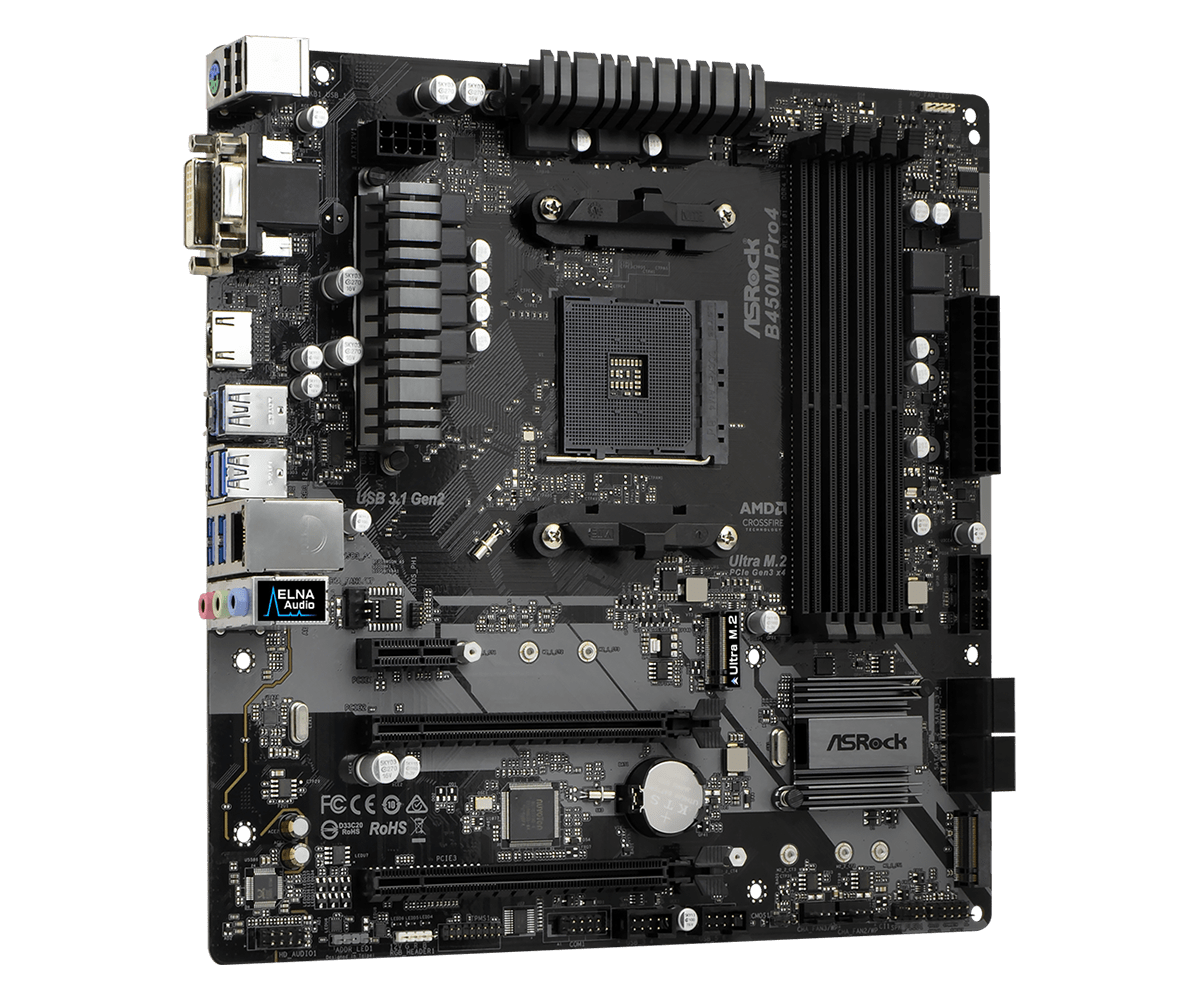

Asrock B450M Pro4-F AM4 Micro-ATX Motherboard

Fast delivery
64,95

  • Form Factor: Micro-ATX
  • Socket: AM4 (Supports Ryzen™ 2000, 3000, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors)
  • Memory: 4 DDR4 DIMM slots, up to 128GB, supports DDR4 3200+ (OC)
  • USB Ports: 4 USB 3.2 Gen1, 1 USB 3.2 Gen1 (Type C), 2 USB 2.0
  • Graphics Output: HDMI, DVI-D

27 in stock

Optional:
Thermal Compound
x
Vergelijk
SKU: B450M Pro4-F Categories: , , Tags: , , , ,

Description

The ASRock B450M Pro4-F is a powerful micro-ATX motherboard, ideal for both gamers and demanding users. It supports the latest AMD Ryzen processors and delivers excellent performance. With four DDR4 DIMM slots, it can accommodate up to 128GB of RAM, and you can expand with multiple PCIe 3.0 x16 slots for graphics cards or other expansion cards. For storage, there are four SATA3 ports and an M.2 slot for fast SSDs. Additionally, the Intel Gigabit Ethernet ensures stable network connections, while the USB 3.1 ports allow for quick data transfer. In short, the ASRock B450M Pro4-F provides everything you need for a powerful and reliable PC configuration.


Product: ASRock B450M Pro4-F
Socket: AMD AM4
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4717677338263
SKU: 90-MXBAB0-A0UAYZ, B450M Pro4-F
Warranty: 6 months


Drivers for the ASRock B450M Pro4-F
Processors supported by the ASRock B450M Pro4-F


Package Contents:
– Motherboard (ASRock B450M Pro4-F)
– IO-Shield (metal backplate)
No manual
No driver CD
No cables


Unique Features
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10Gb/s)
ASRock Super Alloy
-Premium Power Choke
– Sapphire Black PCB
– High-Density Glass Fabric PCB
– 2oz Copper PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU
– Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
– Digipower design
– 9 Power Phase design


Chipset
-AMD Promontory B450


Memory
-Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, unbuffered memory*
– AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, unbuffered memory*
– AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, unbuffered memory*
– AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, unbuffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non ECC, unbuffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non ECC, unbuffered memory*
– AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– Max. capacity of system memory: 128GB**
– Supports Extreme Memory Profile (XMP) memory modules
– 15μ Gold Contact in DIMM Slots

*For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to the below table for AMD non-XMP memory frequency support.

Ryzen Series CPUs (Vermeer):


Ryzen Series CPUs (Matisse):


Ryzen Series APUs (Cezanne):


Ryzen Series APUs (Renoir):


Ryzen Series CPUs (Pinnacle Ridge):


Ryzen Series CPUs (Picasso):


Ryzen Series CPUs (Summit Ridge):


Ryzen Series CPUs (Raven Ridge):


SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
-Supports “Plug and Play”
– ACPI 5.1 compliance wake-up events
– Supports jumper free
– SMBIOS 2.3 support
– DRAM Voltage multi-adjustment


Graphics
– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– DirectX 12, PixelShader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Three graphics output options: DVI, D-Sub, HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with HDMI and DVI-D Ports
– Supports 4K Ultra HD (UHD) playback with HDMI port

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– ELNA Audio Caps


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
– 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
AMD Ryzen series CPUs (Picasso, Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
– 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*
– 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)

*Supports NVMe SSD as boot disks
If M2_1 is occupied, PCIE4 will be disabled.

**This feature is only supported with Ryzen Series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge, Pinnacle Ridge, Picasso, and Raven Ridge).


Storage
– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, and RAID 10), NCQ, AHCI, and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge, and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)**
– 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**

*M2_2, SATA3_3 and SATA3_4 share lanes. If either of them is in use, the others will be disabled.

**If M2_1 is occupied, PCIE4 will be disabled.
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 1 x Addressable LED Header**
– 1 x AMD Fan LED Header***
– 1 x CPU Fan Connector (4-pin)****
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*Supports in total up to 12V/3A, 36W LED Strip

**Supports in total up to 5V/3A, 15W LED Strip

***The AMD Fan LED Header supports LED strips with a maximum load of 3A (36W) and a length up to 2.5M.

****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, and CHA_FAN3/WP can auto-detect if a 3-pin or 4-pin fan is in use.

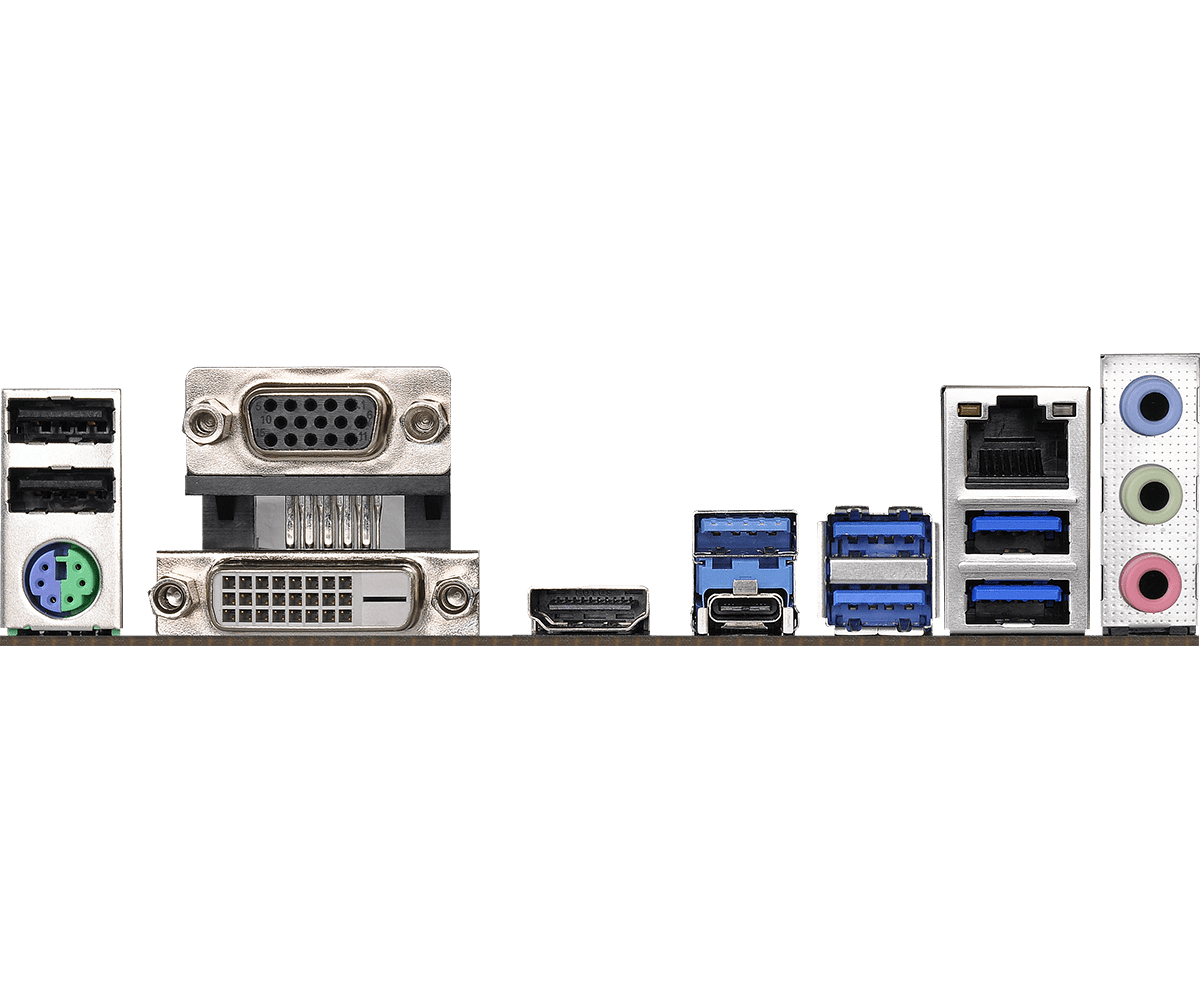

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– Temperature Sensing: CPU, MB
– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 11 64-bit*

*Summit Ridge do not officially support Windows® 11.


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Additional information

Weight 1 kg
Brand

Asrock

Model

ASRock B450M Pro4-F

Form Factor

Micro-ATX

Socket

CPU Support

Ryzen 2000 Series, Ryzen 3000 G-Series, Ryzen 3000 Series, Ryzen 4000 Series, Ryzen 5000 G-Series, Ryzen 5000 Series

Chipset

AMD Promontory B450

Memory Type

DDR4 SDRAM

Number of memory slots

4

Maximum memory size

128 GB

Connectors

Ethernet (RJ-45), HDMI, PS/2, USB 2.0, USB 3.1 Gen1, USB 3.1 Gen2 Type-A, USB 3.1 Gen2 Type-C

Storage Interfaces

Serial ATA-600, Ultra M.2 Socket

Expansion slots

1 x PCI Express 2.0 x1, 1 x PCI Express 2.0 x16, 1 x PCI Express 3.0 x16

Storage

1 x Ultra M.2, 4 x SATA3 6.0 Gb/s

USB

1 x USB 3.2 Gen1 Type-C, 2 x USB 2.0, 4 x USB 3.2 Gen1

Interfaces

M.2, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Length

24.4 cm

Width

24.4 cm

package content

Motherboard and Backplate (Blende)
