Description

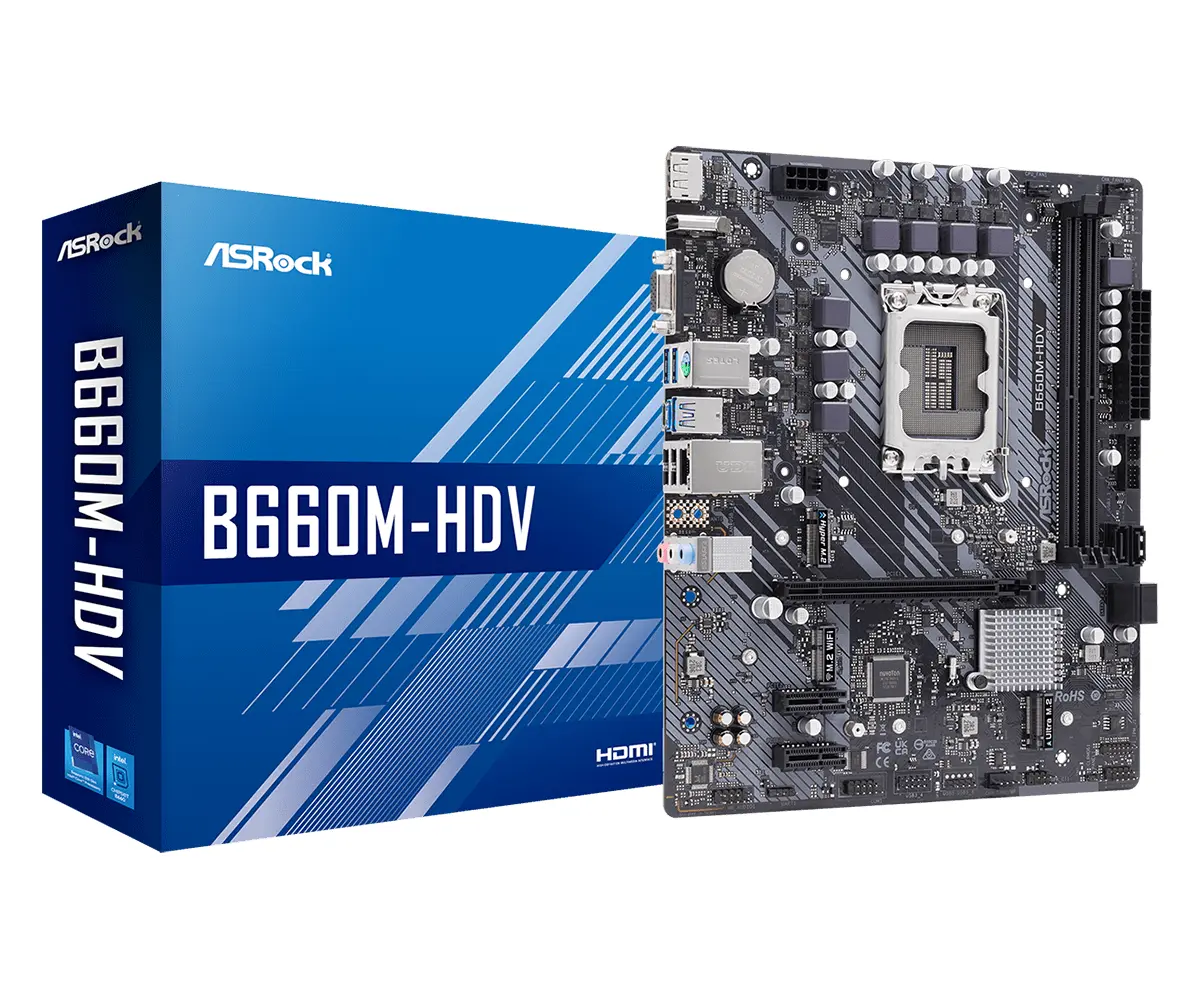

The ASRock B660M-HDV is a versatile Micro-ATX motherboard for Intel processors with the LGA1700 socket. Thanks to the Intel B660 chipset, this motherboard is an excellent foundation for building or upgrading a reliable desktop PC for everyday, business and home use.
With two DDR4 DIMM slots, the ASRock B660M-HDV supports up to 64GB DDR4 memory. For expansion cards, the motherboard features a PCIe 4.0 x16 slot and PCIe x1 slots. For fast storage, M.2 slots are available with support for high-speed PCIe NVMe SSDs. In addition, the motherboard features four SATA 6Gb/s connectors for SSDs and hard drives.
The motherboard offers various connectivity options, including USB 3.2 Gen1, Gigabit LAN and HD Audio. Thanks to the HDMI, DisplayPort and VGA outputs, the integrated graphics capabilities of compatible Intel processors can be used, meaning a dedicated graphics card is not always required.
The ASRock B660M-HDV is therefore an affordable and reliable foundation for a modern Intel system, combining DDR4 memory, fast M.2 storage and extensive connectivity options in a compact Micro-ATX form factor.
Product: ASRock B660M-HDV
Socket: LGA1700
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4710483936500
SKU: 90-MXBH40-A0UAYZ, B660M-HDV
Warranty: 6 months
Drivers for the ASRock B660M-HDV
Processors supported by the ASRock B660M-HDV
Package Contents:
– Motherboard (ASRock B660M-HDV)
– I/O Shield (metal backplate)
– Manual
– Driver CD
– Cables
Unique Features
ASRock Super Alloy
– Premium Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio and LAN ports)
ASRock Live Update & APP Shop
CPU
– Supports 14th, 13th and 12th Gen Intel® Core™ Processors (LGA1700)
– Digi Power design
– 6 Power Phase design
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
– Intel® B660
Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, unbuffered memory up to 5066+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Maximum system memory capacity: 64GB
– Supports Intel® Extreme Memory Profile (XMP) 2.0
* Supports DDR4 3200 natively.
BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– Supports ACPI 6.0 compliant wake-up events
– Supports SMBIOS 2.7
– CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH and +1.05V PCH Voltage Multi-adjustment
Graphics
– Intel® Xe Graphics Architecture (Gen 12)
– Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
– Supports HDMI 2.1 TMDS Compatible with a maximum resolution up to 4K x 2K (4096 x 2160) @ 60Hz
– Supports DisplayPort 1.4 with DSC compression with a maximum resolution up to 8K (7680 x 4320) @ 60Hz / 5K (5120 x 3200) @ 120Hz
– Supports D-Sub with a maximum resolution up to 1920 x 1200 @ 60Hz
– Supports HDCP 2.3 via HDMI 2.1 TMDS Compatible and DisplayPort 1.4
* Intel® UHD Graphics and the video outputs are supported only with processors that feature integrated graphics.
Audio
– 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
– Supports Surge Protection
LAN
– Gigabit LAN 10/100/1000 Mb/s
– Intel® I219V Giga PHY
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports UEFI PXE
Expansion Slots
CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
* Supports NVMe SSDs as boot disks.
Storage
CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s)*
Chipset:
– 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s and PCIe Gen3x4 (32 Gb/s)*
– 4 x SATA3 6.0 Gb/s Connectors**
* Supports Intel® Optane™ Memory H Series (M2_2 only)
Supports Intel® Volume Management Device (VMD)
Supports NVMe SSDs as boot disks
Supports ASRock U.2 Kit
** If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal Connectors
– 1 x COM Port Header
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x CPU/Water Pump Fan Connector (4-pin) with Smart Fan Speed Control**
– 2 x Chassis/Water Pump Fan Connectors (4-pin) with Smart Fan Speed Control***
– 1 x 24-pin ATX Power Connector
– 1 x 8-pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers supporting up to 3 USB 2.0 ports with ESD Protection
– 1 x USB 3.2 Gen1 Header supporting up to 2 USB 3.2 Gen1 ports with ESD Protection
* The CPU Fan Connector supports a CPU fan with a maximum power of 1A (12W).
** The CPU/Water Pump Fan Connector supports a water cooling fan with a maximum power of 2A (24W).
*** The Chassis/Water Pump Fan Connectors support water cooling fans with a maximum power of 2A (24W). CPU_FAN2/WP and CHA_FAN1~2/WP can automatically detect whether a 3-pin or 4-pin fan is being used.
Rear Panel I/O
– 2 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub/VGA Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 3 x USB 3.2 Gen1 Type-A Ports with ESD Protection
– 1 x USB 3.2 Gen1 Type-C Port with ESD Protection
– 2 x USB 2.0 Ports with ESD Protection
– 1 x RJ-45 LAN Port with LED (ACT/LINK and SPEED LED)
– HD Audio Jacks: Line-in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer
* These utilities can be downloaded via ASRock Live Update & APP Shop.
Accessories
– I/O Shield
– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets
Hardware Monitor
– Fan Tachometer: CPU, CPU/Water Pump and Chassis/Water Pump Fans
– Quiet Fan: automatically adjusts chassis fan speed according to CPU temperature
– Fan Multi-Speed Control: CPU, CPU/Water Pump and Chassis/Water Pump Fans
– CASE OPEN Detection
– Voltage Monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V and +3.3V
Form Factor
– Micro-ATX Form Factor: 9.6 x 7.9 in (24.4 x 20.1 cm)
– Solid Capacitor Design
Operating System
– Microsoft Windows® 10 64-bit / Windows 11 64-bit
Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)
