Description
The ASRock B660M Steel Legend is a powerful Micro-ATX motherboard for 12th, 13th and 14th Gen Intel processors with the LGA1700 socket. Thanks to the Intel B660 chipset and robust Steel Legend design, this motherboard is an excellent foundation for a powerful desktop or gaming PC.
With four DDR4 DIMM slots, the ASRock B660M Steel Legend supports up to 128GB DDR4 memory. For expansion cards, the motherboard features a PCIe 5.0 x16 slot, while multiple M.2 slots provide support for fast PCIe NVMe SSDs. In addition, SATA 6Gb/s connectors are available for additional SSDs and hard drives.
The motherboard offers extensive connectivity options, including USB 3.2, 2.5 Gigabit LAN and high-quality audio. Thanks to the HDMI and DisplayPort outputs, the integrated graphics capabilities of compatible Intel processors can also be used.
The ASRock B660M Steel Legend is therefore an excellent choice for a modern Intel system, combining PCIe 5.0, fast M.2 storage, DDR4 memory and 2.5Gb LAN with the reliable build quality of the Steel Legend series.

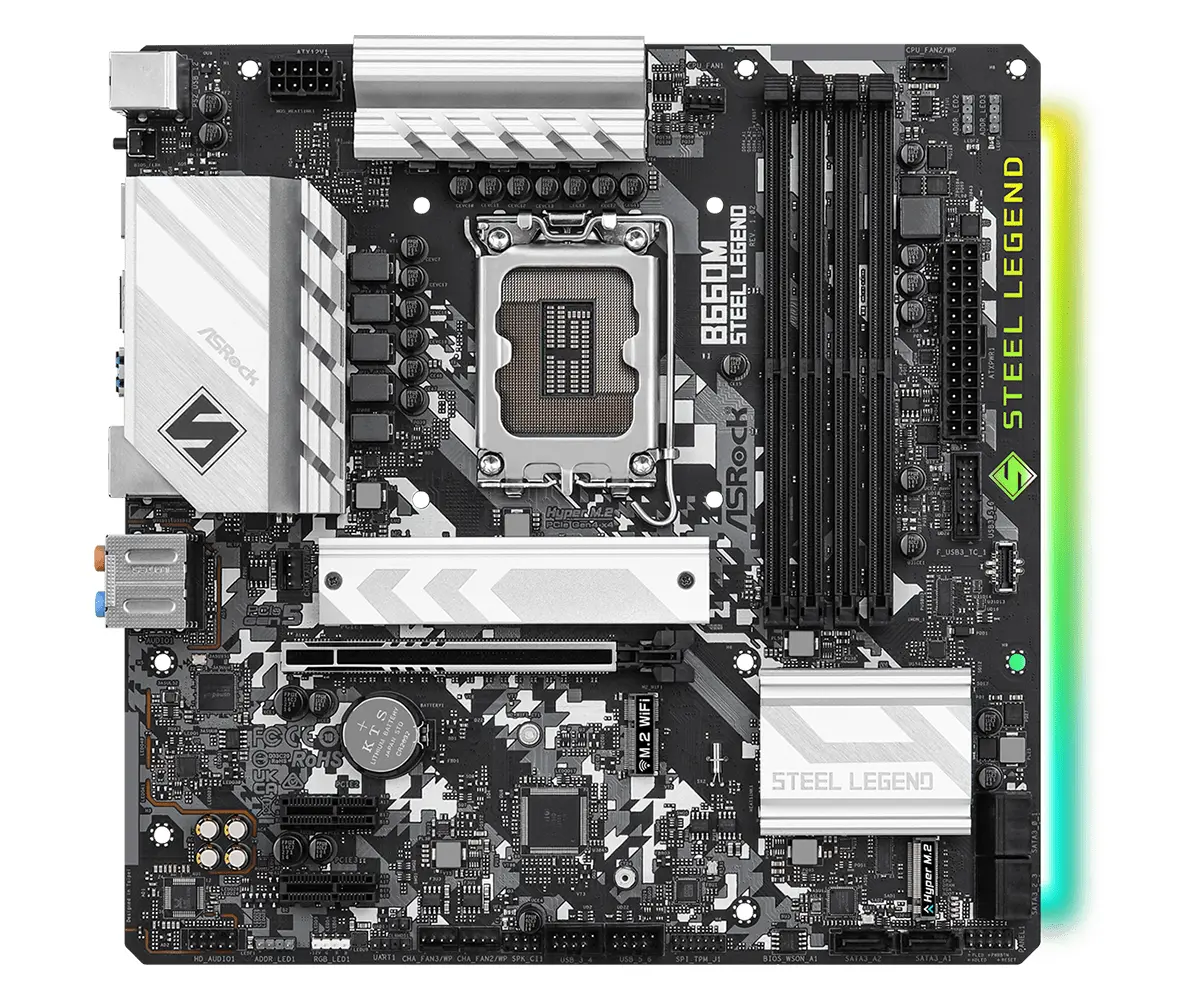

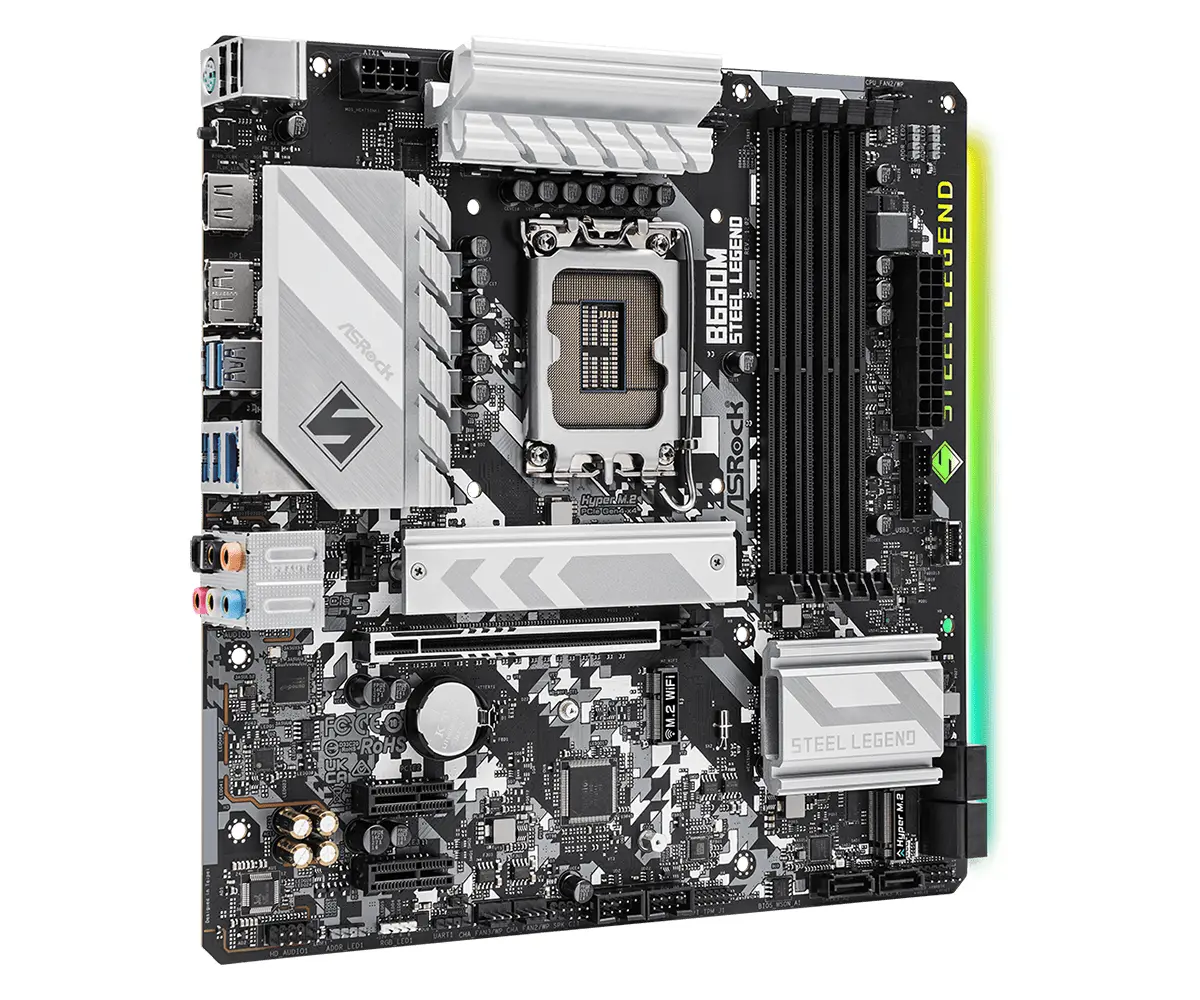

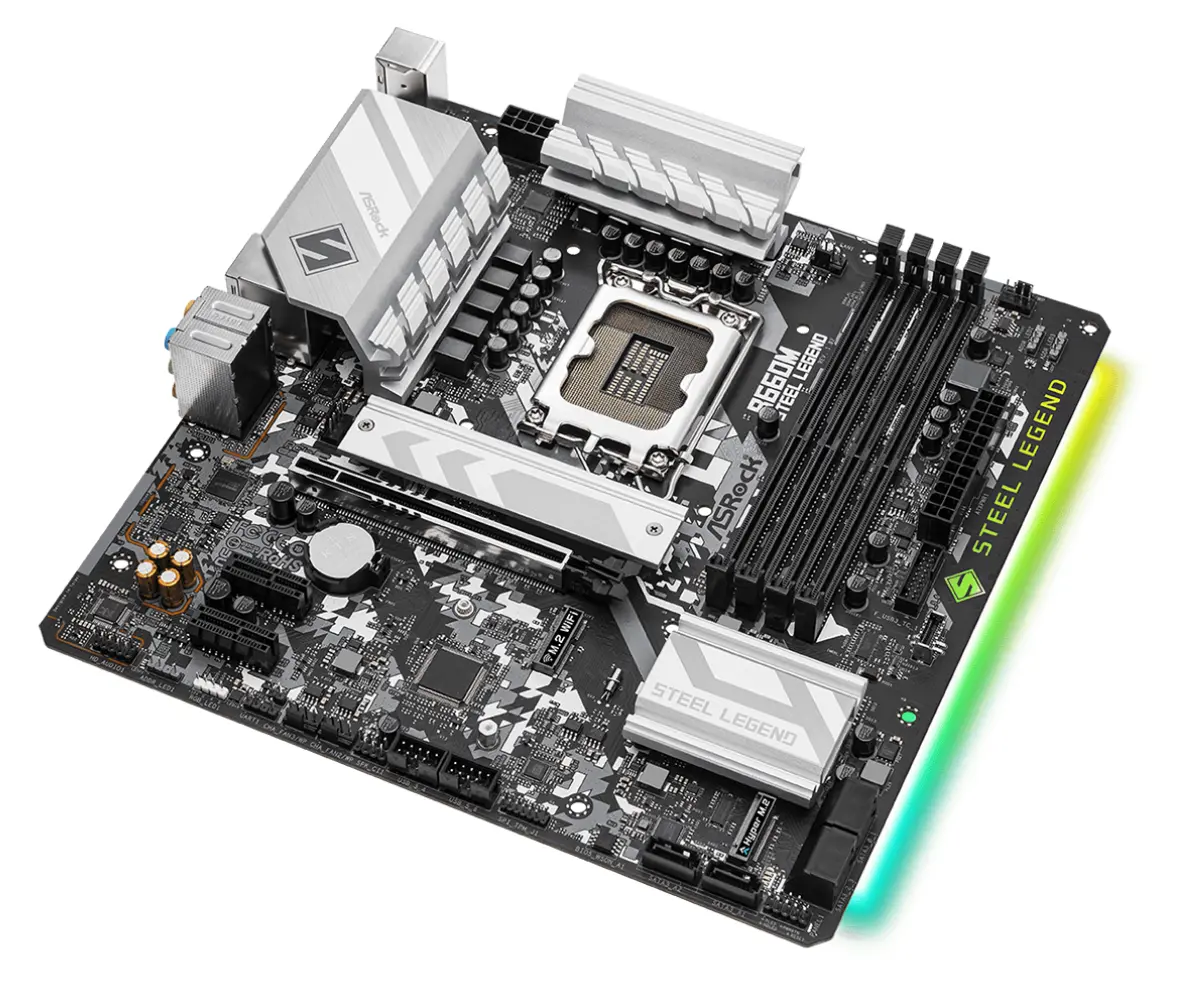

Product: ASRock B660M Steel Legend
Socket: LGA1700
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4710483936999
SKU: 90-MXBH30-A0UAYZ
Warranty: 6 months
Drivers for the ASRock B660M Steel Legend
Processors supported by the ASRock B660M Steel Legend
Package contents:
– Motherboard (ASRock B660M Steel Legend)
– I/O Shield (rear metal plate)
– Manual
– Driver CD
– Cables
Unique Features
ASRock USB 3.2 Gen2
– ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s)
ASRock Super Alloy
– Premium Power Choke
– 50A Dr.MOS
– Premium Memory Alloy Choke (reduces 70% core loss compared to iron power choke)
– Nichicon 12K Black Caps (100% Japan-made high-quality conductive polymer capacitors)
– Matte Black PCB
– High Density Glass Fabric PCB
– 2oz Copper PCB
2.5G LAN
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection for all USB, Audio and LAN ports
ASRock Live Update & APP Shop
CPU
– Supports 14th, 13th and 12th Gen Intel® Core™ Processors (LGA1700)
– Digi Power design
– 9 Power Phase design
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
– Intel® B660
Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, unbuffered memory up to 5333+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 128GB
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots
* Supports DDR4 3200 natively.
BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake-up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics
– Intel® Xe Graphics Architecture (Gen 12)
– Dual graphics output: supports HDMI and DisplayPort 1.4 ports via independent display controllers
– Supports HDMI 2.1 TMDS Compatible with a maximum resolution up to 4K x 2K (4096 x 2160) @ 60Hz
– Supports DisplayPort 1.4 with DSC (compressed) with a maximum resolution up to 8K (7680 x 4320) @ 60Hz / 5K (5120 x 3200) @ 120Hz
– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 ports
* Intel® UHD Graphics Built-in Visuals and the video outputs are supported only with processors featuring integrated graphics.
Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
– Gold Audio Jacks
– Nahimic Audio
LAN
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User-Friendly UI
– Visual Network Usage Statistics
– Optimized Default Settings for Gaming, Browser and Streaming Modes
– User Customized Priority Control
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports UEFI PXE
Expansion Slots
CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
* Supports NVMe SSDs as boot disks.
Storage
CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s)*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s and PCIe Gen4x4 (64 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors**
ASMedia ASM1061:
– 2 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Optane™ Memory H Series (M2_2 only)
Supports Intel® Volume Management Device (VMD)
Supports NVMe SSDs as boot disks
Supports ASRock U.2 Kit
** If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal Connectors
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) with Smart Fan Speed Control****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) with Smart Fan Speed Control*****
– 1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers supporting up to 4 USB 2.0 ports with ESD Protection
– 1 x USB 3.2 Gen1 Header supporting up to 2 USB 3.2 Gen1 ports with ESD Protection
– 1 x Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s) with ESD Protection
* Supports a total of up to 12V/3A, 36W LED Strip.
** Supports a total of up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports a CPU fan with a maximum power of 1A (12W).
**** The CPU/Water Pump Fan Connector supports a water cooler fan with a maximum power of 2A (24W).
***** The Chassis/Water Pump Fan Connectors support water cooler fans with a maximum power of 2A (24W). CPU_FAN2/WP and CHA_FAN1~3/WP can automatically detect whether a 3-pin or 4-pin fan is in use.

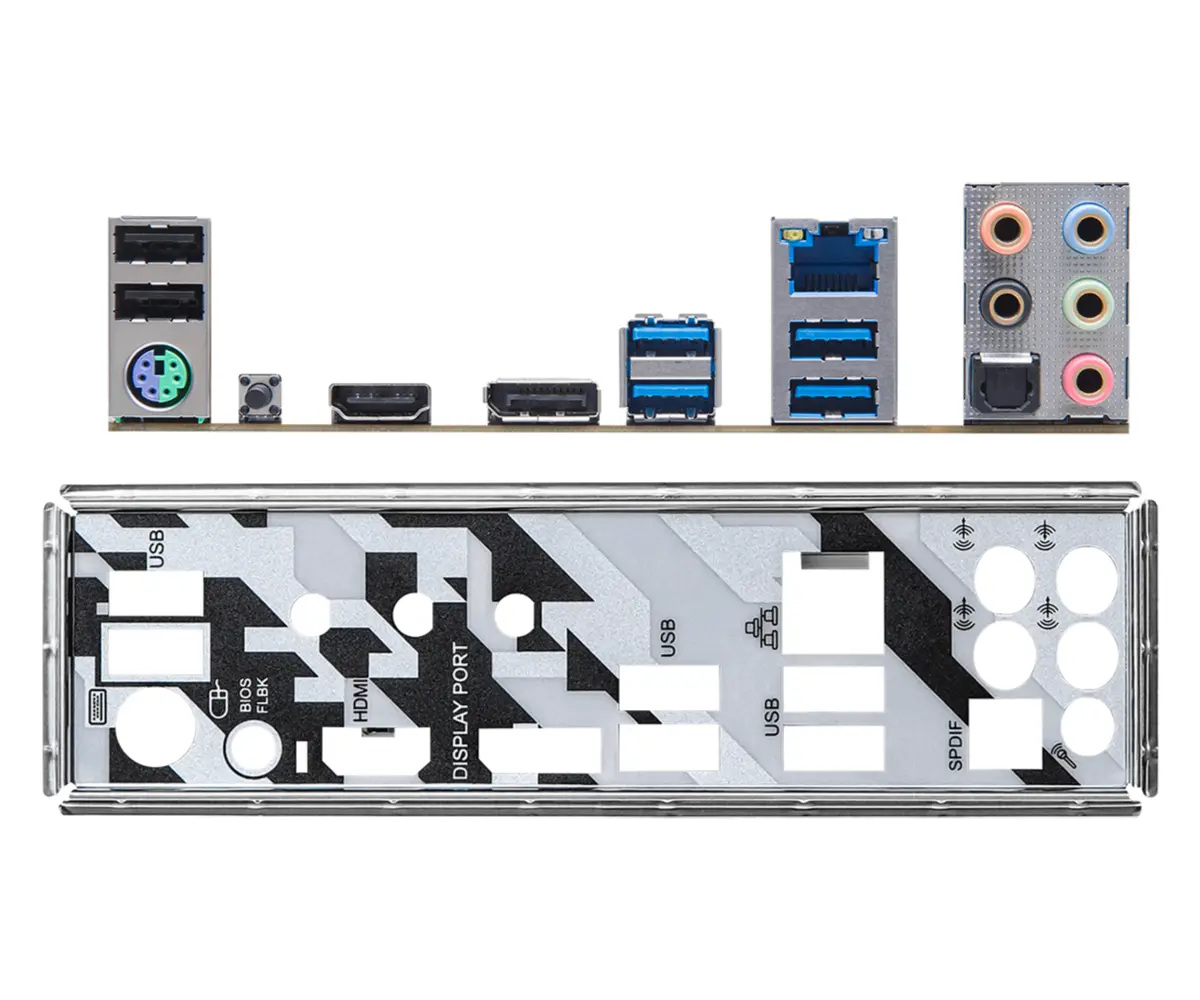

Rear Panel I/O
– 3 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x Optical SPDIF Out Port
– 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) with ESD Protection
– 2 x USB 2.0 Ports with ESD Protection
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x BIOS Flashback Button
– HD Audio Jacks: Rear Speaker / Center / Bass / Line-in / Front Speaker / Microphone (Gold Audio Jacks)
Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer
* These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
– I/O Shield
– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket
Hardware Monitor
– Fan Tachometer: CPU, CPU/Water Pump and Chassis/Water Pump Fans
– Quiet Fan: automatically adjusts chassis fan speed according to CPU temperature
– Fan Multi-Speed Control: CPU, CPU/Water Pump and Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: CPU Vcore, +1.05V_PCH, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +0.82V PCH, +12V, +5V and +3.3V
Form Factor
– Micro-ATX Form Factor: 9.6 x 9.6 inches (24.4 x 24.4 cm)
– 2oz Copper PCB
Operating System
– Microsoft Windows® 10 64-bit / Windows 11 64-bit
Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP Ready power supply is required)
