Description

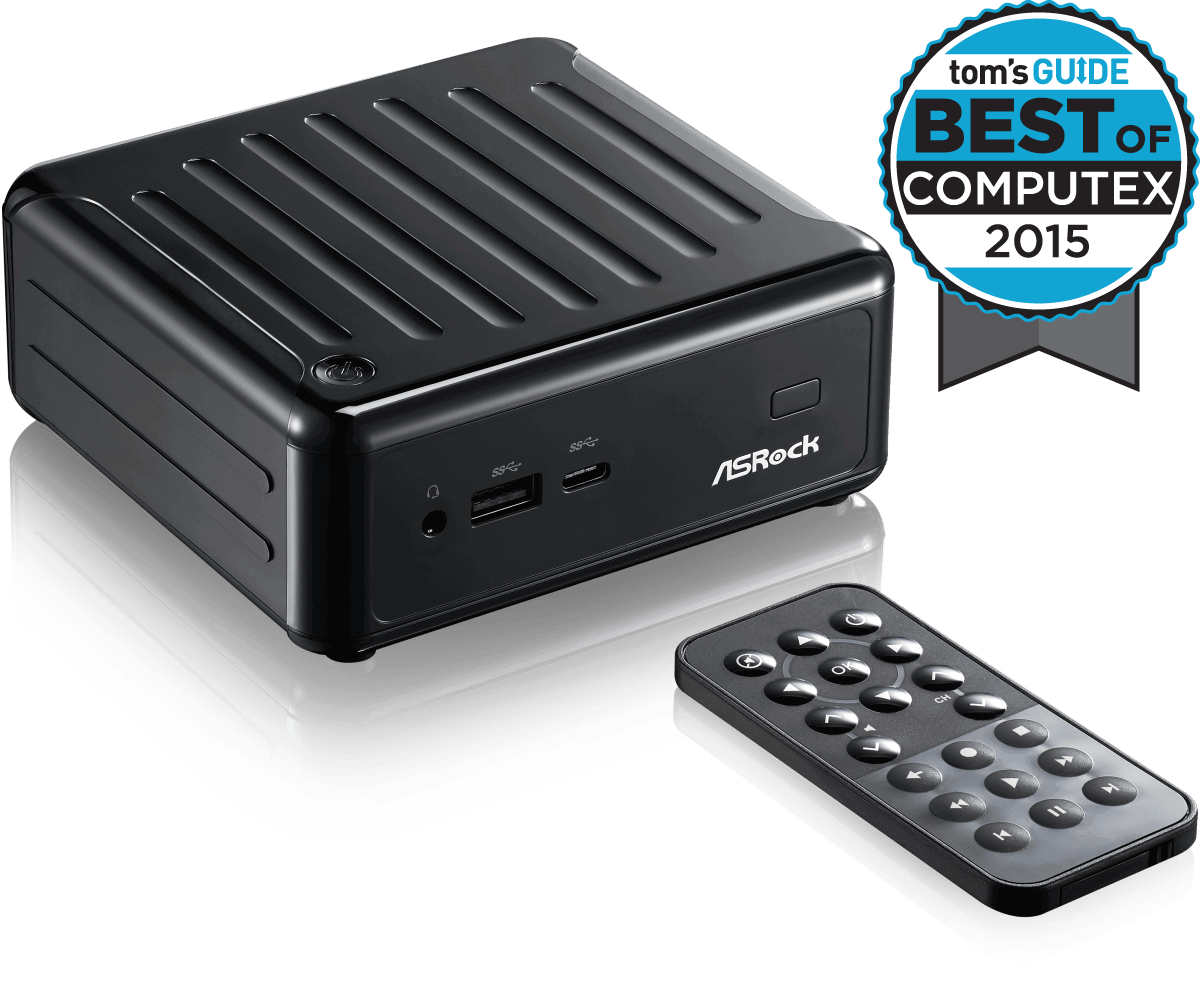

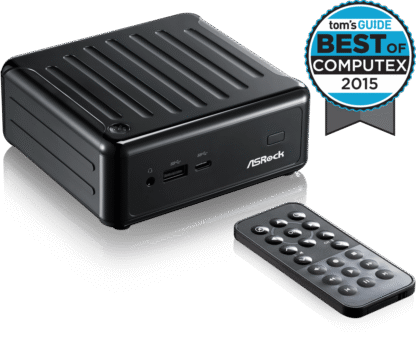

The ASRock Beebox J3160 is a compact and energy-efficient mini-PC, ideal for basic tasks such as web browsing and office work. This small powerhouse features HDMI and DisplayPort outputs for versatile display options, multiple USB ports for peripherals, a Gigabit Ethernet port for stable network connections, and audio jacks for clear sound. Powered by the integrated Intel J3160 processor, the Beebox delivers quiet and reliable performance in a stylish, small form factor.
Model: ASRock Beebox J3160
CPU: Intel® Quad-Core Processor J3160 (Up to 2.24 GHz)
Memory: 2 DDR3 SODIMM slots, memory not included
Storage: Not included
Condition: New
Note: No storage media, memory, or operating system included
OS: Not applicable
CPU
– Intel® Quad-Core Processor J3160 (Up to 2.24 GHz)
Chipset
– Intel® J3160 SoC
Memory
– N/A
– Supports DDR3L 1600MHz, 2 x SO-DIMM slots, Max. 16GB
*For dual channel or using 2 DIMMs, identical DDR3L SO-DIMM pairs (same brand, speed, size, and chip-type) are required.
Audio
– Realtek ALC283
Storage
– N/A
– Supports 1 x mSATA slot & 1 x 2.5″ SATA HDD
LAN
– Gigabit LAN
WLAN
– 802.11ac + BT 4.0

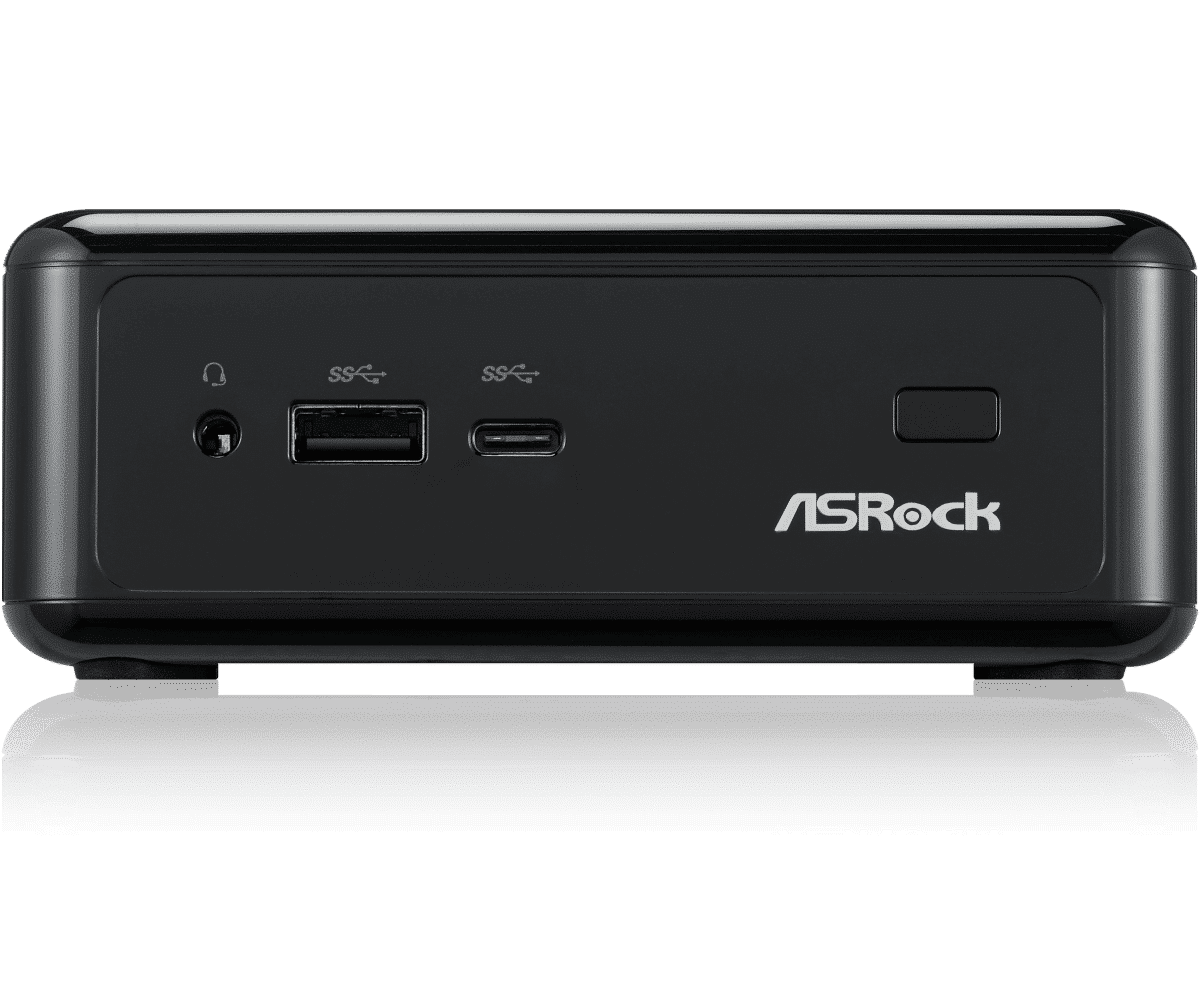

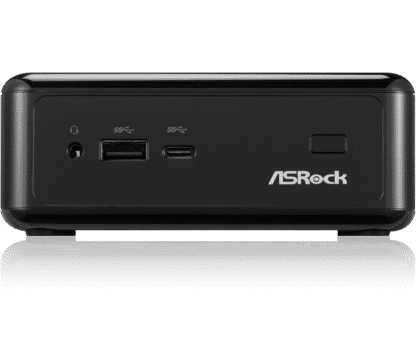

Front I/O
– 1 x USB 3.1 Gen1
– 1 x USB 3.1 Gen1 (Type C)
– 1 x IR
– 1 x Audio-out with MIC-In

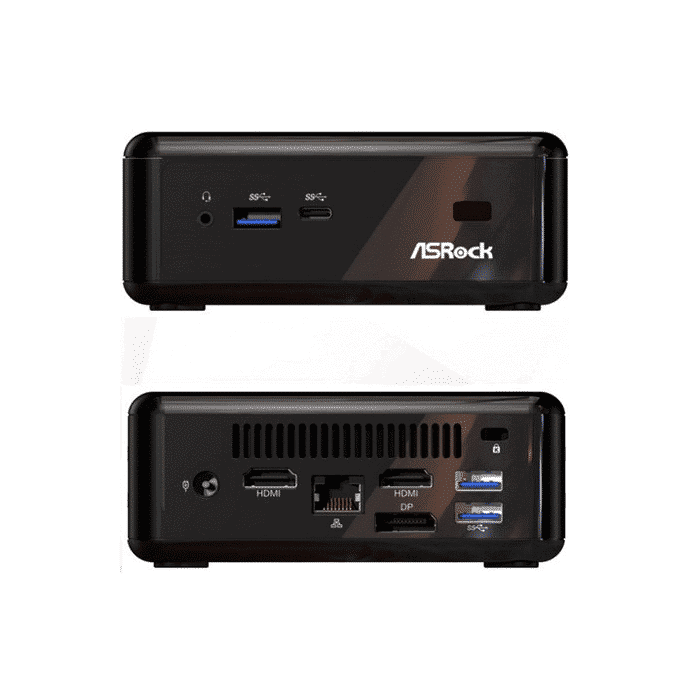

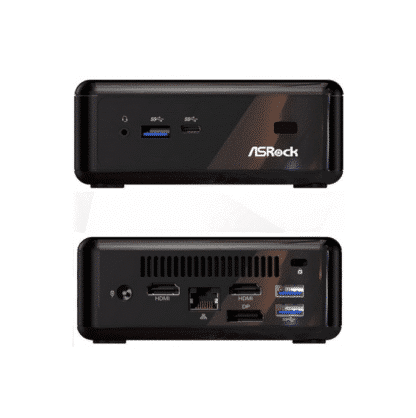

Rear I/O
– 2 x HDMI*
– 1 x DP*
– 2 x USB 3.1 Gen1
– 1 x LAN
– 1 x Kensington Lock
*This DisplayPort only supports DP to D-Sub dongles. DP to HDMI and DP to DVI dongles are not supported.
To power three monitors, connect your monitors to 2 x HDMI and 1 x DP ports or 2 x HDMI and 1 x D-Sub ports via a DP to D-Sub dongle.
HDMI 1 (4K/2K@30Hz) / HDMI 2 (4K/2K@30Hz)
Supports DisplayPort 1.1a with max resolution up to 4K x 2K (4096×2304) @ 30Hz
Volume (liters)
– 0.6L
VESA
– Bracket included, supports 75 x 75 and 100 x 100 mm
Remote Controller
– Remote Controller included
Power Unit
– 36W/12V Adapter
Dimensions
– 110 mm (W) x 46 mm (H) x 118.5 mm (L)
OS
– Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 64-bit / 7 64-bit compatible
– Linux: Ubuntu 14.04.3 LTS / Ubuntu 15.04 / Ubuntu 15.10 / Fedora 23 / Zorin OS 10 / Arch Linux 2015.10.01 / clonezilla-live-20150915-wily-amd64 / Android-x86-4.4-r3**
