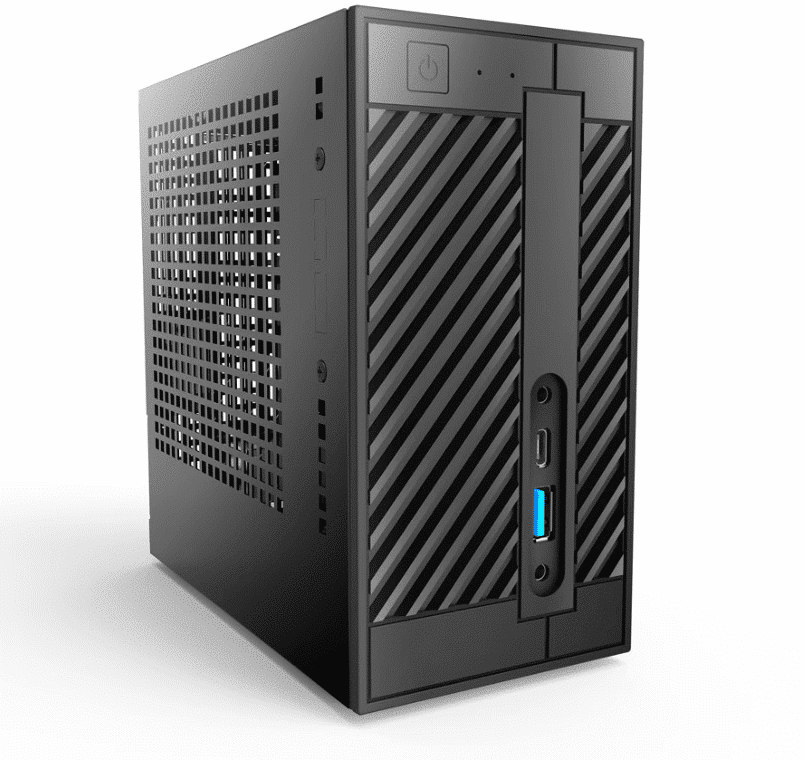

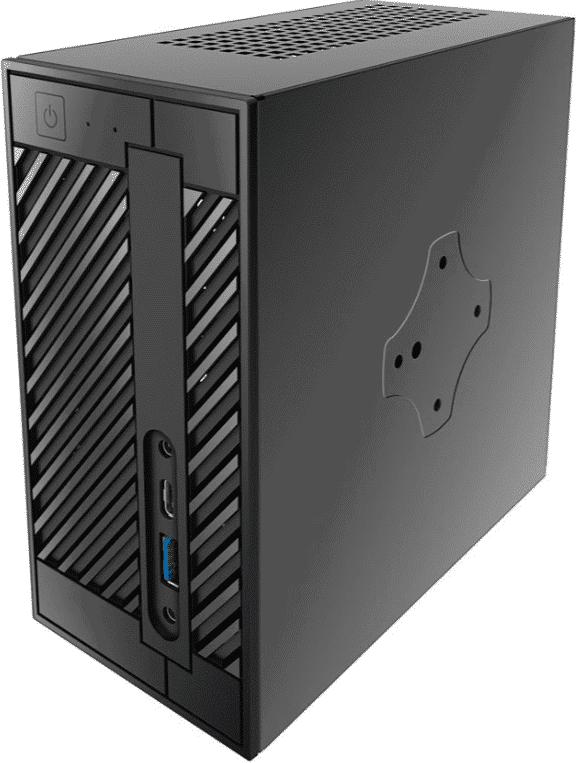

ASRock Deskmini 110 Barebone

ASRock DeskMini 110 barebone is a compact and versatile mini-PC case, perfect for home or office use. This barebone is delivered without a CPU and memory, allowing you to choose your preferred components. It offers extensive connectivity options, including HDMI and DisplayPort for video output, multiple USB 3.0 and USB 2.0 ports for peripherals, a Gigabit LAN port for fast network connections, and audio jacks for clear sound quality. With support for Intel LGA1151 processors and DDR4 memory, the DeskMini 110 combines flexibility with powerful performance in an ultra-compact form factor.

Model: ASRock DeskMini 110
CPU: N/A (Supports Intel^® 7th/6th Gen LGA1151 Processors (Max. TDP 65W))

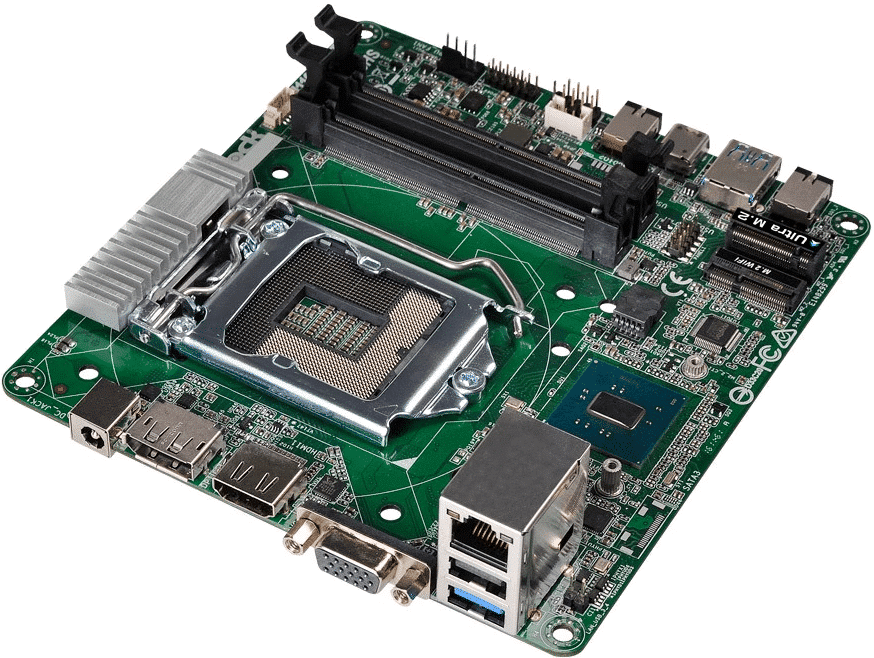

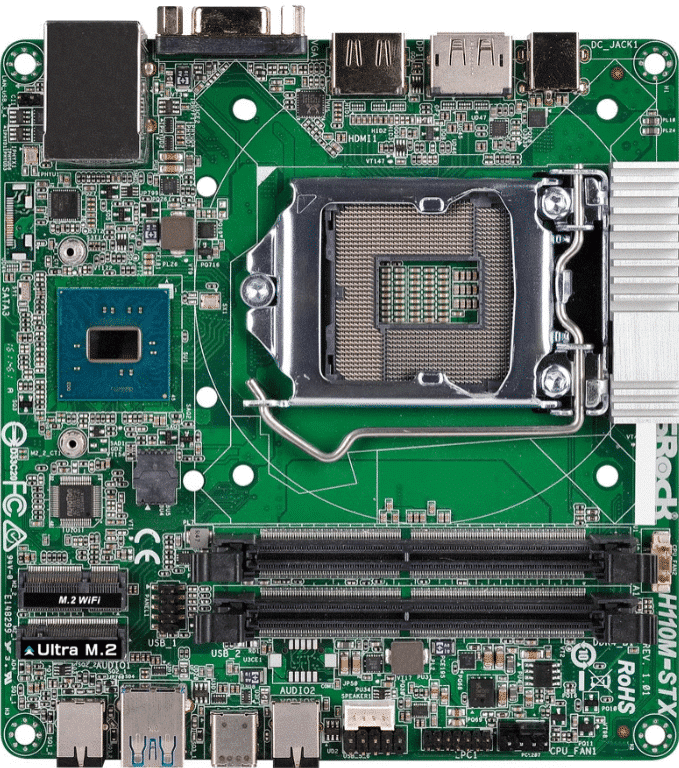

Motherboard: ASRock H110M-STX (Mini-STX)
Memory: 2 DDR4 SODIMM slots, memory not included
Storage: Not included
Condition: New
Note: No processor, storage media, memory, or operating system included
OS: Not applicable

Expansion Slots:

– 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
– 1 x M.2 SSD Slot (Supports type 2280 M.2 PCIe Gen3 x4)*
*SATA-type M.2 modules are not supported.

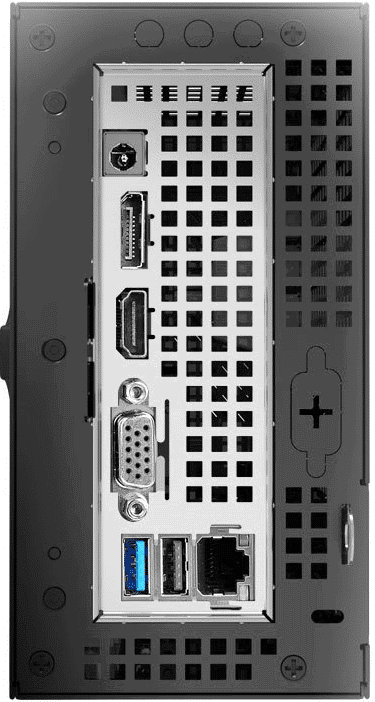

Rear I/O

– 1 x VGA*
– 1 x HDMI*
– 1 x DP*
– 1 x USB 3.1 Gen1
– 1 x USB 2.0
– 1 x LAN
– 1 x DC-In Jack

Internal Connections:

– 1 x USB 2.0 Header
– 1 x Front Panel Header
– 1 x 4-Pin Fan Connector
– 1 x 5-Pin Fan Connector
– 1 x DC-In Jack (Supports 19V Power Adapters)
– 1 x Internal Speaker Header
– 1 x 2-Pin Chassis Intrusion Header
*Three graphics output options: HDMI, DP, VGA — supports up to 2 displays simultaneously.

Weight and Dimensions

Height: 155 mm
Width: 155 mm
Depth: 80 mm

Package Contents:

– DeskMini 110
– Power Adapter
