Product information

ASRock Fatal1ty B250M Performance:  motherboard | Micro ATX | Intel LGA1151 | B250 Chipset | 4x DDR4 (max. 64GB) |PCI-e 3.0 x1 | PCI-e 3.0 x16 | M.2 (PCI-e 3.0 x2 + SATA) | M.2 (PCI-e 3.0 x4 + SATA) | SATA 600 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen1, 5Gb/s) type-c | DVI-D | HDMI | VGA (D Sub)

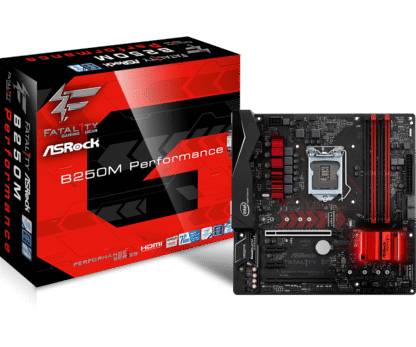

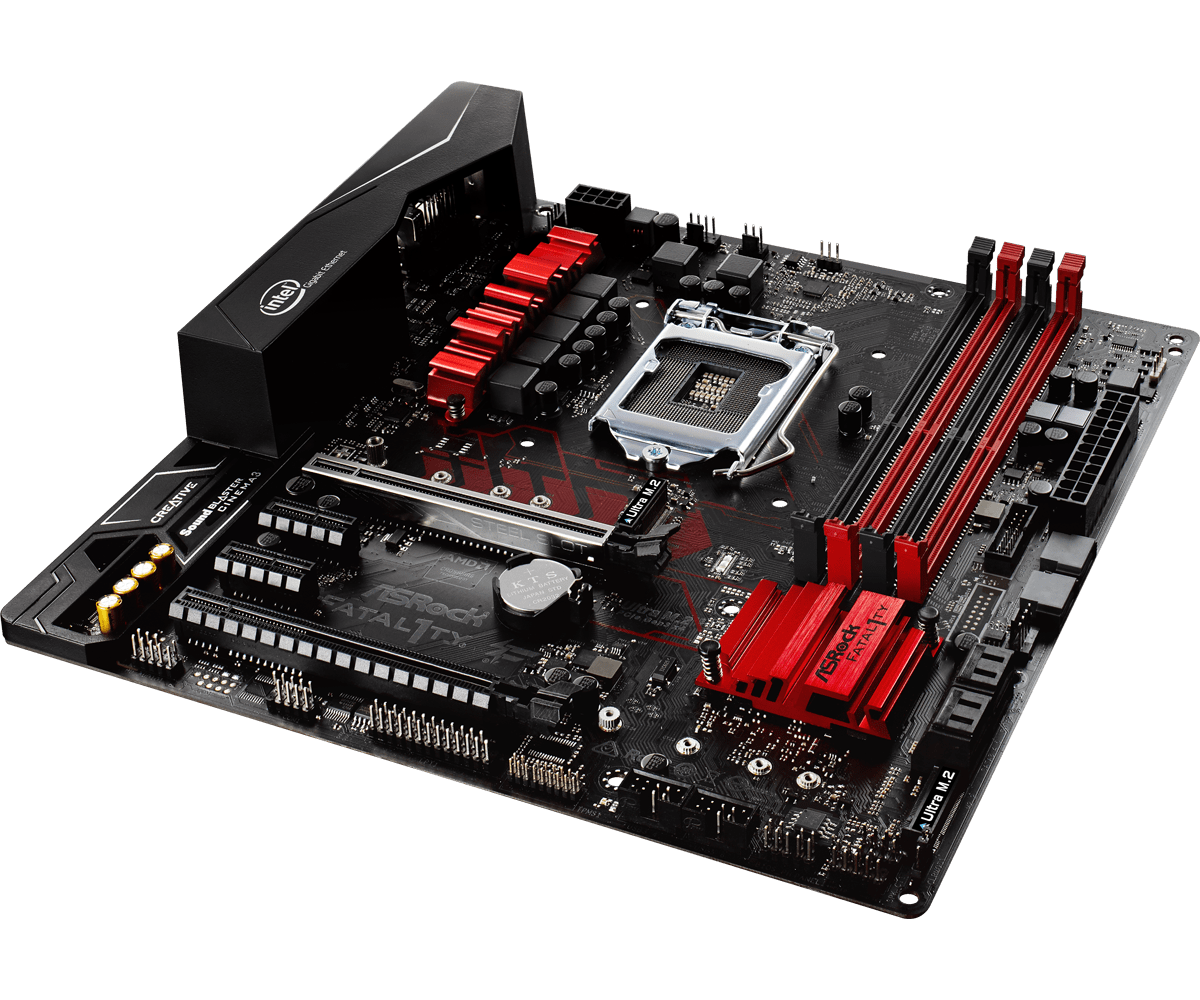

Product: ASRock Fatal1ty B250M Performance
Socket:
LGA1151
Supports: 6th en 7th Generation Processors
Category: Motherboards
Brand: ASRock
Condition: New Retail
EAN: 4717677332513
SKU:
90-MXB4R0-A0UAYZ
Warranty: 6 months

Drivers for the ASRock Fatal1ty B250M Performance
Processors used by are supported

package content:
– Motherboard (Fatal1ty B250M Performance)
– Backplate (blende)
– instruction manual
– driver CD
– cables


Gaming Armor
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
– Intel® LAN
Audio
– Creative Sound Blaster™ Cinema 3


Unique Feature
ASRock Super Alloy
– Premium 50A Power Choke
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High Density Glass Fabric PCB
ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection
ASRock Live Update & APP Shop


CPU
– Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
– Digi Power design
– 6 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology


Chipset
– Intel® B250


Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 2400/2133 non-ECC, unbuffered memory*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment


Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel ® HD Graphics
– Gen9 LP, DX11.3, DX12
– HWA Encode/Decode: VP8, HEVC 8b, VP9, ​​HEVC 10b (For 7th Gen Intel® CPU)
– HWA Encode/Decode: VP8, HEVC 8b; GPU/SW Encode/Decode: VP9, ​​HEVC 10b (For 6th Gen Intel® CPU)
– Max. shared memory 1024MB**
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**The size of maximum shared memory may vary from different operating systems.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– Nichicon Fine Gold Series Audio Caps
– Supports Creative Sound Blaster™ Cinema 3

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver †


LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)*
– 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
– Supports AMD Quad CrossFireX™ ​​and CrossFireX™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks


Storage
– 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* *
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

**If PCIE2 slot or PCIE3 slot is occupied, the PCIe-type M.2 device on M2_1 socket will run at Gen3 x2 (16 Gb/s).
Supports Intel® Optane™ Technology (M2_2 only)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit


Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x AURA RGB LED Header*
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)**
– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed ​​Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

*Supports up to 12V/3A, 36W LED Strip.

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

***CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.


Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
– 3 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock AURA RGB LED
– ASRock Key Master
– ASRock APP Charger
– ASRock XFast LAN*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock UEFI Tech Service

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V


Form Factor
– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm


OS
– Microsoft® Windows® 10 64-bit (For 7th Gen Intel® CPU)
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU)*

*To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock’s website for details.


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Weight1 kg
Intel

Socket 1151

Brand

Asrock

Chipset

Intel B250

Form Factor

Micro-ATX

Memory Type

DDR4 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

DVI-D, Ethernet (RJ-45), HDMI, PS/2, USB 2.0, USB 3.1 Gen1, USB 3.2 (Gen1, 5Gb/s), USB 3.2 (Gen1, 5Gb/s) type-c, VGA

Storage Interfaces

Serial ATA-600, Ultra M.2 Socket

Interfaces

PCI-e 3.0 x1, PCI-e 3.0 x16

Socket

ASRock Fatal1ty B250M Performance LGA 1150/Sockel H3 Retail motherboard

Fast delivery

  • Intel B250 chipset
  • ASRock Super Alloy
  • Supports 7e and 6e generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® processors (socket 1151)
    *8th Gen Intel® Core™ desktop processors are supported with Intel® 300- series only chipset motherboards
  • Supports DDR4 2400 (Intel® 7th Gen CPUs) / 2133 (Intel® 6th Gen CPUs)
  • 2 PCIe 3.0 x16, 2 PCIe 3.0 x1
  • AMD Quad CrossFireX™
  • Graphics output options: HDMI, DVI-D, D-Sub
  • Supports triple monitor
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Supports Creative Sound Blaster™ Cinema 3
  • 6 SATA3, 2 Ultra M.2 (one supports PCIe Gen3 x4 & SATA3, the other only supports PCIe Gen3 x4)
  • 6 USB 3.1 Gen1 (1 Type-C, 2 front, 3 rear)
  • ASRock AURA RGB LED
