Description

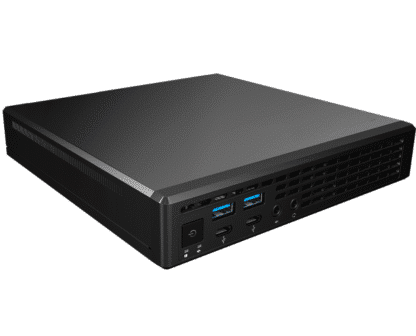

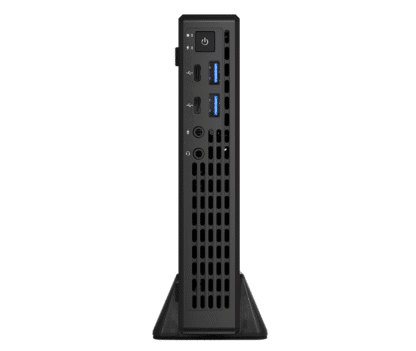

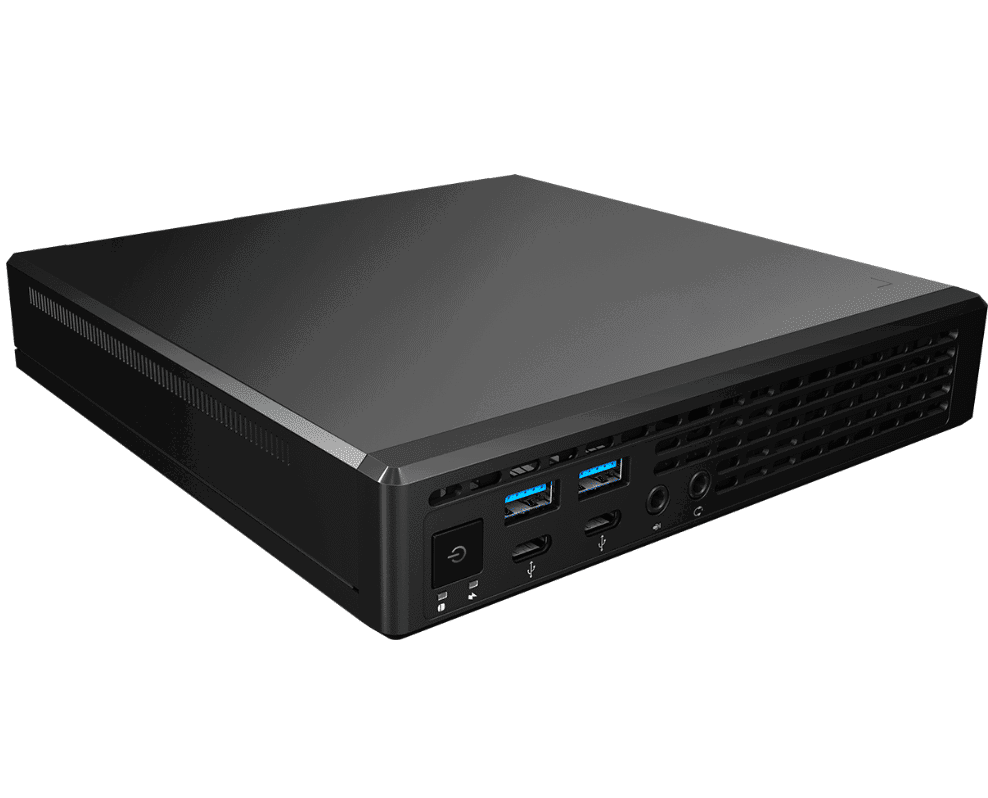

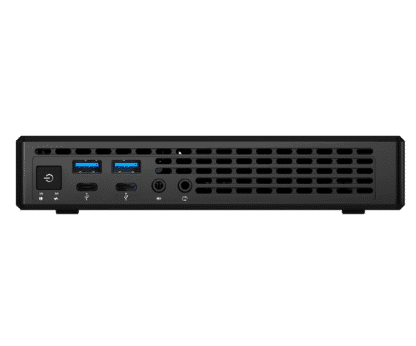

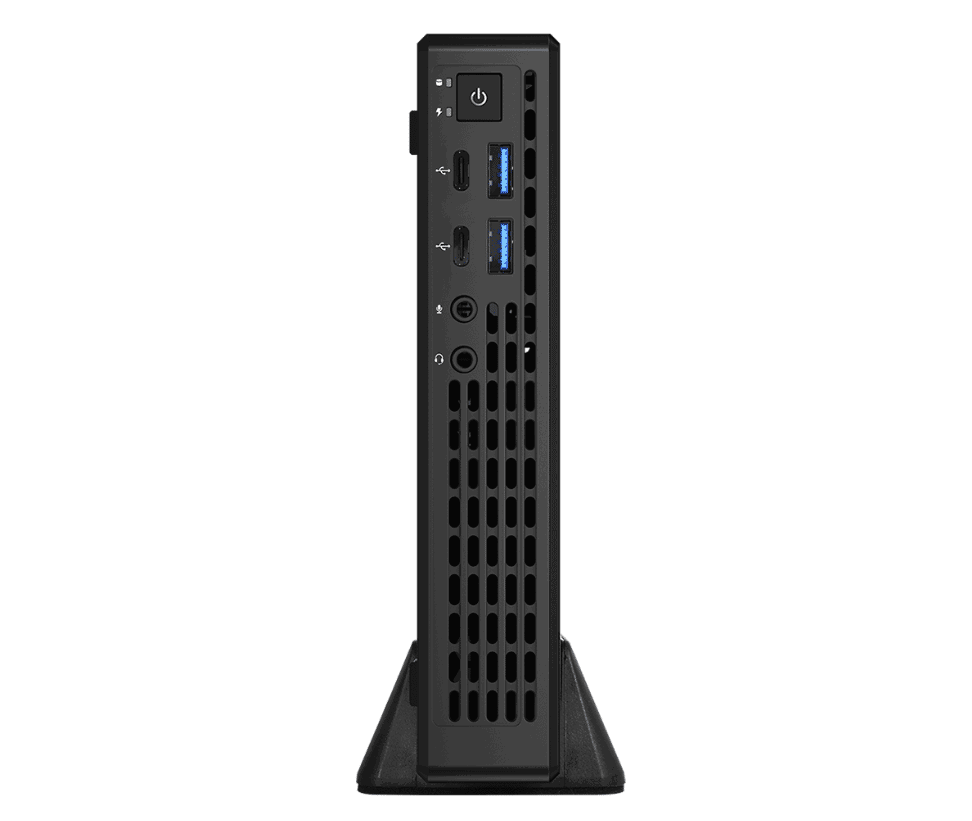

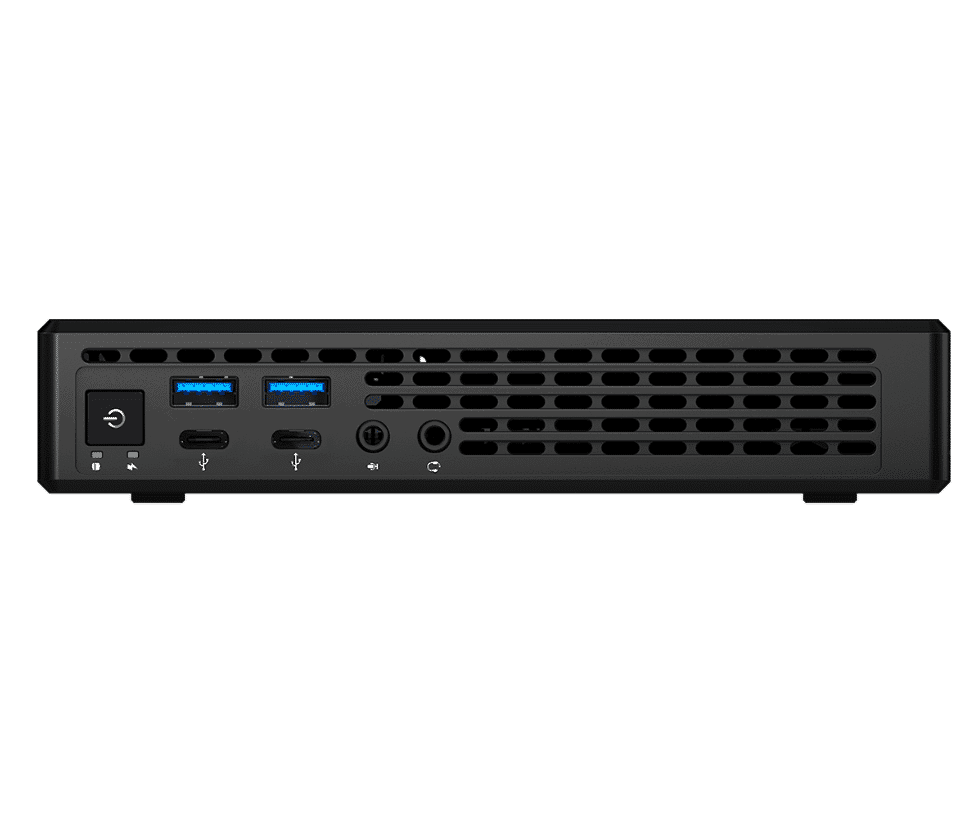

ASRock Jupiter A320 is a compact barebone mini PC designed for AMD Ryzen™ and Athlon™ processors up to 65W. With support for up to 32GB DDR4 memory, M.2 and 2.5” storage, HDMI, and DisplayPort, this mini PC delivers powerful performance in a small form factor. Ideal for office, home use, or digital signage.
Model: ASRock Jupiter A320
Socket: AMD AM4
Memory: 2 DDR4 SODIMM slots, memory not included
Storage: Not included
WiFi: Yes
Condition: New
Note: No storage media, memory, or operating system included
OS: Not applicable
CPU
– Supports AMD AM4 Socket 65W/35W APUs
Chipset
– AMD A320
Cooler
– Integrated Cooling Solution
Memory
– Supports 2 x SO-DIMM DDR4, Max. 64GB (non-ECC)
– Ryzen APU -DDR4-2933MHz
– A-series APU -DDR4-2400MHz
Graphics
– Integrated AMD Radeon. Vega Series Graphics in Ryzen Series APU
– Integrated AMD Radeon. R-Series Graphics in A-series APU
Graphics Output
– 1 x HDMI (4K@60Hz),1 x DisplayPort (4K@60Hz), 1 x D-Sub*
*Supports up to 3 displays simultaneously.
Audio
– 1 x Head Phone with Mic Jack
– 1 x Mic-In
– 1 x Speaker Out
– 1 x 2W SpeakerRealtek ALC233
Front USB
– 2 x USB 3.1 Gen1 Type-C, 2 x USB 3.1 Gen1 Type-A
Rear USB
– 2 x USB 3.1 Gen1 Type-A, 2 x USB 2.0
Storage
– M.2_1: Type 2280 PCIe Gen3 x4 & SATA 6Gb
– 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
LAN
– 1 x RJ45 Gigabit LAN
– Realtek RTL8111GN
WLAN
– M.2 Type 2230 Key-E
Connectors
– 1 x 4-Pin Fan Connector
– 1 x DC-In Jack (Supports 19V Power Adapters)
– 1 x Internal Speaker Header
– 1 x 2-Pin Chassis Intrusion Header
Power Unit
– 90W/19V Adapter
Dimension
– Motherboard: 170 x 170 (Proprietary)
– Barebones: 178 x 178 x 34 mm (1.0L)
Security
– Kensington lock
– Key Lock
OS
– Microsoft® Windows® 10 64-bit / 11 64-bit
Certification
– CE, FCC
Remark
– VESA: 75 x 75mm / 100 x 100 mm
– Optional TPM 2.0 IC
