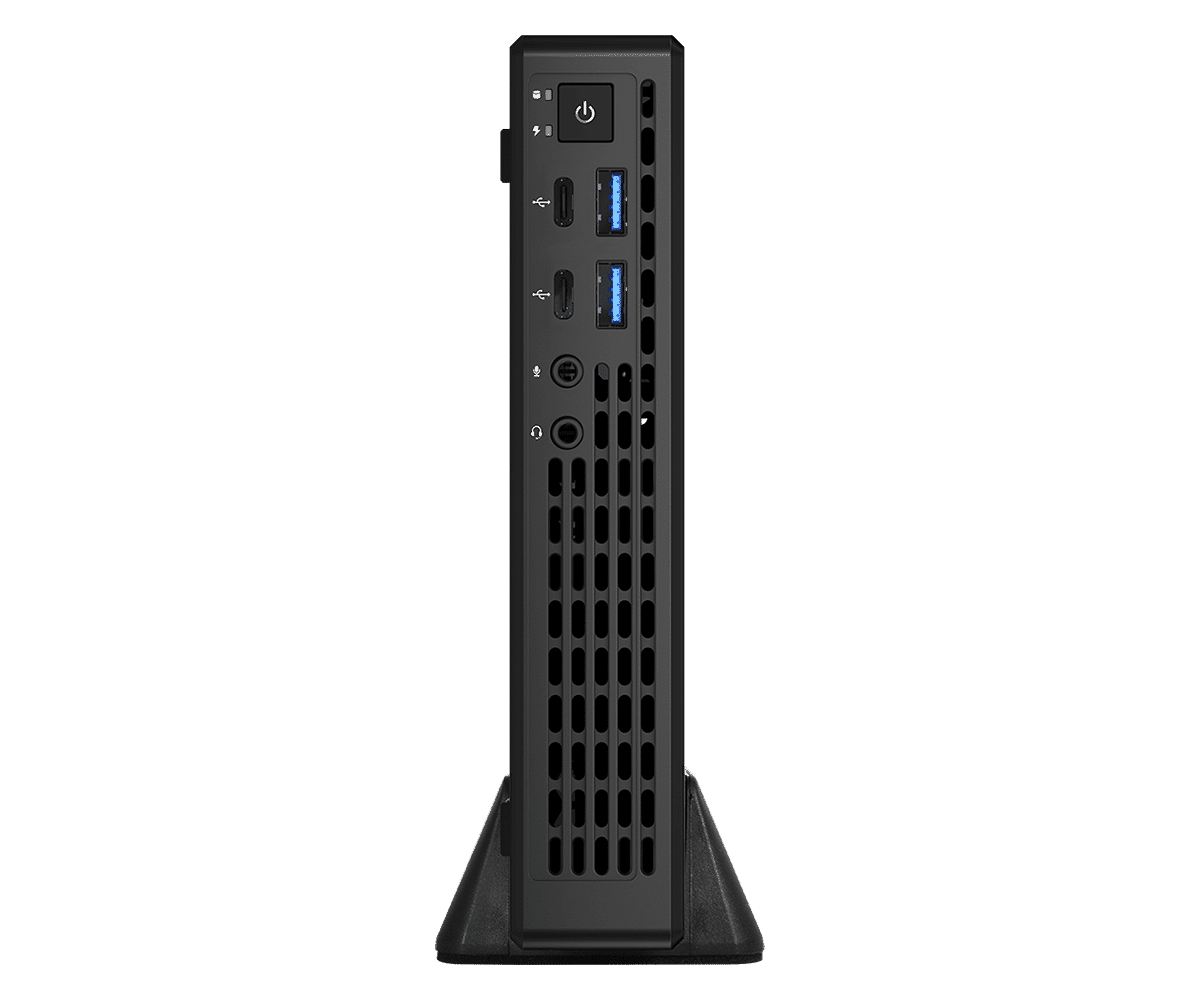

ASRock Jupiter H310 Barebone

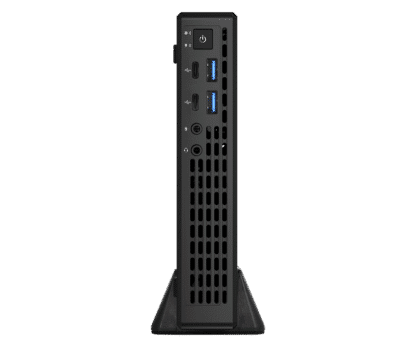

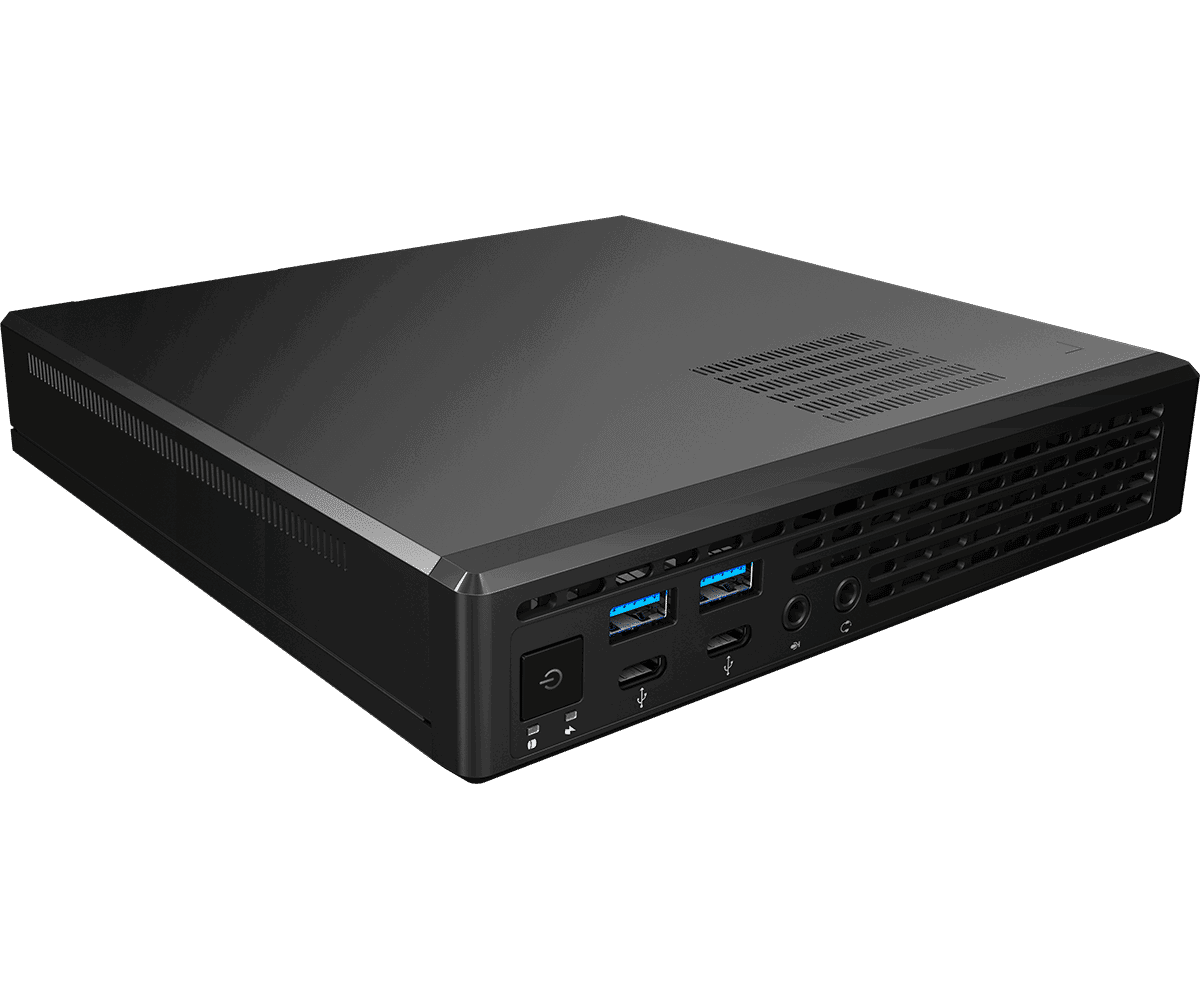

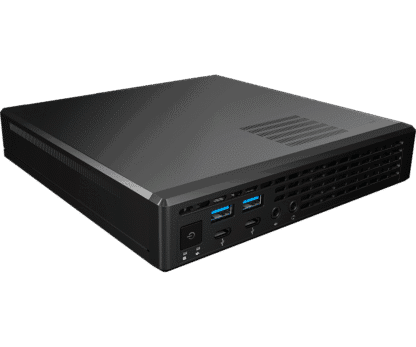

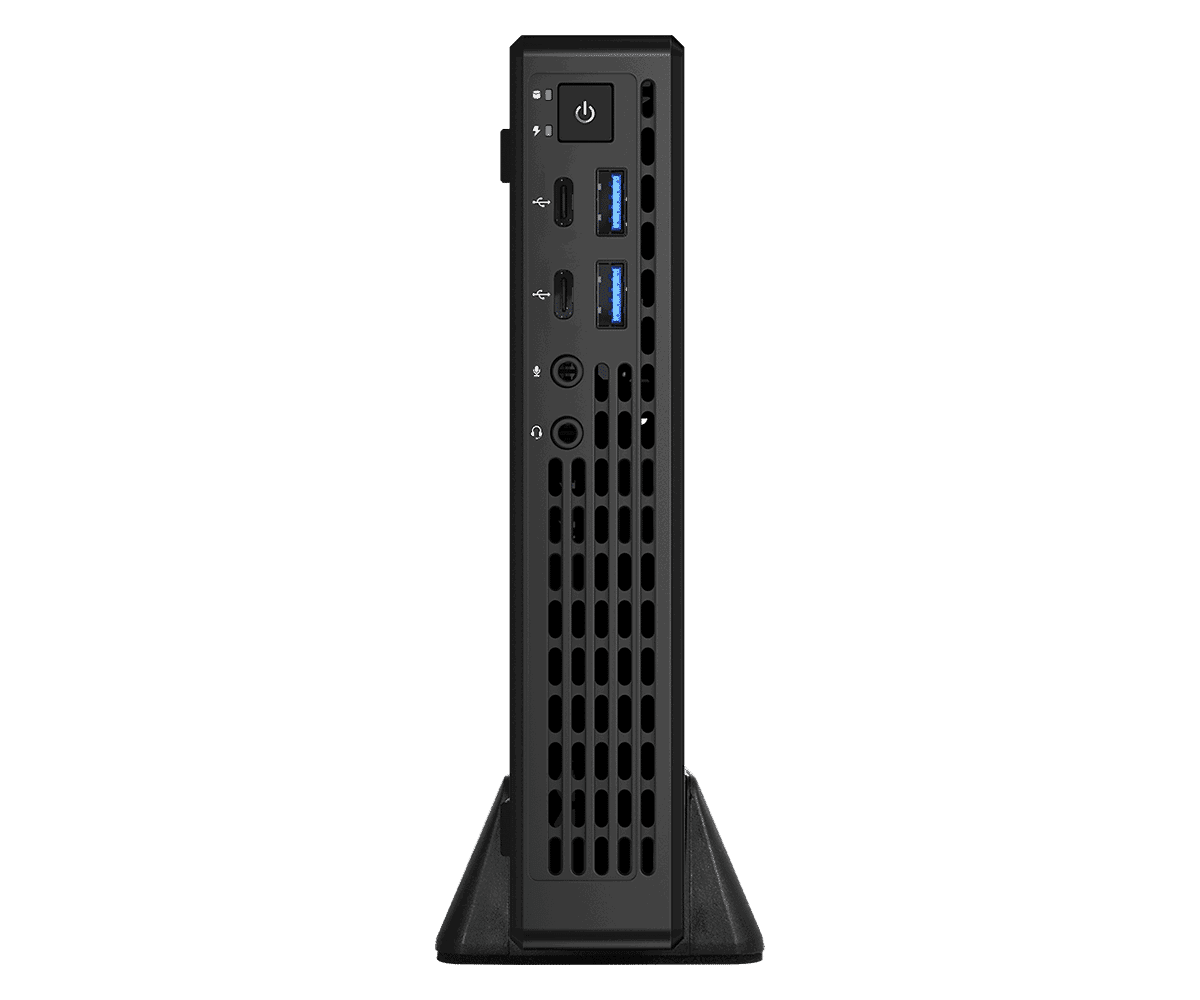

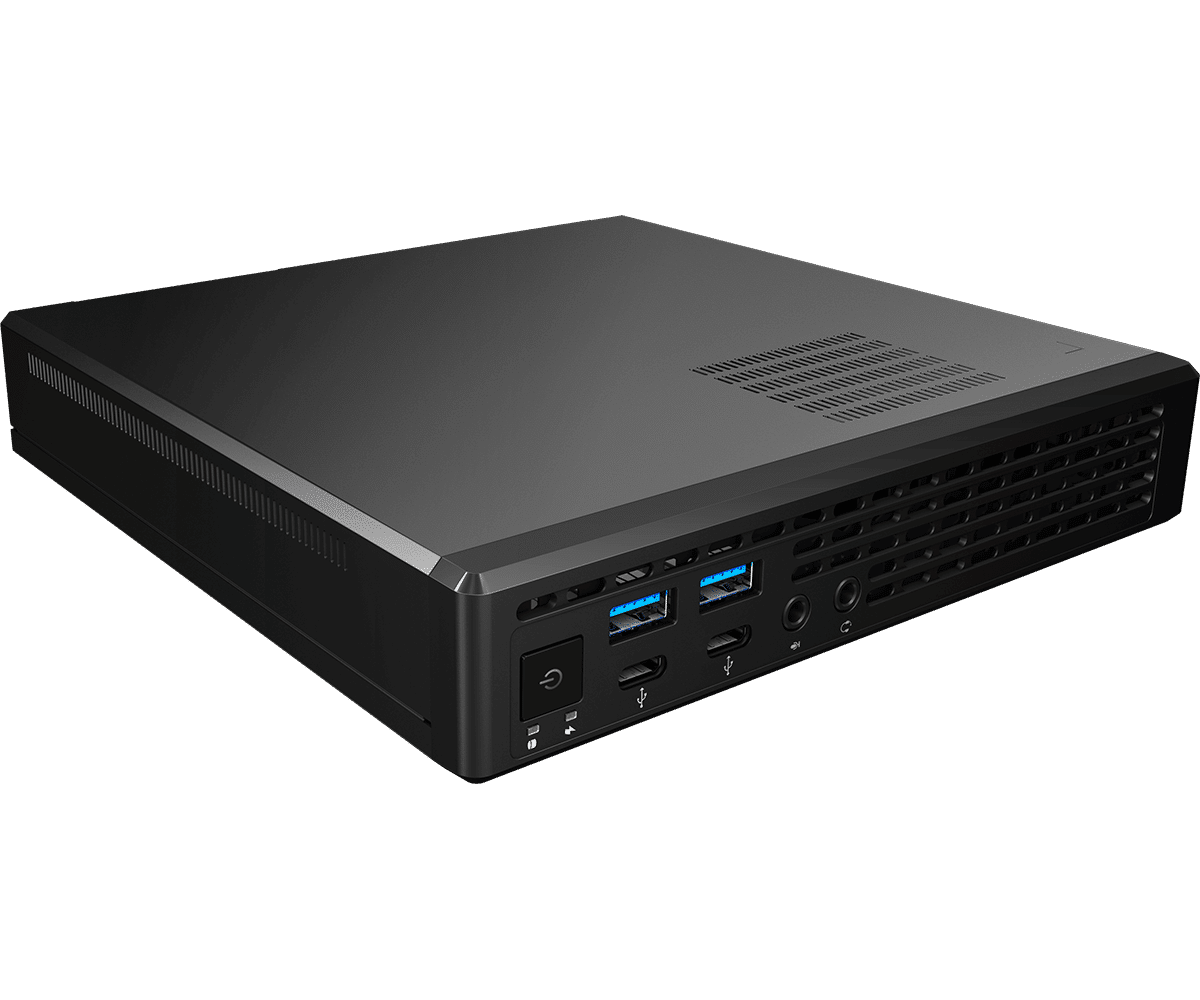

ASRock Jupiter H310 Barebone – Compact Mini PC with Intel LGA 1151 Support

The ASRock Jupiter H310 is a powerful and compact barebone mini PC designed for Intel® 8th and 9th generation Core™ processors (LGA 1151). With support for DDR4 memory, multiple storage options, and extensive connectivity such as HDMI, DisplayPort, and USB 3.1, this mini PC is ideal for both business use, home office, or multimedia applications.

---

Model: ASRock Jupiter H310
Socket: Intel (8th – 9th Gen)
Memory: 2 DDR4 SODIMM slots, memory not included
Storage: Not included
WiFi: Yes
Condition: New
Note: No storage media, memory, or operating system included
OS: Not applicable

---

CPU

– Supports Intel® 9th/8th generation LGA1151 processors (Max. TDP 65W)

---

Chipset

– Intel® H310

---

Cooler

– Integrated cooling solution

---

Memory

– Supports 2 x SO-DIMM DDR4-2666MHz, Max. 32GB (non-ECC)

---

Graphics

– Integrated Intel® UHD Graphics

---

Video Outputs

– 1 x HDMI (4K@30Hz)
– 1 x DisplayPort (4K@60Hz)
– 1 x D-Sub
Supports up to 2 displays simultaneously.

---

Audio

– 1 x Headphone with mic jack
– 1 x Mic-in
– 1 x 2W speaker
– Realtek ALC233

---

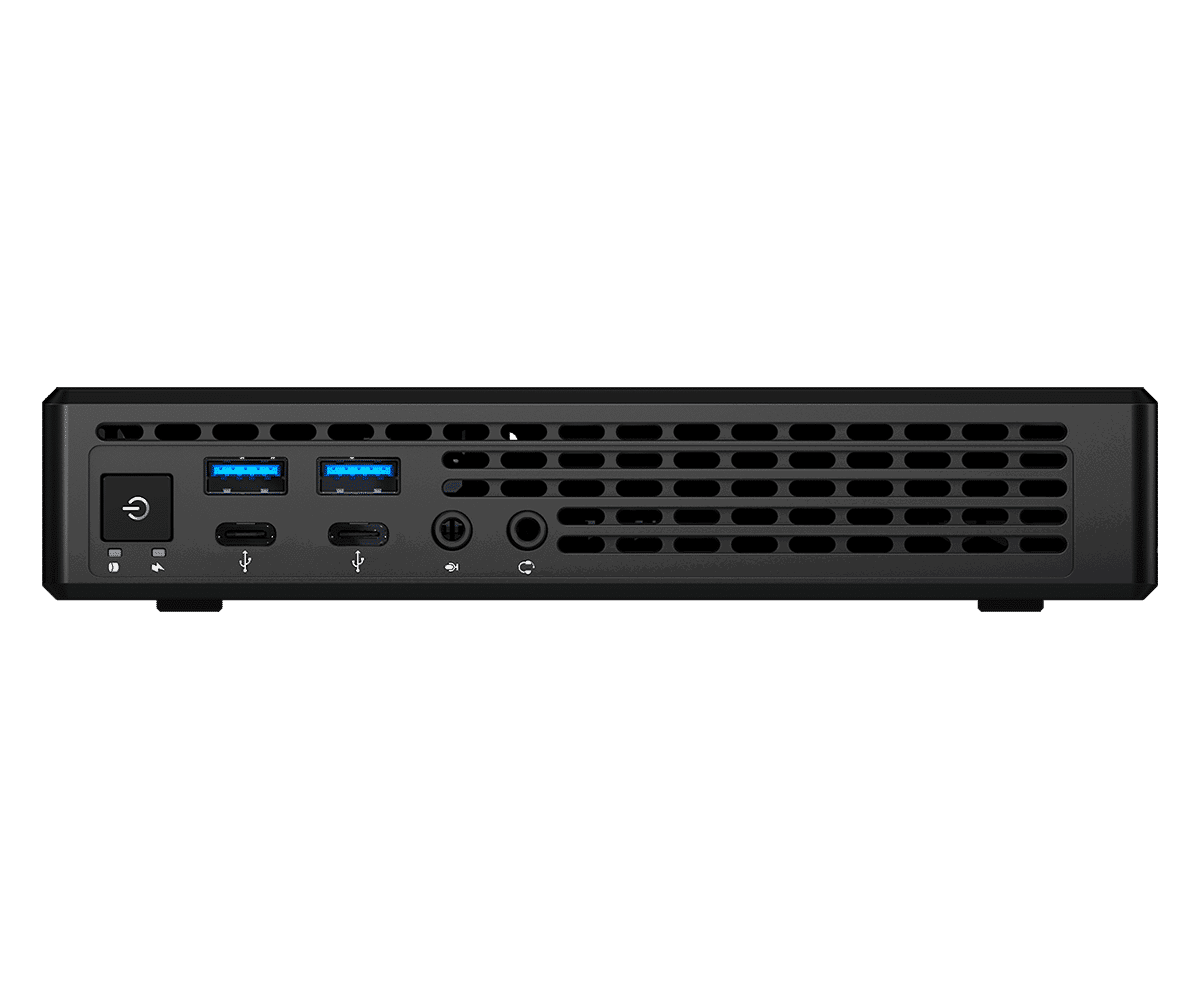

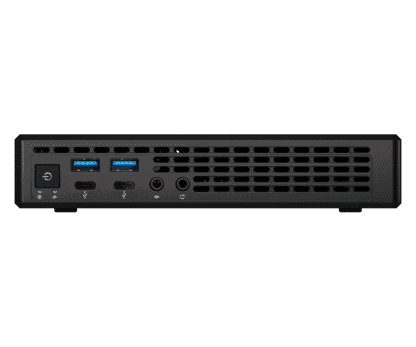

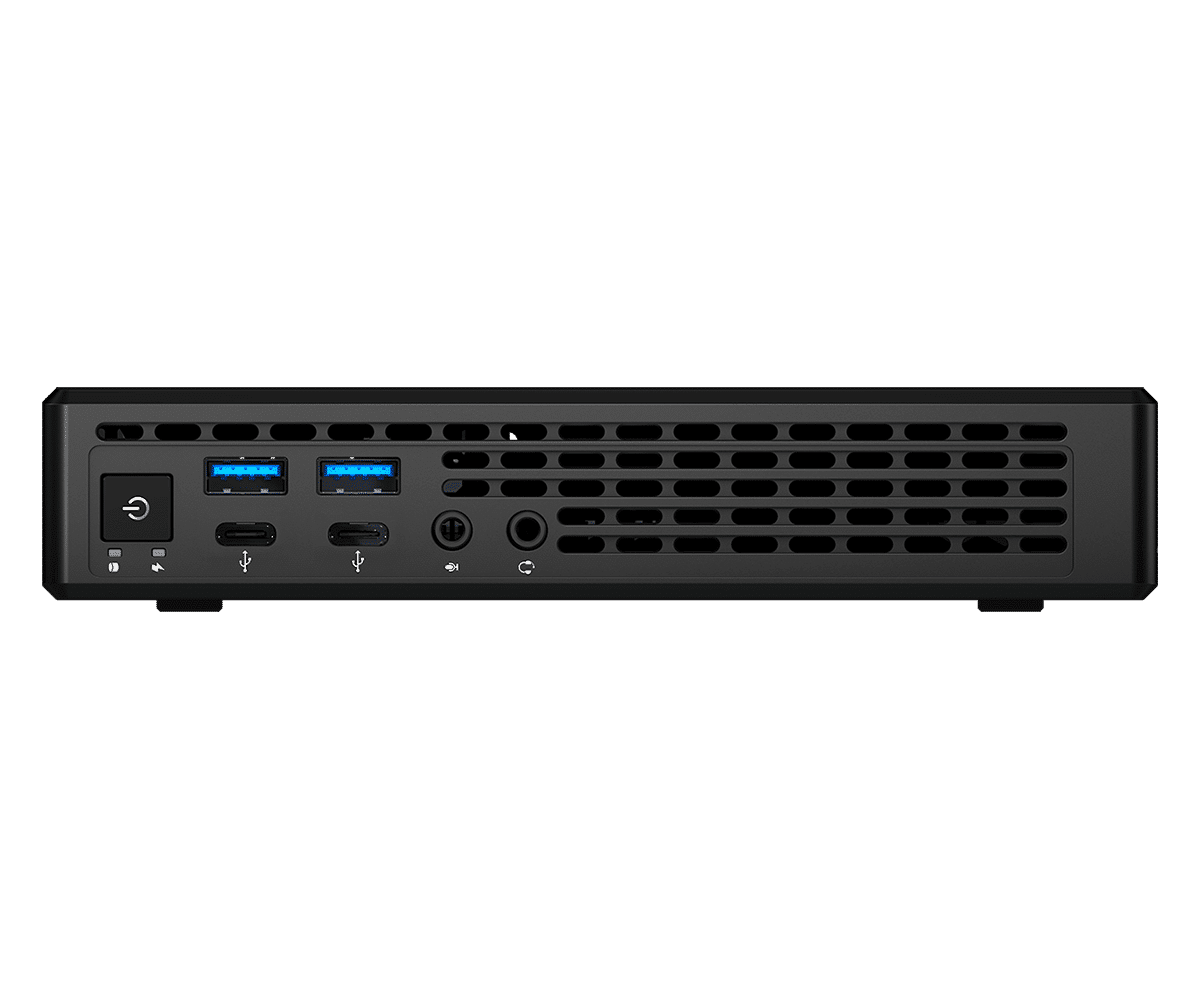

Front USB

– 2 x USB 3.1 Gen1 Type-C, 2 x USB 3.1 Gen1 Type-A

---

Rear USB

– 2 x USB 3.1 Gen1 Type-A, 4 x USB 2.0

---

Storage

– M.2_1: Type 2280 PCIe Gen3 x4 & SATA 6Gb
– 1 x SATA 6Gb 2.5-inch 7mm/9.5mm hard drive

---

LAN

– 1 x RJ45 Gigabit LAN
– Realtek RTL8111GN

---

WLAN

– Intel® AC-3168 Wi-Fi Module

---

Connectors

– 1 x 4-pin fan connector
– 1 x DC-in jack (supports 19V adapter)
– 1 x internal speaker header
– 1 x 2-pin chassis intrusion header
– 1 x COM port header

---

Power Supply

– 90W/19V adapter

---

Dimensions

– Motherboard: 170 x 170 mm (proprietary)
– Barebone: 178 x 178 x 34 mm (1.0L)

---

Security

– Kensington lock
– Key lock

---

Operating System

– Microsoft® Windows® 10 64-bit / 11 64-bit

---

Certification

– CE, FCC

---

Remarks

– VESA: 75 x 75mm / 100 x 100mm
– Optional TPM 2.0 IC
