Product information

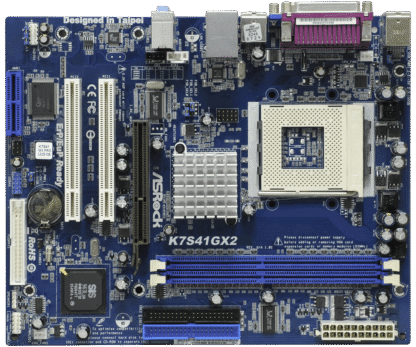

ASRock K7S41GX2: Motherboard | Micro ATX | Socket 462 | 2x DDR1 | IDE | AGP | VGA | USB2.0

Product:ASRock K7S41GX2
Socket: AMD Socket 462
Category: motherboards
Brand: ASRock
EAN: 4711140873220, 4711140873749
Condition: New
SKU: 90-MXGDZ0-A0UAYZ, K7S41GX2
Warranty: 6 months

Package contents:
– Motherboard (ASRock K7S41GX2)
– I/O-Shield (tin back plate)
– manual
– drivers CD
– cables

CPU
– Socket 462 for AMD Sempron / Athlon / Athlon XP / Duron Processors
– FSB 333/266/200MHz

Chipset
– Northbridge: SiS 741GX
– Southbridge: SiS 963L

Memory
– 2 x DDR DIMM slots
– Supports DDR 400/333/266 non-ECC, unbuffered memory
– Max. capacity of system memory: 2GB

BIOS
– 2Mb AMI Legal BIOS
– Support “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support

Graphics
– Integrated Mirage Graphics
– DirectX 7
– Max. shared memory 128MB
– Supports D-Sub with max. resolution up to 2048×1536 @ 75Hz

Audio
– 5.1 CH AC’97 Audio (C-Media CMI9739A Audio Codec)

LAN
– Realtek LAN PHY RTL8201EL
– Speed: 10/100 Ethernet
– Supports Wake-On-LAN

Slots
– 1 x AGP 8X/4X slot
– 1 x AMR slot
– 2 x PCI slots

Connector
– 2 x ATA133 IDE connectors (support 4 x IDE devices)
– 1 x Floppy Connector
– 1 x IR header
– CPU/Chassis FAN connector
– 20 pin ATX power connector
– CD in header
– AUX in header
– Front panel audio connector
– 1 x USB 2.0 header (supports 2 USB 2.0 ports)

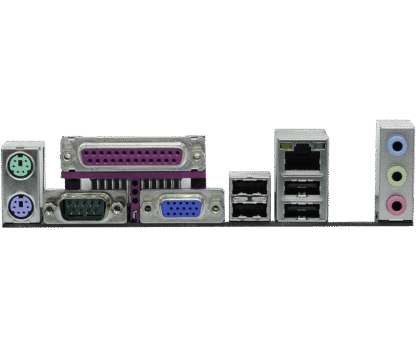

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x Parallel Port (ECP/EPP Support)
– 1x Serial Port: COM1
– 1 x VGA Port
– 4 x Ready-to-Use USB 2.0 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– Audio Jack: Line in / Front Speaker / Microphone

Unique Feature
– Intelligent Energy Saver
– Instant Boot
– ASRock Instant Flash
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)

Accessories
– I/O Shield

Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor
– Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4cm x 19.8cm

OS
– Microsoft® Windows® 2000 / XP compliant

Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)
