Description
The ASRock B1900B-ITX is a versatile and energy-efficient motherboard designed for compact and powerful systems. Equipped with an integrated Intel® Quad-Core Celeron® J1900 processor, this Mini-ITX motherboard delivers excellent performance for everyday use, office tasks, or industrial applications. With support for DDR3/DDR3L memory, multiple expansion slots, and flexible graphics output options such as HDMI, DVI-D, and D-Sub, the ASRock B1900B-ITX provides the perfect balance between functionality and efficiency. Features such as 7.1 CH HD Audio, Full Spike Protection, and the user-friendly ASRock Live Update & APP Shop make this motherboard a reliable choice for a wide range of applications.
Click here for the drivers.

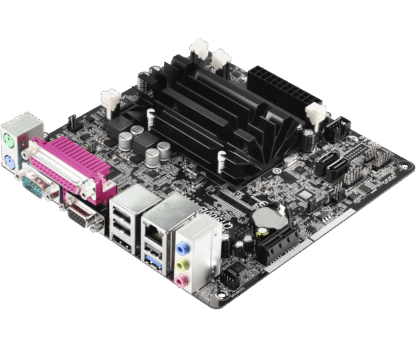

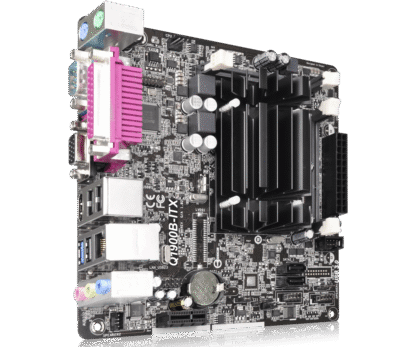

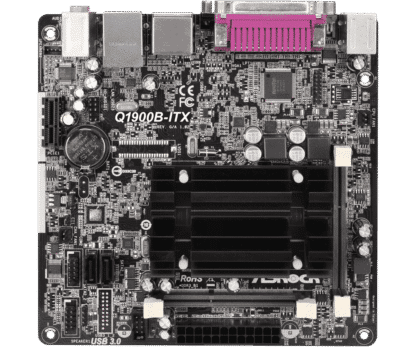

Product: ASRock Q1900B-ITX
Socket: Onboard CPU
Category: Motherboards
Brand: ASRock
EAN: 4717677322859
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGTR0-A0UAYZ
Warranty: 6 months
Package Contents:
- Motherboard (ASRock Q1900B-ITX)
- IO-Shield (Metal backplate)
- No manual
- No driver CD
- No cables
Unique Feature
– ASRock Full Spike Protection
– ASRock Cloud
CPU
– Intel® Quad-Core Processor J1900 (2 GHz)
Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L SO-DIMM Slots
– Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**If only one SO-DIMM module is installed, please install it into DDR3_A1.
BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports Plug and Play
– ACPI 5.0 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.7 Support
Graphics
– Intel® 7th generation (Gen 7) graphics
– DirectX 11.0, Pixel Shader 5.0
– Dual graphics output: Support HDMI and D-Sub ports by independent display controllers
– Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with HDMI Port
– Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– Supports Surge Protection (ASRock Full Spike Protection)
LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
– 1 x PCI Express 2.0 x1 Slot
Storage
– 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
– 1 x 3W Audio AMP Output Wafer Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion Header
– 1 x CPU Fan Connector (3-pin)
– 1 x Chassis Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

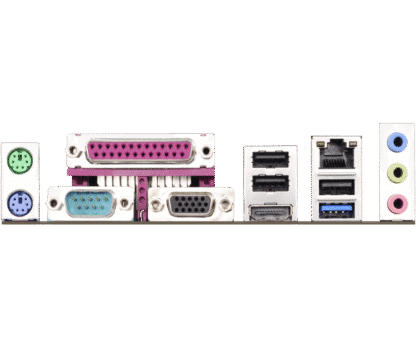

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x Parallel Port (ECP/EPP Support)
– 1 x Serial Port: COM1
– 1 x D-Sub Port
– 1 x HDMI Port
– 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock A-Tuning
– ASRock APP Shop
– ASRock USB Key
– ASRock XFast RAM
– ASRock Restart to UEFI
UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
Accessories
– I/O Shield
Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
– Mini-ITX Form Factor
– Solid Capacitor for CPU power
– High Density Glass Fabric PCB
OS
– Microsoft Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
