Description

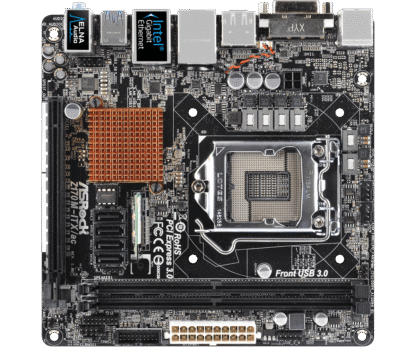

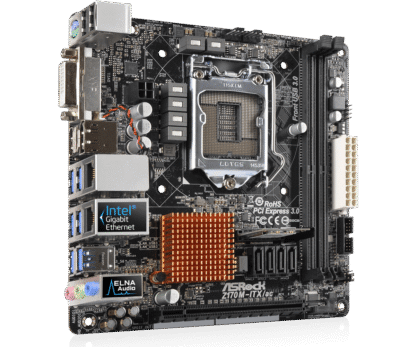

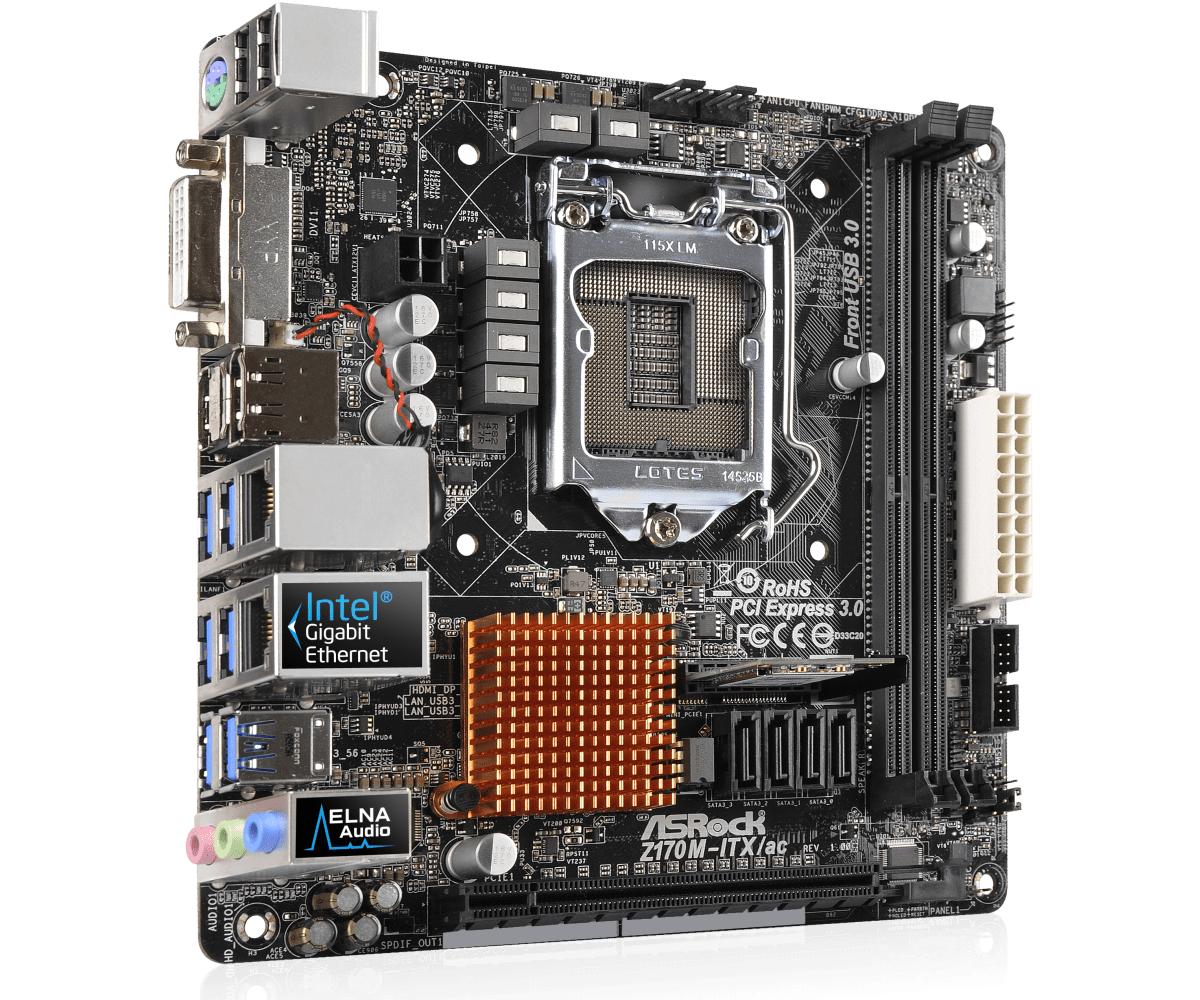

The ASRock Z170M-ITX/ac is a Mini-ITX LGA1151 motherboard based on the Intel Z170 chipset. The board must be combined with DDR4 memory, for which 2 slots are available. In total, the ASRock Z170M-ITX/ac has 4 Serial ATA connections for hard drives and SSDs. The built-in sound card offers 7.1-channel sound and is based on a Realtek ALC1150 chip.
Features: Motherboard | Mini-ITX | LGA1151 | 2x DDR4 | 4x SATA-600 | 1x mSATA | 1x PCI-e 3.0 x16 | 1x Vertical Half-size Mini-PCI Express | 2x RJ-45 LAN | USB 3.1 (Gen1, 5 Gb / s) | USB 2.0 DVI-D | HDMI | Displayport
Click here for the supporting CPUs
Click here for the drivers
Product: ASRock Z170M-ITX/ac
Socket: LGA1151
Supports: 6th en 7th Generation Processors
Category: motherboards
Brand: ASRock
EAN: 4717677327342
Condition: refurbished – BIOS updated to the latest version
SKU: 90-MXGZN0-A0UAYZ, Z170M-ITX/ac
Warranty: 6 months
Package content:
– Motherboard (ASRock Z170M-ITX/ac)
– backplate (blende)
– No Wifi module
– No Antennas
– No manual
– No CD with drivers
– No cables
Unique Feature
ASRock Super Alloy
– Premium 45A Power Choke
– Dual-Stack MOSFET (DSM)
– High-Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & amp; APP Shop
CPU
Supports 7th and 6th Generation Intel® Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
– Digi Power design
– 6 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
Supports Intel® K-Series unlocked CPUs
– Supports ASRock BCLK Full-range Overclocking
Chipset
– Intel® Z170
Memory
– Dual-Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
Supports DDR4 3200+ (OC) * / 2933 (OC) / 2800 (OC) / 2400 (OC) / 2133 non-ECC, un-buffered memory
Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 32GB **
– Supports Intel® Extreme Memory Profile (XMP) 2.0
* Please refer to the Memory Support List on ASRock’s website for more information.
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 5.0 Compliant wake-up events
– SMBIOS 2.7 Support
– CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO, VPPM, VCCSA Voltage Multi-adjustment
Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 510/530
Pixel Shader 5.0, DirectX 12
– Max. shared memory 1024MB *
– Three graphics output options: DVI-D, HDMI and DisplayPort 1.2
– Supports Triple Monitor
Supports HDMI with max. Resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
Supports DVI-D with max. Resolution up to 1920×1200 @ 60Hz
Supports DisplayPort 1.2 with max. Resolution up to 4K x 2K (4096×2304) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports Accelerated Media Codecs: HEVC, VP8, VP9
– Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports
* The size of maximum shared memory may vary from different operating systems.
** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
*** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit.
**** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) *
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
– 1 x Intel® I219V (Gigabit LAN PHY 10/100/1000 Mb / s)
– 1 x Realtek RTL8111H (PCIE x1 Gigabit LAN 10/100/1000 Mb / s)
Supports Wake-On-WAN (on Realtek RTL8111H)
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
Supports LAN Cable Detection (on Realtek RTL8111H)
Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) *
– 1 x Vertical Half-size Mini-PCI Express Slot: For WiFi + BT Module **
* Supports NVMe SSD as boot disks
** This Mini-PCI Express Slot supports WiFi and mSATA devices.
Storage
– 4 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 14 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
– 1 x mSATA Connector (shared with Mini-PCI Express Slot), support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 14 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
Connector
– 1 x TPM Header
– 1 x Chassis Intrusion Header
– 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
– 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control) *
– 1 x 20 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
* All CPU / Chassis Fan Connectors can auto-detect if 3-pin or 4-pin fan is in use.
The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

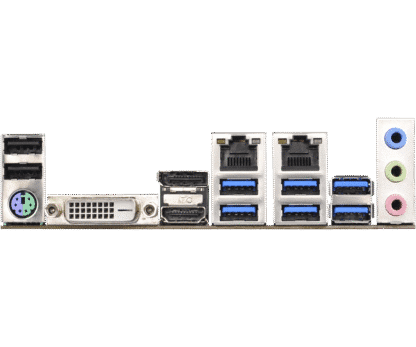

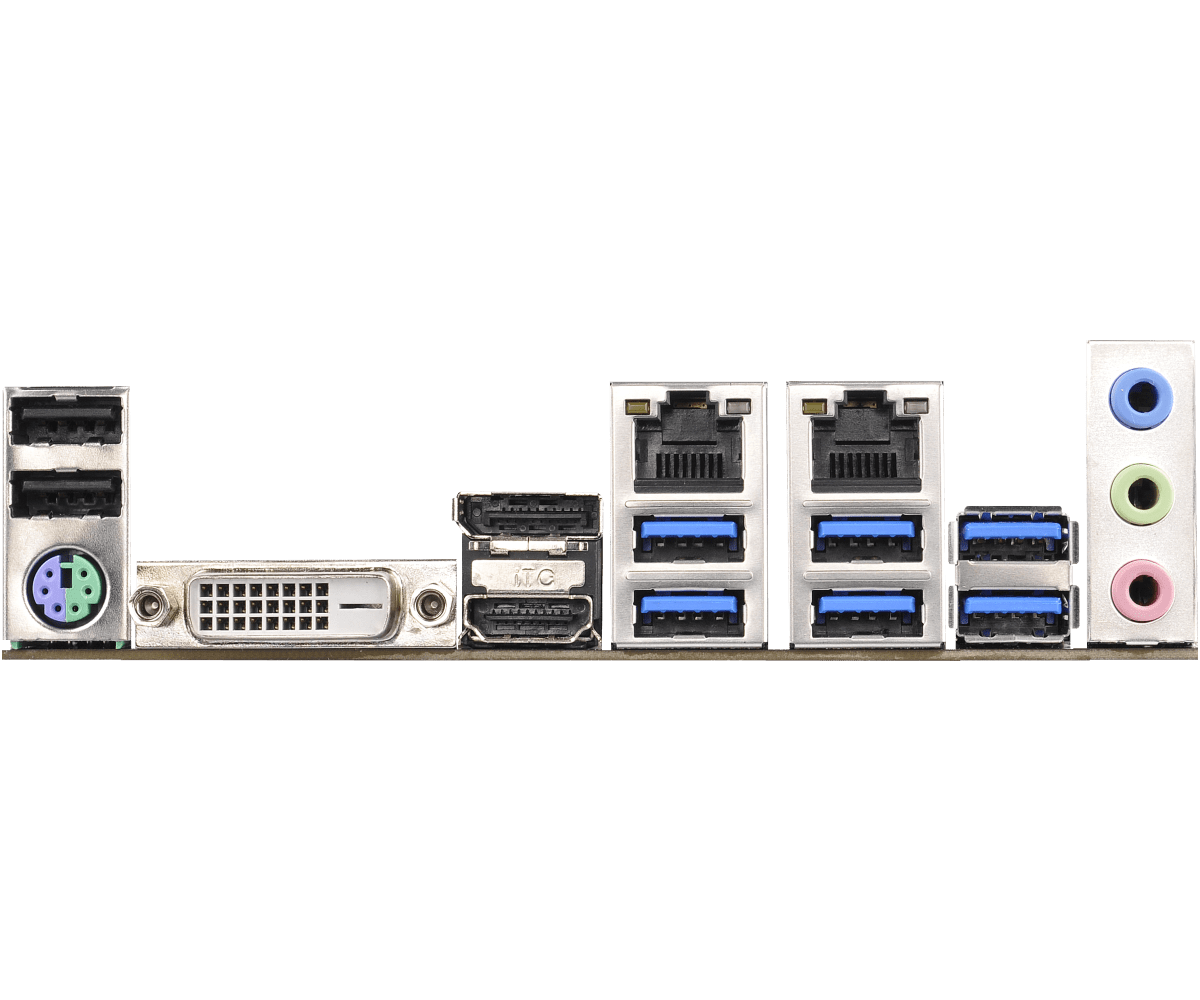

Rear Panel I/O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x DisplayPort 1.2
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 6 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x RJ-45 LAN Ports with LED (ACT / LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
* These utilities can be downloaded from ASRock Live Update & amp; APP Shop.
Accessories
– I / O Shield
Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust the chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
Voltage monitoring: + 12V, + 5V, + 3.3V, CPU Vcore
Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– Solid Capacitor design
OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit *
* To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please see our online tutorial or check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock’s website for details.
Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)
