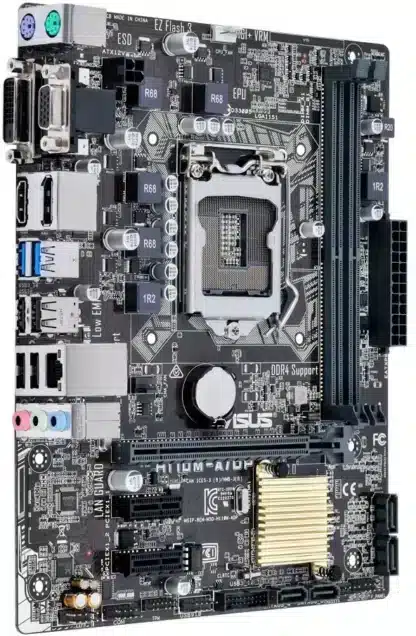

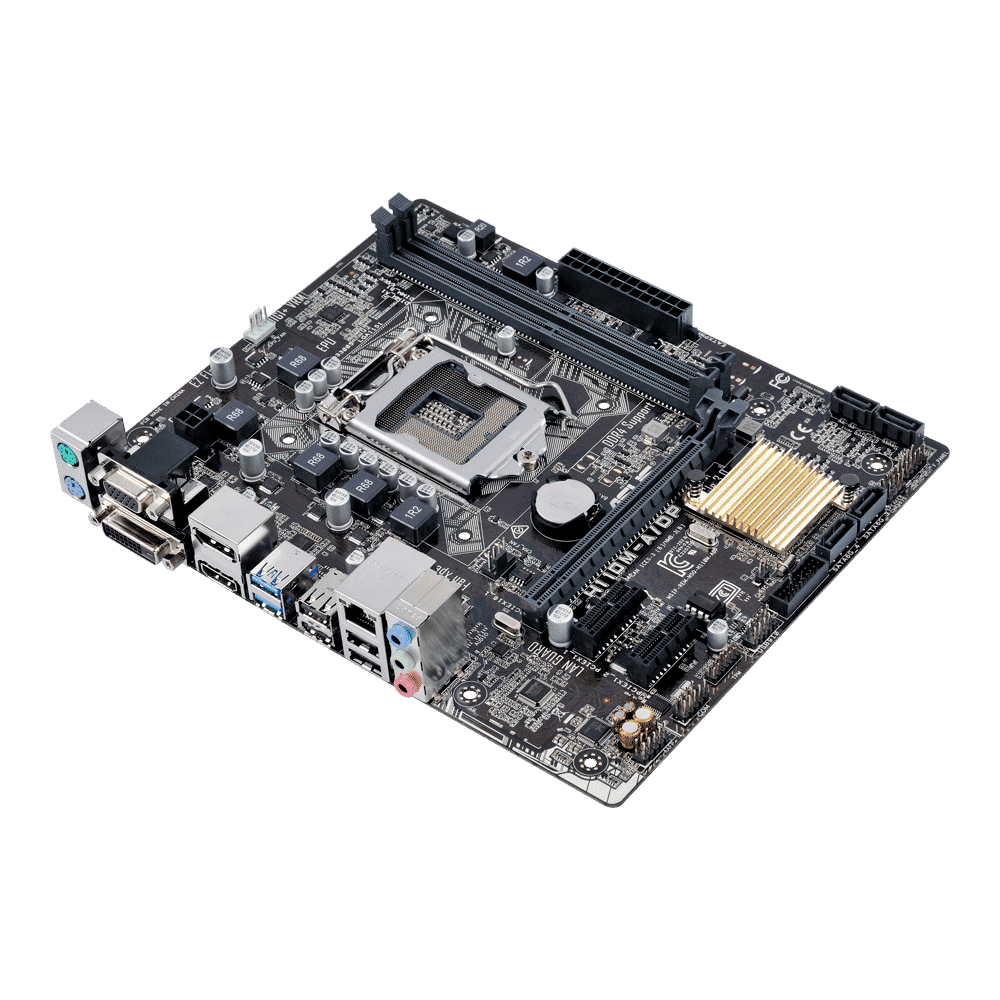

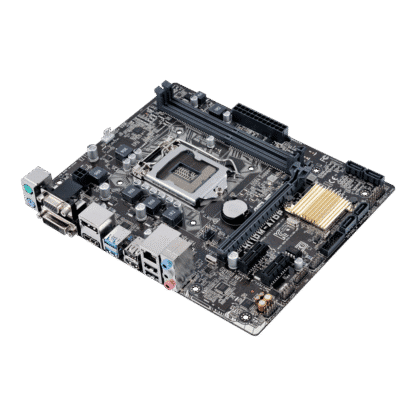

The Asus H110M-A/DP is a Micro ATX Socket 1151 motherboard based on the Intel H110 chipset. The board must be combined with DDR4 memory, for which 2 slots are available. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.
Features: Motherboard – M-ATX | Socket 1151 6th, 7th Gen | 4x DDR4 | Intel® H110 Chipset | DVI-D | VGA (D-Sub)| HDMI | Displayport | | USB 3.0 | USB2.0 | PCI-e 3.0 x1 | PCI-e 3.0 x16 | Sata-600
Product: Asus H110M-A/DP
Socket: Socket 1151
Suitable for: 6th and 7th generation processors
Category: Motherboards
Brand: ASRock
EAN: 0889349288290, 4712900288292, 4712900288308
Condition: Used
SKU: 90MB0Q10-M0ECY0, H110M-A/DP
Warranty: 6 Months
package content:
– Motherboard (Asus H110M-A/DP)
– IO-Shield (tin back plate)
– no manual
– no driver CD
– no cables
processor
LGA1151 socket for 6th generation Intel® Core™ i7 / i5 / i3, Pentium® and
Celeron® Processors*
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0**
* Refer to www.asus.com for Intel® CPU support list
** The support of Intel® Turbo Boost Technology 2.0 depends on the CPU type.
chipset
Intel® H110 Express Chipset
Memory
2x DIMM, max 32 GB, DDR4 2133 MHz, non-ECC, unbuffered memory*
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
**Due to the limitation of the Intel® chipset, DDR4 2133MHz and higher memory modules operate in XMP mode at the maximum transfer rate of DDR4 2133MHz.
Extension locks
1 x PCI Express 3.0/2.0 x16 slot
2 x PCI Express 2.0 x1 slots
Graphic
Integrated graphics processor
– Intel® HD graphics support
Multiple VGA output support: DP, HDMI, DVI-D, D-Sub ports
– Supports DisplayPort with a maximum resolution of 4096×2304@60Hz
– Supports HDMI with maximum resolution 4096 x 2160 @24Hz / 2560 x 1600 @60Hz
– Supports DVI-D with a maximum resolution of 1920 x 1200 @ 60Hz
– Supports D-Sub with maximum resolution 1920 x 1200 @60Hz
Supports up to 2 screens simultaneously
Supports Intel® InTruTM 3D, Quick Sync Video, Intel® Clear Video HD technology and
Intel® InsiderTM
Maximum shared memory of 1024 MB
Storage
Intel® H110 Express Chipset
– 4 x SATA 6.0 Gb/s ports (gray)
USB
Intel® H110 Express Chipset – Supports ASUS USB 3.0 Boost
– 4 x USB 3.0 / 2.0 ports (2 ports on mid-board; 2 ports on back panel)
– 6 x USB 2.0 / 1.1 ports (2 ports on mid-board; 4 ports on back panel)
Audio
Realtek® ALC887 8ch*High Definition Audio CODEC
– Supports jack detection and jack retasking on the front panel
* Use chassis with HD audio module in the front panel to support 8 channel audio output.
LAN
Realtek® 8111H Gigabit Controller
I/O ports on the back panel
1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI Port
1 x DVI-D Port
1 x D-Sub Port
1 x LAN (RJ-45) port
3 x audio jacks support 8 channel audio output
* Use chassis with HD audio module in the front panel to support 8 channel audio output.
Internal connectors
1 x USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0 ports
1 x USB 2.0/1.1 connector supports additional 2 USB 2.0/1.1 ports
4 x SATA 6.0 Gb/s connectors
1 x 4 Pin CPU Fan Connector for 4 Pin PWM Mode
1 x 4 Pin Chassis Fan Connector for 4 Pin PWM and DC Mode
1 x Front Panel Audio Connector (AAFP)
1 x COM header
1 x 24 Pin EATX Power Connector
1 x 4 Pin ATX 12V Power Connector
1 x 14-1 pin TPM header
1 x Speaker Jack
1 x Chassis Burglary header
1 x System Panel Connector
BIOS Features
128MB Flash ROM, UEFI AMI BIOS, PnP,DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multilingual BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last modified log, F12 PrintScreen function and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE
OS Support
Windows® 10 (64-bit),
Windows® 8.1 (64-bit),
Windows® 7 (32-bit / 64-bit) *
* Refer to the ASUS official website and download the “Windows® 7 Installation Guide”
and “ASUS EZ installer” to install Windows® 7.
Shape Factor
uATX form factor: 8.9 inches x 7.3 inches (22.61 cm x 18.54 cm)
Weight | 1 kg |
---|---|
Intel | Socket 1151 |
Brand | Asus |
Chipset | Intel H110 |
Form Factor | Micro-ATX |
Memory Type | DDR4 SDRAM |
Number of memory slots | 2 |
Maximum memory size | 32 GB |
Connectors | D-Sub (VGA), Displayport, DVI-D, HDMI, USB 2.0, USB 3.1 Gen1, USB 3.1 Gen2 Type-C |
Storage Interfaces | Serial ATA-600 |
Interfaces | PCI-e 3.0 x1, PCI-e 3.0 x16 |
Model | H110M-A/DP |
Length | 22.6 cm |
Width | 18.5 cm |
Socket |
