Description

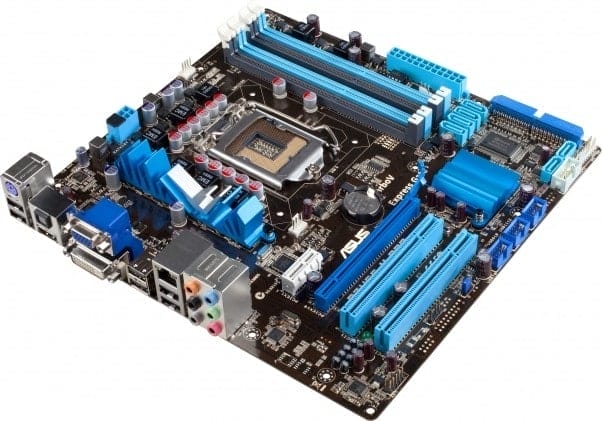

The Asus P7H55-M Pro is a Micro-ATX LGA1156 motherboard based on the Intel H55 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Asus P7H55-M Pro has 6 Serial ATA connections for hard drives and SSDs.
Features: Motherboard | Micro ATX | LGA1156 | 4x DDR3 | 6x SATA-300 | PATA-133 | PCI-e x16| PCI-e x1 | PCI | USB 2.0 | DVI | VGA | HDMI
Click here for the supporting CPUs
Click here for the drivers
Product:Asus P7H55D-M Pro
Socket: LGA1156
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
EAN:1771711175125, 4719543175125
SKU: 90-MIBCP0-G0EAY0KZ, P7H55D-M PRO
Warranty: 6 months
Package contents:
– Motherboard (Asus P7H55D-M Pro)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables
CPU
Intel® Socket 1156 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Chipset
Intel® H55
Memory
4xDIMM, Max. 16GB, DDR3 1600/1333/1066MHz Non-ECC, Un-buffered Memory
Expansion Slots
1 x PCIe x16
2 x PCIe x1
2x PCI
Storage
Intel® H55 chipset :
6 x SATA 3Gb/s port(s)
LAN
Realtek® RTL8112L
Audio
– Analog (3.5mm), Digital Optical (S/PDIF)
USB Ports
Intel® H55 chipset :
6x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
Operating System Support
Windows® 8
Windows® 7

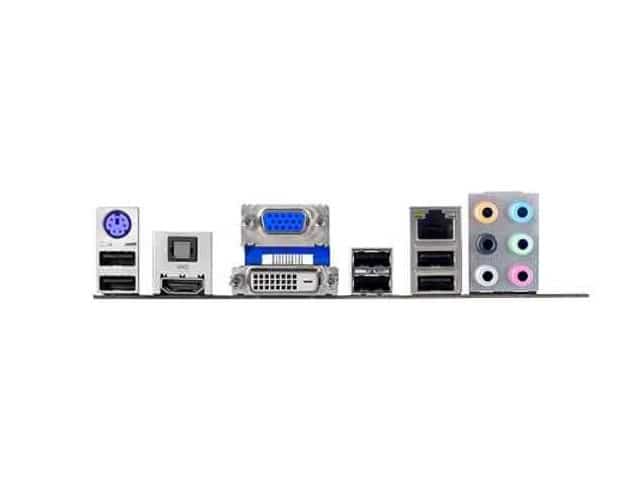

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x LAN (RJ45) port(s)
1 x HDMI
1x DVI
1x VGA
6 x USB 2.0
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s) (1 x 4-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 3Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)
Accessories
I/O Shield
Form Factor
Micro ATX Form Factor
