Product information

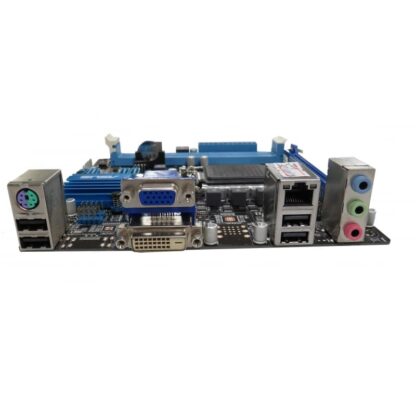

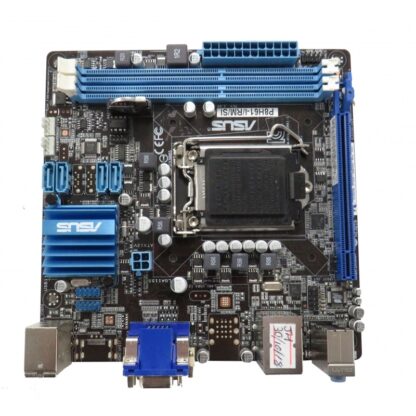

The Asus P8H61-I/RM/SI is a Mini-ITX Socket 1155 motherboard based on the Intel H61 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the Asus P8H61-I/RM/SI has 4 Serial ATA connections for hard drives and SSDs. The built-in sound card is based on a VIA VT1708S chip.


Features: Motherboard | Mini ITX | LGA1155 | 2x DDR3 | 4x SATA-300 | PCI-e 2.0 x16 | USB 2| USB 3.2 Gen 1 | DVI-D | VGA


Product:P8H61-I/RM/SI
Socket: LGA1155
Category: motherboards
Brand: ASus
EAN: 0610839178872, 4719543178874, 4719543178898
Condition: Used
SKU:90-MIBFB0-G0EAY0DZ, P8H61-I, P8H61-I
Warranty:
6 months


Package contents:
– Motherboard (P8H61-I/RM/SI)
– Backplate (blende)
– No manual
– No drivers CD
– No cables


CPU
Processor manufacturer:  Intel
Processor socket:  LGA 1155 (Socket H2)
Compatible processor series : Intel® Core™ i3, Intel Core i5, Intel, Core i7


Chipset
– Intel® H61


Memory
Supported memory types: DDR3-SDRAM
Number of memory slots:  2
Memory channels:  Dual channel
Non-ECC: Yes
Supported memory clock speeds: 1066.1333 MHz
Memory, maximum: 16 GB


BIOS
BIOS type: AMI
ACPI version: 2.0a


Graphics
Parallel processing technology support: Not supported


LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
LAN controller: Realtek RTL8111E
Network interface: Gigabit Ethernet


Slots
PCI Express x16 slots: 1
PCI Express slot version: 2.0


Storage
Supported storage drive interfaces: SATA II


Connector
4x USB 2.0
4x Sata-300
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 1
Number of COM connectors: 1


Rear Panel I/O
4x USB 2.0
2x USB 3.2 Gen 1
1x Ethernet LAN (RJ-45)
2x PS/2
1x VGA (D Sub)
1x DVI-D
1x Headphone
1x Microphone in


Accessories
– I/O Shield


Form Factor
– Mini-ITX Form Factor: 17.0cm x 17.0cm


OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

Specification

Intel

LGA1155

Brand

Asus

Chipset

Intel H61

Form Factor

Mini-ITX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), USB 2.0, USB 3.2 (Gen1, 5Gb/s)

Storage Interfaces

Serial ATA-300

Interfaces

PCI-e 2.0 x16

Socket

Model

P8H61-I RM SI

Length

17 cm

Width

17 cm

package content

Motherboard and Backplate (Blende)

Asus P8H61-I/RM/SI LGA1155 motherboard

18 in stock

Fast delivery
39,95

Brand: Asus
Model: Asus P8H61-I /RM/SI
Socket: LGA1155
Chipset: Intel H61
Memory: 2x DDR3 (16GB Max)
Form Factor: Mini-ITX
EAN: 0610839178872, 4719543178874, 4719543178898
SKU: 90-MIBFB0-G0EAY0DZ, P8H61-I, P8H61-I
