Product information

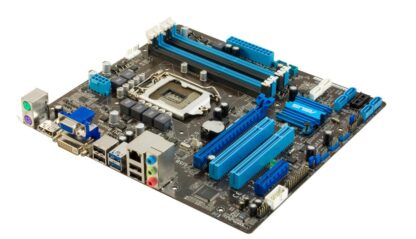

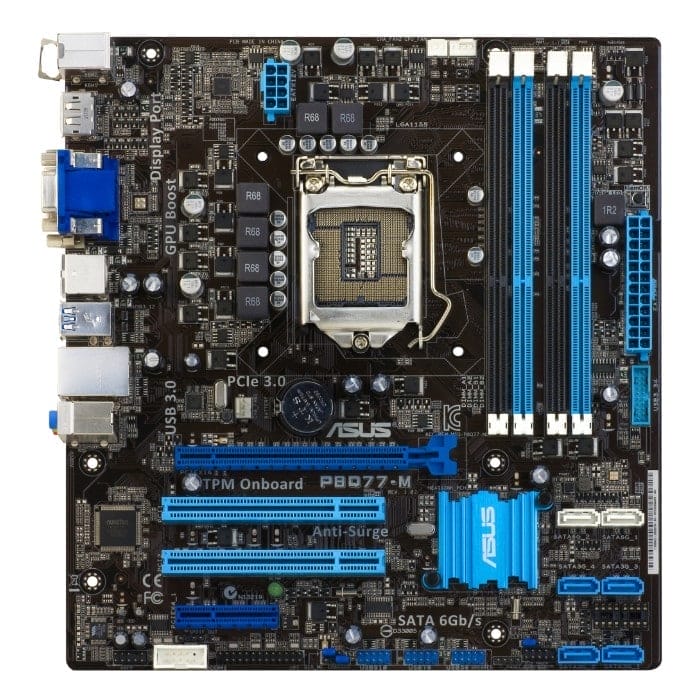

The Asus P8Q77-M  is a Micro-ATX Socket 1155 motherboard based on the Intel Q77 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Asus P8Q77-M has 6 Serial ATA connections for hard drives and SSDs.

Features: Motherboard | Micro ATX | Socket 1155 | 4x DDR3 | SATA-300 | SATA 600 | PCI-e 3.0 x16| PCI-e 2.0 x4 | PCI | USB 2.0 | USB 3.0| DVI-D | Display port | VGA (D Sub)

Product: Asus P8Q77-M
Socket: Socket 1155
Category: motherboards
Brand: Asus
Condition: Used, latest BIOS version installed
EAN: 4719543184899
SKU: 90-MIBHX0-G0EAY0KZ, P8Q77-M
Warranty: 6 months

Package contents:
– Motherboard (Asus P8Q77-M)
– Backplate (blende)
– No manual
– No drivers CD
– No cables

CPU
LGA1155 socket for Intel® 3rd/2nd Generation Core™ i7 /
Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
Supports Intel 22/32nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU
types.

Chipset
Intel® Q77 Express Chipset

Memory
4 x DIMM, maximum 32GB, DDR3 1600/1333/1066MHz, non-ECC,
unbuffered memory
Dual channel memory architecture
** When you install a total memory of 4GB capacity or more,
Windows® 32-bit operating system may only recognize less than
3GB. We recommend a maximum of 3GB system memory if you
are using a Windows® 32-bit operating system.

Expansion slots
1 x PCI Express 3.0*/2.0 x16 slot
1 x PCI Express 2.0 x4 slot
2 x PCI slots
* PCIe 3.0 speed is supported by Intel® 3rd generation Core™
processors.

Graphics
Integrated graphics processor
Multi-VGA output support: Display port, DVI-D, and D-Sub ports
Supports D-Sub with max. resolution up to 2048 x 1536 @75Hz
Supports DVI-D with max. resolution up to 1920 x 1200 @60Hz
Supports Display Port with max. resolution up to 2560 x 1600 @60Hz

Storage
Intel® Q77 Express Chipset:
– 2 x Serial ATA 6.0 Gb/s connectors (gray)
– 4 x Serial ATA 3.0 Gb/s connectors (blue)
– Intel® Matrix Storage technology supports RAID 0, 1, 0+1(10),
and 5 configurations
– Supports Intel® Smart Response Technology, Intel® Rapid Start
Technology, Intel® Smart Connect Technology*
* Supports on Intel® Core™ processor family with Windows® 7
operating systems.

LAN
Intel® 82579 Gigabit LAN controller

Audio
VIA® VT1708S 8-channel* High Definition Audio CODEC
– Supports Jack-Detection, Multi-streaming, and Anti-pop function
* Use a chassis with HD audio module in the front panel to support
an 8-channel audio output.

USB
Intel® Q77 Express Chipset:
– 4 x USB 3.0 ports (2 ports at the mid-board, 2 ports at the back
panel [blue])
– 10 x USB 2.0 ports (6 ports at the mid-board, 4 ports at the back
panel)

ASUS Exclusive Features:
– ASUS EPU
– GPU Boost
– ASUS USB 3.0 Boost
– MemoOK!
– ASUS AI Suite II
– Ai Charger
– ASUS Anti Surge Protection
– ASUS UEFI BIOS featuring graphics user interface
ASUS Quiet Thermal Solution:
– ASUS Q Fan 2
– ASUS Fan Xpert
ASUS EZ DIY:
– ASUS Crash Free BIOS 3
– ASUS EZ Flash 2
– ASUS MyLogo 2™

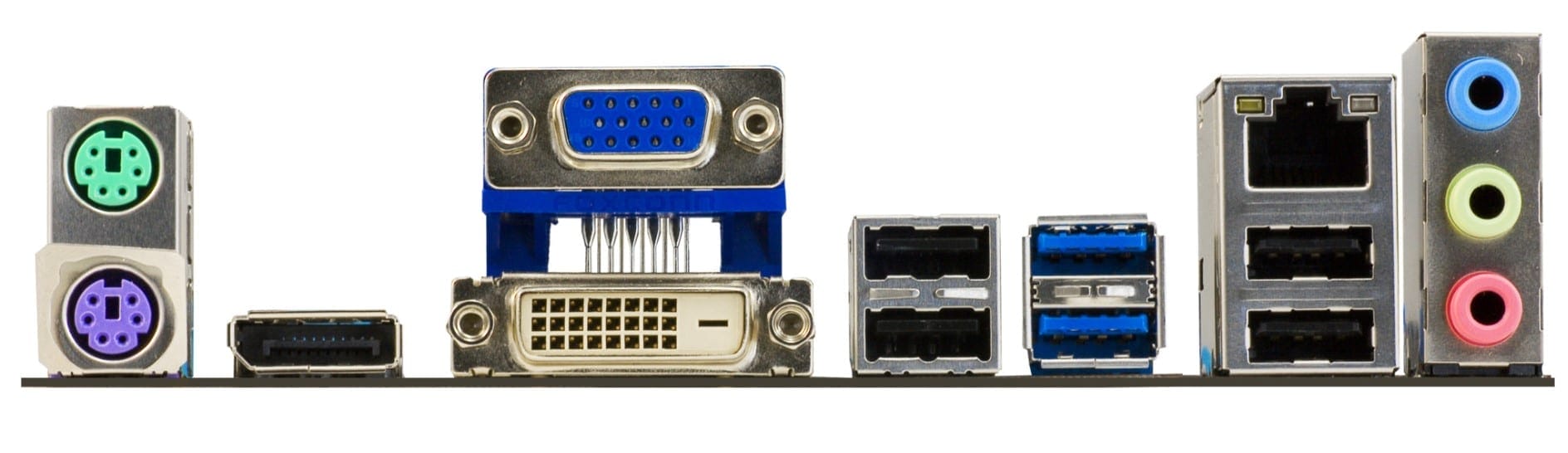

Back panel I/O ports
1 x PS/2 Mouse port (green)
1 x PS/2 Keyboard port (purple)
1 x Display Port
1 x DVI-D port
1 x VGA port
1 x LAN (RJ-45) port
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports (blue)
3 x Audio jacks

Internal connectors /buttons / switches
1 x USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0 ports
3 x USB 2.0/1.1 connectors support additional 6 USB 2.0/1.1ports
2 x SATA 6.0Gb/s connectors (gray)
4 x SATA 3.0Gb/s connectors (blue)
1 x CPU fan connector
2 x Chassis fan connectors
1 x LPT connector
1 x Front panel audio connector
1 x COM connector
1 x S/PDIF output connector
1 x Speaker connector
1 x Chassis intrusion connector
1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
1 x System panel connector
1 x TPM IC onboard
1 x Memo OK! button
1 x Clear CMOS jumper
1 x DIS_ME jumper

BIOS
128MB Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM 2.0,
ACPI 2.0a, SMBIOS 2.7, Multi-language BIOS,
ASUS CrashFree BIOS 3, ASUS EZ Flash 2

Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Accessories
1 x I/O shield

Form factor
MicroATX form factor: 9.6 in x 9.0 in (24.4 cm x 22.8 cm)
