Description

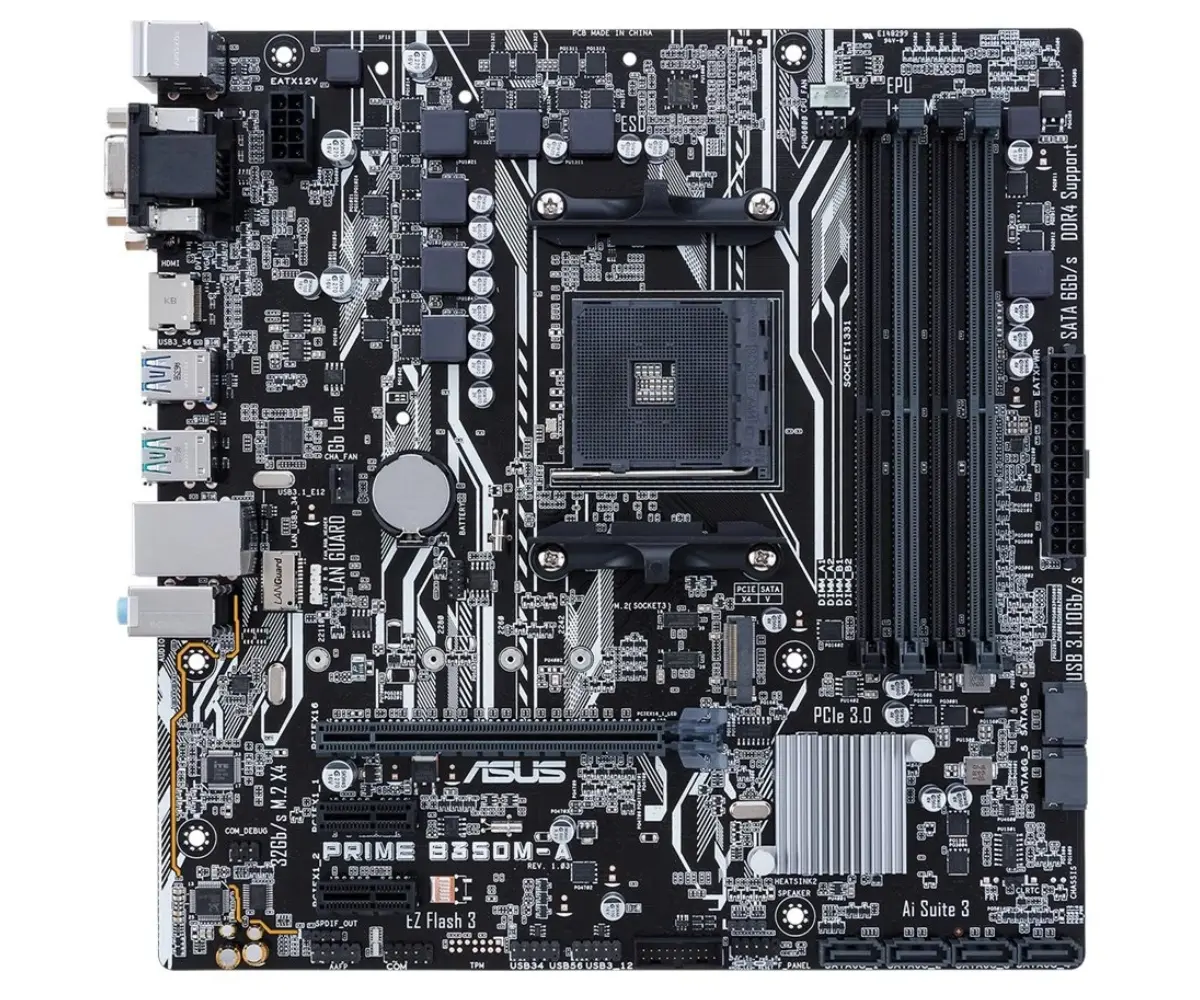

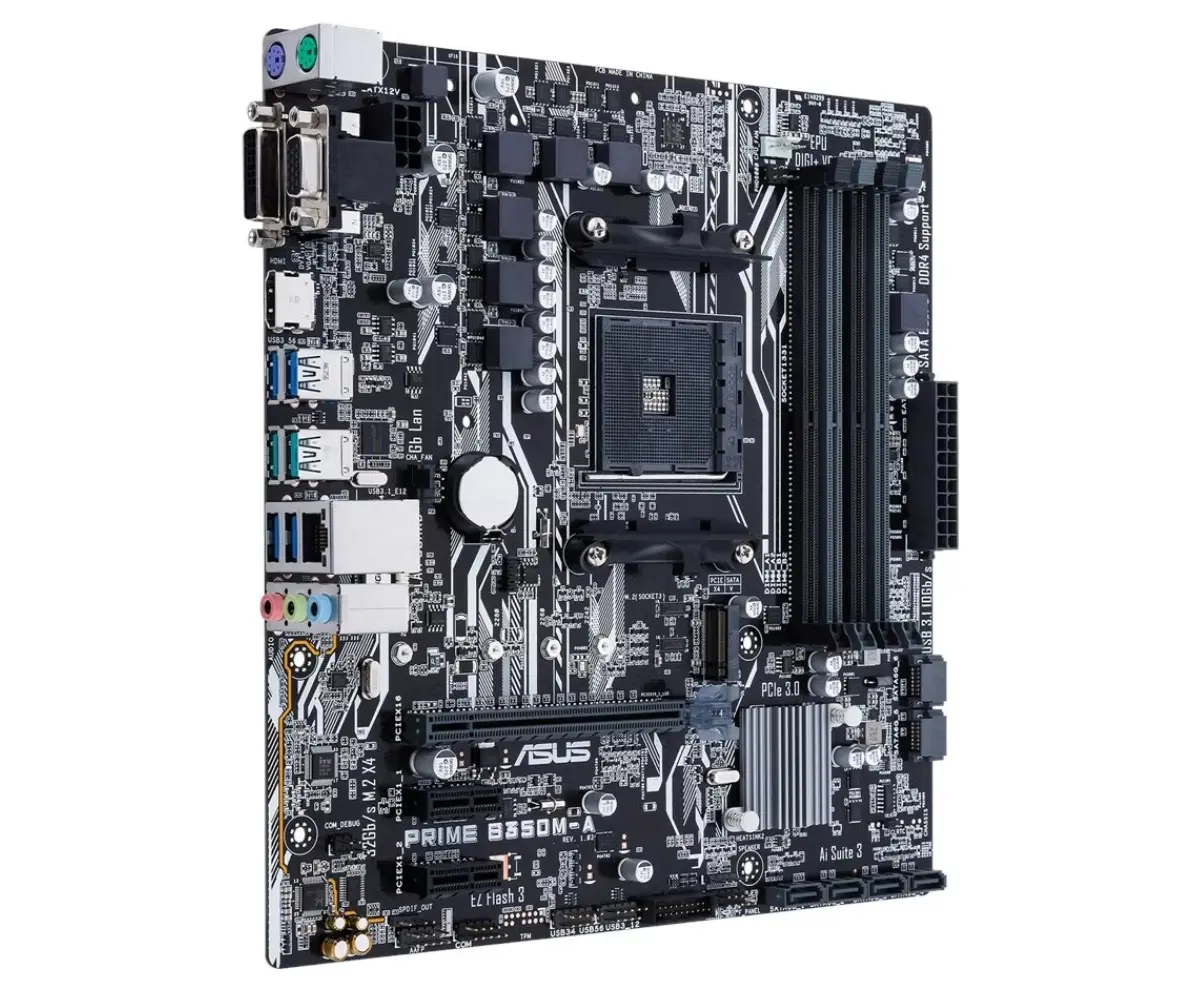

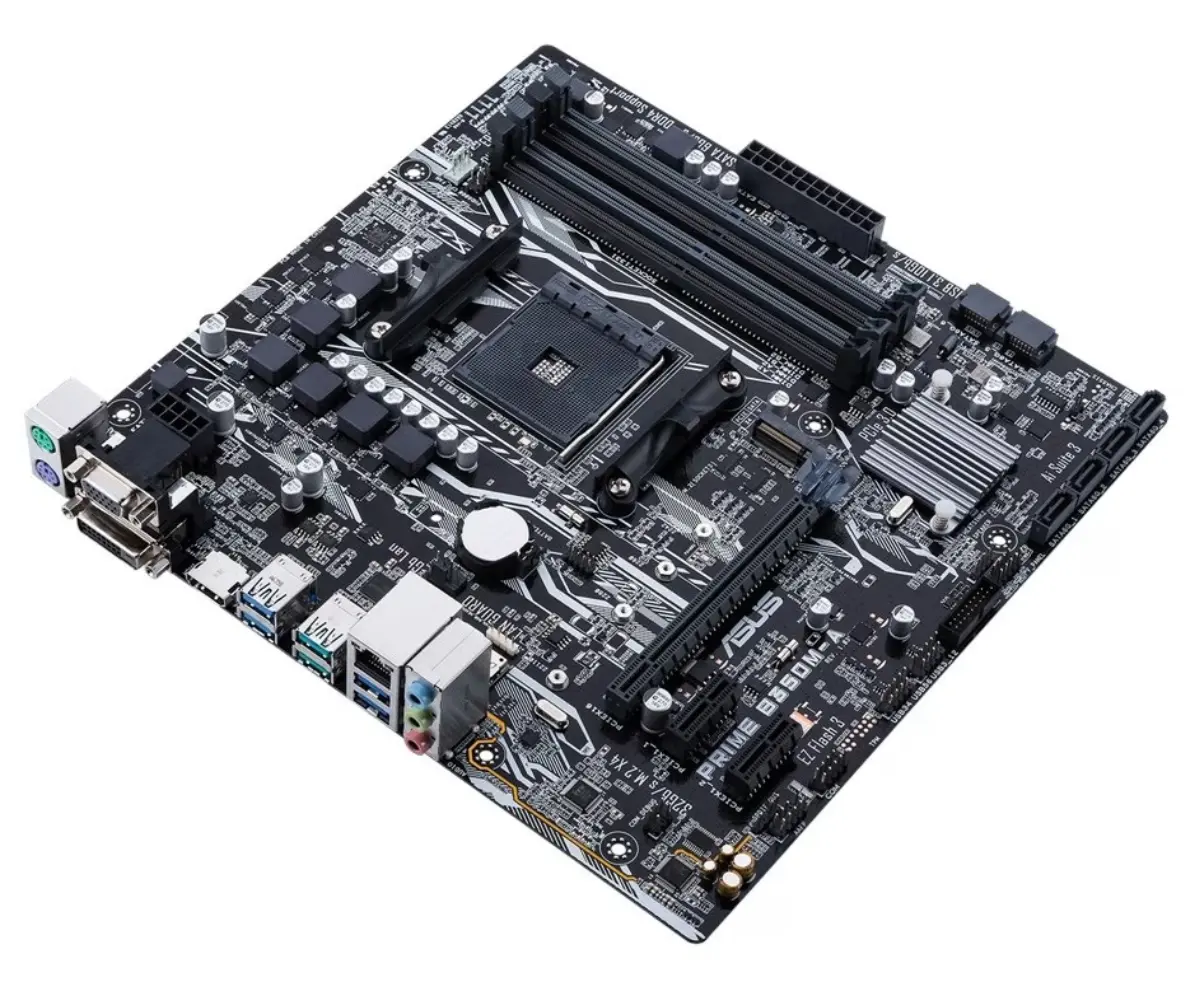

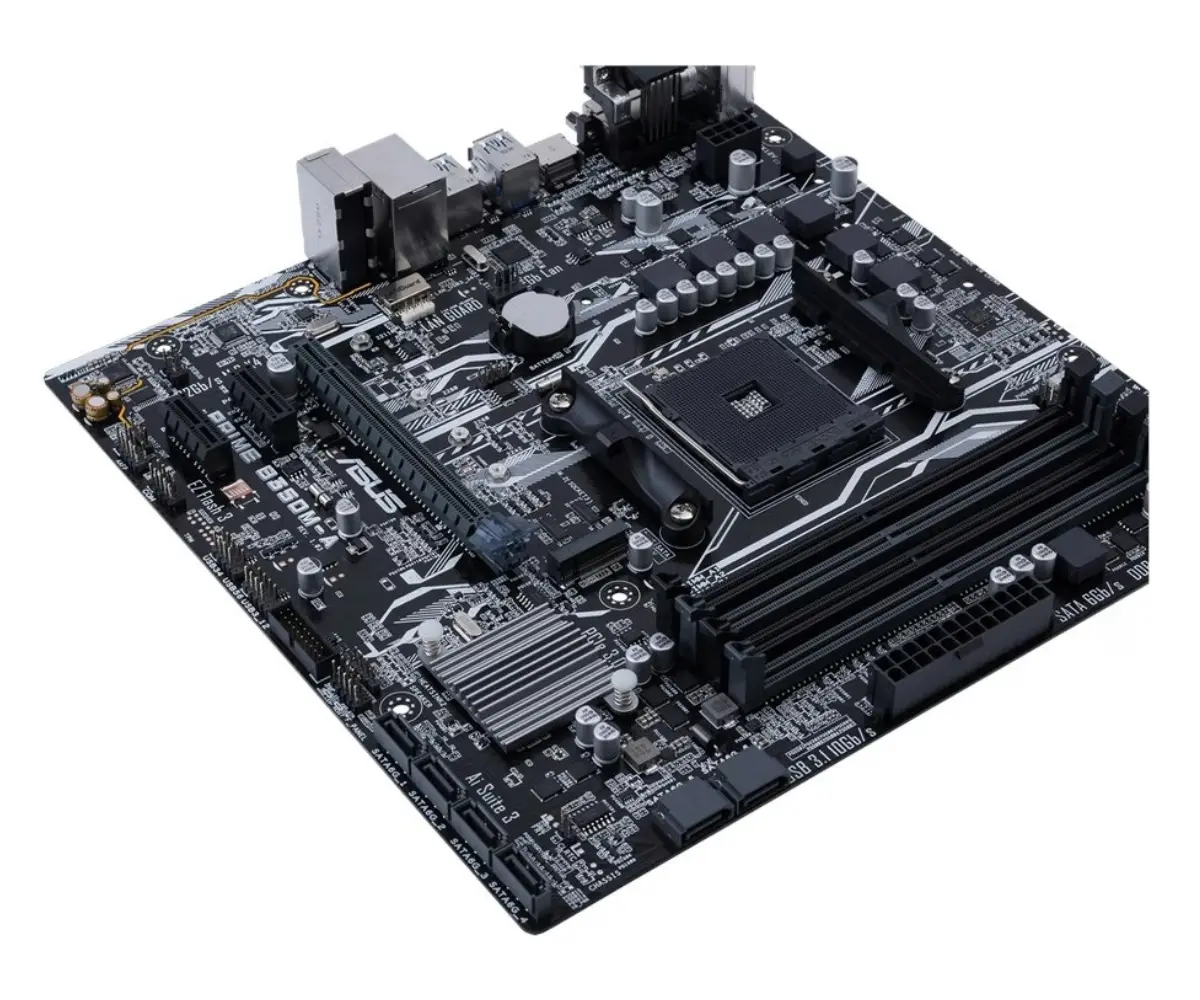

The ASUS Prime B350M-A is a versatile Micro-ATX motherboard for AMD Ryzen processors with the AM4 socket. This motherboard is an excellent choice for building or upgrading a reliable desktop PC and offers a great combination of performance, expansion options and connectivity.
Thanks to its four DDR4 DIMM slots, the ASUS Prime B350M-A supports up to 64GB of DDR4 memory. For expansion cards, the motherboard features one PCIe 3.0 x16 slot and two PCIe x1 slots. For fast storage, an M.2 slot is available with support for both PCIe/NVMe and SATA SSDs. In addition, the motherboard features six SATA 6Gb/s connectors for additional SSDs and hard drives.
The rear I/O offers a wide range of connectivity options, including USB 3.1 Gen 1, Gigabit LAN and audio. Thanks to the HDMI, DVI-D and VGA outputs, the integrated graphics capabilities of compatible AMD processors can also be used.
The ASUS Prime B350M-A therefore provides a reliable foundation for an affordable AMD Ryzen system and is suitable for everyday use, gaming and business applications.
Product: Asus Prime B350M-A
Socket: AMD AM4
Category: Motherboards
Brand: Asus
Condition: Refurbished
EAN: 4712900673586
SKU: 90MB0TE0-M0EAY0, Prime B350M-A
Warranty: 6 months
Drivers for the Asus Prime B350M-A
Processors supported by the Asus Prime B350M-A
Package contents:
– Motherboard (Asus Prime B350M-A)
– I/O Shield (metal backplate)
– No manual
– No driver CD
– No cables
Unique Features
Dependable Stability ASUS 5X PROTECTION III – ASUS SafeSlot Core: Fortified PCIe slot helps prevent damage – ASUS LANGuard: Protects against LAN surges, lightning strikes and static electricity discharges – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion resistance for greater durability – ASUS DIGI+ VRM: 6-phase digital power design
Superb Performance
UEFI BIOS
Advanced options with fast response times
Easy PC DIY
Safe motherboard mounting
Component-free areas to minimize the risk of damage
Q-Design
ASUS Q-DIMM
ASUS Q-Slot
UEFI BIOS EZ Mode
User-friendly graphical interface
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS Quiet Thermal Solution – Quiet Thermal Design:
Stylish fanless design: chipset heatsink solution
ASUS Fan Xpert
CPU
– Supports AMD AM4 Socket Ryzen™ 1000, 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Chipset
– AMD Promontory B350
Memory
AMD Ryzen™ processors: 4 x DIMM, max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz, ECC and non-ECC, unbuffered memory
AMD 7th Generation A-Series / Athlon™ processors:
4 x DIMM, max. 64GB, DDR4 2400/2133 MHz, non-ECC unbuffered memory, dual-channel memory architecture
** Hyper DIMM support is subject to the physical characteristics of individual CPUs.
BIOS
– 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1
– Multi-language BIOS, ASUS EZ Flash 3
– ASUS CrashFree BIOS 3
– My Favorites
– Last Modified log
– F12 PrintScreen
– ASUS DRAM SPD (Serial Presence Detect) memory information
– F6 Qfan Control
Graphics
Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series processor Multi-VGA output support: HDMI, DVI-D and D-Sub ports – Supports HDMI 1.4b with a maximum resolution of 4096 x 2160 @24Hz / 2560 x 1600 @60Hz – Supports DVI-D with a maximum resolution of 1920 x 1200 @60Hz – Supports D-Sub with a maximum resolution of 1920 x 1200 @60Hz – Maximum shared memory of 2048 MB
Audio
– Realtek® ALC 887-VD2 8-Channel High Definition Audio CODEC * Use a chassis with an HD Audio module on the front panel to support 8-channel audio output.
LAN
– Realtek® 8111H Gigabit LAN controller
Expansion Slots
AMD Ryzen™ processors: 1 x PCI Express 3.0/2.0 x16 slot (max. @x16 mode)
AMD 7th Generation A-Series / Athlon™ processors:
1 x PCI Express 3.0/2.0 x16 slot (max. @x8 mode)
AMD B350 Chipset:
2 x PCI Express 2.0 x1 slots
Storage
– 6 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and RAID 10 support
AMD Ryzen™ processors:
1 x M.2 Socket 3 with M Key, Type 2242/2260/2280/22110, supporting PCIe 3.0 x4 and SATA mode storage devices*
When a SATA/PCIe M.2 device is installed, the M.2 socket shares bandwidth with the SATA6G_5/6 ports.
AMD 7th Generation A-Series / Athlon™ processors:
1 x M.2 Socket 3 with M Key, Type 2242/2260/2280/22110, supporting PCIe 3.0 x2 and SATA mode storage devices*
When a SATA-mode M.2 device is installed, the M.2 socket shares bandwidth with the SATA6G_5/6 ports.
Internal Connectors
– 1 x USB 3.0 connector supporting 2 additional USB 3.0 ports
– 2 x USB 2.0/1.1 connectors supporting 4 additional USB 2.0/1.1 ports
– 1 x M.2 Socket 3 for M Key and Type 2242/2260/2280/22110 devices (both SATA & PCIe mode)
– 6 x SATA 6.0Gb/s connectors
– 1 x COM connector
– 1 x CPU fan connector
– 1 x fan RGB header
– 1 x chassis fan connector (supports DC & PWM mode)
– 1 x front-panel audio connector
– 1 x 24-pin EATX power connector
– 1 x 8-pin ATX 12V power connector
– 1 x 2-pin Clear CMOS header
– 1 x S/PDIF out connector
– 1 x speaker connector
– 1 x system panel connector

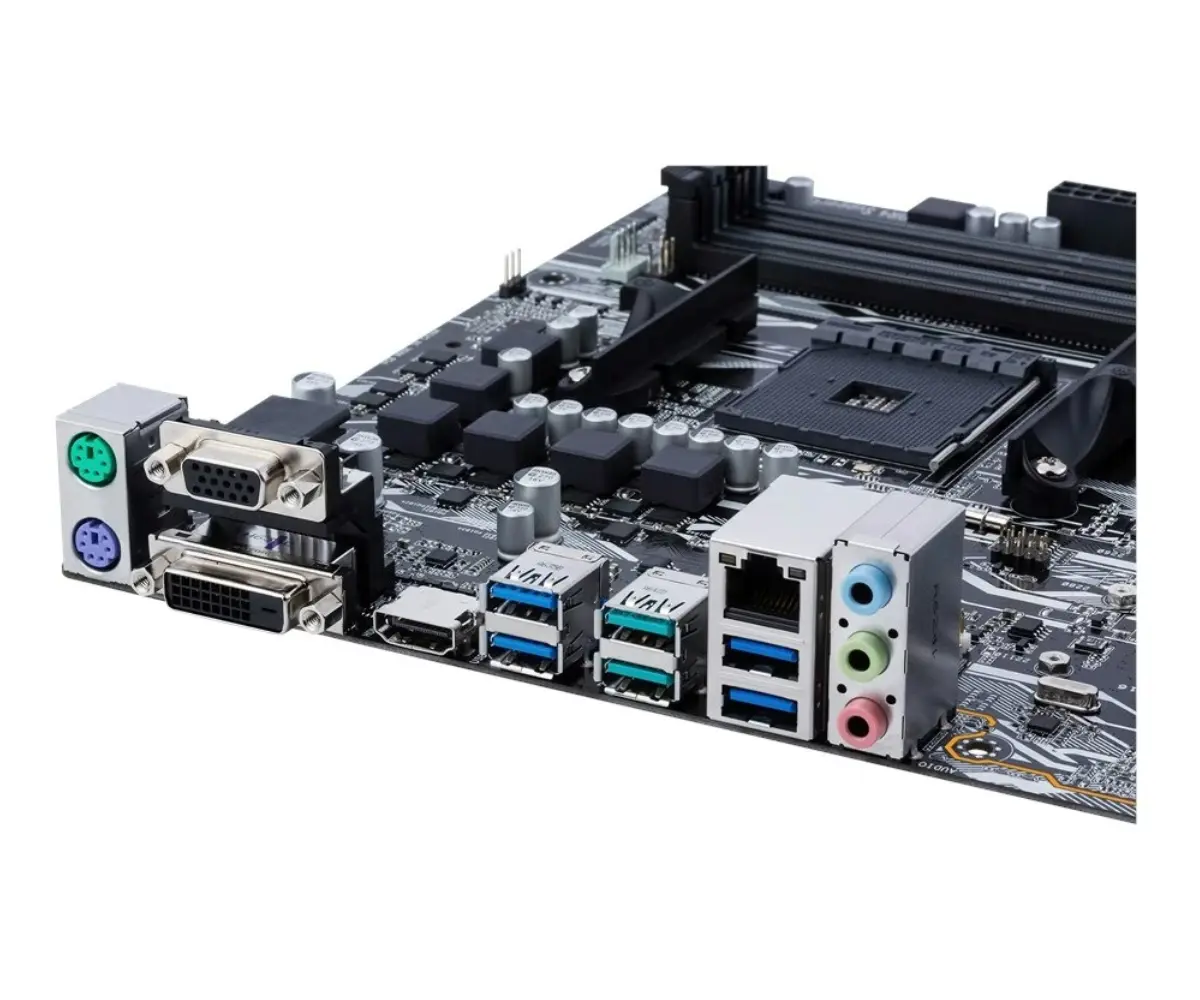

Rear Panel I/O
– 1 x PS/2 keyboard port (purple)
– 1 x PS/2 mouse port (green)
– 1 x HDMI port
– 1 x DVI-D port
– 1 x D-Sub/VGA port
– 1 x LAN (RJ-45) port
– 2 x USB 3.1 ports
– 4 x USB 3.0/2.0 ports
– 3 x audio jacks supporting 8-channel audio output
Accessories
– I/O Shield
Form Factor
– uATX Form Factor: 9.5-in x 9.45-in, 24.4 cm x 24 cm – Solid Capacitor design
Certifications
– FCC, CE – ErP/EuP ready (ErP/EuP-ready power supply is required)
