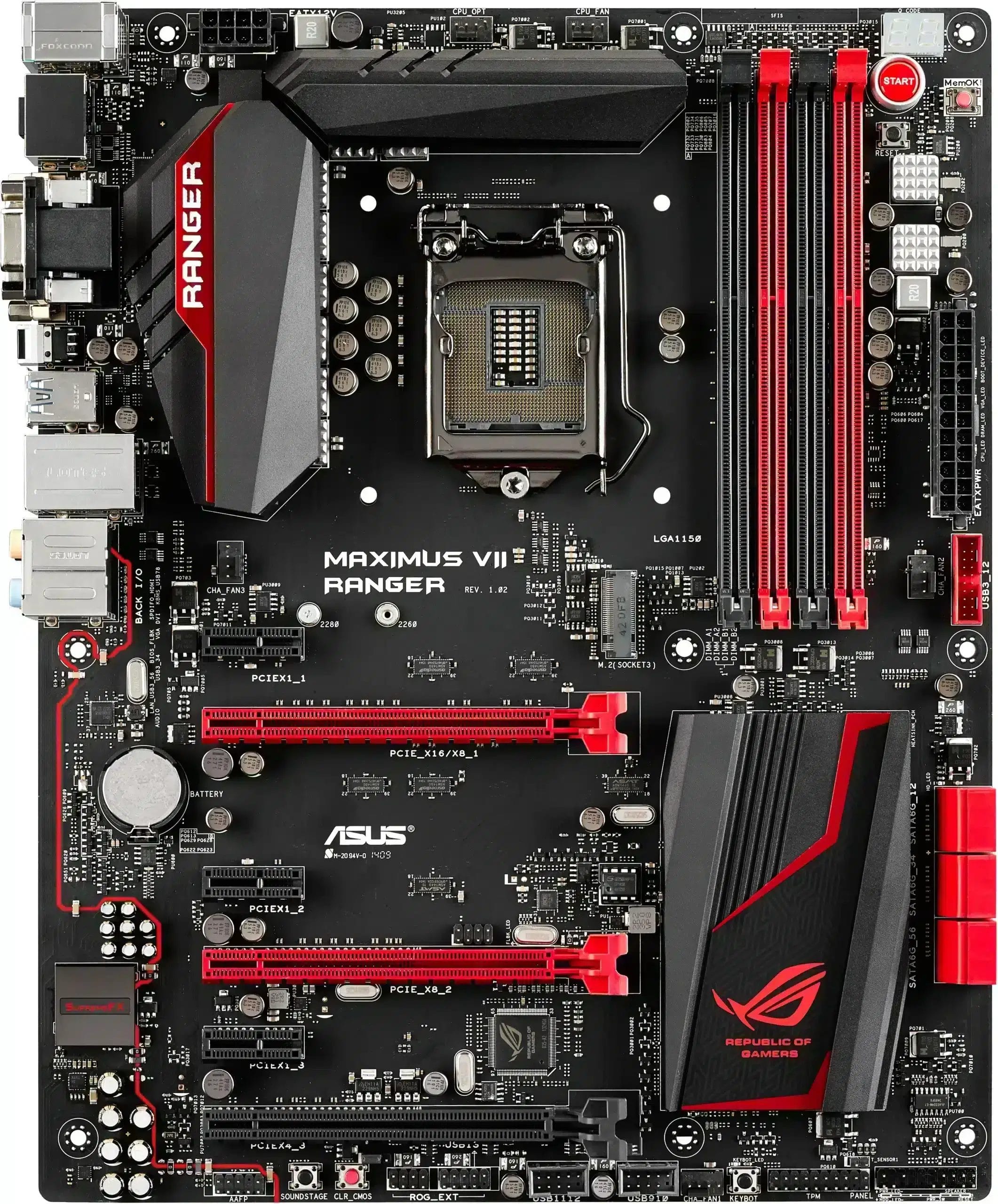

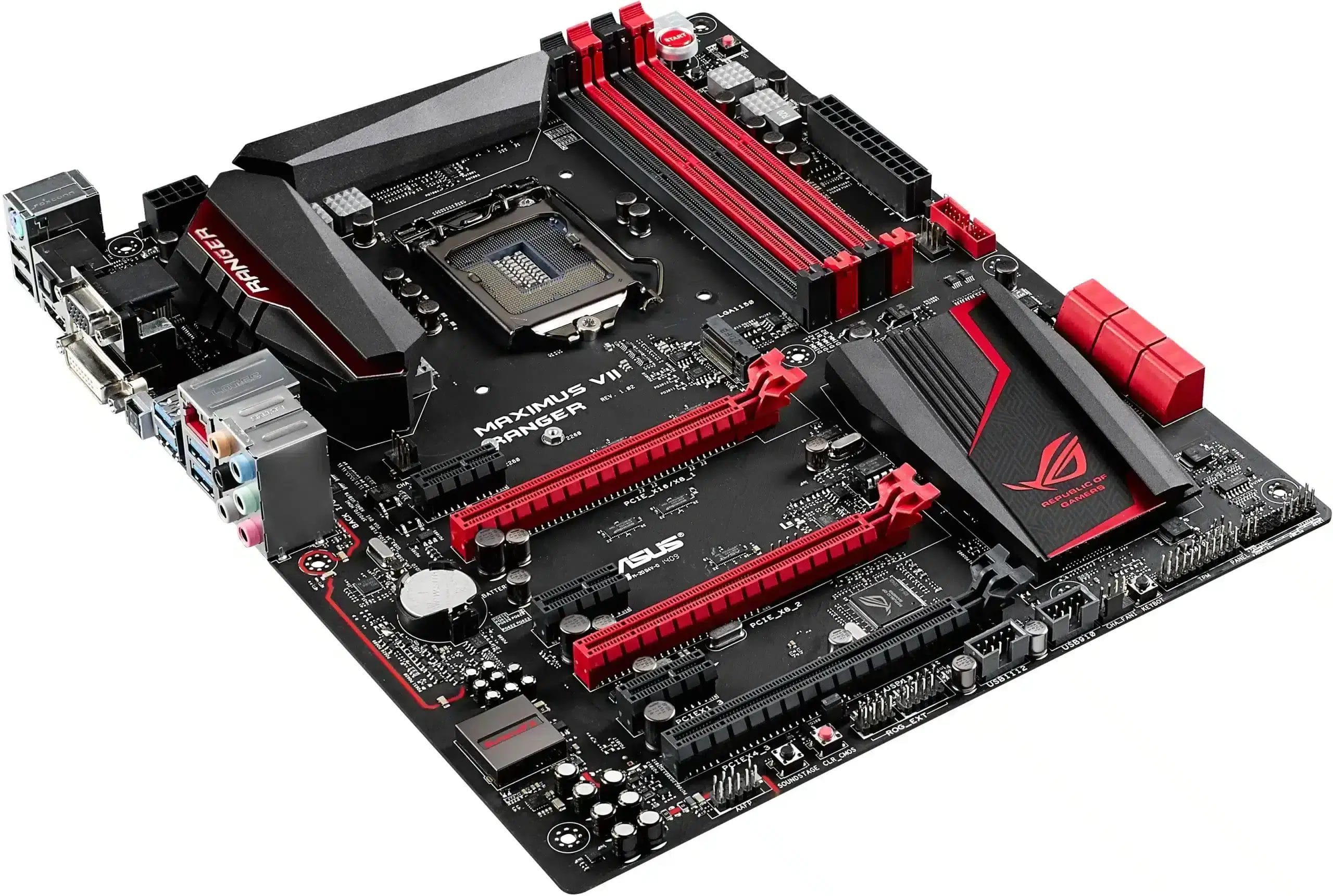

Asus ROG MAXIMUS VII RANGER LGA1150 motherboard

  • High-performance entry-level ROG gaming ATX board with excellent specs and game-enhancing features
  • Intel® LGA1150 4th, new 4th and 5th generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® processors ready
  • Intel® Z97 Express chipset with M.2 support (up to 10Gb/s data transfer)
  • Intel™ Ethernet + LANGuard + GameFirst III – This is game networking taken to the next level. This is ROG
  • SupremeFX 2014 + Sonic Radar II – New and improved audio that is second to none
  • KeyBot + TrueVolt USB – Instant keyboard upgrade and rock solid 5V USB power
  • USB UEFI BIOS and Secure Erase – Award-winning simplicity and factory-fresh conditioning for superior performance

Out of stock

Vergelijk
SKU: Asus Maximus VII Ranger Categories: , Tags: , , , ,

Description

Features:Motherboard | ATX | Socket 1150 | 4x DDR3 (max 32GB) | SATA-600 | M.2| PCIe 2.0 x1 | PCIe 3.0 x16 | USB 2.0 | USB3 | DVI-D| VGA (D-Sub) | DVI-D HDMI | USB 3.1 Gen 1


Product: Asus Republic of Gamers Maximus VII Ranger
Socket:Socket 1150
Category: motherboards
Brand: Asus
State: Used – BIOS updated to the latest version
EAN:
4053162745520, 4716659765448, 4916659763448, 5054230784914, 5054230790571
SKU: 90MB0IE0-M0EAY0, Maximus VII Ranger, MAXIMUS VII RANGER GAMING MB, MAXIMUS VII RANGER.
Warranty:
6 months


Package content:
– Motherboard (Asus Republic of Gamers Maximus VII Ranger)
– I/O-Shield (tin back plate)
– No manual
– No driver CD
– No cables


processor
Intel® Socket 1150 for 5th / new 4th / 4th generation Core™ i7/Core™ i5/Core™ i3/ Pentium® / Celeron® processors
Supports Intel® 22nm CPU
Supports Intel® Turbo Boost Technology 2.0
* Intel ® Turbo Boost Technology 2.0 support is dependent on CPU types.
* Refer to www.asus.com for a list of CPU support


Chipset
Intel® Z97


Memory
4x DIMM, Max. 32GB, DDR3 3200(OC)/3100(OC)/3000(OC)/2933(OC)/2800(OC)/2666(OC)/2600(OC)/2500(OC)/2400(OC)/2200( OC)/2133(OC)/2000(OC)/1866(OC)/1800(OC)/1600/1333 MHz Non-ECC, unbuffered memory *
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support depends on the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Dual Channel memory architecture


Graphically
Integrated graphics processor
Multi-VGA output support: HDMI/DVI-D/RGB ports
– Supports HDMI with max resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
– Supports DVI-D with max resolution 1920×1200 @ 60Hz
– Supports RGB with max. resolution 1920 x 1200 at 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Support for multiple GPUs
Supports NVIDIA® Quad-GPU SLI™ technology
Supports AMD Quad-GPU CrossFireX™ technology


Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red)
1 x PCIe 2.0 x16 (x4 mode, black) * 1
3 x PCIe 2.0×1


Storage
6 x SATA 6Gb/s port(s), red, with M key, supporting type 2242/2260/2280 storage devices (both SATA and PCIE mode)
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *2
Intel® Z97 – chipset:
1 x M.2 Socket 3, , with M Key, support type 2260/2280 storage devices (PCIE mode)
Support Raid 0, 1, 5, 10


LAN
Intel ® I218V, 1 x Gigabit LAN controller(s)


Audio
– ELNA ® premium audio capacitors
– Sonic SoundStage
– Sonic studio
-Sonic SenseAmp
– Sonic Radar II
– DTS connection
ROG SupremeFX8-channel high-definition audio CODEC
– Supports: Jack detection, Multi-streaming, Jack retasking on the front panel
– SupremeFX shielding technology
Audio Function:
– Optical S/PDIF output(s) on the rear panel


USB ports
6 x USB 3.0 port(s) (4 on back panel, blue, 2 on midboard)
7 x USB 2.0 port(s) (2 on back panel, 5 on midboard)


ROG-exclusive features
Extreme Engine Digi+ III:
– New alloy chokes
KeyBot
– CPU level higher
-XMP
– Direct key
Game First III
– NexFET™ Power Block MOSFET
ROG RAM Disk
– 10K black metal capacitors
Extreme Tweaker


Special features
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
– Entire system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 2 and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, full system cooling and even customize your own app usage .
– USB charger+
– USB 3.0 Boost- ASUS EZ Flash 2
– Push notification
– Disc unlock
– ASUS USB BIOS Flashback®
Overclocking Protection:
ASUS-exclusive features :
– AI suite 3
– Ai charger
ASUS EZ DIY:
– ASUS Crash Free BIOS 3
ASUS Q Design:
– ASUS Q Shield
– ASUS Q code
– ASUS Q-LED (CPU, DRAM, VGA, boot device LED)
– ASUS Q slot
– ASUS Q DIMM
– ASUS Q connector
– ASUS CPR (recall of CPU parameters)


I/O ports
6 x audio jack(s)
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D Sub
1xHDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (Blue)
2x USB2.0
1 x optical S/PDIF output
1 x USB BIOS Flashback ® button(s)


Internal I/O ports
1 x KeyBot Button
1 x Sonic SoundStage Button
3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
1 x Memo OK! tests)
1 x USB 3.1 Gen 1 (up to 5 Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x TPM connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan Connector(s) (1 x 4 pin)
1 x CPU OPT Fan Connector(s) (1 x 4 pin)
3 x chassis fan connector(s) (3 x 4 pin)
1 x 24-pin EATX power connector(s)
1 x 8-pin ATX 12V power connector(s)
1 x Front Panel Audio Jack(s) (AAFP)
1 x System Panel(s)
1 x thermal sensor connector(s).
Clear 1 x CMOS jumper(s).


Accessories
I/O shield


BIOS
64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multilingual BIOS


Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE


Form Factor
ATX form factor
12in x 9.6in (30.5cm x 24.4cm)


Management Solution
WfM 2.0, DMI 2.7, WOL by PME, PXE

Additional information

Weight 1 kg
Intel

LGA1150

Brand

Asus

Form Factor

ATX

Chipset

Intel Z97

Memory Type
Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600, Ultra M.2 Socket

Interfaces

PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Model

ROG Maximus VII Ranger

package content

Motherboard and Backplate (Blende)

Length

30.5 cm

Width

24.4 cm
