Product information

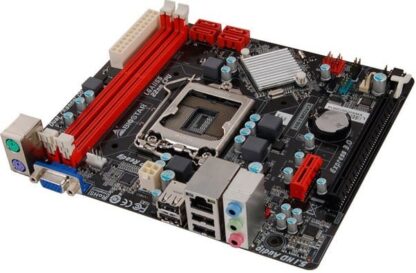

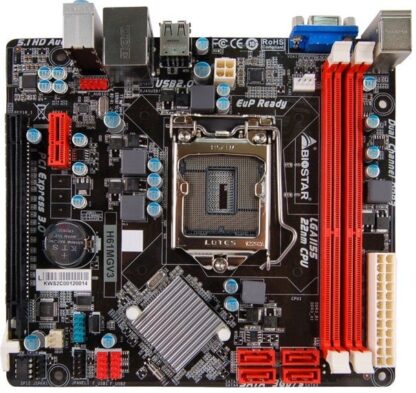

The Biostar H61MGV31  is a Micro-ATX LGA1155 motherboard based on the Intel H61 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the Biostar H61MGV3 has 4 Serial ATA connections for hard drives and SSDs.

Features: Motherboard | Micro ATX | LGA1155 | 2x DDR3 | SATA-300 | PCI-e 2.0 x1 | PCI-e 3.0 x16 | LAN | VGA

Click here</a > for the supporting CPUs
Click here</a > for the drivers

Product: MSI B75MA-E31
Socket: LGA1155
Category: motherboards
Brand: Biostar
Condition: Used
EAN:
0802700505171, 4712795659689, 4712795659733, 5053118751673
SKU: H61MGV3
Warranty:
6 months

Package contents:
– Motherboard (Biostar H61MGV3 V7.7 )
– Backplate (Blende)
– No manual
– No drivers CD
– No cables


CPU
Intel® Core™ i7 LGA 1155 Processor
Intel® Core™ i5 LGA 1155 Processor
Intel® Core™ i3 LGA 1155 Processor
Intel® Pentium® LGA 1155 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt


Chipset
Intel® H61


Memory
Support Dual Channel DDR3 1066/1333/1600MHz
2 x DDR3 DIMM Memory Slot
max. Supports up to 16GB Memory


Expansion Slots
1 x PCI-E 3.0 x16 Slot(supported by Core i5 -3xxx / Core i7 3xxx CPU)
1 x PCI-E 2.0 x1 Slot


Storage
4 x SATA II Connector


LAN
Realtek RTL8111G – 10/100/1000Mb/s Controller


Audio
Realtek ALC662 6-Channel HD Audio


USB Ports
4 x USB 2.0 Port
2 x USB 2.0 Header


Operating System Support
Windows® 8
Windows® 7

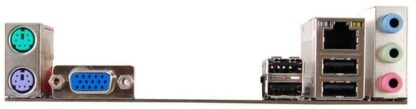

Back I/O Ports
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 2.0 Port
1 x VGA Port
1 x LAN Port
3 x Audio Jacks


Internal I/O Ports
2 x USB 2.0 Header
4 x SATA II Connector (3Gb/s )
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x COM Port Header


Accessories
I/O Shield


Form Factor
Micro ATX Form Factor Dimension: 19.1cm x 17cm ( W x L )

Specification

Weight 1 kg
Intel

LGA1155

Brand

Biostar

Chipset

Intel H61

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), Ethernet (RJ-45), USB 2.0

Storage Interfaces

Serial ATA-300

Interfaces

PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Biostar H61MGV3 V7.7 socket 1155 motherboard

Fast delivery

  • Intel H61 Chipset
  • Supports 2th and 3th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
  • Supports Dual Channel DDR3 1600
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x16
  • Graphics Output Options : D-Sub
  • Gigabit LAN
  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  • 4 SATA2
  • 4 USB 2.0

SKU: H61MGV3 Category: Tags: , ,
