Description

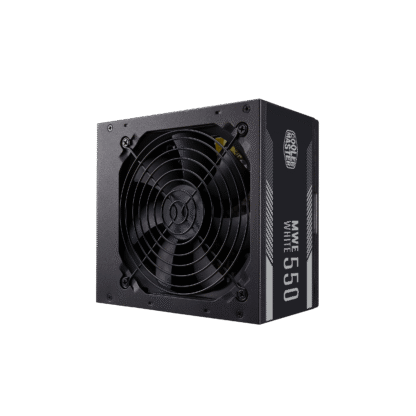

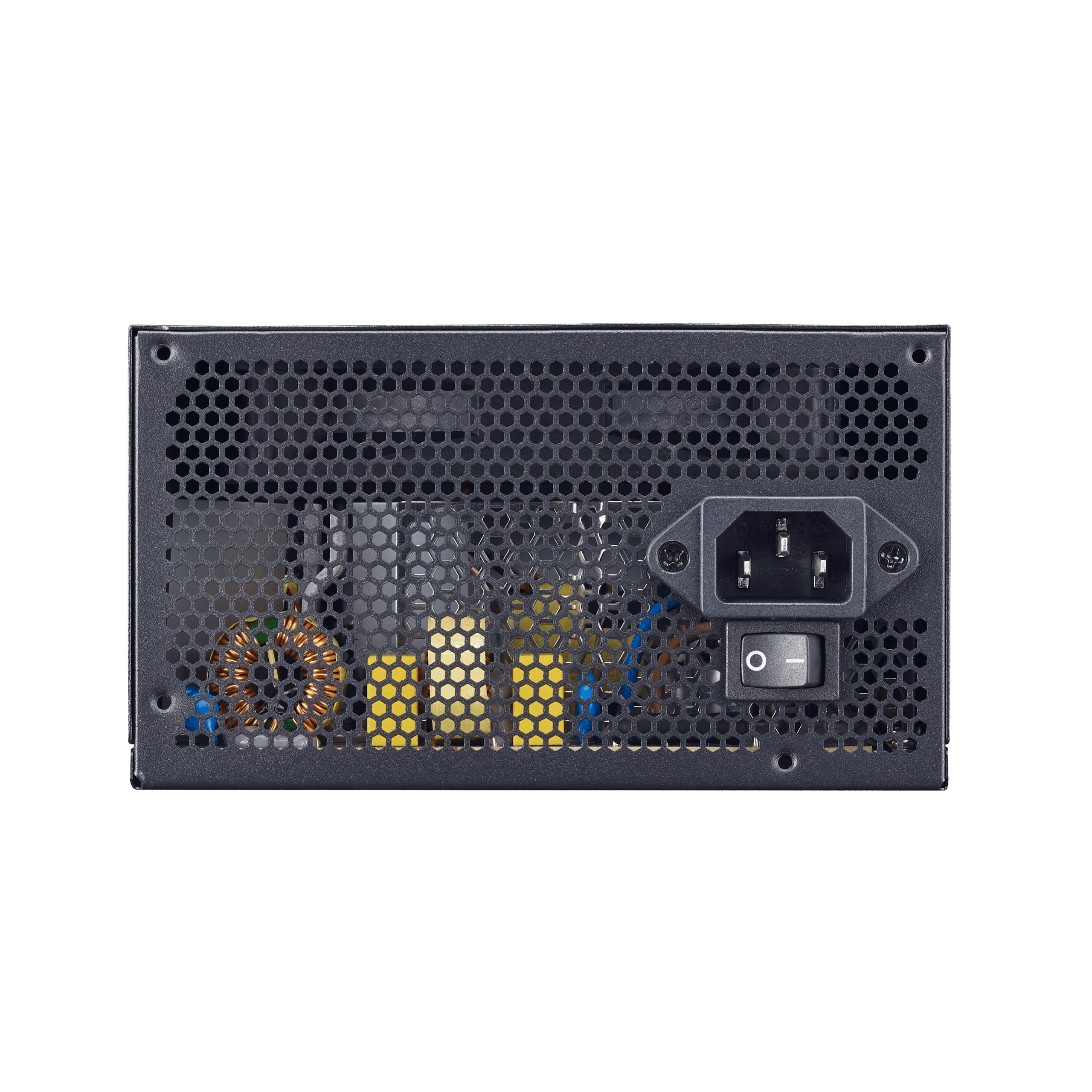

The Cooler Master MWE550 White is an ATX 12V power supply with a power of 550 Watt and an efficiency of 85%. The power supply has 6 SATA and 2 PCI-e 6 + 2 Pins connections.
Main Specifications:
Power (continuous): 550 Watt
Certificate: 80 Plus Standard
Modular (PSU): Non-modular
Brand: Cooler Master
LED lighting: No.
EAN: 4719512082003
SKU: MPE-5501-ACABW-EU
All Specifications
Brand: Cooler Master
EAN: 0884102054495, 4719512082003
Manufacturer Part Number: MPE-5501-ACABW-EU

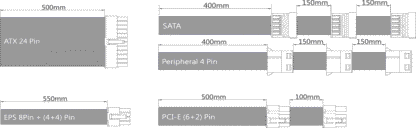

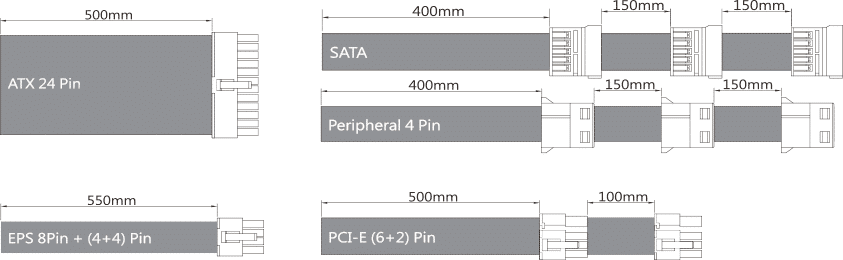

Connections
CPU power connection (4 + 4 pin): Yes
Motherboard power connection: 24-pin ATX
Molex power connection (s): 3
PCI Express power connector (s) (6 + 2 pin): 2
SATA power connector (s): 6
Physical properties
Width: 150 mm
Depth: 140 mm
Weight: 1.38 kg
Height: 86 mm
Color of product: Black
Cooling

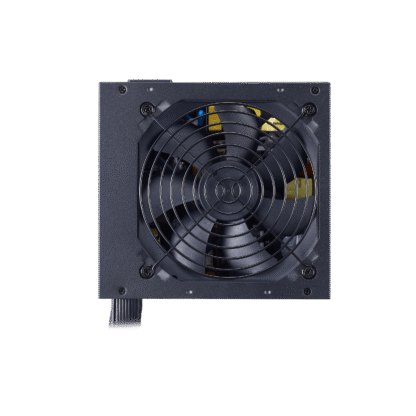

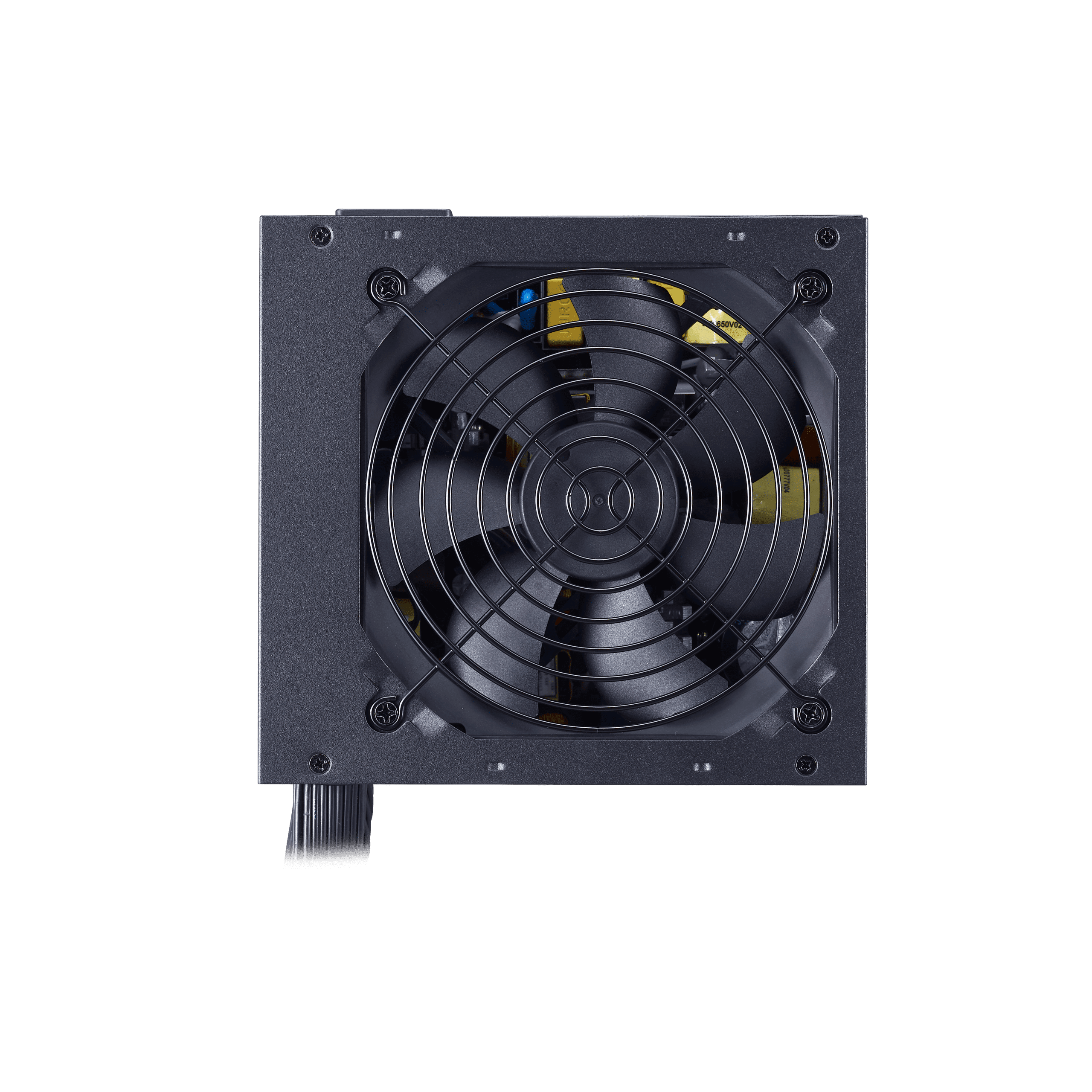

Fan diameter: 12 cm
Cooling type: Active
Technical details
ATX Version: 2.52
Intended for: PC
Average life (MTBF): 100000 hours
Ball bearing technology: HDB
Noise level
Noise level (silent mode, & lt; 30%) 13.8 dB
Noise level (silent mode, 50%) 18.4 dB
Noise level (full load mode, 100%) 31.2 dB
Certificates
80 PLUS certification: 80 PLUS
Certification: CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB
Requirements for the environment
Operating temperature: 0 – 40 ° C

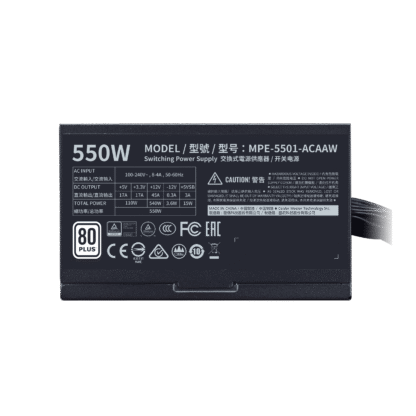

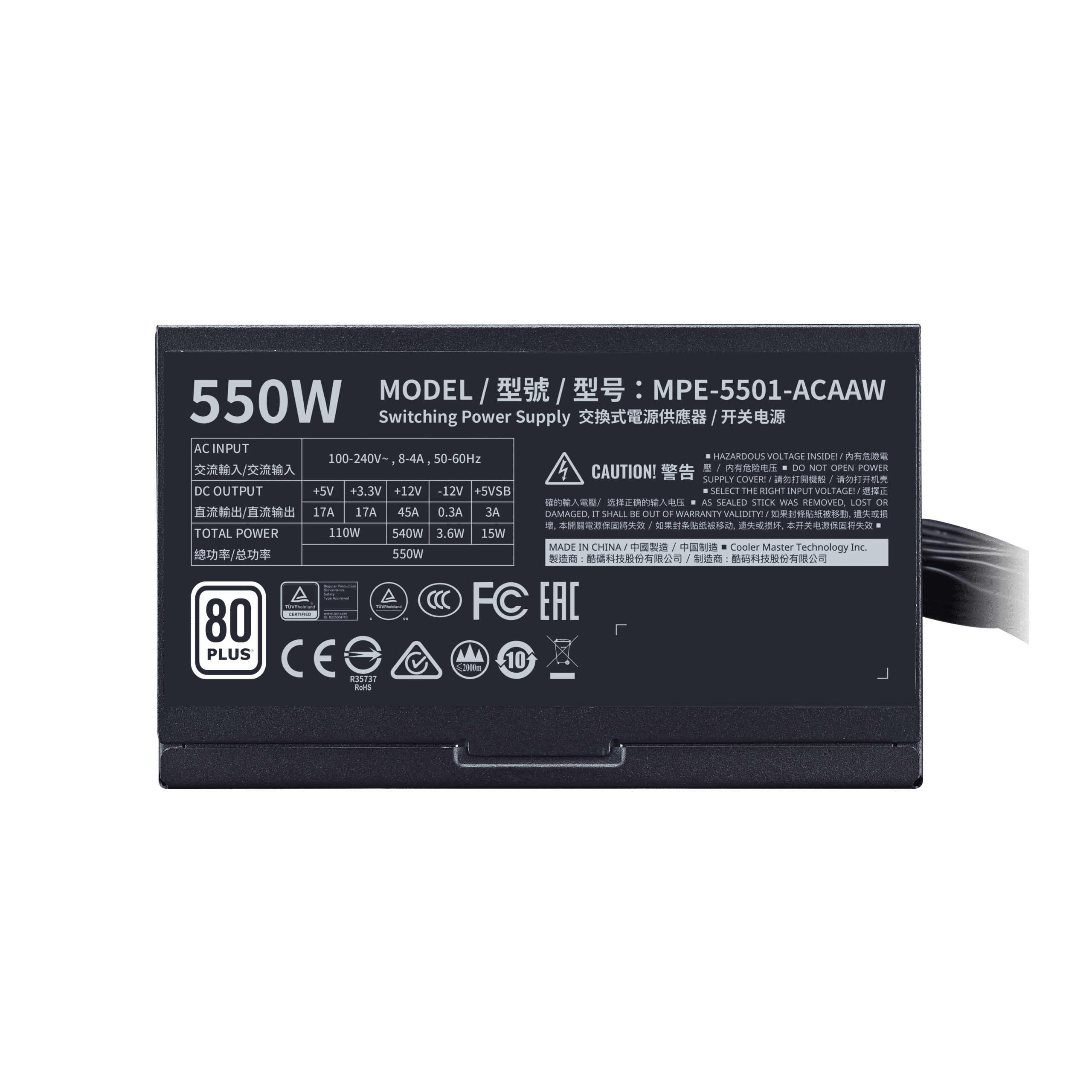

Energy
Efficiency: 85 percent
Combined power (+ 12V): 110 W, 540 W.
Combined power (+ 3.3V): 110 W.
Combined power (+ 5Vsb): 15 W.
Combined power (-12V): 3.6 W.
Hold time: 14 ms
Input frequency: 50/60 Hz
Input voltage: 200 – 240 V.
Input current: 5 A.
Max output current (+ 12V): 45 A.
Max output current (+ 3.3V): 17 A.
Max output current (+ 5V): 17 A.
Max output current (+ 5Vsb): 3 A.
Max output current (-12V): 0.3 A.
Power Factor Correction (PFC) type: Active
Current protection functions: Over power, Over voltage, Over temperature, Short circuit, Under voltage
Power supply: 550 W.
