Product information

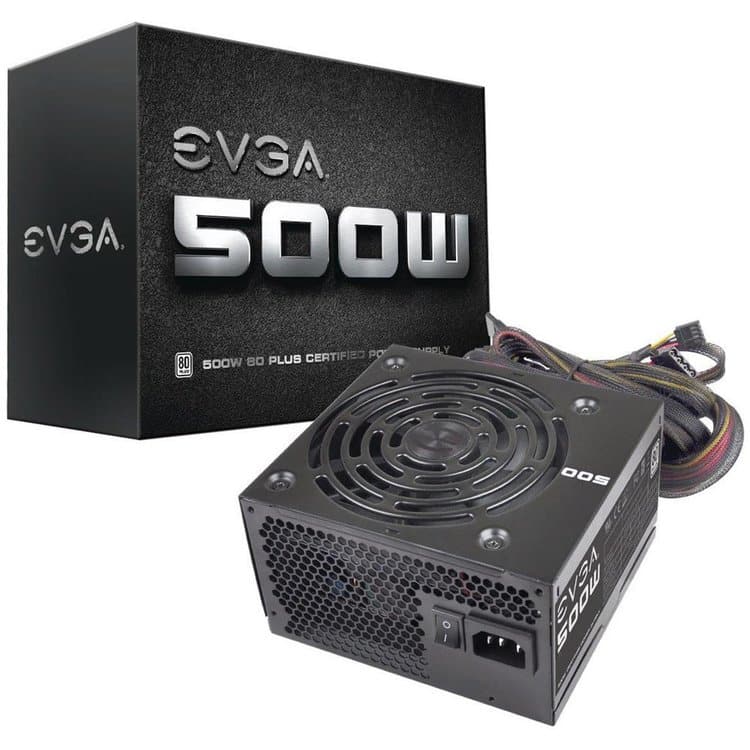

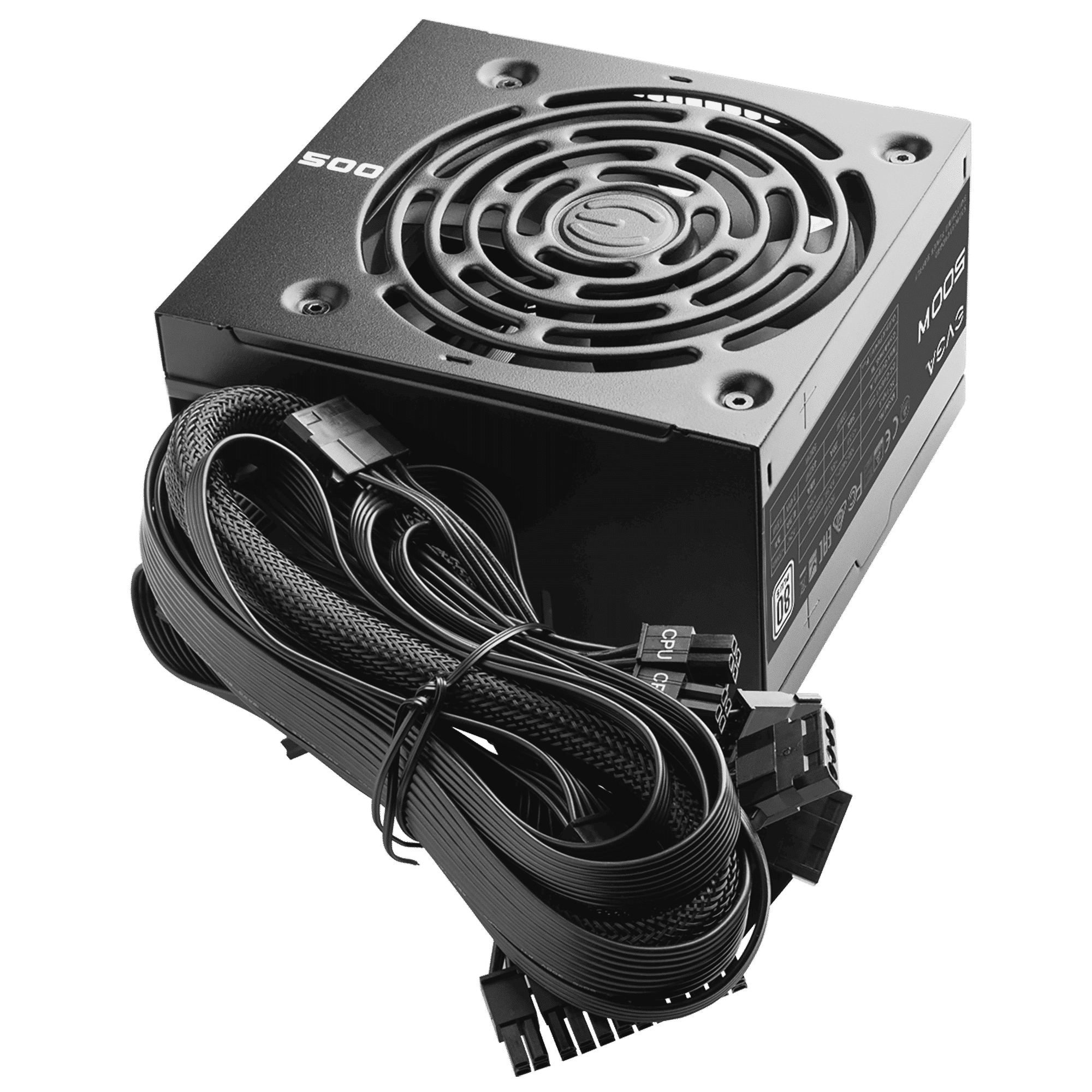

The EVGA 500 W1, 80+ WHITE is an ATX 12V power supply with a power of 500 Watt and an efficiency of 85%. The power supply has 6 SATA and 2 PCI-e 6+2 Pin connections.

Main Specifications:
Power (continuous): 500 Watt
Certificate: 80 Plus White
Modular (PSU): Non-modular
Brand: EVGA
LED lighting: No
EAN: 4250812404671
SKU: 100-W1-0500-K2

All Specifications
Brand: EVGA
EAN: 4250812404671
SKU: 100-W1-0500-K2

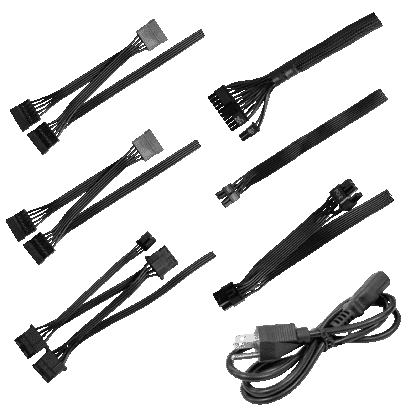

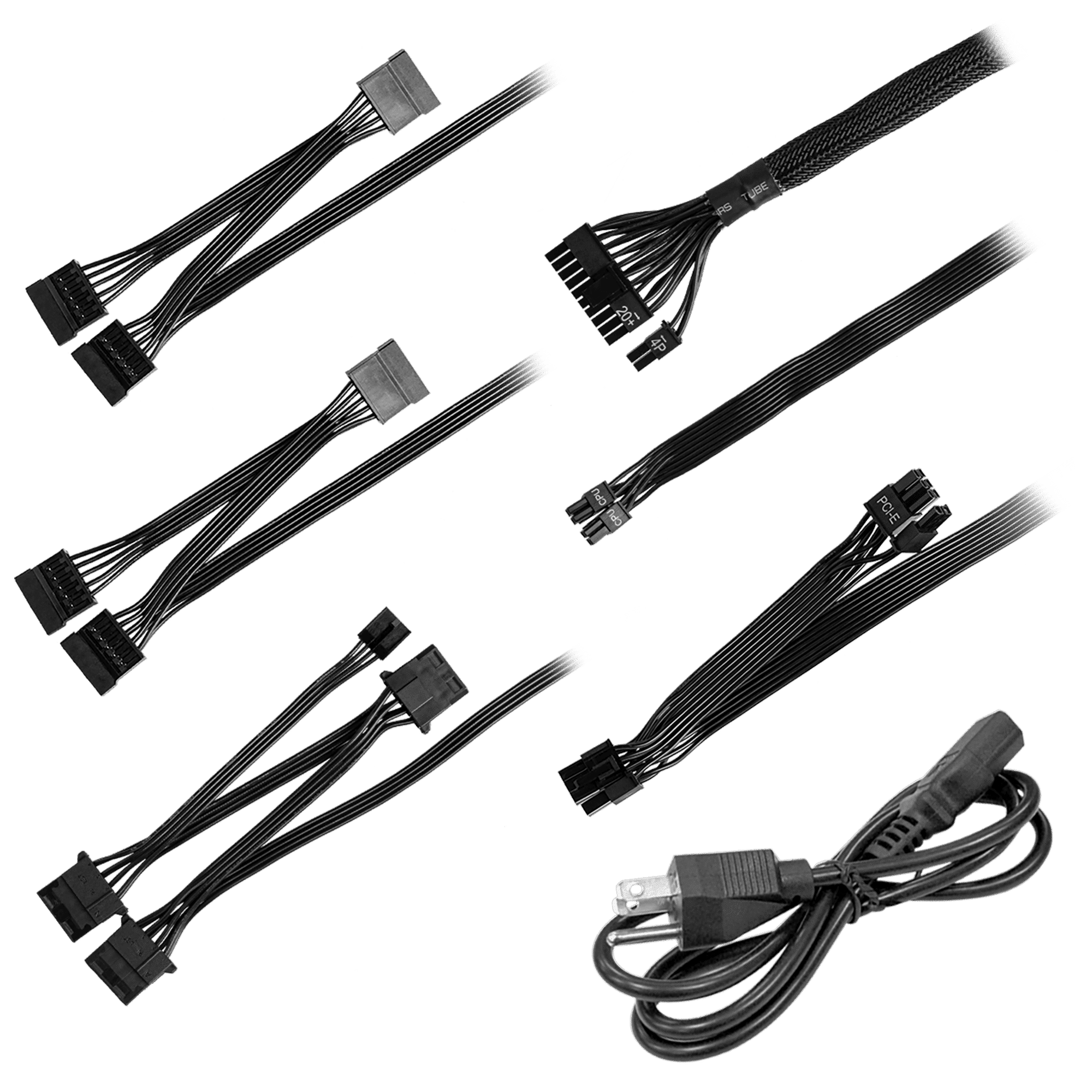

Connections
CPU power connection (4+4 pin) : Yes
Motherboard power connection: 24-pin ATX
Molex power connection(s): 3
Floppy Drive: 1
PCI Express power connector(s) (6+2 pin): 2
SATA power connection(s): 6

Physical Properties
Width: 150mm
Depth: 140mm
Weight: 1.81 kg
Height: 85mm
Color of product: Black

Cooling
Fan diameter: 12 cm
Cooling type: Active

Technical details
ATX Version: 2.52
Intended for: PC
Mean time between failures (MTBF): 100000 hours

Certificates
80 PLUS certification: 80 PLUS White
Certification: TUV, CB, CE, RCM, CCC

Energy
Efficiency: 85 percent
Combined power (+12V): 588 W
Combined power (+3.3V): 130 W
Combined power (+5Vsb): 15 W
Combined power (-12V): 3.6 W
Input voltage: 200 – 240 V
Max output current (+12V): 49 A
Max output current (+3.3V): 18 A
Max output current (+5V): 18 A
Max output current (+5Vsb): 3 A
Max output current (-12V): 0.3A
Power Factor Correction (PFC) type: Active
Power supply: 600 W
