Product information

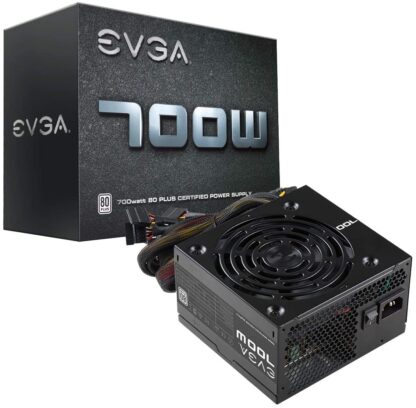

The EVGA 700, 80+ is an ATX 12V power supply with a power of 700 Watt and an efficiency of 85%. The power supply has 9 SATA and 2 PCI-e 6 + 2 Pins connections.

Main Specifications:
Power (continuous): 700 Watt
Certificate: 80 Plus
Modular (PSU): Non-modular
Brand: EVGA
LED lighting: No.
EAN: 4250812424488
SKU: 100-W1-0700-K2

All Specifications
Energy
Power protection features: Over current, Over power, Over voltage, Over temperature, Short circuit, Under voltage
Total power: 700 W.
AC input voltage: 100 – 240 V.
AC input frequency: 50/60 Hz
Maximum input current (@ 110V): 10 A.
Maximum input current (@ 220V): 5 A.

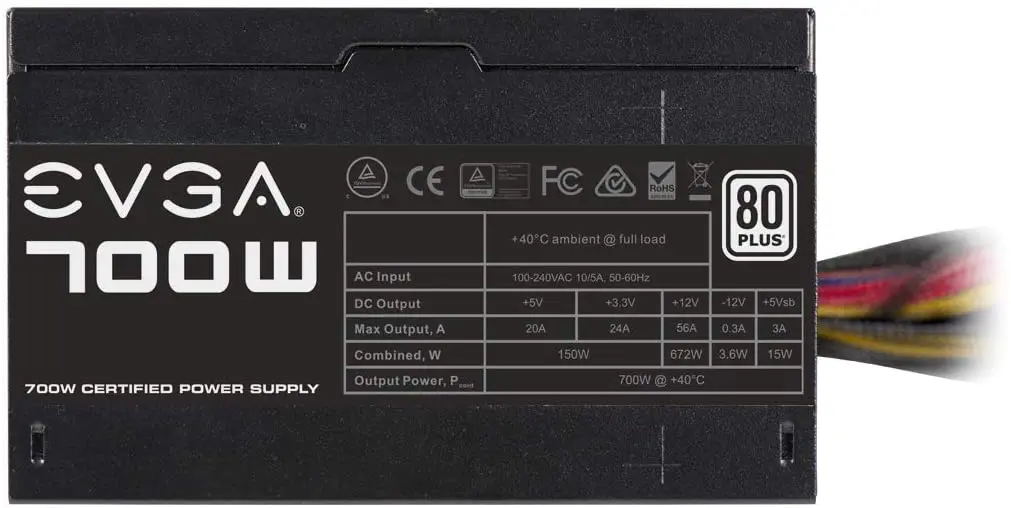

Combined power (+ 3.3V): 150 W.
Combined power (+ 12V): 672 W.
Combined power (+ 5V): 150 W.
Combined power (-12V): 3.6 W.
Combined power (+ 5Vsb): 15 W.
Max current output (+ 3.3V): 24 A.
Max current output (+ 12V): 56 A.
Max current output (+ 5V): 20 A.
Max current output (-12V): 0.3 A.
Max current output (+ 5Vsb): 3 A.
Efficiency: 80 percent

Ports & interfaces

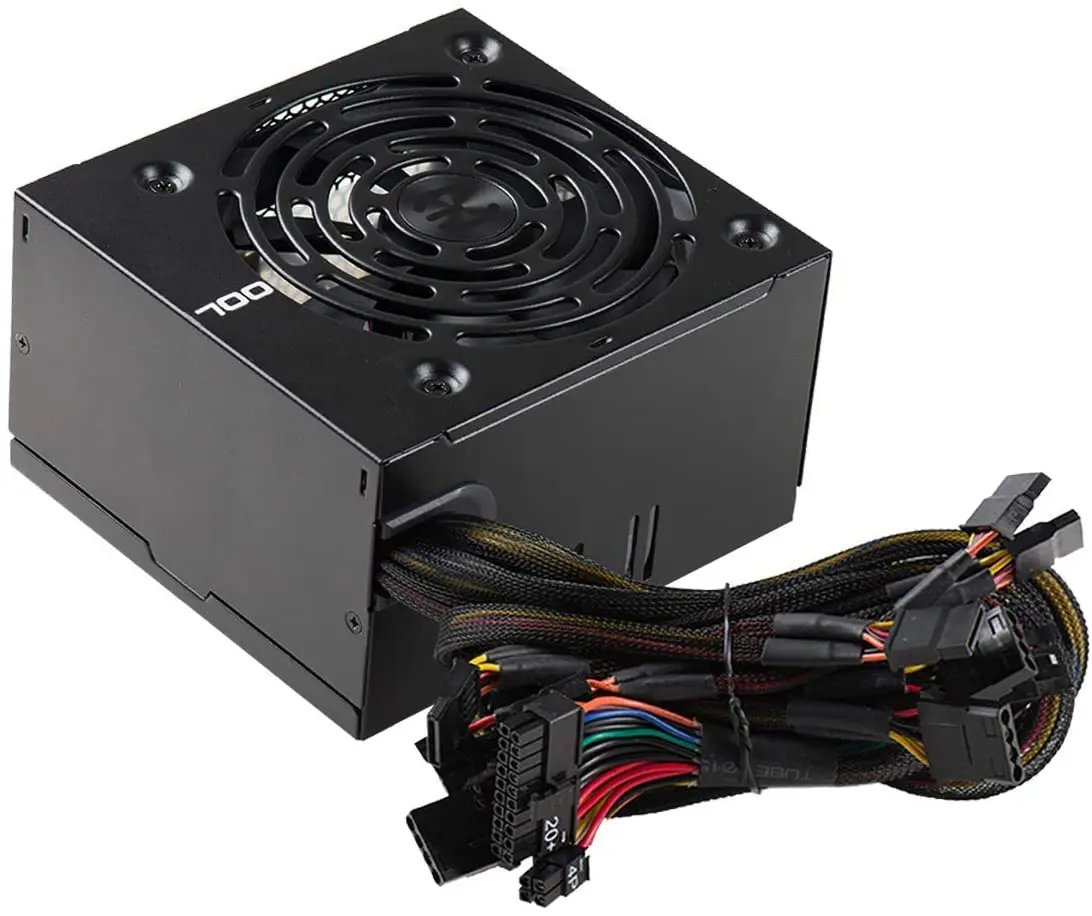

Cabling type: Non-modular
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 9
SATA power cable length: 450,570,690mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral power cable length (Molex): 450,570,690,810,930 mm
PCI Express power connectors (6 + 2 pin): 2
CPU power connector (4 + 4 pin): Yes
Length of CPU power cable: 60 cm
ATX Power connector (24-pin): Yes
Floppy drive power connector: 1
Floppy drive connector: Yes
PCI Express connector: Yes

Performance
Mean time between failures (MTBF): 100000 hours
RoHS compliance: Yes
Certification: TUV, CB, CE, FCC, RCM, cTUVus, WEEE
Intended for: PC
Power supply form factor (PSU): ATX
80 PLUS certification: 80 PLUS White
Bearing technology: Hoes

Design
Color of product: Black

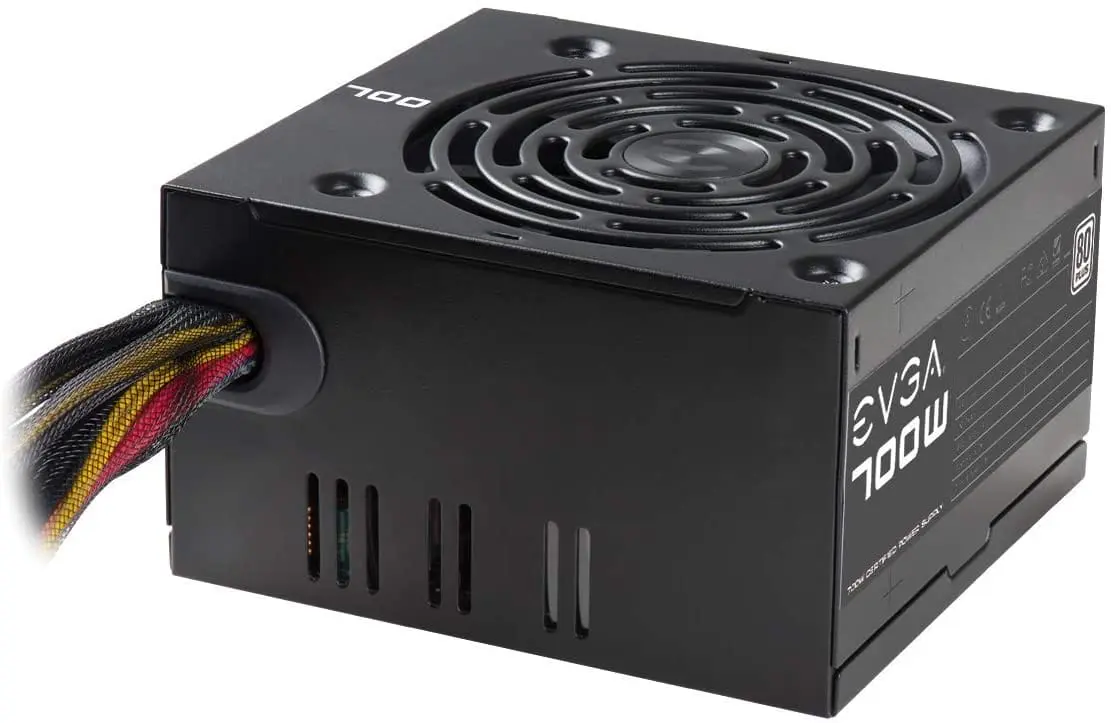

Fan diameter: 12 cm
Number of fans: 1 fan (s)
Fan location: Upstairs
Requirements for the environment
Operating temperature: 0 – 40 ° C

Packaging
Type of packaging: Box
Cables included: AC
User Manual: Yes

Weight & Dimensions
Width: 150 mm
Depth: 140 mm
Height: 85 mm
Weight: 2.04 kg
