Description

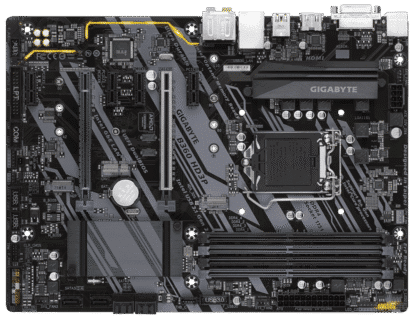

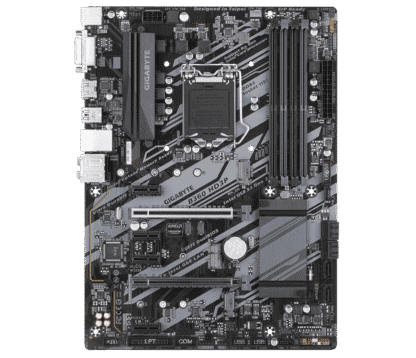

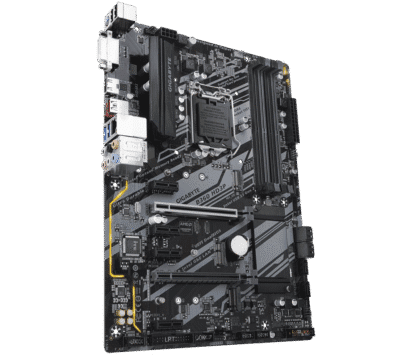

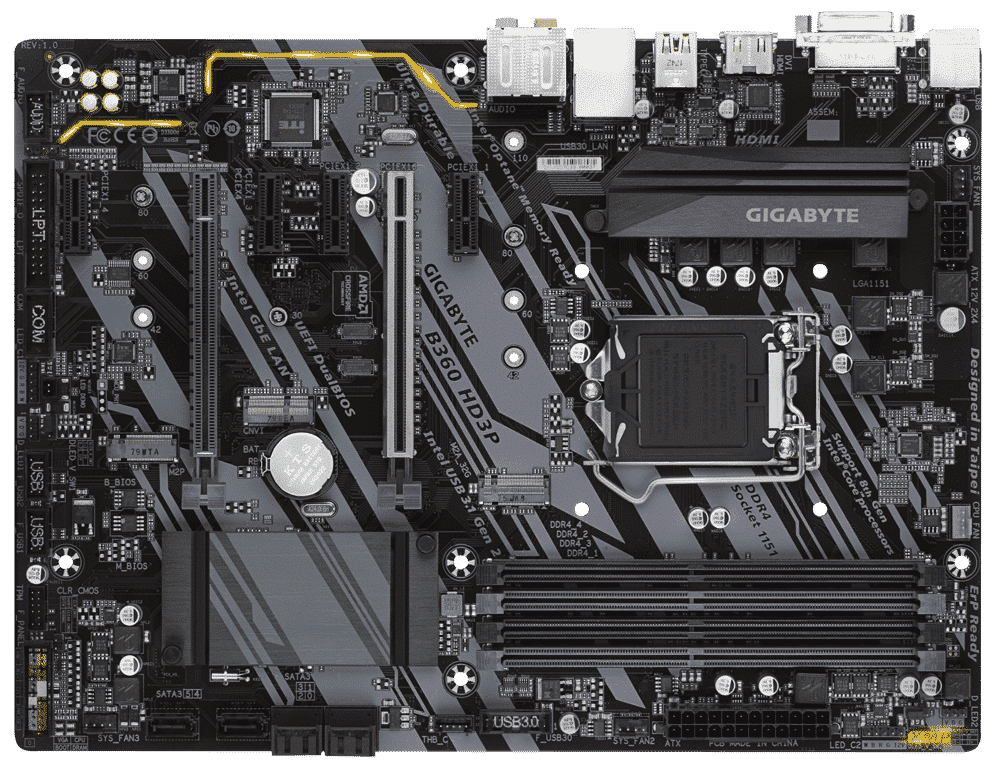

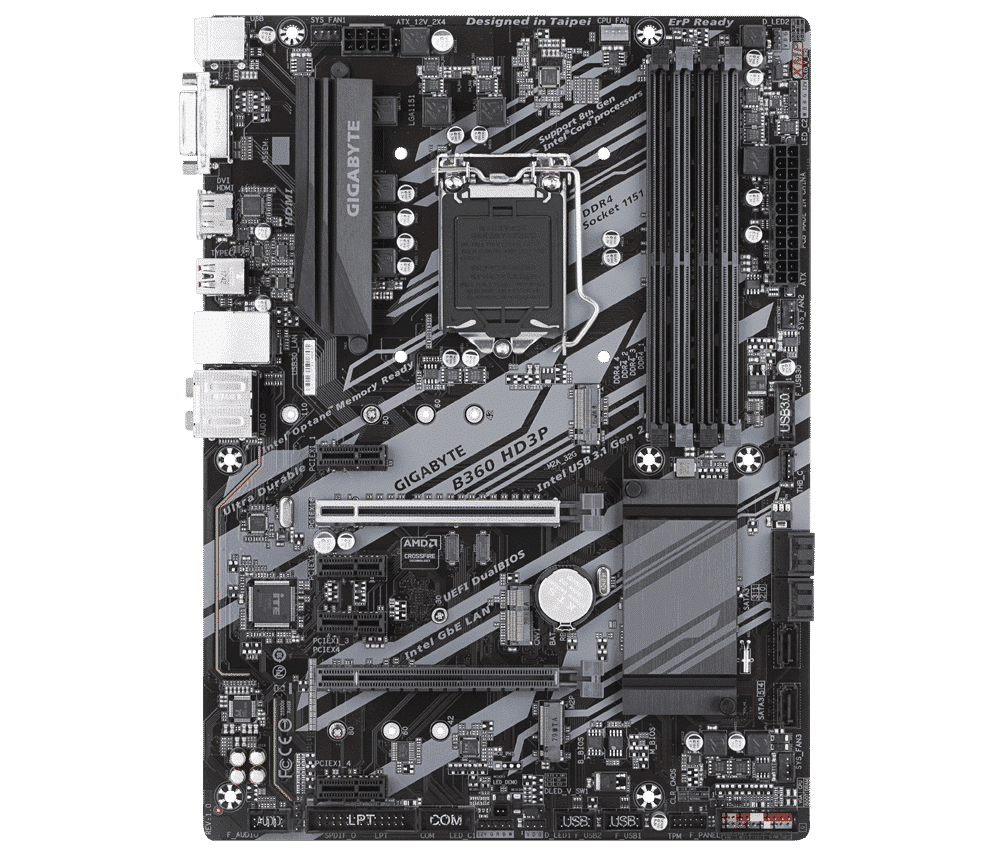

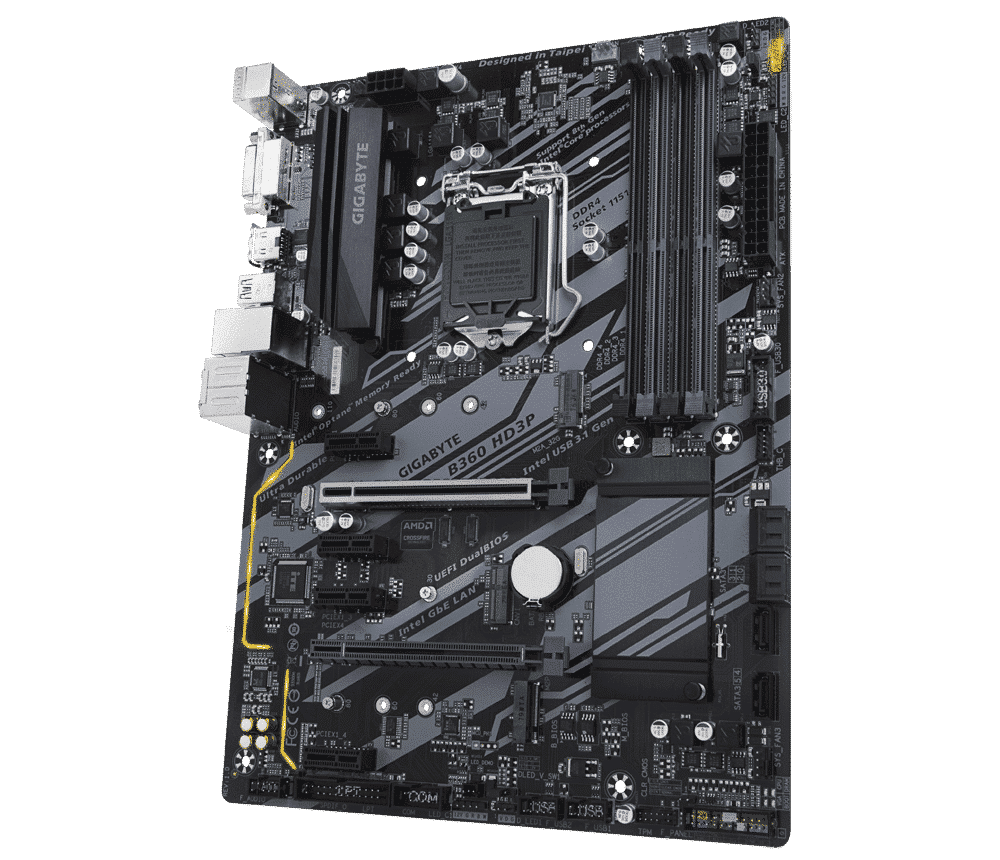

The Gigabyte B360 HD3P Motherboard is an ATX motherboard suitable for 8th and 9th-generation processors (“Coffee Lake”). It features two dual-channel DDR4 memory slots with a maximum capacity of 64GB. The motherboard also includes two PCI Express x16 slots, four PCI Express x1 slots, and two ultra M.2 slots. Additionally, it offers a wide range of connections, such as USB2.0, USB 3.1 Gen2 Type-C, USB 3.1 Gen1, HDMI, and DVI-D.
Click here for the supported processors.
Click here for the drivers.
Product: Gigabyte B360 HD3P
Socket: 1151
Compatible with: 8th and 9th generation processors
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4719331805979
SKU: B360 HD3
Warranty: 6 months
Package Contents:
– Motherboard (Gigabyte B360 HD3P)
– I/O-Shield (metal backplate)
– No manual
– No CD with drivers
– No cables
Unique Features
- ASRock Super Alloy
– Premium 50A Power Choke
– Sapphire Black PCB
– High-Density Glass Fabric PCB - ASRock Steel Slot
- ASRock Full Coverage M.2 Heatsink
- ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
- ASRock Full Spike Protection (for all USB, Audio, LAN ports)
- ASRock Live Update & APP Shop
CPU
– Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
Chipset
– Intel® B360
Memory
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR4 2666/2400/2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, an 8th generation Intel® Core™ i7/i5 processor must be installed.
BIOS
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Graphics
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
- Integrated Graphics Processor – Intel® HD Graphics support:
- 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter. - 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2. - Maximum shared memory of 1 GB
- Actual support may vary by CPU
- 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
Audio
- Realtek® ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
LAN
- Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, make sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with PCIEX1_2, PCIEX1_3, and PCIEX1_4 slots. When any of these PCIEX1 slots are populated, the PCIEX4 slot operates at up to x1 mode. - 4 x PCI Express x1 slots
* All PCI Express slots conform to PCI Express 3.0 standard. - 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
* The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is installed in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.
Storage
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
Chipset:
- 6 x SATA 6Gb/s connectors
- Refer to “1-7 Internal Connectors” for installation instructions for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
System acceleration with Intel® Optane™ Memory enabled on the M2A_32G connector only.
Connections
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 2 x digital LED strip headers
- 2 x digital LED strip power select jumpers
- 2 x RGB (RGBW) LED strip headers
- 6 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.1 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Thunderbolt™ add-in card connector
- 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
- 1 x parallel port header
- 1 x serial port header
- 1 x Clear CMOS jumper

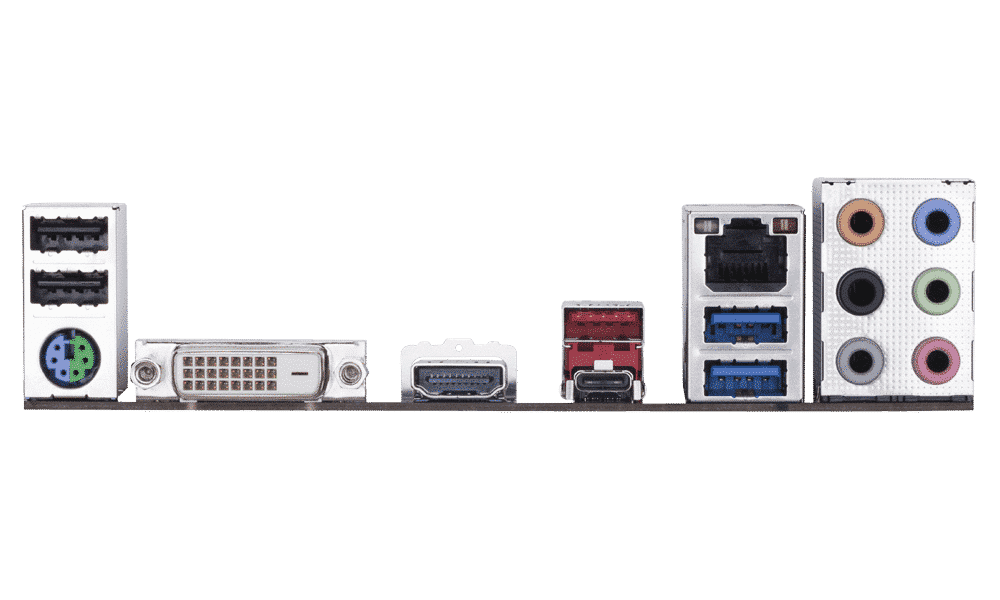

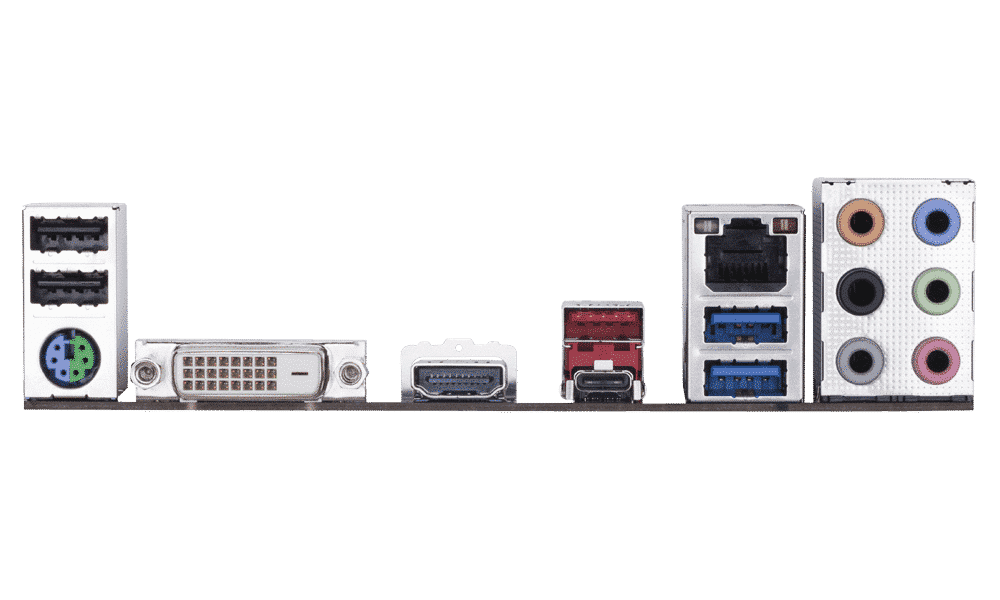

Rear I/O Panel
- 1 x PS/2 keyboard/mouse port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x USB 3.1 Gen 2 Type-C port
- 2 x USB 3.1 Gen 1 Type-A ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks (Line In, Line Out, Mic In)
Accessories
- I/O Shield
Hardware Monitor
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan failure warning
- Fan speed control
Whether fan speed control is supported depends on the cooling solution you install.
Size
- ATX Size: 30.5 cm x 22.5 cm
- Solid Capacitor design
OS
- Microsoft® Windows® 10 6
