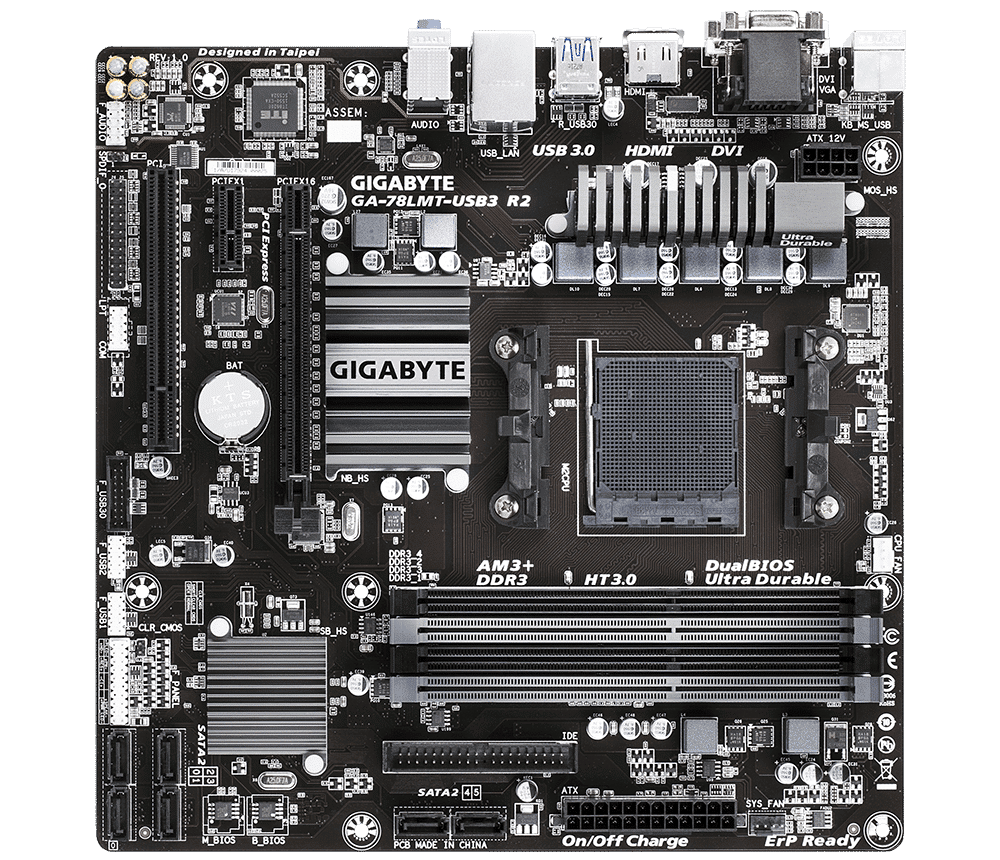

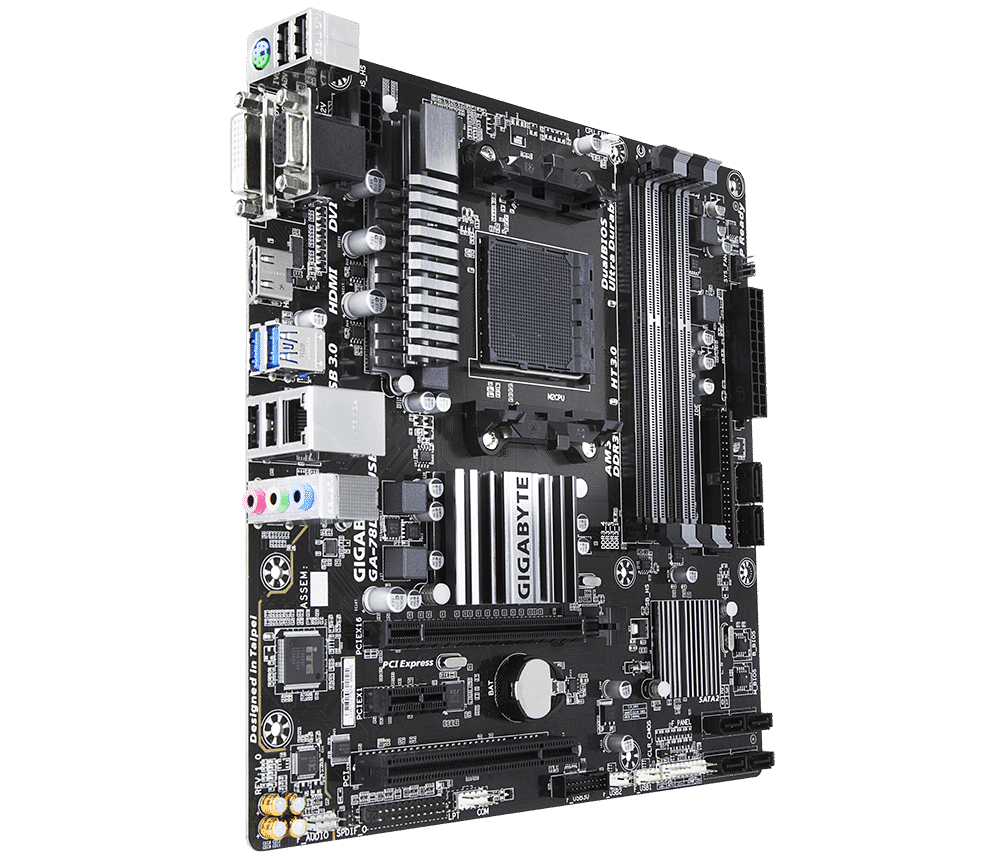

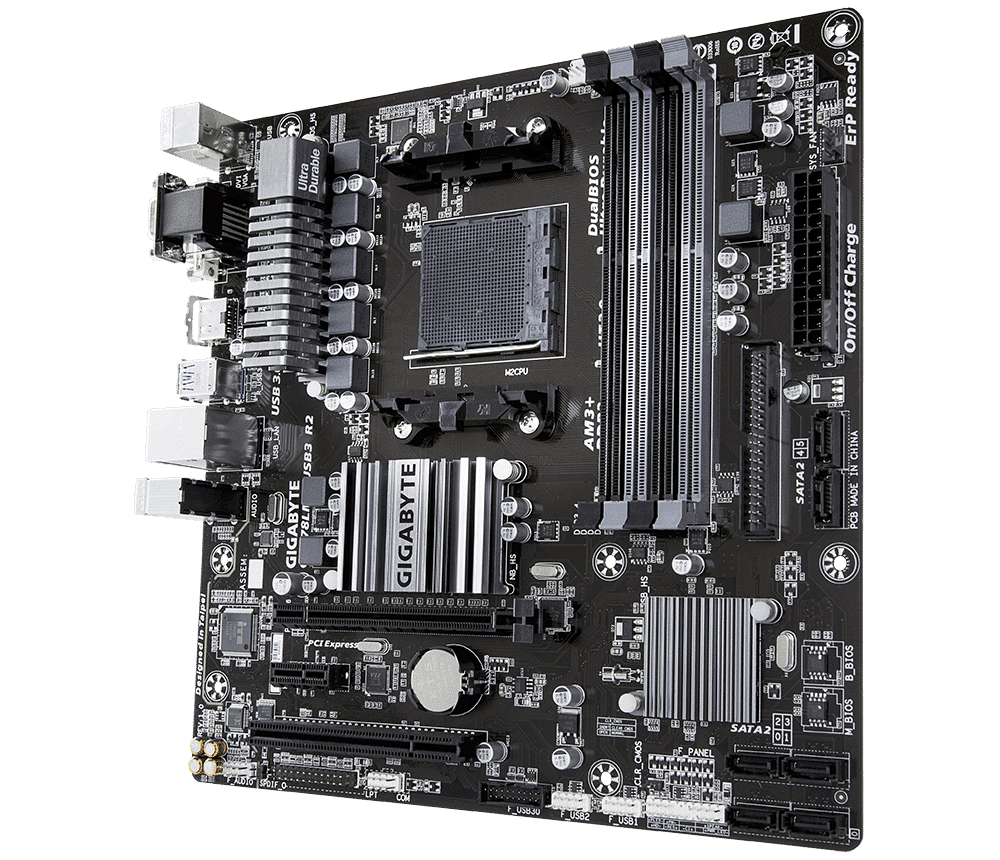

Gigabyte GA-78LMT-USB3 R2 AM3+ motherboard

The GA-78LMT-USB3 R2 is a reliable micro-ATX motherboard from Gigabyte, ideal for AMD AM3+ processors. This model comes equipped with versatile connectivity options, including HDMI and DVI for video output, multiple USB 3.0 and USB 2.0 ports for fast data transfer, and SATA connectors for storage devices. Additionally, it features a gigabit LAN port for stable network connections and audio jacks with HD audio support. Thanks to this comprehensive set of connectivity features, the GA-78LMT-USB3 R2 is a solid choice for anyone building an affordable and well-equipped AMD PC.

---

Product: GA-78LMT-USB3 R2
Socket: AMD AM3(+)
Category: Motherboards
Brand: Gigabyte
Condition: Refurbished – Latest available BIOS version installed
EAN: 4719331802578
SKU: GA-78LMT-USB3 R2
Warranty: 6 months

---

Package contents:
– Motherboard (Gigabyte GA-78LMT-USB3 R2)
– IO-Shield (metal backplate)
– Manual
– Driver CD
– Cables

---

CPU

– Support for AMD AM3+ processor
– Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor

---

Chipset

– Northbridge: AMD 760G
– Southbridge: AMD SB710

---

Geheugen

– Dual Channel DDR3 Memory Technology
– 4 x DDR3 DIMM Slots
– Supports DDR3 1600(OC) / 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

---

BIOS

–  2 x 32 Mbit flash
–  Use of licensed AWARD BIOS
–  Support for DualBIOS™
–  PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

---

Grafisch

–  1 x D-Sub port, supporting a maximum resolution of 1920×1200
–  1 x DVI-D port, supporting a maximum resolution of 1920×1200
* The DVI-D port does not support D-Sub connection by adapter.
–  1 x HDMI port, supporting a maximum resolution of 1920×1200
* Simultaneous output for DVI-D and HDMI is not supported.
–  Support for DirectX 10

---

Audio

–  Realtek® ALC892 codec
–  High Definition Audio
–  2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
–  Support for S/PDIF Out

---

LAN

– Realtek^® GbE LAN chip (10/100/1000 Mbit)

---

Uitbereidingssleuven

– 1 x PCI Express x16 slot, running at x16
– 1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 2.0 standard.)
– 1 x PCI slot

---

Opslag

– 1 x IDE connector supporting ATA-133/100/66/33
– 6 x SATA 3Gb/s connectors
– Support for RAID 0, RAID 1, RAID 10, and JBOD

---

Aansluitingen

– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 6 x SATA 3Gb/s connectors
– 1 x IDE connector
– 1 x CPU fan header
– 1 x system fan header
– 1 x front panel header
– 1 x front panel audio header
– 1 x S/PDIF Out header
– 1 x USB 3.1 Gen 1 header
– 2 x USB 2.0/1.1 headers
– 1 x serial port header
– 1 x parallel port header
– 1 x Clear CMOS jumper

---

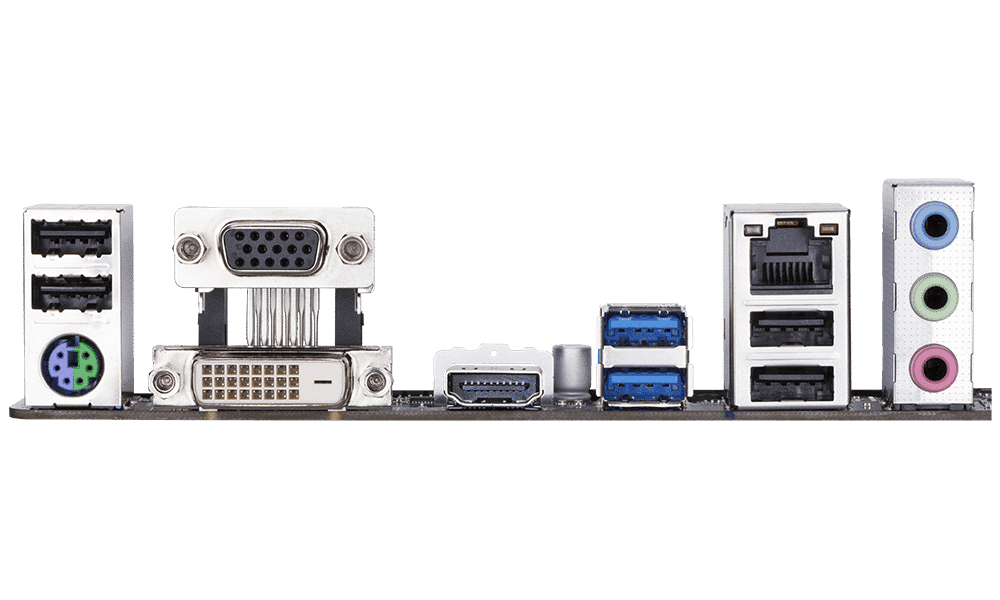

I/O Achterpaneel

– 1 x PS/2 keyboard/mouse port
– 1 x D-Sub port
– 1 x DVI-D port
– 1 x HDMI port
– 2 x USB 3.1 Gen 1 ports
– 4 x USB 2.0/1.1 ports
– 1 x RJ-45 port
– 3 x audio jacks (Line In, Line Out, Mic In)

---

Unieke Eigenschappen

– Support for @BIOS
– Support for Q-Flash
– Support for Xpress BIOS Rescue
– Support for Download Center
– Support for Xpress Install
– Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
– Support for Smart Recovery2
– Support for Auto Green
– Support for ON/OFF Charge

---

Accesoires

– I/O Shield

---

Hardware Monitor

– System voltage detection
– CPU/System temperature detection
– CPU/System fan speed detection
– CPU overheating warning
– CPU/System fan fail warning
– CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install

---

Vorm factor

– Micro ATX Form Factor: 24.4cm x 24.4cm

---

OS

– Microsoft® Windows®  7 32-bit / 7 64-bit

*To make sure Win10 19H1 VGA driver works properly, please install OS and drivers from our support CD without LAN Cable connected.
