Product information

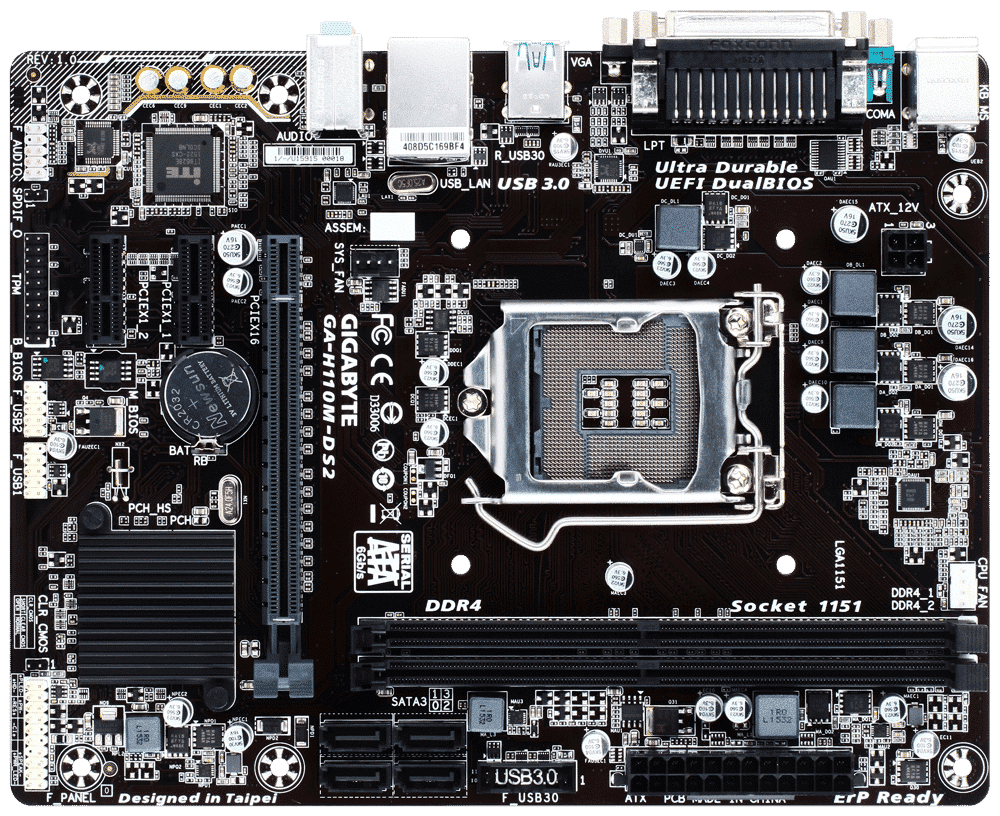

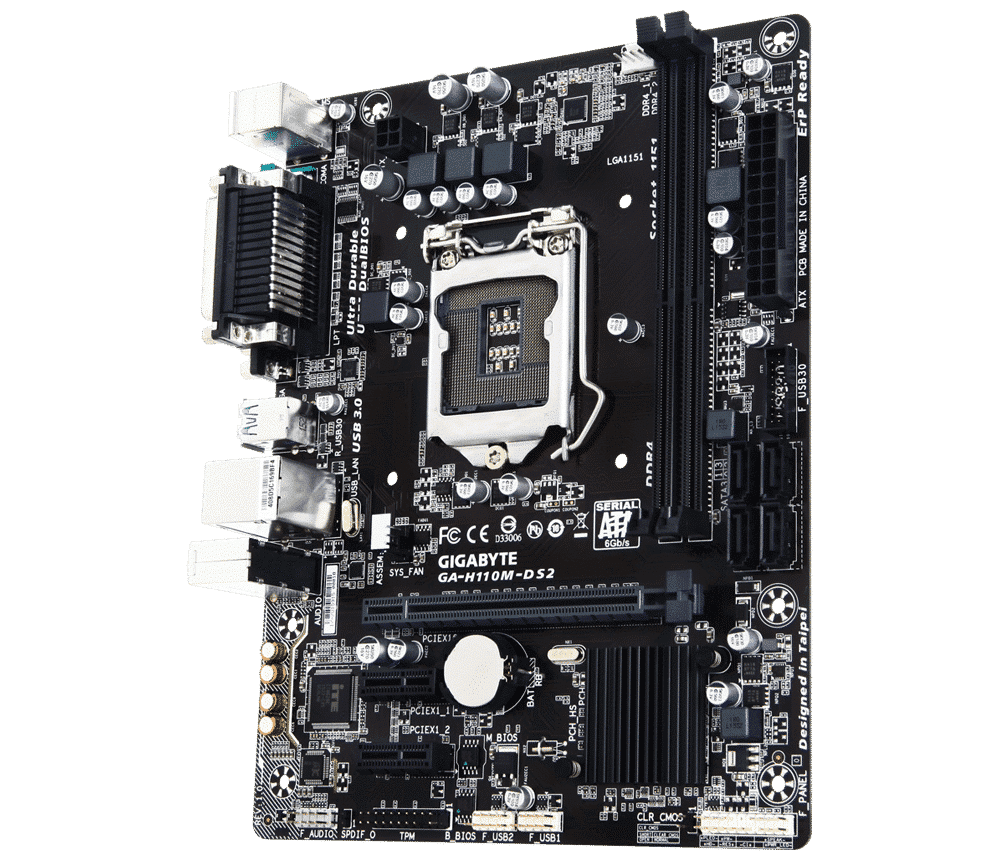

The Gigabyte GA-H110M-DS2 is a Micro-ATX Socket 1151 motherboard based on the Intel H110 chipset. The board must be combined with DDR4 memory, for which 2 slots are available. The Gigabyte GA-H110M-DS2 has a total of 4 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.

Features: Motherboard | M-ATX | Socket 1151 | 2x DDR4 | 4x SATA-600 | 2x PCIe 2.0 x1 | PCIe 2.0 x16 | USB 2.0 | USB 3.0 (Gen1, 5Gb/s) | HDMI | DVI-D | VGA (D-Sub)

Product: Gigabyte GA-H110M-DS2
Connection: Socket 1151
Suitable for: 6th and 7th generation processors
Category: motherboards
Brand: Gigabyte
EAN: 4719331845339
Condition: Used, latest bios version is installed
SKU: GA-H110M-DS2
Warranty: 6 months

package content:
– Motherboard (GA-H110M-DS2)
– IO-Shield (Blende)
– No manual
– No driver CD
– cables

CPU
– Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
– L3 cache varies with CPU

Chipset
-Intel H110

Memory
– 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
– Dual channel memory architecture
– Support for DDR4 2400/2133 MHz memory modules
– Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
– Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

BIOS
– 1 x 64 Mbit flash
– Use of licensed AMI UEFI BIOS
– PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Graphics
– Integrated Graphics Processor – Intel^® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
– Maximum shared memory of 1024 MB

Audio
– Realtek® Audio CODEC
– High Definition Audio
– 2/4/5.1/7.1 channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
-Support for S/PDIF Out

LAN
– Realtek^® GbE LAN chip (1 Gbit/100 Mbit)

Slots
– 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
– 2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface
chipset:
4 x SATA 6Gb/s connectors

USB
chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Connector
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU Fan Header
1 x system fan header
1 x Front Panel Header
1 x front panel audio header
1 x S/PDIF Out Header
1 x USB 3.0/2.0 Header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

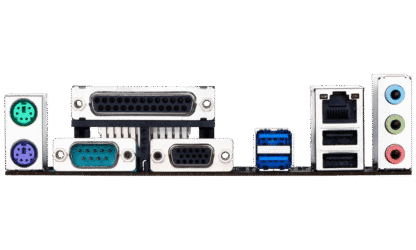

Rear Panel I/O
I/O Panel
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x parallel port
1x serial port
1 x D-Sub port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

Unique Features
– Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
CloudStation
EasyTune
Fast Boot
Smart TimeLock
SmartKeyboard
Smart Backup
System Information Viewer
USB Blocker
– Support for Q-Flash
– Support for Smart Switch
– Support for Xpress Install

Accessories
– I/O Shield

Hardware Monitor
– System voltage detection
– CPU/System temperature detection
– CPU/System fan speed detection
– CPU/System overheat warning
– CPU/System fan fail warning
– CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

Form Factor
– Micro-ATX Form Factor; 22.6cm x 17.4cm

OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
