Description
Gigabyte GA-Z77X-D3H is a powerful and versatile ATX motherboard solution for Intel LGA1155 processors, ideal for gamers and enthusiasts seeking reliable performance. This motherboard supports both USB 3.0 and SATA 6Gb/s, enabling fast data transfers. With HDMI, DVI, and VGA outputs, it offers broad compatibility with various displays. Supporting multiple graphics cards via CrossFireX and SLI and featuring built-in gigabit LAN connectivity, this Z77 chipset is perfect for high-performance setups. Additionally, four DDR3 memory slots and high-quality audio connections provide a solid foundation for a powerful PC build.

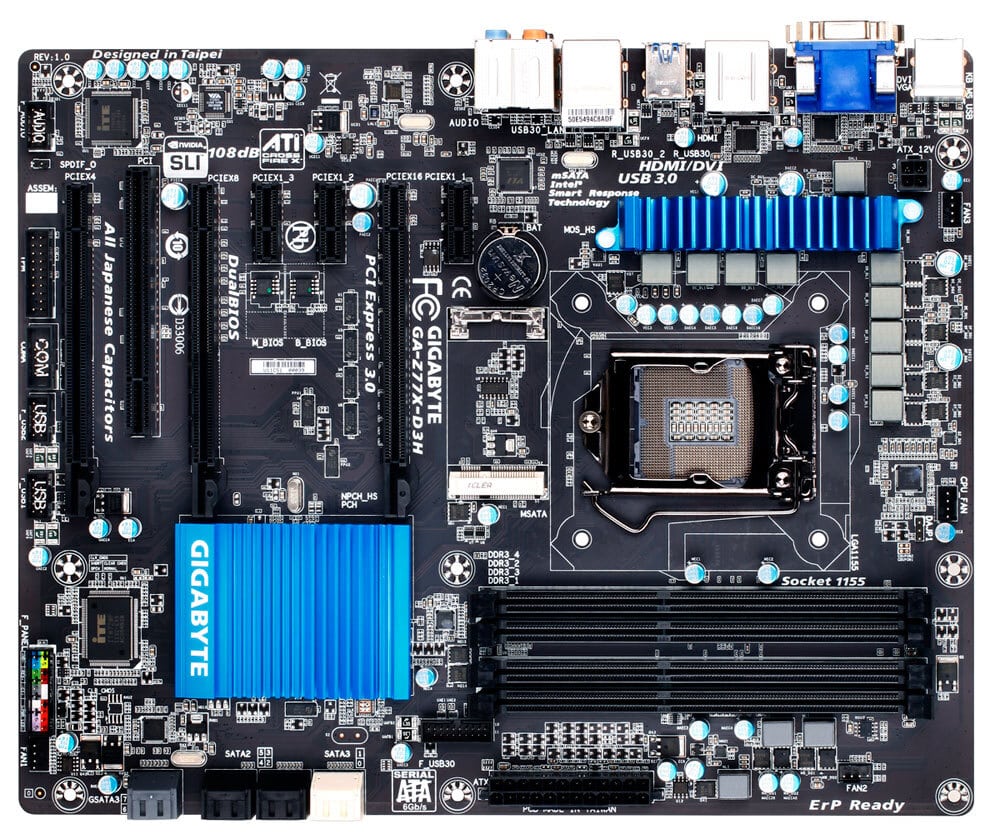

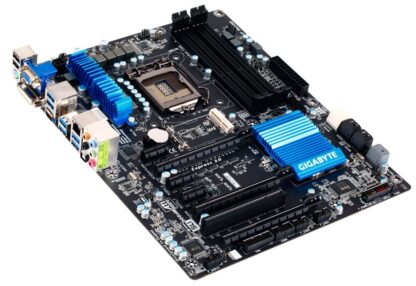

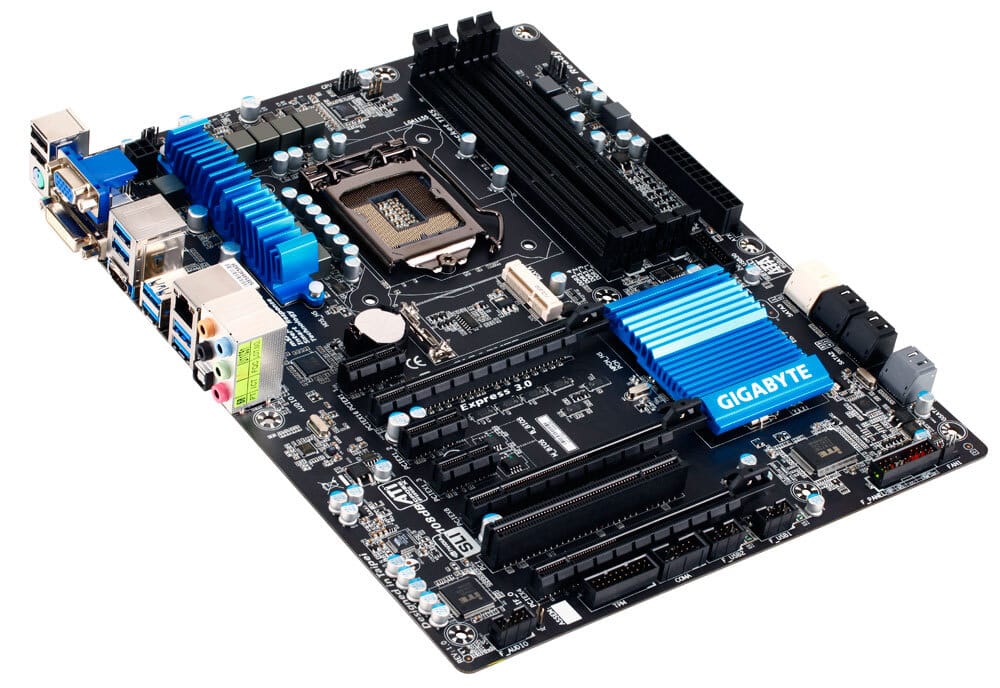

Gigabyte GA-Z77X-D3H
Product: Gigabyte GA-Z77X-D3H
Socket: LGA1155 (compatible with 2nd and 3rd Gen processors)
Category: Motherboards
Brand: Gigabyte
Condition: Used
EAN: 4719331807337
SKU: GA-Z77X-D3H
Warranty: 6 months
Drivers for the Gigabyte GA-Z77X-D3H
Supported processors for the Gigabyte GA-Z77X-D3H
Package Contents:
- Motherboard (Gigabyte GA-Z77X-D3H)
- IO-Shield (metal backplate)
- No manual
- No driver CD
- No cables
CPU
– Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
– L3 cache varies with CPU
Chipset
– Intel® Z77 Express
Geheugen
– 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
– Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules
– Support for non-ECC memory modules
– Support for Extreme Memory Profile (XMP) memory modules
Uitbreidingssloten
– 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
– 1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
– 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_1/2/3 slots. The PCIEX1_1/2/3 slots slots will become unavailable when a PCIe x4 expansion card is installed.
– 3 x PCI Express x1 slots
(PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
– 1 x PCI slots
Grafisch
– 1 x D-Sub port
– 1 x DVI-D port, supporting a maximum resolution of 1920×1200
* The DVI-D port does not support D-Sub connection by adapter.
– 1 x HDMI port, supporting a maximum resolution of 1920×1200
Audio
– VIA VT2021 codec
– High Definition Audio
– 2/4/5.1/7.1-channel
– Support for S/PDIF Out
LAN
– 1 x Atheros GbE LAN chip (10/100/1000 Mbit)
Opslag
– Chipset:
– 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
– 4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5) supporting up to 4 SATA 3Gb/s devices
– 1 x mSATA connector
* The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
– 1 x Marvell 88SE9172 chip:
– 2 x SATA 6Gb/s connectors (GSATA3 6/GSATA3 7) supporting up to 2 SATA 6Gb/s devices
– Support for RAID 0 and RAID

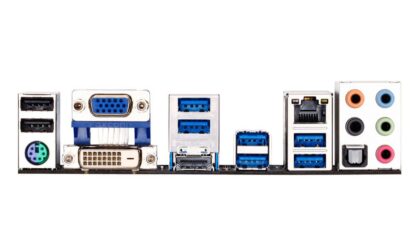

Achterpaneel I/O
I/O Paneel
– 1 x PS/2 keyboard/mouse port
– 1 x D-Sub port
– 1 x DVI-D port
– 1 x HDMI port
– 6 x USB 3.0/2.0 ports
– 2 x USB 2.0/1.1 ports
– 1 x RJ-45 port
– 1 x optical S/PDIF Out connector
– 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)
USB
Chipset:
– Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
– Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
VIA VL800 chip:
– Up to 4 USB 3.0/2.0 ports on the back panel
* Due to a Windows 7 limitation, please connect your USB device(s) to the USB 2.0/1.1 port(s) before the VIA USB 3.0 controller driver is installed.
Aansluiting
– 1 x 24-pin ATX main power connector
– 1 x 4-pin ATX 12V power connector
– 4 x SATA 6Gb/s connectors
– 4 x SATA 3Gb/s connectors
– 1 x mSATA connector
– 1 x CPU fan header
– 3 x system fan headers
– 1 x front panel header
– 1 x front panel audio header
– 1 x S/PDIF Out header
– 1 x USB 3.0/2.0 header
– 2 x USB 2.0/1.1 headers
– 1 x serial port header
– 1 x Clear CMOS jumper
– 1 x Trusted Platform Module (TPM) header
BIOS Functies
– 2 x 64 Mbit flash
– Use of licensed AMI EFI BIOS
– Support for DualBIOS™
– PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Hardware Monitor
– System voltage detection
– CPU/System temperature detection
– CPU/System fan speed detection
– CPU overheating warning
– CPU/System fan fail warning
– CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
Formaat
– ATX Formaat: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Certificeringen
– FCC, CE, WHQL
– ErP/EuP Ready (ErP/EuP gereed voedingsapparaat is vereist)
