Gigabyte Q670M D3H DDR4 LGA1700

The Gigabyte Q670M D3H DDR4 (Rev. 1.0) is a versatile Micro-ATX motherboard designed for business desktops, workstations and powerful Intel-based systems. Based on the Intel Q670 Express chipset, the motherboard features the LGA1700 socket with support for 12th, 13th and 14th Gen Intel® Core™ processors.

With four DDR4 DIMM slots, the motherboard supports up to 128GB of DDR4 memory in a Dual Channel configuration. In addition to standard DDR4-3200 memory, higher speeds are supported through XMP with compatible memory modules. For high-speed storage, the motherboard provides two PCIe 4.0 x4 M.2 slots alongside four SATA 6Gb/s connectors.

The Gigabyte Q670M D3H DDR4 offers extensive business-oriented connectivity, including Dual LAN with an Intel® 2.5 Gigabit Ethernet connection and support for Intel® vPro™ Technology with compatible processors. Display connectivity includes HDMI, D-Sub and two DisplayPort outputs, allowing up to four displays to be used simultaneously when a processor with integrated graphics is installed.

---

Product: Gigabyte Q670M D3H DDR4
Revision: Rev. 1.0
Form Factor: Micro-ATX
Socket: Intel LGA1700
Chipset: Intel Q670 Express
Memory: DDR4
Maximum Memory: 128GB
Memory Slots: 4 x DDR4 DIMM
Networking: Dual Intel LAN, including 2.5GbE
M.2: 2 x PCIe 4.0 x4
SATA: 4 x SATA 6Gb/s
Condition: Refurbished
Warranty: 6 months

---

Package Contents:

Gigabyte Q670M D3H DDR4 (Rev. 1.0) motherboard

*Accessories such as SATA cables, manuals and original packaging are only included when pictured or explicitly stated.

---

Key Features

Intel Q670 Platform
– Intel® Q670 Express chipset
– Intel LGA1700 socket
– Supports 12th Gen Intel® Core™ processors
– Supports 13th Gen Intel® Core™ processors
– Supports 14th Gen Intel® Core™ processors
– Supports compatible Intel® Pentium® Gold and Celeron® processors
– Supports Intel® vPro™ Technology with compatible processors

DDR4 Memory
– 4 x DDR4 DIMM slots
– Up to 128GB memory
– Dual Channel memory architecture
– DDR4-3200 and lower standard speeds
– DDR4 XMP support
– Overclocked speeds up to 5333 MHz depending on memory module and processor
– ECC UDIMM modules can be used but operate in non-ECC mode

High-Speed NVMe Storage
– 2 x M.2 connectors
– Both support PCI Express 4.0 x4
– Suitable for high-speed NVMe SSDs
– M.2 Thermal Guard on one M.2 slot
– 4 x SATA 6Gb/s

Dual Intel LAN
– Two wired network connections
– Intel® 2.5 Gigabit Ethernet
– Intel® Gigabit Ethernet
– Suitable for business networks, servers and workstations

---

Processor and Chipset

– Socket: Intel LGA1700
– Chipset: Intel® Q670 Express
– Supports 12th Gen Intel® Core™ processors
– Supports 13th Gen Intel® Core™ processors
– Supports 14th Gen Intel® Core™ processors
– Supports compatible Pentium® Gold and Celeron® processors
– L3 cache varies depending on installed processor
– 6+1+1 Hybrid Digital VRM
– 8-pin CPU power connector

*Always check the CPU Support List and required BIOS version before installing a processor.

---

Memory

– 4 x DDR4 DIMM
– Maximum memory capacity: 128GB
– Maximum 32GB per DIMM
– Dual Channel memory architecture
– DDR4-3200 / 3000 / 2933 / 2666 / 2400 / 2133
– Higher DDR4 speeds supported through XMP
– XMP support up to 5333 MHz depending on configuration
– Non-ECC Unbuffered DIMM
– ECC Unbuffered DIMMs operate in non-ECC mode

---

Expansion Slots

– 1 x PCI Express 4.0 x16
– Additional PCI Express expansion options
– PCI Express 4.0 support depending on installed processor

---

Storage

– 2 x M.2 PCIe 4.0 x4
– NVMe SSD support
– 1 x M.2 Thermal Guard
– 4 x SATA 6Gb/s

---

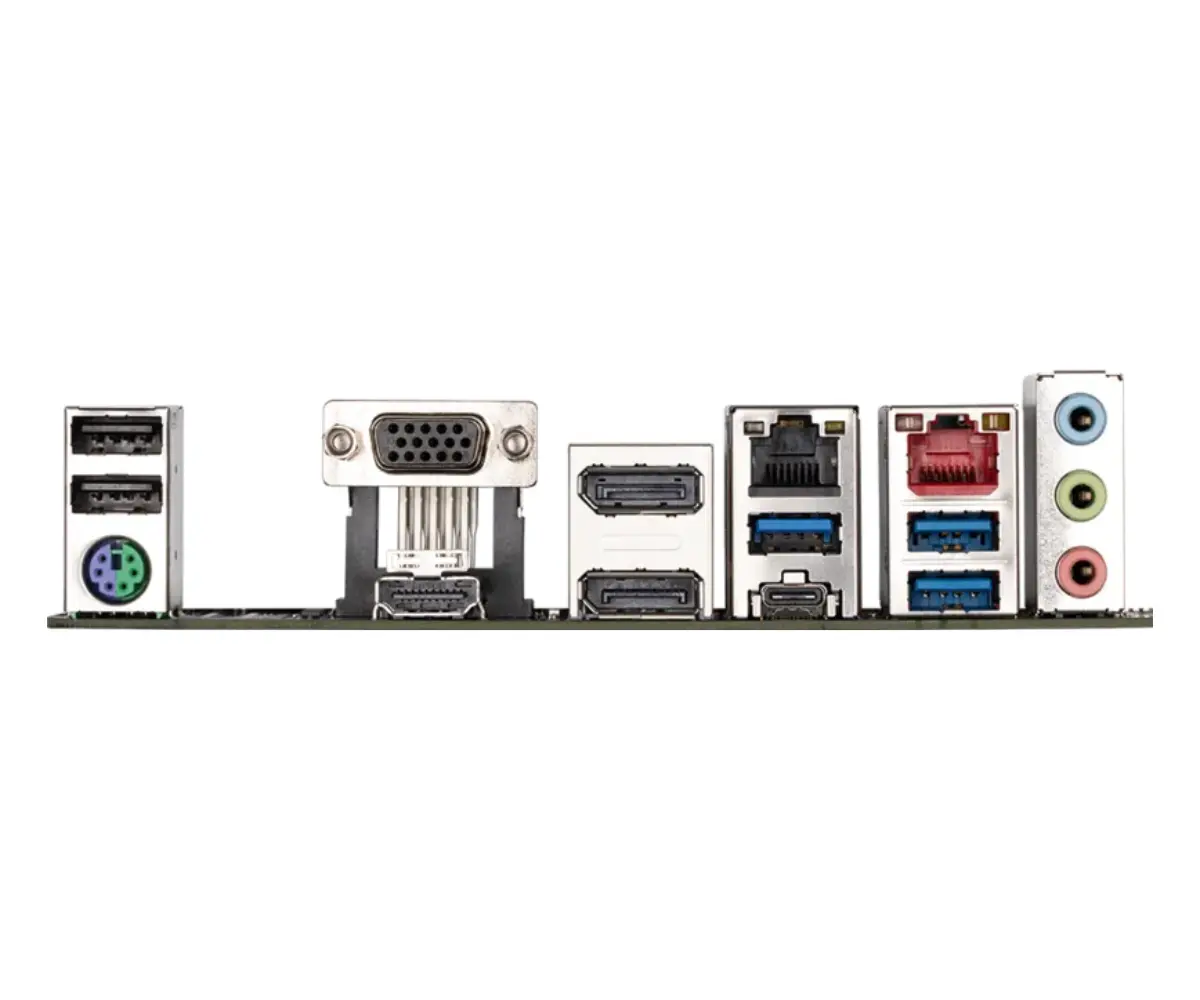

Graphics Outputs

– 2 x DisplayPort
– 1 x HDMI
– 1 x D-Sub / VGA
– Supports up to 4 displays simultaneously
– HDMI: up to 4096 x 2160 @ 60Hz
– DisplayPort: up to 4096 x 2304 @ 60Hz
– D-Sub: up to 1920 x 1200 @ 60Hz

*A processor with integrated graphics is required to use the motherboard’s display outputs.

---

Networking

– Dual Intel LAN
– 1 x Intel® 2.5GbE LAN
– 1 x Intel® Gigabit LAN
– Bandwidth Management
– Suitable for business and professional network environments

---

USB and Connectivity

– Rear USB 3.2 Gen 2 Type-C
– USB 3.2 Gen 1
– USB 2.0
– Internal USB 3.2 Gen 1 Type-C header
– Extensive internal USB connectivity

---

Audio

– 8-channel High Definition Audio
– High Quality Audio Capacitors
– Audio Noise Guard

---

Business Features

– Intel® Q670 business chipset
– Intel® vPro™ Technology support
– Dual Intel LAN
– TPM and security functionality
– Suitable for business desktops and workstations
– Smart Fan 6
– Multiple temperature sensors
– Hybrid Fan Headers
– FAN STOP support

---

Operating System

– Windows 10 64-bit
– Windows 11 64-bit

---

Form Factor

– Micro-ATX

---

Condition

– Refurbished / Used
– Fully tested
– 100% technically functional
– Motherboard is carefully inspected before shipment

---

Warranty

– 6 months warranty
