Product information

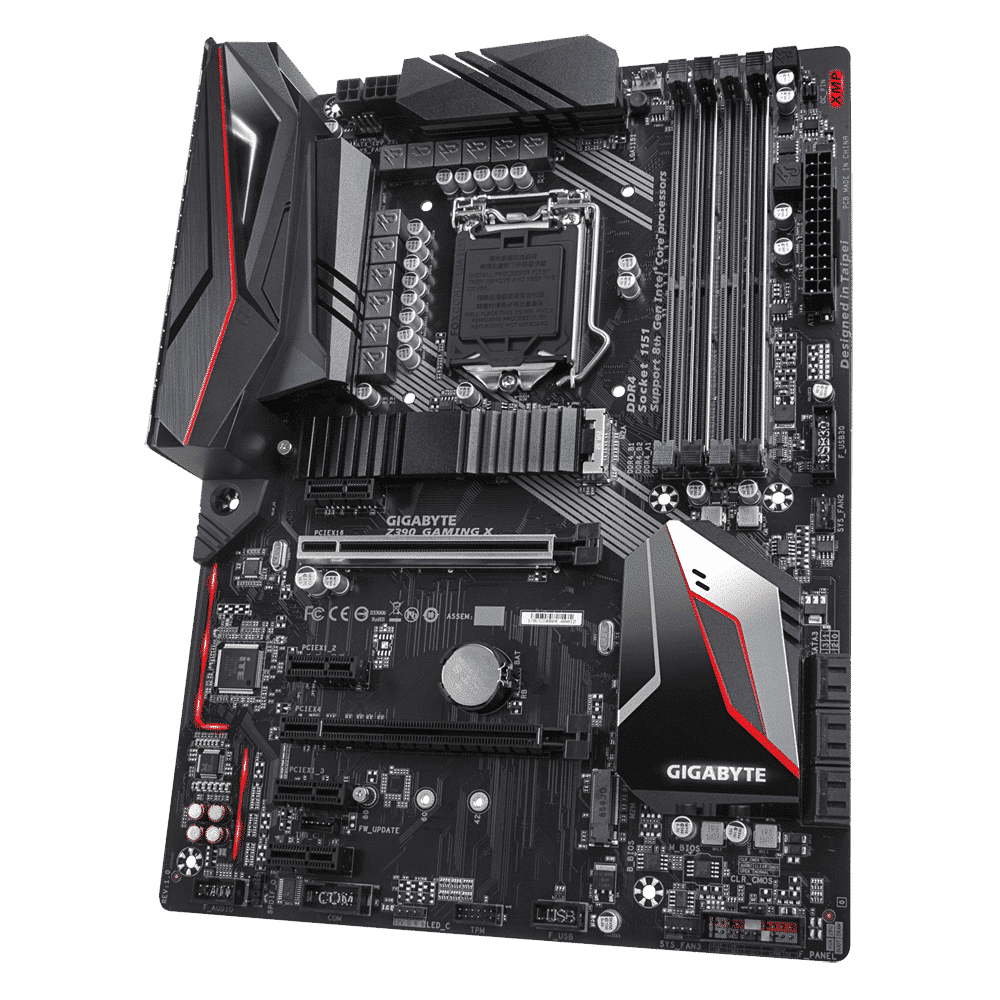

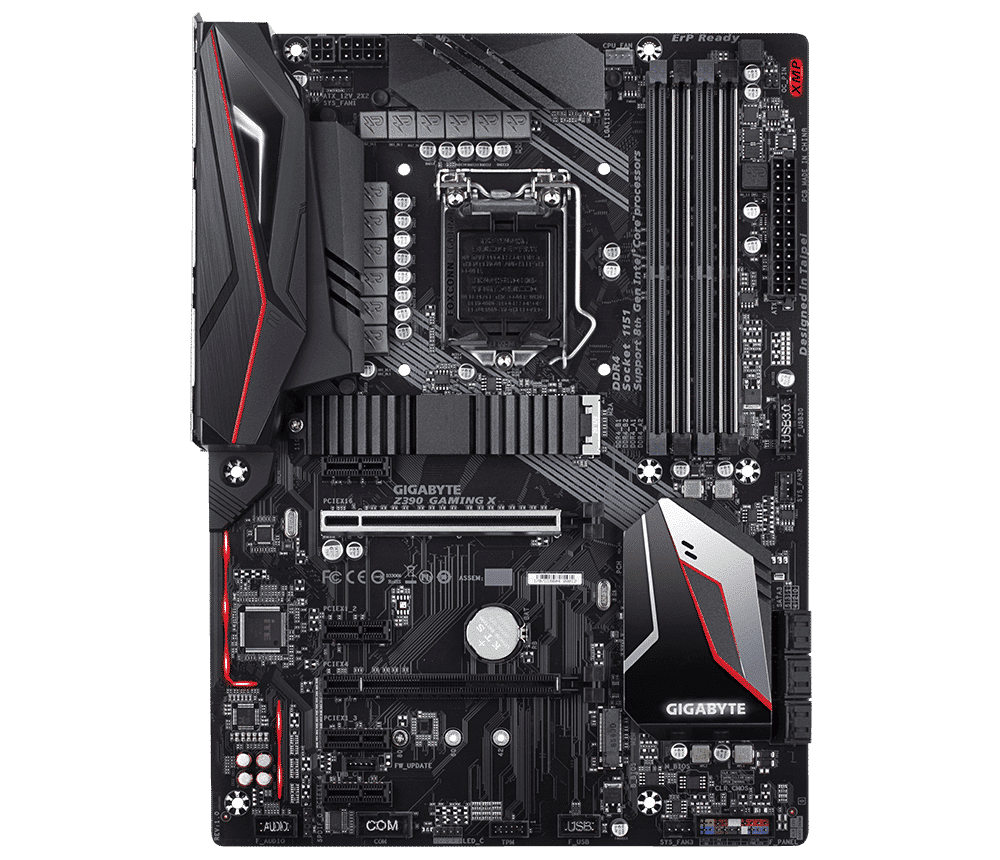

The Gigabyte Z390 Gaming X motherboard is an ATX motherboard with room for 4 DDR4 memory modules, with a maximum of 128GB.


Specifications:  motherboard | ATX | Socket 1151 | Intel Z390 chipset | 4 x DDR4 (Max 128GB) | PCI-e 3.0 x1 | PCI-e 3.0 x16 | 2x M.2 (PCI-e 3.0 x4 + SATA) | M.2 (PCI-e 3.0 x4) | 6x SATA 600 | USB 3.1 Gen 2 Type-A | USB 3.1 Gen 1 | USB2.0


Product: Z390 Gaming X
Socket:
Socket 1151
Suitable for: 8th and 9th generation processors
Category: Motherboards
Brand: Gigabyte
Condition: Used – BIOS updated to the latest version
EAN: 4719331804367
SKU:
Z390 GAMING X
Warranty: 6 months




package content:
– Motherboard (Z390 GAMING X)
– IO-Shield (fixed to the board)
– No instructions Manual
– No driver CD
– No cables


CPU
Support for 9th and 8th generation Intel® Core ™ i9 processors/Intel® Core ™ i7 processors/Intel® Core ™ i5 processors/Intel® Core ™ i3 processors/Intel® Pentium® processors/Intel® Celeron® – processors in the LGA1151 package
L3 cache varies with CPU


Chipset
Intel® Z390 Express Chipset


Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) system memory**
** Please note that the support for the total memory size of the system depends on the installed CPU.
Dual-channel memory architecture
Support DDR4 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400( OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC unbuffered DIMM 1Rx8/2Rx8 memory modules (operating in non-ECC mode)
Support for non-ECC unbuffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Extreme Memory Profile (XMP) memory module support


Integrated Video
1 x HDMI port, supports a maximum resolution of 4096×2160@30Hz
* Support for HDMI 1.4 version and HDCP 2.2.


Audio
Realtek ® ALC892 codec
High Definition Audio
2/4/5.1/7.1ch
Support for S/PDIF output


LAN
Intel® GbE LAN chip (10/100/1000 Mbit)


Expansion slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimal performance, if only one PCI Express graphics card is to be installed, install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running x4 (PCIEX4)
4 x PCI Express x1 slots
(All PCI Express slots conform to the PCI Express 3.0 standard.)


Multi-graphics technology
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies


Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5 and RAID 10
* Refer to “1-7 Internal Connectors” for the installation notices for the M.2 and SATA connectors.


USB Chipset:
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
7 x USB 3.1 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)


Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4 Pin ATX 12V Power Connector
1 x 8 Pin ATX 12V Power Connector
1 x CPU Fan Head
3 x System Fan Heads
1 x RGB LED Strip Head
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 Connectors
1 x Head on the Front Panel
1 x audio header on the front panel
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, only for the GC-TPM2.0_S module)
1 x Thunderbolt™ Expansion Card Connector
1 x Serial Port Header
1 x Clear CMOS jumper

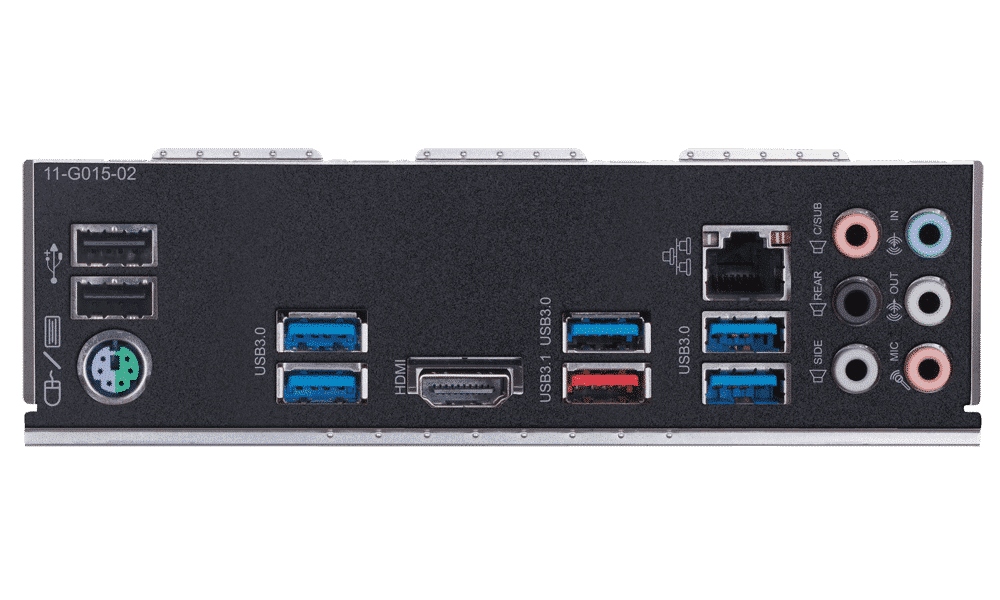

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI Port
1 x USB 3.1 Gen 2 Type-A port (rood)
5 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 Port
6 x audio jacks


I/O Controller
iTE® I/O Controller Chip


BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Operating System
Support for Windows 10/8.1/8/7


Form Factor
ATX Form Factor; 30.5cm x 22.5cm

Specification

Weight1 kg
Intel

Socket 1151

Brand

Gigabyte

Chipset

Intel Z390

Form Factor

ATX

Memory Type

DDR4 SDRAM

Number of memory slots

4

Maximum memory size

128 GB

Connectors

Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1 Type-C, USB 3.1 Gen2 Type-A

Storage Interfaces

M.2 (PCI-e 2.0 x4 + SATA), Serial ATA-600

Interfaces

PCI-e 3.0 x1, PCI-e 3.0 x16

Socket

Model

Z390 Gaming X

Suitable for

Gaming

particularities

Video Chipset

Length

30.5 cm

Width

22.5 cm

package content

Motherboard and Backplate (Blende)

Gigabyte Z390 Gaming X LGA1151 motherboard

Free delivery

Intel Z390 GAMING motherboard with 10+2 digital PWM design, 2-way CrossFire™ Multi-Graphics, USB 3.1 Gen2 Type-A, M.2 Thermal Guard, Intel GbE LAN with cFosSpeed, Smart Fan 5, Dual M.2 , Dual Armor with Ultra Durable™ Technology, DualBIOS, CEC 2019

  • Supports 9th and 8th Generation Intel® Core ™ processors
  • Dual Channel non-ECC unbuffered DDR4
  • New 10+2 phase digital PWM design
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4 (1 with Thermal Guard) & SATA interface
  • 2-Way CrossFire™ Multi-Graphics Support with PCIe Armor and Ultra Durable™ Design
  • Intel ® Native USB 3.1 Gen2 Type-A
  • Intel ® GbE LAN with cFosSpeed ​​Internet Accelerator software
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • High quality audio capacitors and audio noise protection with LED track path lighting
  • Support RGB full color lighting effect
  • Ready for CEC 2019, save energy with a simple click
  • Smart Fan 5 features multiple temperature sensors and hybrid fan heads with FAN STOP
  • Lightning-fast Intel® Thunderbolt ™ 3 AIC support
  • Intel ® Optane™ Memory Ready
