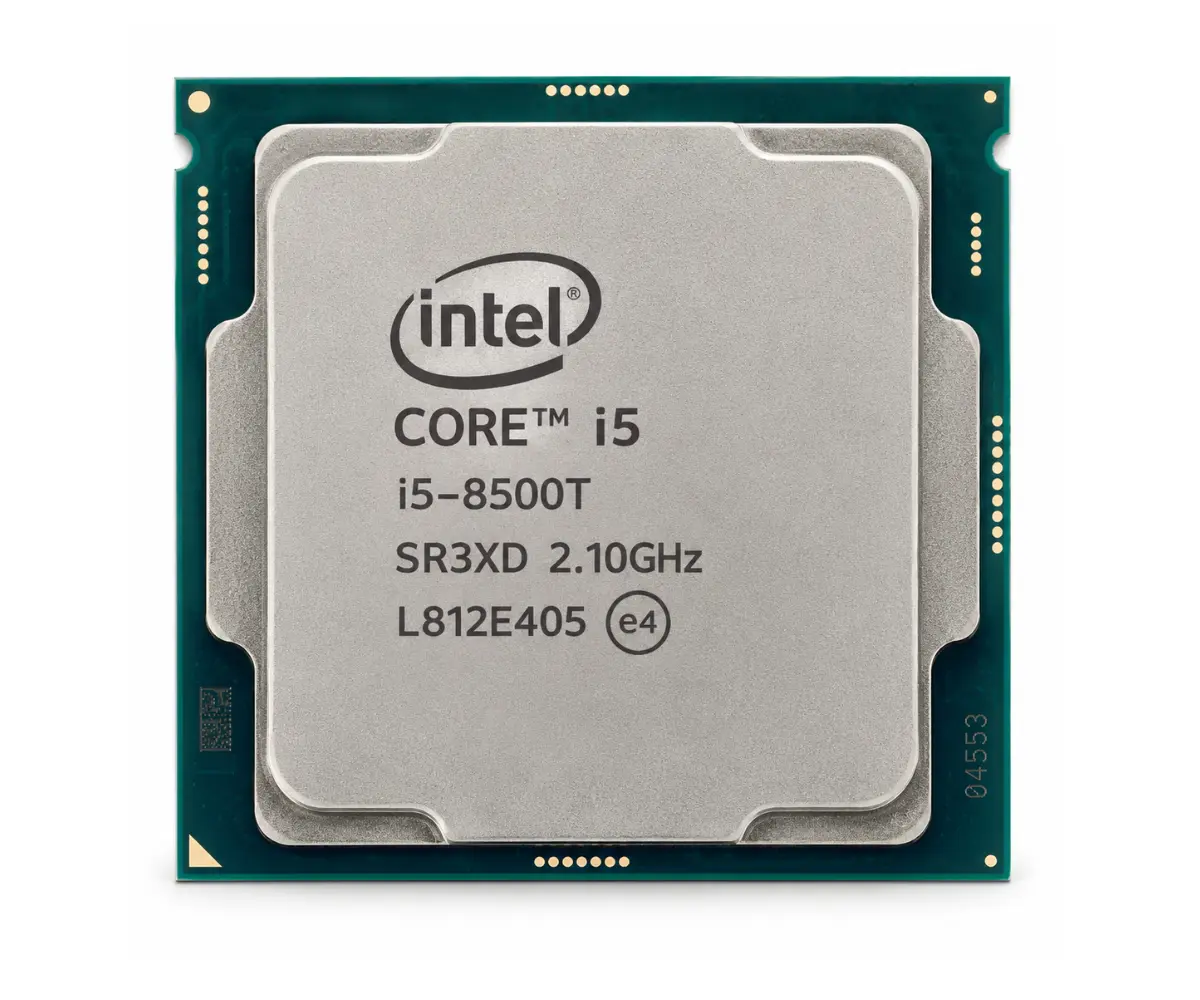

Intel Core i5-8500t 6x 2.10 GHz Six-Core

The Intel Core i5-8500T is an energy-efficient desktop processor from the 8th Gen Intel® Core™ series, based on the Coffee Lake architecture. With 6 cores, a base clock speed of 2.10 GHz and a maximum Turbo frequency of 3.50 GHz, this processor delivers excellent performance for everyday use, business applications, multitasking and compact desktop systems. Thanks to a TDP of just 35 watts, the Intel Core i5-8500T is particularly suitable for energy-efficient and compact PCs.

The processor features 9MB Intel® Smart Cache and supports up to 128GB DDR4-2666 memory in a Dual Channel configuration. It also features integrated Intel® UHD Graphics 630, eliminating the need for a dedicated graphics card when used with a compatible motherboard. The integrated graphics processor supports up to three displays and resolutions up to 4K.

The Intel Core i5-8500T uses the LGA1151 socket and is designed for Intel 300 Series motherboards. With support for PCI Express 3.0, Intel® Turbo Boost Technology 2.0, Intel® Virtualization Technology and Intel® Quick Sync Video, this processor is a versatile choice for both home and business use.

---

Product: Intel Core i5-8500T
Processor Series: 8th Gen Intel® Core™ i5
Architecture: Coffee Lake
Socket: LGA1151
Category: Processors
Brand: Intel
Number of Cores: 6
Number of Threads: 6
Base Clock Speed: 2.10 GHz
Maximum Turbo Frequency: 3.50 GHz
Cache: 9MB Intel® Smart Cache
TDP: 35W
Integrated Graphics: Intel® UHD Graphics 630
Condition: Refurbished
Warranty: 6 months

---

Package Contents:

Intel Core i5-8500T processor

*Processor is supplied without a CPU cooler unless otherwise stated.

---

Key Features

6-Core Processor
– 6 physical processor cores
– 6 threads
– Suitable for multitasking and everyday use
– Excellent for business desktop computers and compact systems

Intel® Turbo Boost Technology 2.0
– Base clock speed of 2.10 GHz
– Maximum Turbo frequency up to 3.50 GHz
– Automatically adjusts processor speed when additional performance is required

Energy-Efficient Design
– TDP of just 35 watts
– Designed for energy-efficient desktop systems
– Suitable for compact Small Form Factor and Mini PC systems
– Configurable TDP-down to 25W

Intel® UHD Graphics 630
– Integrated graphics processor
– No dedicated graphics card required for standard desktop use
– Supports up to 3 displays
– Supports 4K resolutions
– Supports Intel® Quick Sync Video

DDR4 Memory Support
– Supports DDR4-2666
– Dual Channel memory architecture
– Supports up to 128GB memory
– Maximum memory bandwidth of 41.6 GB/s

---

Processor

– Intel® Core™ i5-8500T
– 8th Gen Intel® Core™ i5
– Coffee Lake architecture
– 14nm manufacturing process
– 6 cores
– 6 threads
– Base clock speed: 2.10 GHz
– Maximum Turbo frequency: 3.50 GHz
– Bus Speed: 8 GT/s
– 9MB Intel® Smart Cache
– TDP: 35W
– Configurable TDP-down: 25W
– Configurable TDP-down base frequency: 1.60 GHz

---

Socket and Compatibility

– Socket: FCLGA1151
– Compatible with supported Intel 300 Series motherboards
– Supports Intel B360, B365, H310, H370 and Z370 chipsets, among others
– Maximum CPU configuration: 1 processor

*An LGA1151 socket alone does not guarantee compatibility. Always check the motherboard’s CPU support list before installing the processor.

---

Memory

– Supports DDR4-2666
– Maximum memory capacity: 128GB
– Maximum of 2 memory channels
– Dual Channel memory support
– Maximum memory bandwidth: 41.6 GB/s
– ECC memory is not supported

*The actual maximum supported memory capacity and speed also depend on the motherboard used.

---

Integrated Graphics

– Intel® UHD Graphics 630
– Graphics base frequency: 350 MHz
– Maximum dynamic graphics frequency: 1.10 GHz
– Maximum graphics video memory: 64GB
– Supports up to 3 displays
– Supports eDP / DisplayPort / HDMI / DVI
– Supports 4K
– DisplayPort: up to 4096 x 2304 @ 60Hz
– HDMI: up to 4096 x 2304 @ 24Hz
– Supports DirectX 12
– Supports OpenGL 4.5
– Supports Intel® Quick Sync Video

*Available video outputs and maximum resolutions depend on the motherboard used.

---

PCI Express

– PCI Express version: PCIe 3.0
– Up to 16 PCI Express lanes
– Supported configurations: 1 x 16, 2 x 8 or 1 x 8 + 2 x 4

---

Supported Technologies

– Intel® Turbo Boost Technology 2.0
– Intel® 64
– Intel® Virtualization Technology (VT-x)
– Intel® Virtualization Technology for Directed I/O (VT-d)
– Intel® VT-x with Extended Page Tables (EPT)
– Intel® Quick Sync Video
– Intel® Optane™ Memory support
– Intel® AES New Instructions
– Intel® Secure Key
– Intel® Trusted Execution Technology
– Intel® Boot Guard
– Intel® SpeedStep Technology
– Thermal Monitoring Technologies
– Intel® SSE4.1
– Intel® SSE4.2
– Intel® AVX2

---

Thermal Specifications

– TDP: 35W
– Configurable TDP-down: 25W
– Maximum junction temperature (Tjunction): 100°C
– Thermal Solution Specification: PCG 2015A (35W)

---

Dimensions

– Package size: 37.5 x 37.5 mm
– Socket: FCLGA1151

---

Condition

– Refurbished / Used
– Fully tested
– 100% technically functional
– Processor is carefully inspected before shipment

---

Warranty

– 6 months warranty
