Description

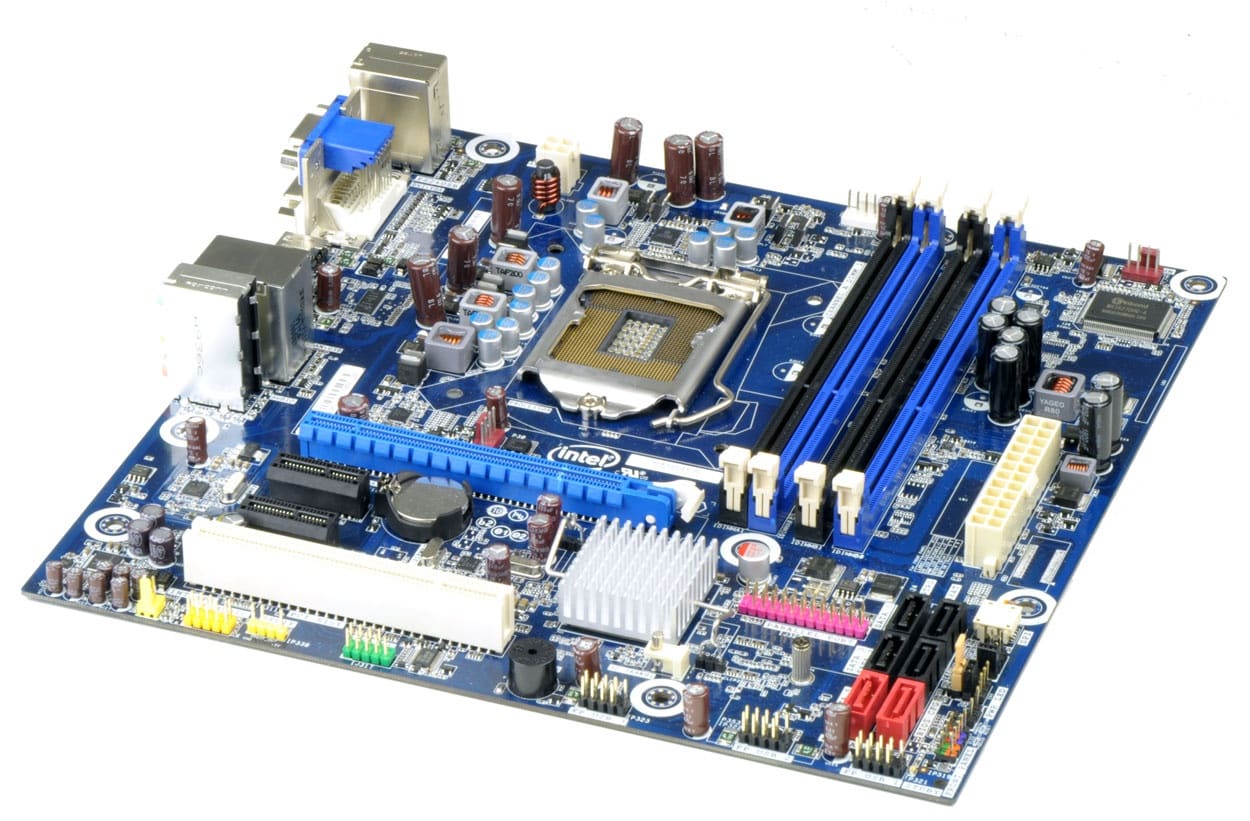

The Intel DH55TC motherboard is a Micro-ATX LGA
1156 motherboard which is equipped with 4 DDR3 memory slots. The Intel DH55TC is a motherboard with the Intel H55 Chipset.
Short Specifications:
Motherboard – LGA1156 | Micro ATX | Intel H55 Chipset | 4 x DDR3 up to 16GB | Gigabit Ethernet | PCI | 2x PCI-e 2.0 x1 | PCI-e 2.0 x16 | 4x SATA-300 | 12x USB 2.0 | VGA (D-Sub) | DVI-D | HDMI
Product: Intel DH55TC LGA1156;
Category: Intel socket 1156 Motherboards;
Brand: Intel;
EAN: 0675901016674, 0735858210171
SKU: DH55TC
Condition: Used
Warranty: 6 MonthsProcessors which are supported by the Intel DH55TC
Drivers for the Intel DH55TCExtended product specifications:
CPU
– Supports Socket 1156
Chipset
– Intel® H55
Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 1333/1066 non-ECC, unbuffered memory
– Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.
***In order to maximize the system memory, please install 8GB memory module with 16 cells
LAN
– Supports one PCI Express LAN 10/100/1000 Fast Ethernet
Slots
– 1x PCI Express 2.0 x16
– 2x PCI Express 2.0 x1
– 1x PCI
SATA
– 6 SATA 3.0 Gb/s ports
Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– Front panel audio connector
– Front panel connector
– 6 x USB 2.0 connectors
– 6 x Serial ATAII connectors

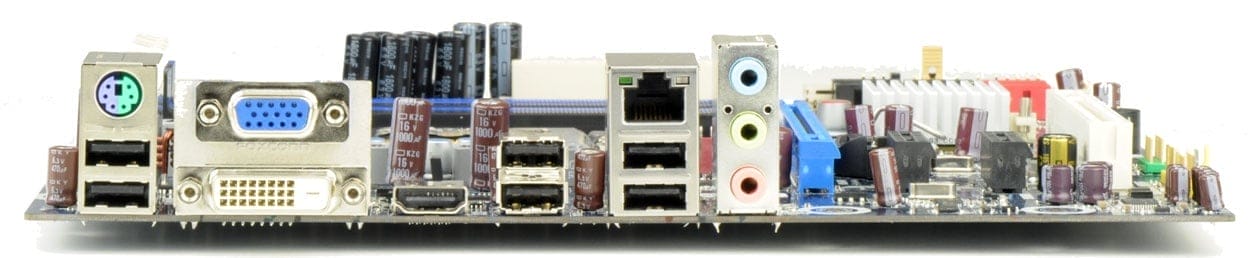

Rear Panel I/O
I/O Panel
– 6 x USB 2.0 ports
– 1x HDMI
– 1x DVI-I
– 1x DVI-D
– 1 x RJ45 LAN Jack
– 1 x 6 in 1 audio jack
Accessories
– I/O Shield
Form Factor
– Micro ATX Form Factor
OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32- bit / XP 64 bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
