Product information

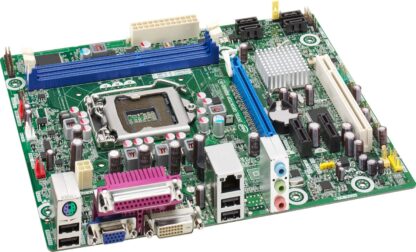

The Intel H61CR socket 1155 motherboard is a Micro-ATX motherboard with room for 2 DDR3 memory modules, with a maximum of 16GB. The DH61CR motherboard features a PCI-e x1, PCI and a PCI-e 2.0 x16 slot.

Specifications:  motherboard – LGA1155 – Intel H61 chipset – 2 x DDR3 up to 16 GB – Gigabit Ethernet – SATA – PCI-e 2.0 – VGA – DVI-D

Product: Intel DH61CR LGA1155 motherboard
Category: Motherboards
Brand: Intel
EAN: 0035858220897, 0675901104265, 0735858220897, 5711045556869
SKU: BLKDH61CRB3

Drivers for the Intel H61CR
Processor which are supported by the Intel H61CR

Note: This is a used motherboard updated with the latest BIOS version, the product warranty period is 6 months.

package content:
– Motherboard
– Backplate (Blende)
– No manual
– No driver CD
– No cables

CPU
Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22nm CPU
Supports Intel® 32nm CPU
Supports Intel® Turbo Boost Technology 2.0
Supports CPU up to 77 W
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset
Intel® H61(B3)

Memory
2xDIMM, Max. 16GB, DDR3 1333/1066MHz Non-ECC, Un-buffered Memory

Graphic
Integrated Graphics Processor
VGA, DVI-D, Maximum shared memory or 1748 MB

Expansion Slots
1 x PCIe 2.0/2.0 x16 *1
1 x PCIe 2.0 x1
1x PCI

Storage
Intel® H61(B3) chipset :
4 x SATA 3Gb/s port(s), blue

LAN
Intel® 82579V

Audio
Realtek ALC892

USB Ports
Intel® H61(B3) chipset :
6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)

Back I/O Ports
1 x PS/2 keyboard/ Mouse
1x DVI-D
1 x D Sub
1x Parallel
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x Chassis Fan connector(s) (4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)

Accessories
I/O Shield

BIOS
32Mbit EFI

Form Factor
uATX Form Factor
8.9 inches x 6.9 inches ( 24.3 cm x 19.8 cm )
