Product information

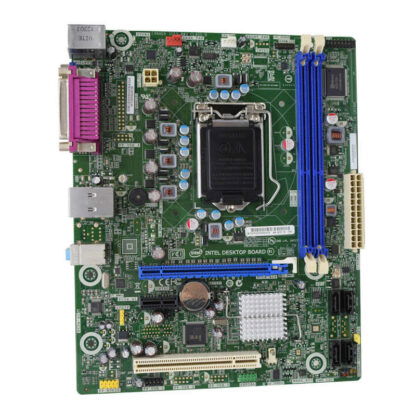

The Intel H61WW socket 1155 motherboard is a Micro-ATX motherboard with room for 2 DDR3 memory modules, with a maximum of 16GB. The DH61WW motherboard features a PCI-e x1, PCI and a PCI-e 2.0 x16 slot.

Specifications:
 motherboard – LGA1155 – Intel H61 chipset – 2 x DDR3 up to 16 GB – Gigabit Ethernet – SATA – PCI-e 2.0 – VGA

Product: Intel DH61WW LGA1155 motherboard
Category: Motherboards
Brand: Intel
EAN: 0132017642277, 0675901104326, 0735858220866, 5032037013192
SKU:
BLKDH61WWB3

Drivers for the Intel H61WW
Processors which are supported by the Intel H61WW

Note: This is a used motherboard updated with the latest BIOS version, the product warranty period is 6 months.

package content:
– Motherboard
– Backplate (Blende)
– No manual
– No driver CD
– No cables


CPU
Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22nm CPU
Supports Intel® 32nm CPU
Supports Intel® Turbo Boost Technology 2.0
Supports CPU up to 77 W
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list


Chipset
Intel® H61(B3)


Memory
2xDIMM, Max. 16GB, DDR3 1333/1066MHz Non-ECC, Un-buffered Memory


Graphic
Integrated Graphics Processor
VGA, Maximum shared memory or 1748 MB


Expansion Slots
1 x PCIe 2.0/2.0 x16 *1
1 x PCIe 2.0 x1
1x PCI


Storage
Intel® H61(B3) chipset :
4 x SATA 3Gb/s port(s), blue


LAN
Intel® 82579V


Audio
Realtek ALC892


USB Ports
Intel® H61(B3) chipset :
6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)


Back I/O Ports
1 x PS/2 keyboard/ Mouse
1 x D Sub
1x Parallel
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)


Internal I/O Ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x Chassis Fan connector(s) (4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)


Accessories
I/O Shield


BIOS
32Mbit EFI


Form Factor
uATX Form Factor
8.9 inches x 6.9 inches ( 24.3 cm x 19.8 cm )

Specification

Weight1 kg
Intel

LGA1155

Brand

Intel

Chipset

Intel H61

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), Ethernet (RJ-45), USB 2.0

Storage Interfaces

Serial ATA-300

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

Intel DH61WW

Fast delivery

Brand: Intel
Model: DH61WW
Socket: LGA1155
Chipset: Intel H61
Memory: 2x DDR3 (16GB Max)
Form Factor: M-ATX
EAN: 0132017642277
