Product information

MSI B85M-E43 DASH: Motherboard | Micro ATX | LGA1150 | 4x DDR3 | 2x SATA-300 | 4x SATA 600 | PCI | PCI-e 2.0 x1 | PCI-e 3.0 x16 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | DVI-D| HDMI | VGA (D Sub)

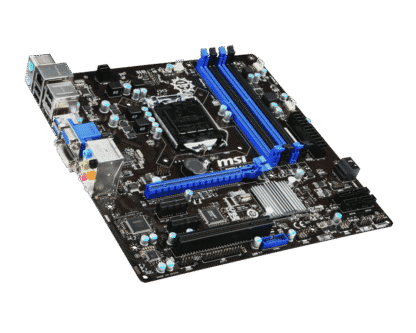

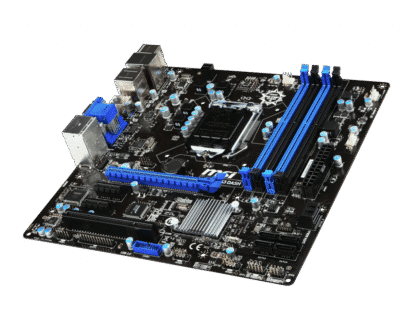

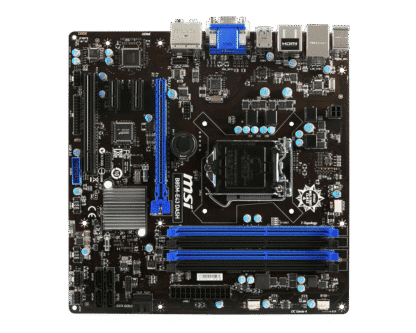

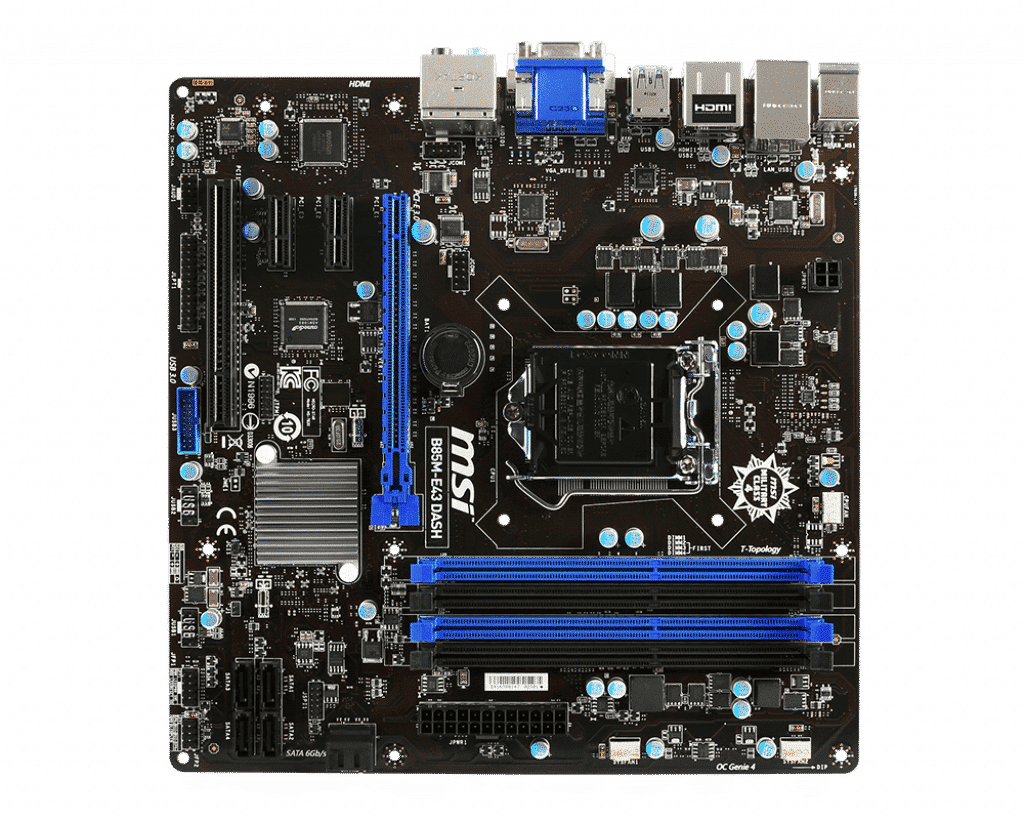

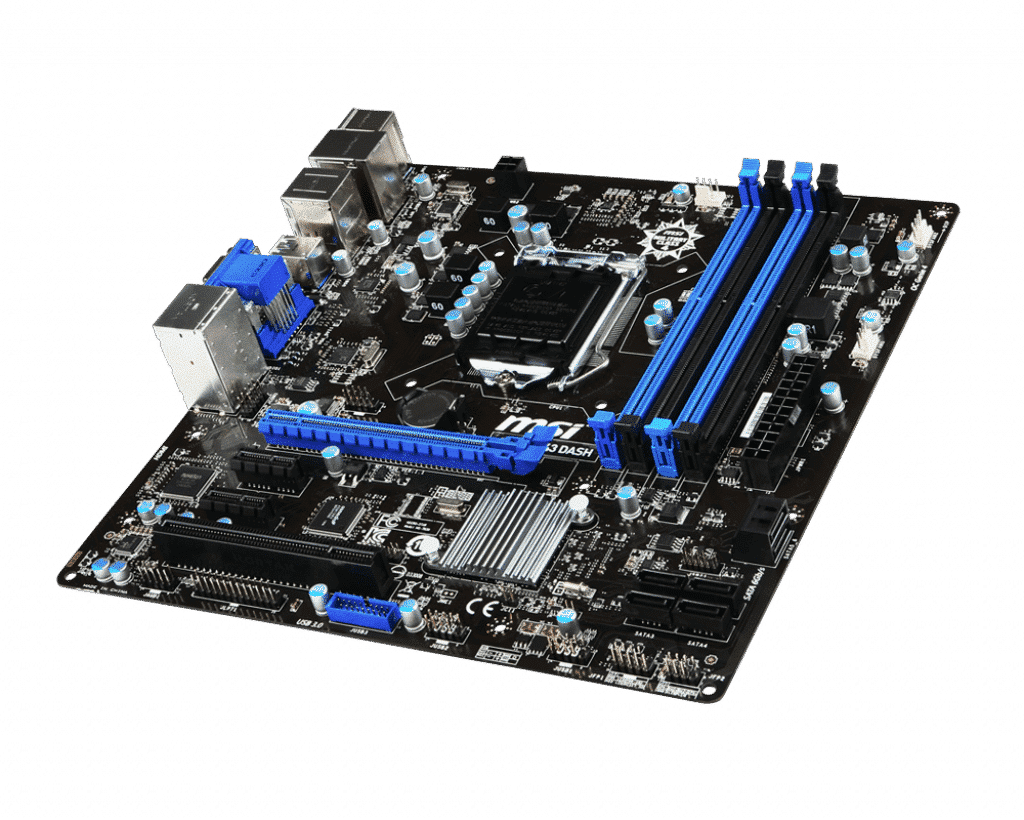

Product:MSI B85M-E43 DASH
Socket: LGA1150
Category: motherboards
Brand: MSI
Condition: New – BIOS updated to the latest version
EAN:4719072302252
SKU: 7830-010R, B85M-E43 DASH
Warranty: 6 months

Package contents:
– Motherboard (MSI B85M-E43 DASH)
– I/O-Shield (Blende)
– No manual
– No drivers CD
– No cables

CPU
Intel® Socket 1150 for  Core™ i7/Core™ i5/Core™ i3 Processors

Chipset
Intel® B85

Memory
– 4x DDR3 (1066.1333.1600MHz), Dual Channel, Non-registered

Expansion Slots
2x PCIe 2.0 x1
1 x PCIe 3.0 x16 slots
1 x PCI slot

Storage
2x SATA 300,
4x SATA-600

LAN
Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek RTL8111DP

Audio
Chipset integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec

USB Ports
6x USB 2.0 (2 internal)
3x USB 3.0 (1 internal)

Operating System Support
Windows® 8
Windows® 7

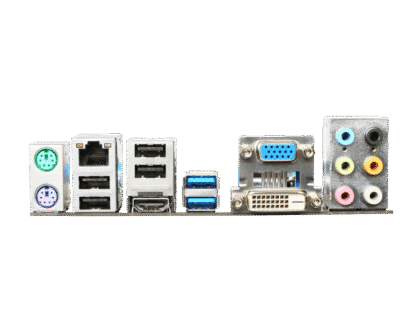

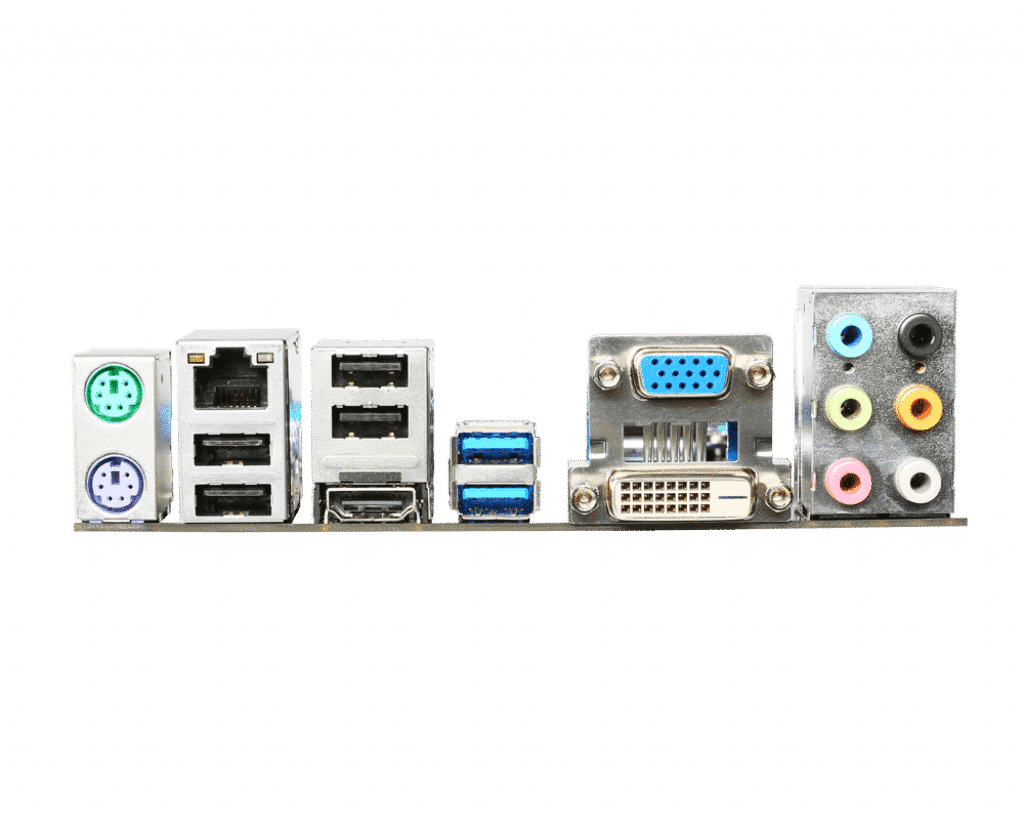

Back I/O Ports
4x USB 2.0 ports
2x USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports
1x Ethernet LAN (RJ-45) ports
2x PS/2 ports
1x VGA (D-Sub) ports
1x HDMI ports
1x DVI-D ports
1x Headphone
1x Microphone in

Internal I/O Ports
2x USB 2.0 connectors
1x USB 3.2 Gen 1 (3.1 Gen 1) connectors
4x Number of SATA III connectors
2x Number of SATA II connectors
1x Front panel audio connector
1x ATX Power connector (24 pin)
1x Power fan connector
1x CPU fan connector
1x Peripheral (Molex) power connectors (4-pin)
1x TPM connector
1x Parallel connector
1x Serial port headers

Accessories
I/O Shield

Form Factor
Micro-ATX Form Factor (24.4cm(L) x 24.4cm(W))
