Description

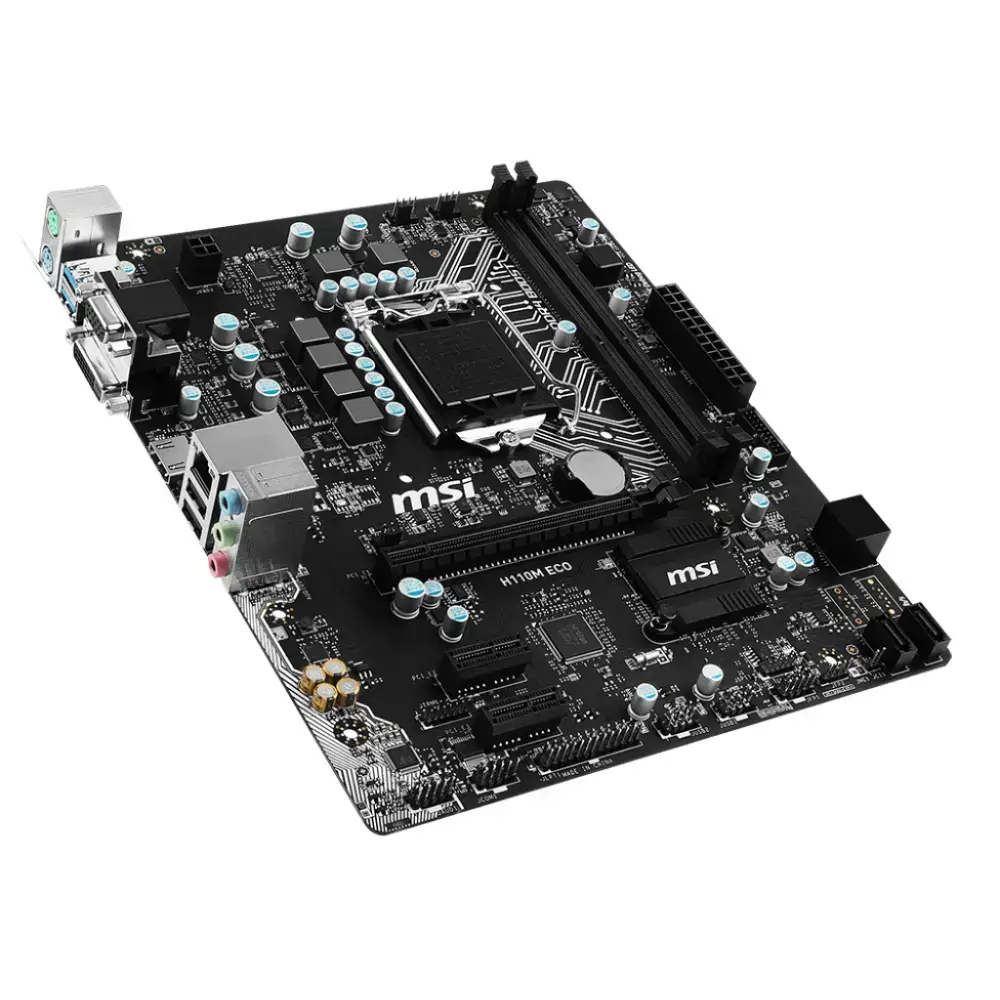

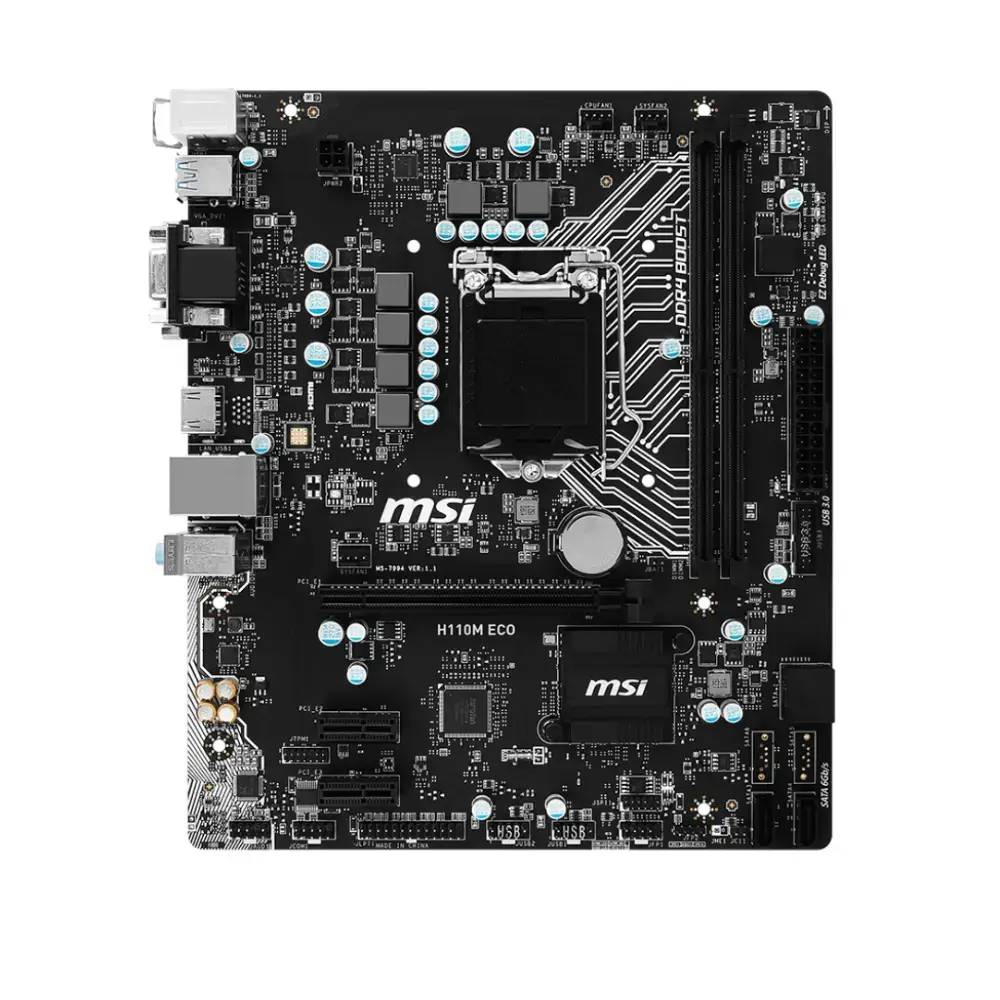

The MSI H110M-ECO motherboard with Socket 1151 is compatible with Intel 6th and 7th generation processors. This energy-efficient board supports DDR4 memory and offers convenient connections such as USB 3.0, HDMI, VGA, SATA 6Gb/s and Gigabit LAN. Reliable, efficient, and ideal for home or office use.
Product: MSI H110M-ECO
Category: Motherboards
Brand: MSI
EAN: 0824142125342, 4719072442187
SKU: 7994-003R, 911-7994-008, H110M ECO
Condition: Used, BIOS updated to the latest version
Warranty: 6 months
Click here for supported CPUs
Click here for drivers
Package Contents
- Motherboard
- I/O Shield (metal backplate)
- No manual
- No driver CD
- No cables
CPU
Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
Chipset
Intel® H110
Memory
- 2 x DDR4 memory slots, up to 32GB
- Supports DDR4 2133 MHz
- Dual channel memory architecture
Onboard Graphics
- 1 x HDMI™ port (max 4096×2160@24Hz, 2560×1600@60Hz)
- 1 x DVI-D port (max 1920×1200@60Hz)
- 1 x VGA port (max 2048×1536@50Hz, 1920×1200@60Hz)
Audio
- Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio
LAN
Intel® I219V Gigabit LAN controller
Expansion Slots
- 1 x PCIe 3.0 x16 slot
- 2 x PCIe 2.0 x1 slots
Storage
- 4 x SATA 6Gb/s ports
Internal Connectors
- 1 x 24-pin ATX power connector
- 1 x 4-pin ATX 12V connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors
- 1 x USB 3.1 Gen1 connector
- 1 x CPU fan connector
- 2 x System fan connectors
- 1 x Front panel audio connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Chassis intrusion connector
- 1 x Clear CMOS jumper
Rear I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 2 x USB 3.1 Gen1 ports
- 2 x USB 2.0 ports
- 1 x DVI-D port
- 1 x HDMI™ port
- 1 x VGA port
- 1 x LAN (RJ45) port
- 3 x audio jacks
Accessories
- I/O Shield
Form Factor
Micro ATX (24.3 cm x 20.6 cm), Solid Capacitor Design
Operating System
Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
*To install Windows® 7, a modified installation disk with xHCI drivers integrated into the ISO is required.
Certifications
FCC, CE
