Product information

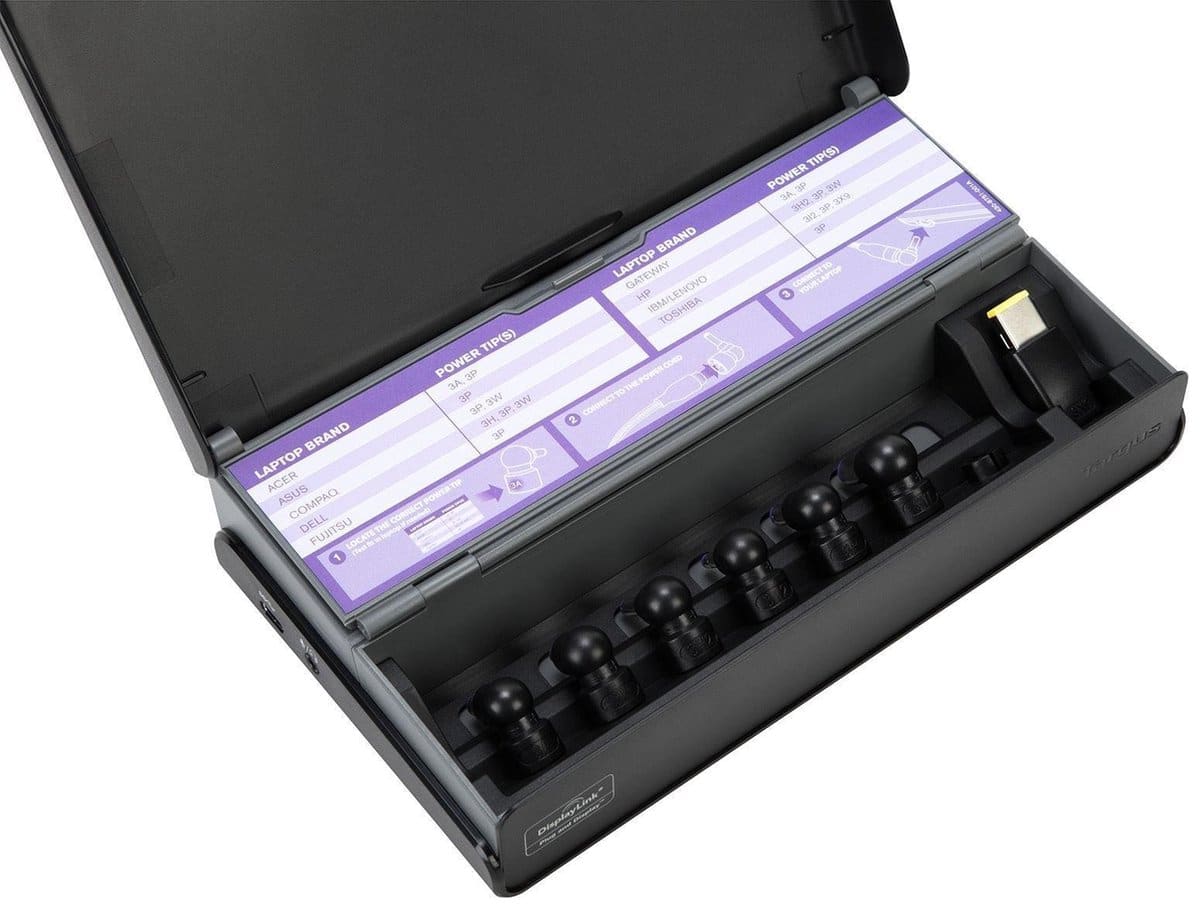

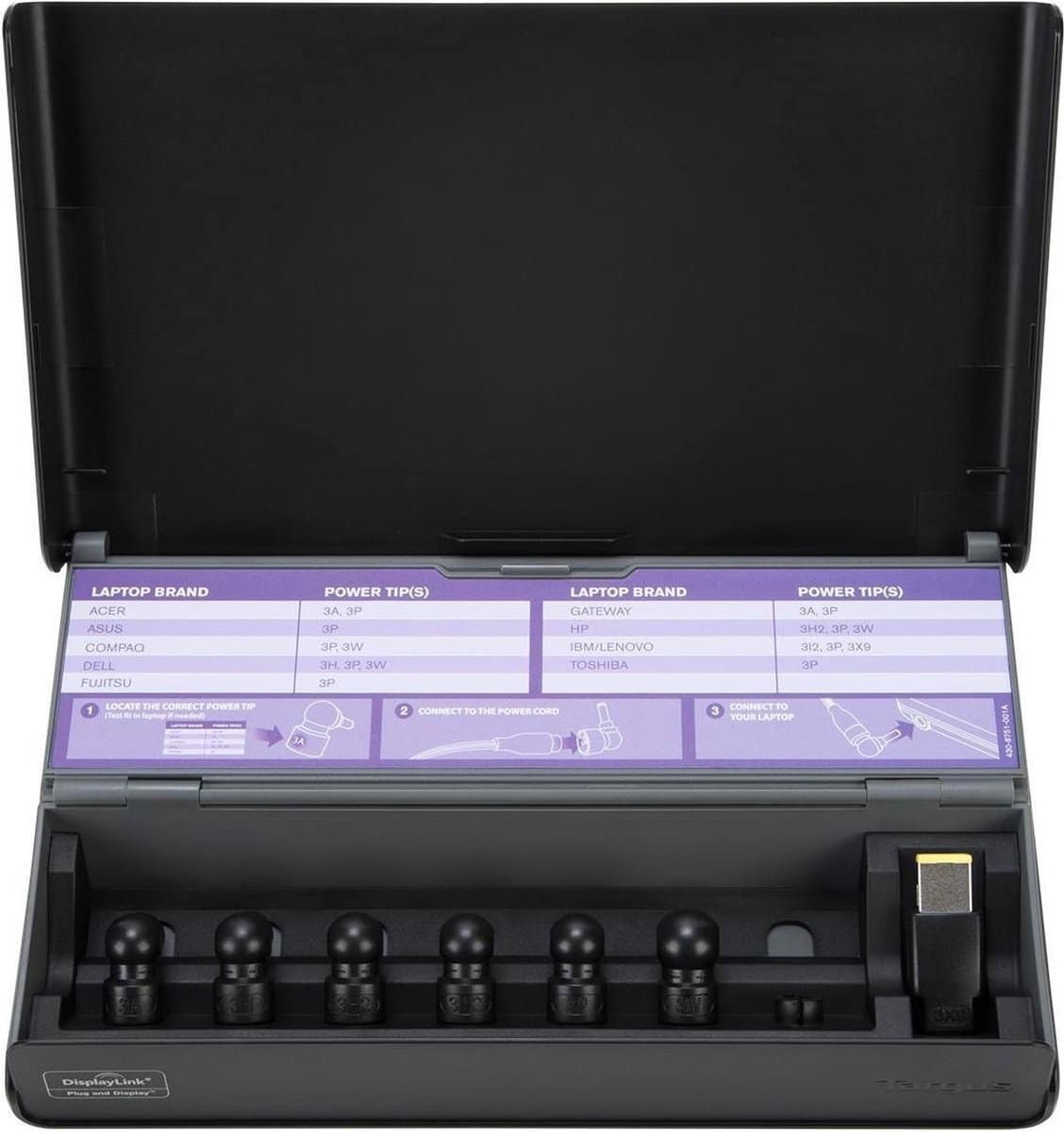

Create a dual beyond HD video workstation or connect a single 2K monitor to the universal USB 3.0 DV docking station with the Targus Universal Docking Station . It provides integrated power and charging and is designed to support multiple host platforms and brands for a wide range of peripheral and device compatibility. With five USB 3.0 ports (including one with high power for charging devices and one with Type-C), plus an Audio In/Out port for speakers, microphones or headphones, it’s easy to customize your workstation. The integrated Gigabit Ethernet connection is more secure and faster than most Wi-Fi connections. Charging tips are included so the dock can power most major laptop brands, and they’re all neatly stored in a removable compartment inside the dock.

Specifications


Host Interface: USB 3.2 (Gen1, 5Gb/s)

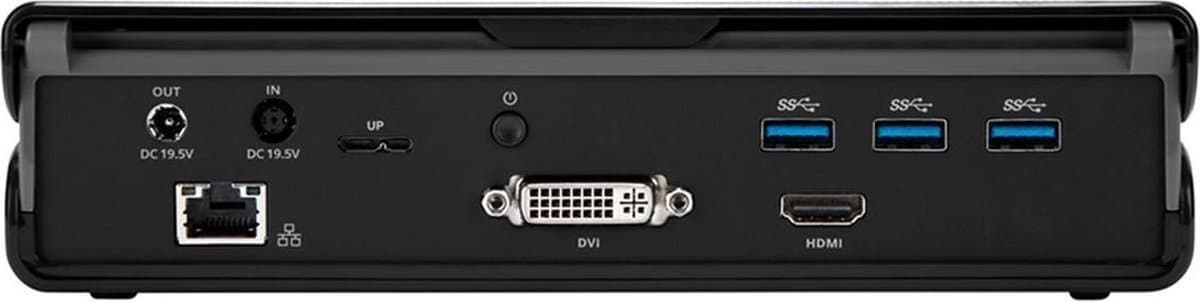

Connections 3.5mm, 3.5mm (4-pin), Audio (3.5mm), 2x DC connector, DVI-I, HDMI 1.4, Microphone, RJ45, 4x USB 3.2 (Gen1, 5Gb/s ), USB 3.2 (Gen1, 5Gb/s) micro, 4x USB 3.2 (Gen1, 5Gb/s) type-A, USB 3.2 (Gen1, 5Gb/s) type-c
Connections (USB/FW) 4x USB 3.2 (Gen1, 5Gb/s), USB 3.2 (Gen1, 5Gb/s) micro, USB 3.2 (Gen1, 5Gb/s) type-c
Ethernet (RJ45): Ethernet 1Gbps, Ethernet 100Mbps
Video Out: DVI-D, DVI-I, HDMI
Highest HDMI version: HDMI 1.4


Dimensions
Height 50mm
Width 210mm
Depth 125mm


Weight and color
Weight (grams) 1.62kg
Colour black


Details
Max resolution for 24bit via DisplayLink® DL-3900:
Dual monitor: 2048*1152@60Hz.
Single monitor: 2560 *1440@50Hz.
HDMI port supports DVI-D via adapter, not included.
DVI-I port supports VGA via adapter, not included.
The right USB A port charges a maximum of 1.5A.
1 Gigabit Ethernet port with WOL.
Includes 1m USB 3.2 host cable B to A.
Includes 1m host charging cable.
VESA mountable.

Additional Information
Product Targus DOCK171EUZ Universal USB-A 3.0 DV Docking Station with Power
Category Docking stations
Brand Targus
Tweaker ID 1326056
EAN 5051794021684
SKU DOCK171EUZ

Specification

Brand

Targus

Connectors

2x DC connector, 3.5mm, 3.5mm (4-pin), Audio (3,5mm), DVI-I, Ethernet (RJ-45), HDMI, Microfoon, USB 3.2 (Gen1, 5Gb/s), USB 3.2 (Gen1, 5Gb/s) micro, USB 3.2 (Gen1, 5Gb/s) type-A, USB 3.2 (Gen1, 5Gb/s) type-c

DVI Connection

1x

HDMI Connection

1x

Targus DOCK171EUZ Universal USB-A 3.0 DV Docking Station with Power Supply

Fast delivery

Hostinterface: USB 3.2 (Gen1, 5Gb/s)
Aansluitingen 3.5mm, 3.5mm (4-pin), Audio (3,5mm), 2x DC connector, DVI-I, HDMI 1.4, Microfoon, RJ45, 4x USB 3.2 (Gen1, 5Gb/s), USB 3.2 (Gen1, 5Gb/s) micro, 4x USB 3.2 (Gen1, 5Gb/s) type-A, USB 3.2 (Gen1, 5Gb/s) type-c
Aansluitingen (USB/FW) 4x USB 3.2 (Gen1, 5Gb/s), USB 3.2 (Gen1, 5Gb/s) micro, USB 3.2 (Gen1, 5Gb/s) type-c
Ethernet (RJ45): Ethernet 1Gbps, Ethernet 100Mbps
Video uit: DVI-D, DVI-I, HDMI
Hoogste HDMI versie: HDMI 1.4
