Beschrijving

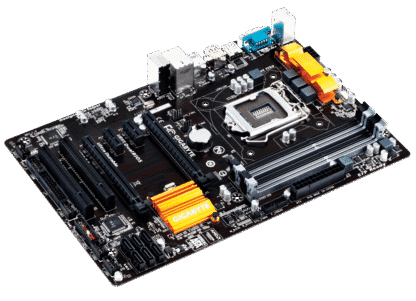

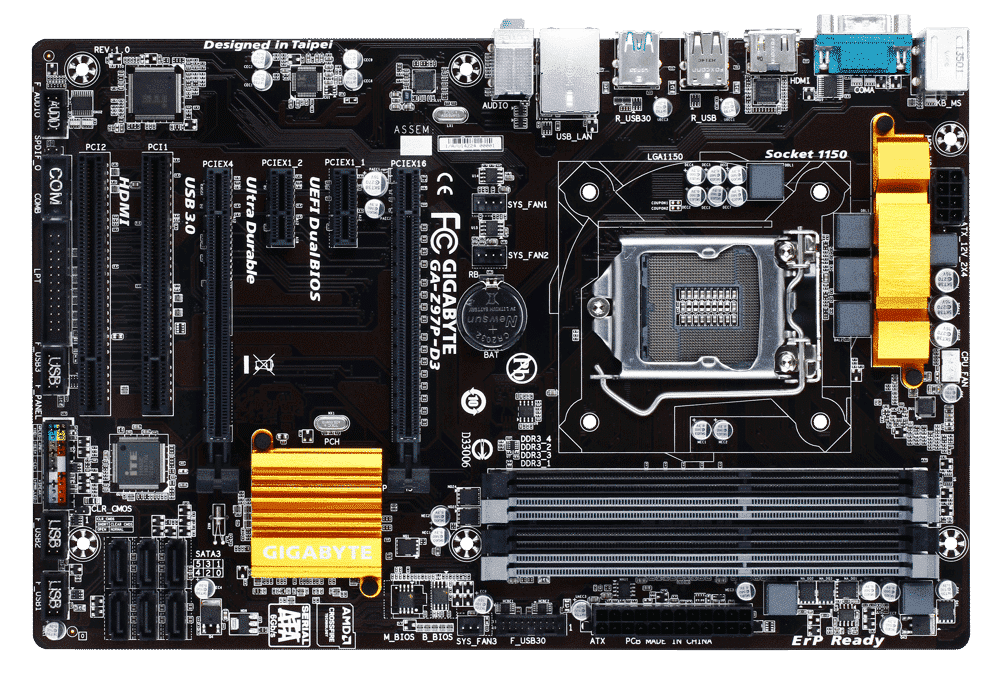

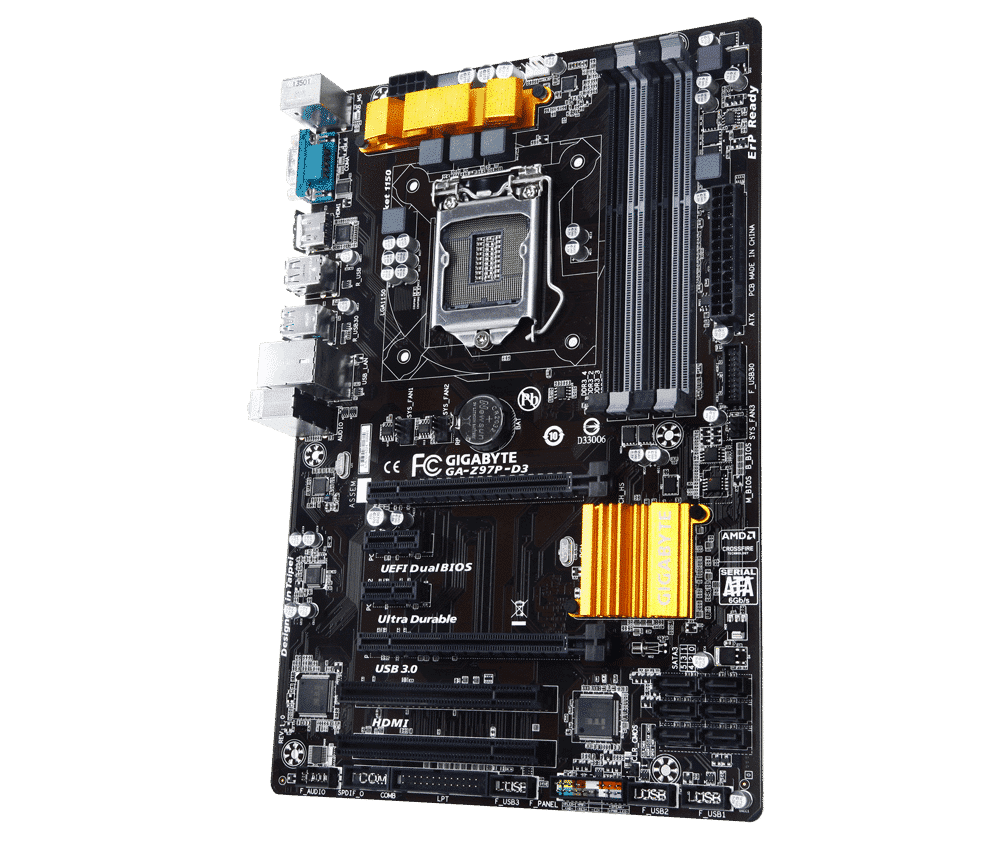

Het Gigabyte GA-Z97P-D3 moederbord is een ATX moederbord met plaats voor 4 DDR3 geheugen modules, met een maximum van 32GB. Het GA-Z87P-D3 moederbord is voorzien van 2x PCI, 2x PCI-e 3.0 x16 sloten.
Specificaties: moederbord | ATX | Socket 1150 | Intel Z97-chipset | PCI | PCI-e 3.0 x16 | Sata-600 | USB 2.0 | USB 3 | HDMI
Product: GA-Z97P-D3
Socket: 1150
Categorie: Moederborden
Merk: Gigabyte
Staat: Gebruikt – BIOS geüpdatet naar de nieuwste versie
EAN: 4719331816650, 5052184541485, 5054230950593, 8809321845817
SKU:GA-Z97P-D3, Z97P-D3
Garantie: 6 maanden
Drivers voor de Asus GA-Z97P-D3
Processoren die door de GA-Z97P-D3 worden ondersteund
Opmerking: dit is een refurbished moederbord dat is bijgewerkt met de nieuwste BIOS-versie, de garantieperiode van het product is 6 maanden.
pakketinhoud:
– Moederbord (GA-Z97P-D3)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels
CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset
Intel® Z97 Express Chipset
Memory
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096×2160@24Hz or 2560×1600@60Hz
* Support for HDMI 1.4a version.
Maximum shared memory of 512MB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
2 x PCI slots
Multi-Graphics Technology
– Support for 2-Way AMD CrossFire™ technology
Chipset:
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
USB Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
10 x USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
6 x SATA 6Gb/s connectors
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

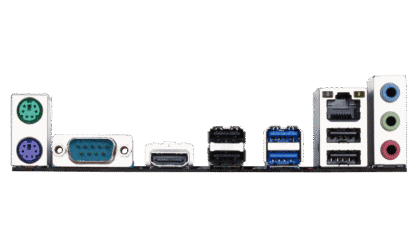

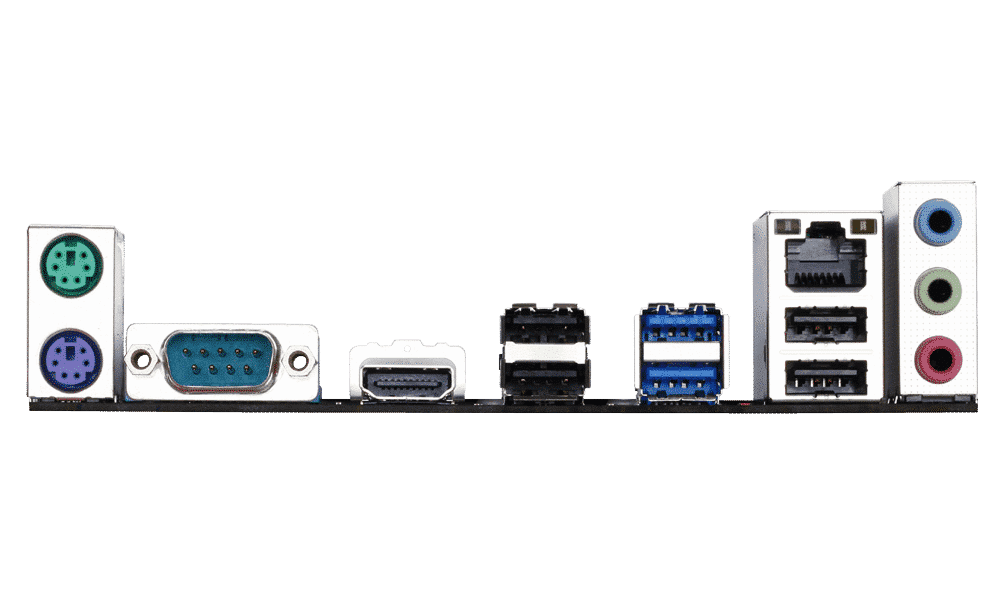

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x serial port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
– Support for Q-Flash
– Support for Xpress Install
– Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
– Support for ON/OFF Charge
Operating System
Support for Windows 10/8.1/8/7
Form Factor
ATX Form Factor; 30.5cm x 20cm
