ASRock 970 Extreme3 R2.0

Fast delivery
59,95

Brand: Asrock
Model: 970 Extreme3 R2.0
Socket: AM3+
Memory: 4x DDR3 (32GB Max)
Form-Factor: ATX
EAN: 4717677320206
SKU: 90-MXGNW0-A0UAYZ, 970 EXTREME3 R2.0

Out of stock

SKU: ASRock 970 Extreme3 R2.0 Categories: , Tags: , ,

Product information

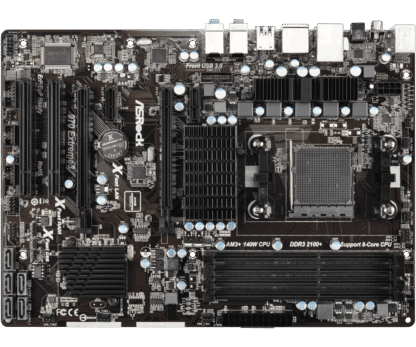

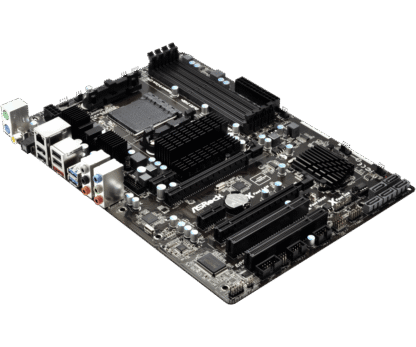

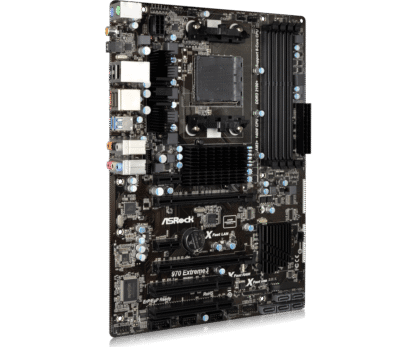

The ASRock 970 Extreme3 ​​R2.0 is an ATX AM3 + motherboard based on the Northbridge: AMD 970, Southbridge: AMD SB950 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the 970 Extreme3 ​​R2.0 has 5 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC892 chip.

Features: Motherboard | ATX | Connection Socket AM3 + | 4x DDR3 | 5x SATA-600 | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | 4x USB 2.0 | 2x USB 3.1 (Gen1, 5Gb / s) | eSATA

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock 970 Extreme3 ​​R2.0
Connection: Socket AM3 +
Category: motherboards
Brand: ASRock
EAN: 4717677320206
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGNW0-A0UAYZ, 970 EXTREME3 R2.0
Warranty:
6 months

Package Contents:
– Motherboard (ASRock 970 Extreme3 ​​R2.0)
– Backplate (Blende)
– No manual
– No CD with drivers
– No cables


CPU
– Support for Socket AM3 + processors
– Support for Socket AM3 processors: AMD Phenom ™ II X6 / X4 / X3 / X2 (except 920/940) / Athlon II X4 / X3 / X2 / Sempron processors
Supports 8-Core CPU
Supports UCC feature (Unlock CPU Core)
– Digi Power Design
– 4 + 1 Power Phase Design
Supports CPU up to 140W
Supports AMD’s Cool ‘n’ Quiet Technology
– FSB 2400 MHz (4.8 GT / s)
– Supports Untied Overclocking Technology
Supports Hyper-Transport 3.0 (HT 3.0) Technology


Chipset
– Northbridge: AMD 970
– Southbridge: AMD SB950


Memory
– Dual-Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
Supports DDR3 2100+ (OC) / 1866 * (OC) / 1800 * (OC) / 1600 * (OC) / 1333/1066/800 non-ECC, un-buffered memory
– Maximum capacity of system memory: 64GB **

* 1866/1800 / 1600MHz memory speed is supported depend on the AM3 / AM3 + CPU you adopt. For detailed CPU specifications, please refer to AMD’s official website.

** To reach the maximum 64GB of system memory, memory modules with 16GB capacity or above are required. ASRock will update the memory support list on the official website once these memory modules are available on the market.

*** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumperfree
– SMBIOS 2.3.1 Support
– CPU, VCCM, NB, SB Voltage Multi-adjustment


Graphics
– n / a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray audio support


LAN
– PCIe x1 Gigabit LAN 10/100/1000 Mb / s
– Realtek RTL8111E
– Supports Wake-On-LAN
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE


Slots
2 x PCI Express 2.0 x16 slots (PCIE2 @ x16 mode; PCIE4 @ x4 mode)
– 2 x PCI Express 2.0 x1 slots
– 2 x PCI slots
– Supports AMD Quad CrossFireX ™ and CrossFireX ™


Connector
– 5 x SATA3 6.0 Gb / s connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug functions
– 1 x IR header
– 1 x CIR header
– 1 x COM port header
– 1 x HDMI_SPDIF header
– 1 x Power LED header
2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan connector (3-pin)
– 24 pin ATX power connector
– 8 pin 12V power connector
– Front panel audio connector
– 3 x USB 2.0 headers (support 6 USB 2.0 ports)
– 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (Etron EJ188H)


Rear Panel I / O
I / O Panel
– 1 x PS / 2 Mouse Port
– 1 x PS / 2 Keyboard Port
– 1 x Coaxial SPDIF Out Port
– 1 x Optical SPDIF Out Port
– 4 x USB 2.0 Ports
– 1 x eSATA3 Connector
– 2 x USB 3.1 Gen1 Ports (Etron EJ188H)
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Unique Feature
– ASRock Extreme Tuning Utility (AXTU)
– ASRock Instant Boot
ASRock Instant Flash
– ASRock APP Charger
– ASRock APP Shop
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock On / Off Play Technology
– ASRock UEFI System Browser
– ASRock Dehumidifier Function
– ASRock Fast Boot
– ASRock X-Boost
– ASRock Restart to UEFI
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED


Accessories
– I / O Shield


Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
Voltage Monitoring: + 12V, + 5V, + 3.3V, Vcore


Form Factor
– ATX Form Factor
– ASRock DuraCap (2.5 x longer life time) (100% Japan-made high-quality conductive polymer capacitors)


OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista ™ 32-bit / Vista ™ 64- bit / XP 32-bit / XP 64-bit


Certifications
– FCC, CE
– ErP / EuP Ready (ErP / EuP ready power supply is required)

Specification

Weight1 kg
AMD-en

AM3(+)

Brand

Asrock

Chipset

Northbridge: AMD 970, Southbridge: AMD SB950

Form Factor

ATX

Memory Type

DDR3

Number of memory slots

4

Maximum memory size

64 GB

Connectors

eSATA, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

AMD AM3(+)
