ASRock 970 Pro3 R2.0 AMD AM3+ motherboard

  • ATX
  • ASRock Super Alloy
  • Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge & Raven Ridge)
  • Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)
  • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output: HDMI, DVI-D, D-Sub
  • Supports Triple Monitor
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
  • 8 USB 3.1 Gen1 (1 Type-C, 2 Front, 5 Rear)
  • Realtek Gigabit LAN

Out of stock

Vergelijk
SKU: ASRock 970 Pro3 R2.0 Categories: , , Tags: , , ,

Description

AASRock 970 Pro3 R2.0:  motherboard | ATX | AMD AM3(+) | AMD 970 Chipset | 4x DDR3 (max. 64GB) | PCI Express 2.0 x16 | PCI Express 2.0 x1 | PCI | SATA3 | USB 2.0 | USB 3.1 Gen1 | Supports AMD Quad CrossFireX™ ​​and CrossFireX™


Product: ASRock 970 Pro3 R2.0
Socket:
AMD AM3(+)
Category: Motherboards
Brand: ASRock
Condition: Refurbished – Latest available BIOS version installed
EAN: 4717677320190
SKU:
90-MXGNV0-A0UAYZ, 970 PRO3 R2.0
Warranty: 6 months


package content:
– Motherboard (970 PRO3 R2.0)
– Backplate (blende)
no manual
no driver CD
no cables


CPU
– Support for Socket AM3+ processors
– Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
– Supports 8-Core CPU
– Supports UCC feature (Unlock CPU Core)
– 4+1 Power Phase Design
– Supports CPU up to 140W
– Supports AMD’s Cool ‘n’ Quiet Technology
– FSB 2400MHz (4.8GT/s)
– Supports Untied Overclocking Technology
– Supports Hyper-Transport 3.0 (HT 3.0) Technology


Chipset
– Northbridge: AMD 970
– Southbridge: AMD SB950


Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 2100+(OC) / 1866*(OC) / 1800*(OC) / 1600*(OC) / 1333/1066/800 non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB*

*1866/1800 / 1600MHz memory speed is supported depend on the AM3/AM3+ CPU you adopt. For detail CPU specification, please refer AMD official website.

**To reach the maximum 64GB of system memory, memory modules with 16GB capacity or above are required. ASRock will update the memory support list on the official website once these memory modules are available on the market.

***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Support “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumper free
– SMBIOS 2.3.1 Support
– CPU, VCCM, NB, SB Voltage Multi-adjustment


Graphics
– n/a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray audio support


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 2 x PCI Express 2.0 x16 slots (PCIE2: x16 mode; PCIE3: x4 mode)
– 1 x PCI Express 2.0 x1 slot
– 2 x PCI slots
– Supports AMD Quad CrossFireX™ ​​and CrossFireX™


Connector
– 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug functions*
– 1 x IR header
– 1 x CIR header
– 1 x COM port header
– 1 x HDMI_SPDIF header
– 1 x Power LED header
– 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
– 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
– 1 x Power Fan connector (3 pin)
– 24 pin ATX power connector
– 8 pin 12V power connector
– Front panel audio connector
– 3 x USB 2.0 headers (support 6 USB 2.0 ports)
– 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (Etron EJ188H)

*RAID 5 is not supported with Windows® 7 and Widows 10

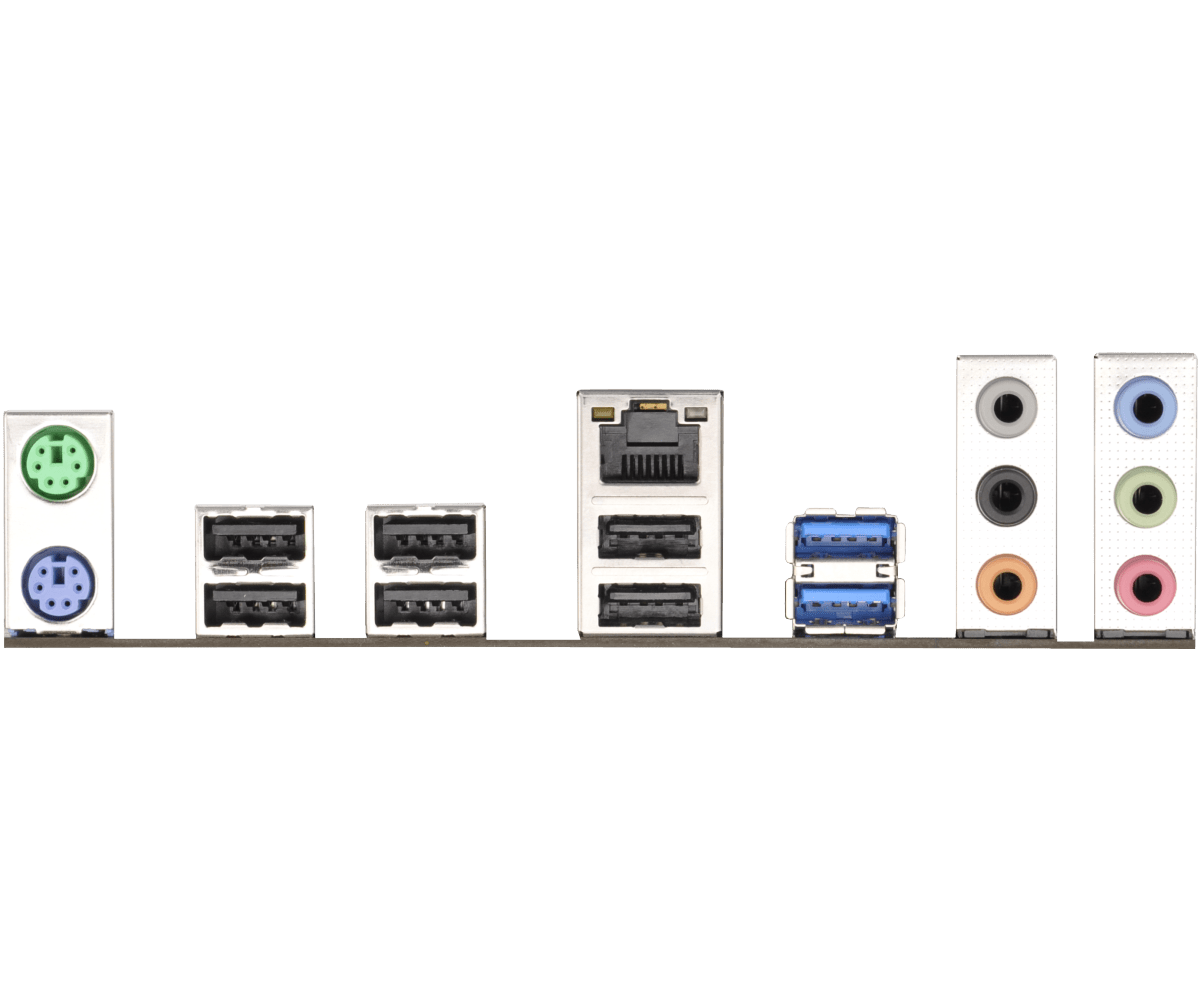

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 6 x USB 2.0 Ports
– 2 x USB 3.1 Gen1 Ports (Etron EJ188H)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Unique Feature
– ASRock Extreme Tuning Utility (AXTU)
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock APP Shop
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock On/Off Play Technology
– ASRock UEFI System Browser
– ASRock Dehumidifier Function
– ASRock Fast Boot
– ASRock X Boost
– ASRock Restart to UEFI
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good night LED


Accessories
– I/O Shield


Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– Voltage Monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– ATX Form Factor
– All Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit


Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)

Additional information

Weight 1 kg
AMD-en

AM4

Brand

Asrock

Form Factor

ATX

Chipset

AMD 970

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

Ethernet (RJ-45), USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

Model

970 Pro3 R2.0

Length

30.5 cm

Width

22.5 cm

package content

Motherboard and Backplate (Blende)
