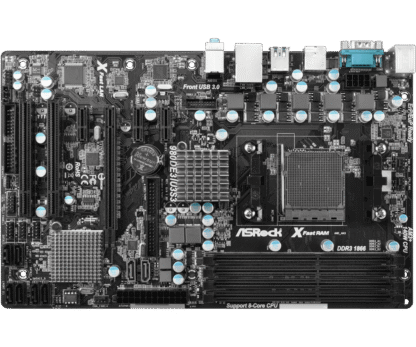

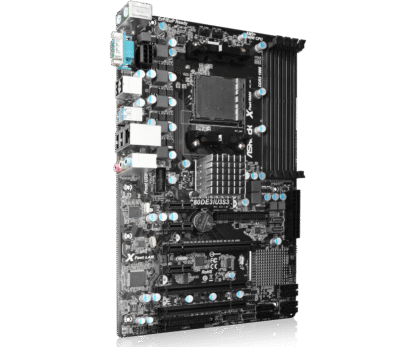

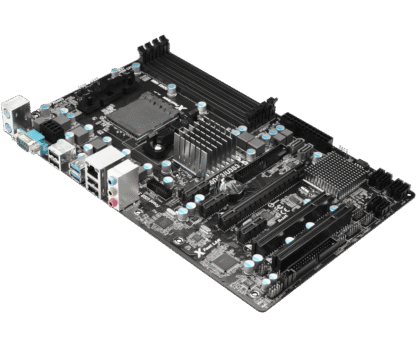

ASRock 980DE3/U3S3 R2.0

Brand: Asrock
Model: 980DE3/U3S3 R2.0
Socket: AMD AM3 (+)
Memory: 4x DDR4 (32GB Max)
Form-Factor: ATX
EAN: 4717677324921
SKU: 90-MXGWV0-A0UAYZ, 980DE3/U3S3 R2.0

Out of stock

Vergelijk
SKU: 980de3-u3s3-r2 Categories: , , Tags: , ,

Description

Features: Motherboard – ATX – AMD AM3 + – PCI-e 2.0 x16 – PCI-e 2.0 x1 – USB 3.1 – Sata3 – Sata2 Comport

Product: ASRock 980DE3 / U3S3 R2.0
Category: Motherboards
Brand: ASRock
EAN: 4717677324921
SKU: 90-MXGWV0-A0UAYZ, 980DE3 / U3S3 R2.0

Note: This is a refurbished motherboard updated with the latest BIOS version, the product warranty period is 90 days.

Package Contents:
– Motherboard
– Backplate (blende)
– No manual
– No driver CD
– No cables


Unique Feature
ASRock Full Spike Protection

CPU
– Support for Socket AM3 + Processors
– Support for Socket AM3 Processors: AMD Phenom ™ II X6 / X4 / X3 / X2 (except 920/940) / Athlon II X4 / X3 / X2 / Sempron Processors
Supports 8-Core CPU
– Digi Power design
Supports CPU up to 140W
Supports AMD OverDrive ™ with ACC feature (Advanced Clock Calibration)
Supports AMD’s Cool ‘n’ Quiet Technology
– FSB 2600 MHz (5.2 GT / s)
– Supports Untied Overclocking Technology
Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset
– Northbridge: AMD 770
– Southbridge: AMD SB710

Memory
– Dual Channel DDR3 Memory Technology
– 4 x DDR3 DIMM Slots
Supports DDR3 1866 (OC) / 1600 (OC) / 1333/1066/800 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB *

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 8Mb AMI Legal BIOS
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.3.1 Support
– CPU, VCCM, NB Voltage Multi-adjustment

Graphics
– n / a

Audio
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
Supports Surge Protection (ASRock Full Spike Protection)

LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb / s
– Realtek RTL8111E
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE3 @ x16 mode)
– 3 x PCI Express 2.0 x1 Slots
– 2 x PCI Slots

Storage
– 6 x SATA2 3.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug
– 2 x SATA3 6.0 Gb / s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

Connector
– 1 x ATA133 IDE Connector (Supports 2 x IDE Devices)
– 1 x Floppy Connector
– 1 x IR Header
– 1 x HDMI_SPDIF Header
– 1 x Power LED Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x Power Fan Connector (4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x CD In Header
– 1 x Front Panel Audio Connector
– 3 x USB 2.0 Headers (Support 6 USB 2.0 ports)
– 1 x USB 3.1 Gen1 Header (Etron EJ188) (Supports 2 USB 3.1 Gen1 ports)

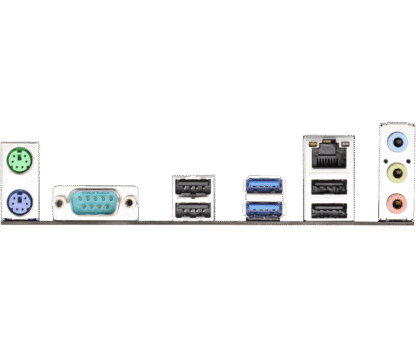

Rear Panel I / O
– 1 x PS / 2 Mouse Port
– 1 x PS / 2 Keyboard Port
– 1 x Serial Port: COM1
– 4 x USB 2.0 Ports
– 2 x USB 3.1 Gen1 Ports (Etron EJ188)
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock Instant Boot
– ASRock OC Tuner
– ASRock Intelligent Energy Saver
– ASRock OC DNA
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock X-Boost

BIOS
– ASRock Instant Flash

Accessories
– I / O Shield

Hardware Monitor
CPU temperature sensing
Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis, Power Fan multi-speed control
Voltage monitoring: + 12V, + 5V, + 3.3V, Vcore

Form Factor
– ATX Form Factor
– All Solid Capacitor design
– High Density Glass Fabric PCB

OS
Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista ™ 32-bit / Vista ™ 64-bit / XP 32- bit / XP 64-bit

Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)

Additional information

Weight 1 kg
AMD-en

AM3(+)

Brand

Asrock

Chipset

Northbridge: AMD 770, Southbridge: AMD SB710

Form Factor

ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

Serial Port: COM1, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket
