Description

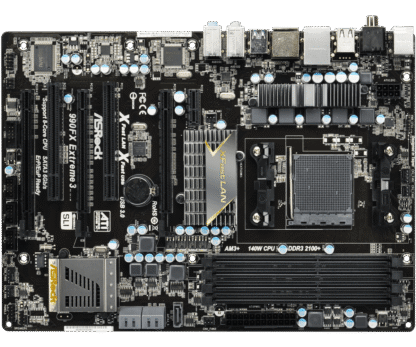

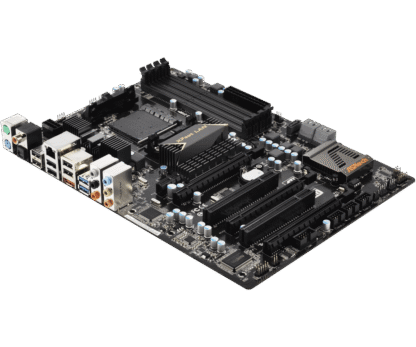

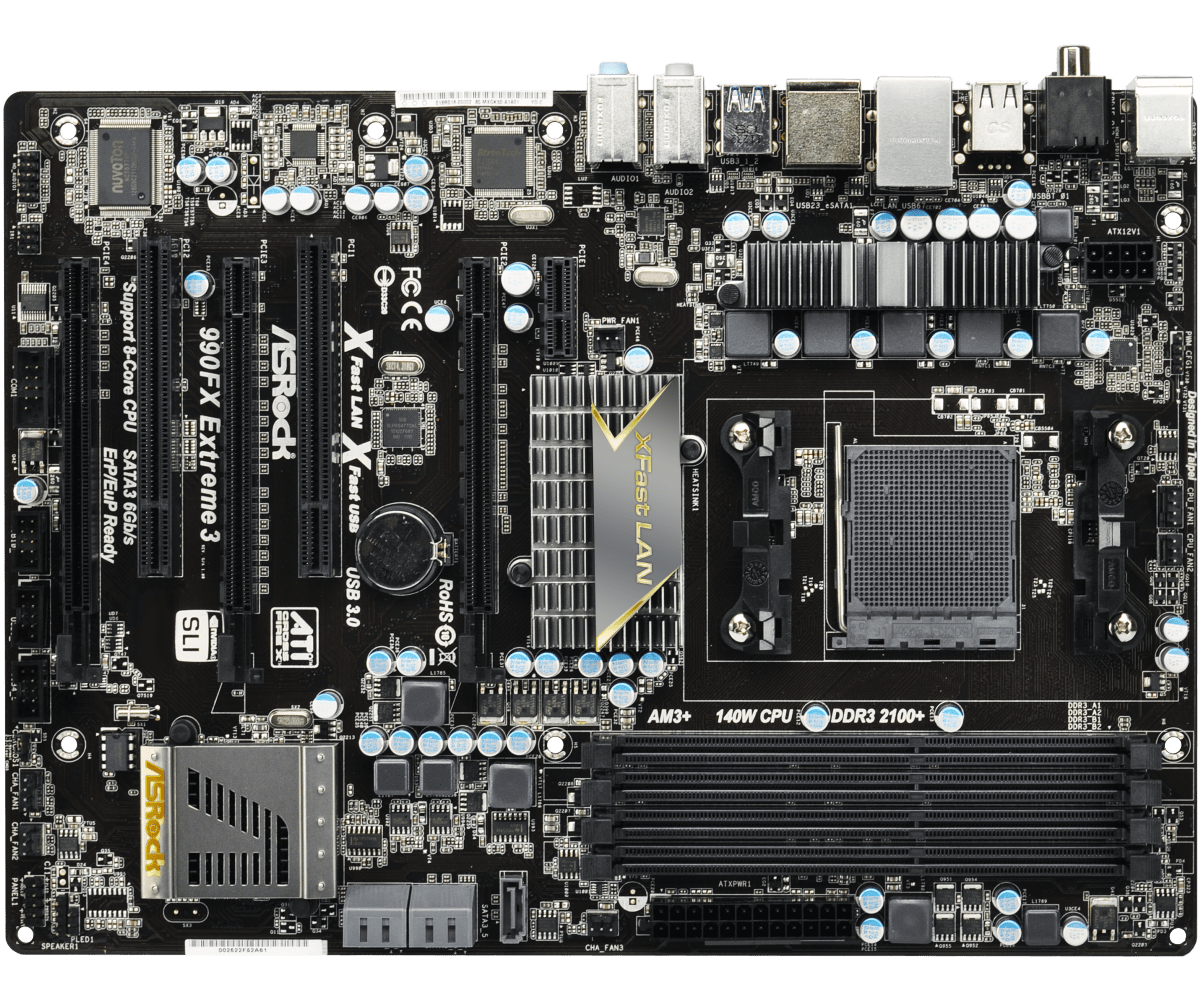

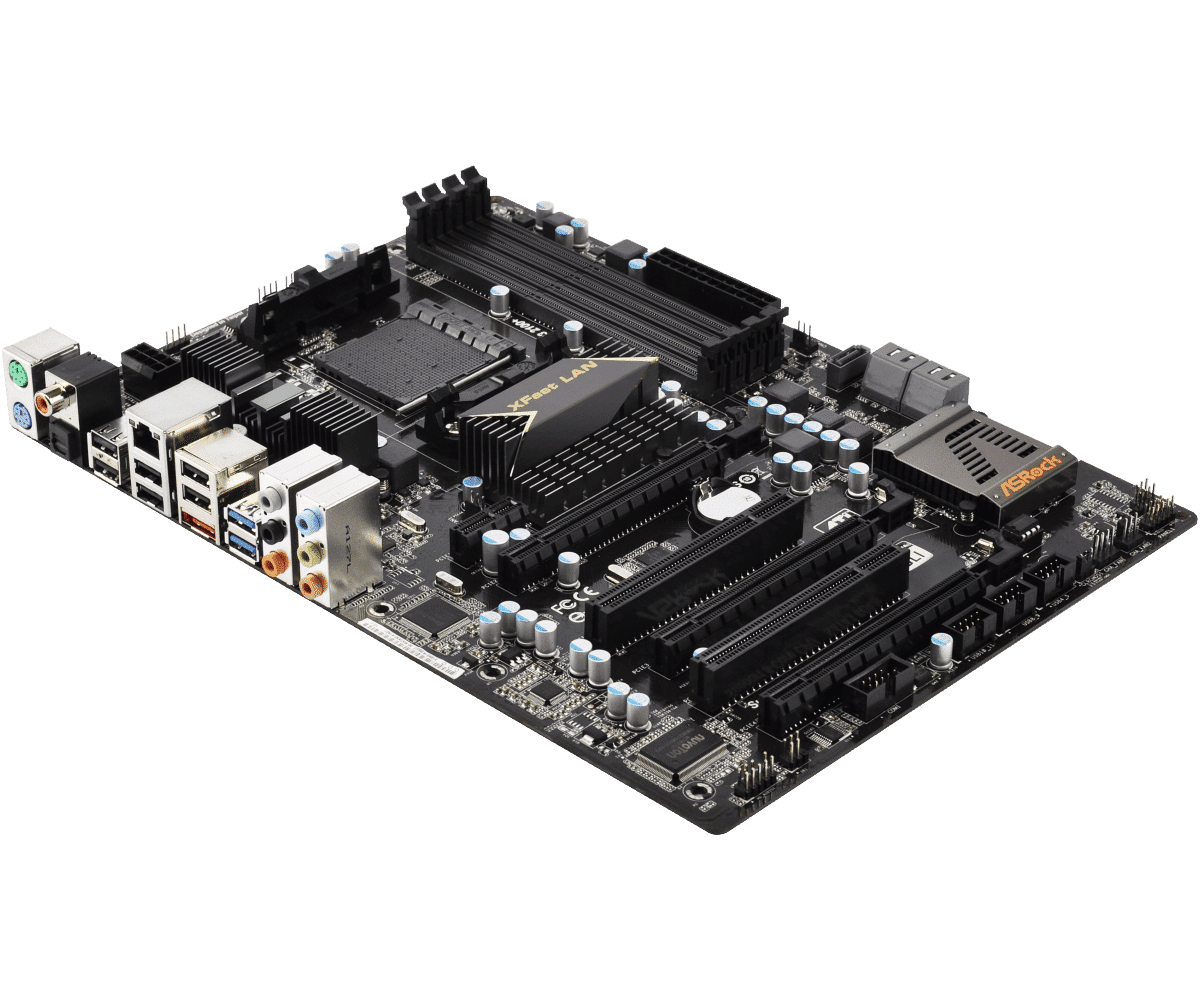

The ASRock 990 Extreme3 is an ATX AM3 + motherboard based on the Northbridge: AMD 990, Southbridge: AMD SB950 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the ASRock 990FX Extreme3 has 5 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC892 chip.
Features: Motherboard | ATX | AMD AM3 + | 4x DDR3 | 5x SATA-600 | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | 4x USB 2.0 | 2x USB 3.1 (Gen1, 5Gb / s) | eSATA
Product: ASRock 990 Extreme3
Socket: AMD AM3 +
Category: motherboards
Brand: ASRock
EAN: 4711140878331
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGK50-A0UAYZ, 990FX EXTREME3
Warranty: 6 months
Package Contents:
– Motherboard (ASRock 990 Extreme3)
– backplate (blende)
– No manual
– No CD with drivers
– No cables
CPU
– Support for Socket AM3 + processors
– Support for Socket AM3 processors: AMD Phenom ™ II X6 / X4 / X3 / X2 (except 920/940) / Athlon II X4 / X3 / X2 / Sempron processors
– Supports 8-Core CPU
– Supports UCC feature (Unlock CPU Core)
– Digi Power Design
– 4 + 1 Power Phase Design
Supports CPU up to 140W
Supports AMD’s Cool ‘n’ Quiet Technology
– FSB 2600 MHz (5.2 GT / s)
– Supports Untied Overclocking Technology
Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset
– Northbridge: AMD 990FX
– Southbridge: AMD SB950
Memory
– Dual-Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
Supports DDR3 2100 (OC) / 1866 * / 1800 * / 1600 * / 1333/1066/800 non-ECC, un-buffered memory
– Maximum capacity of system memory: 64GB **
* 1866/1800 / 1600MHz memory speed is supported depend on the AM3 / AM3 + CPU you adopt. For detailed CPU specifications, please refer to AMD’s official website.
** To reach the maximum 64GB of system memory, memory modules with 16GB capacity or above are required. ASRock will update the memory support list on the official website once these memory modules are available on the market.
*** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumperfree
– SMBIOS 2.3.1 Support
– CPU, VCCM, NB, SB Voltage Multi-adjustment
Graphics
– n / a
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray audio support
LAN
– PCIe x1 Gigabit LAN 10/100/1000 Mb / s
Broadcom BCM57781
– Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
3 x PCI Express 2.0 x16 slots (PCIE2 / PCIE3 @ x16 mode; PCIE4 @ x4 mode)
– 1 x PCI Express 2.0 x1 slot
– 2 x PCI slots
Supports AMD Quad CrossFireX ™, 3-Way CrossFireX ™ and CrossFireX ™
Supports NVIDIA® Quad SLI ™ and SLI ™
Connector
– 5 x SATA3 6.0 Gb / s connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug functions
– 1 x IR header
– 1 x COM port header
– 1 x HDMI_SPDIF header
– 1 x Power LED header
– CPU / Chassis / Power FAN connector
– 24 pin ATX power connector
– 8 pin 12V power connector
– Front panel audio connector
– 3 x USB 2.0 headers (support 6 USB 2.0 ports)

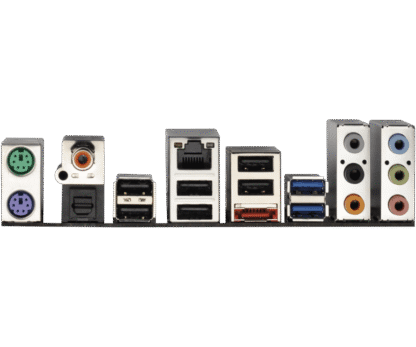

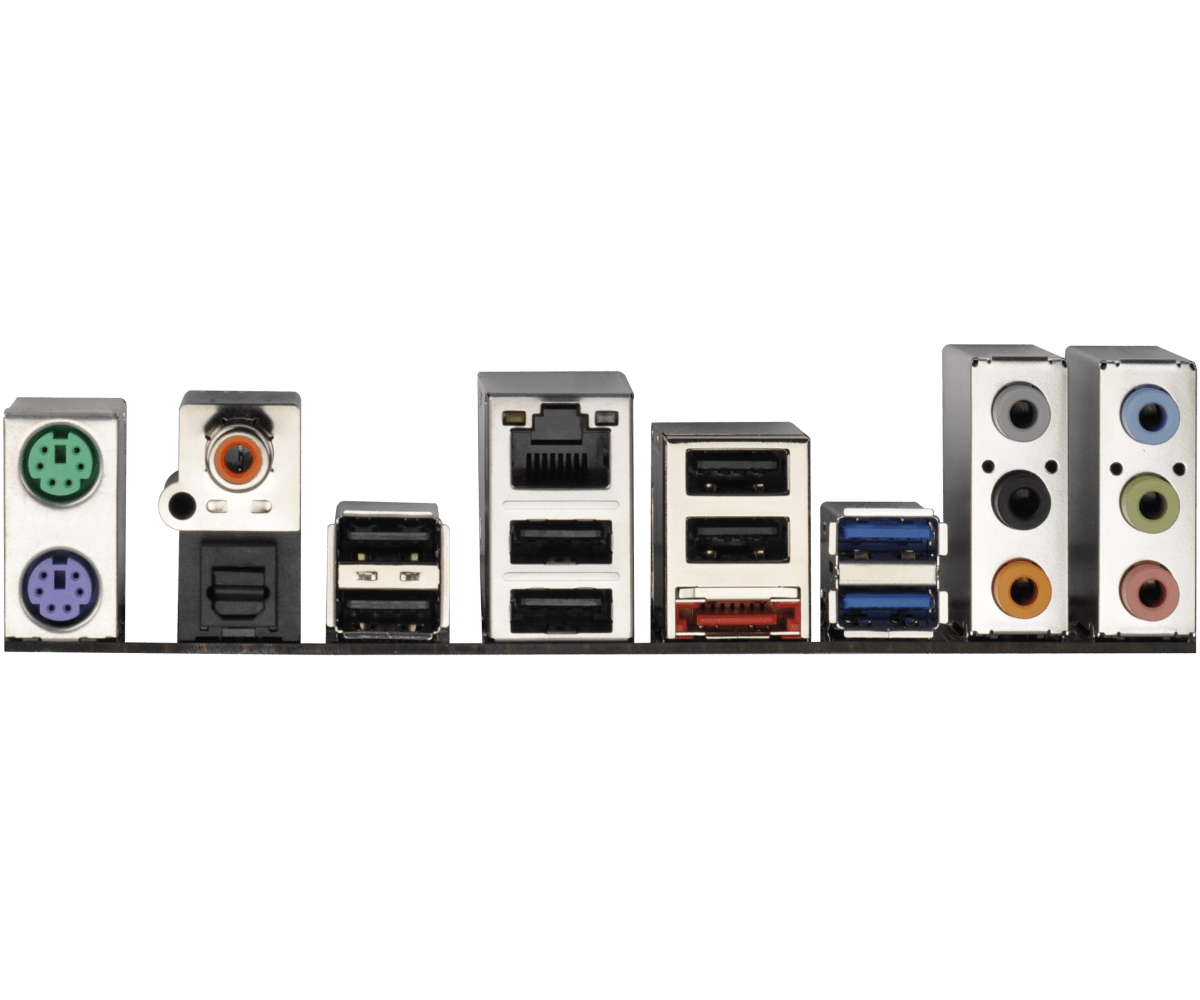

Rear Panel I / O
I / O Panel
– 1 x PS / 2 Mouse Port
– 1 x PS / 2 Keyboard Port
– 1 x Coaxial SPDIF Out Port
– 1 x Optical SPDIF Out Port
– 6 x USB 2.0 Ports
– 2 x USB 3.1 Gen1 Ports (Etron EJ168A)
– 1 x eSATA3 Connector
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Unique Feature
– ASRock Extreme Tuning Utility (AXTU)
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock APP Shop
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock On / Off Play Technology
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Turbo 50 / Turbo 60 CPU Overclocking
– Turbo UCC
Accessories
– I / O Shield
Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU, Chassis, Power Fan Tachometer
– CPU Quiet Fan
– CPU, Chassis Fan multi-speed control
Voltage Monitoring: + 12V, + 5V, + 3.3V, Vcore
Form Factor
ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
– All Solid Capacitor design (100% Japan-made high-quality conductive polymer capacitors)
OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista ™ 32-bit / Vista ™ 64- bit / XP 32-bit / XP 64-bit
Certifications
– FCC, CE
– ErP / EuP Ready (ErP / EuP ready power supply is required)
