Description

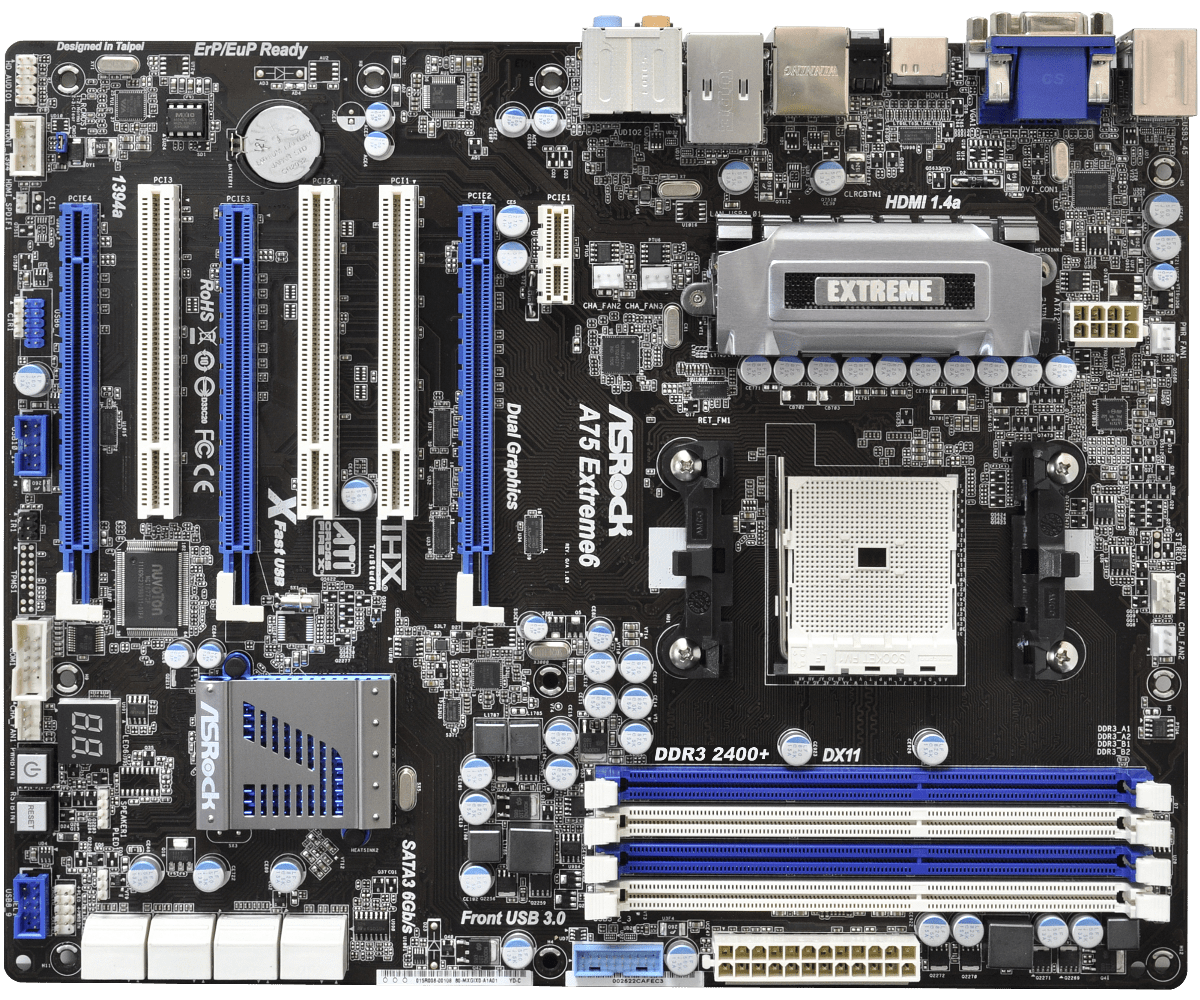

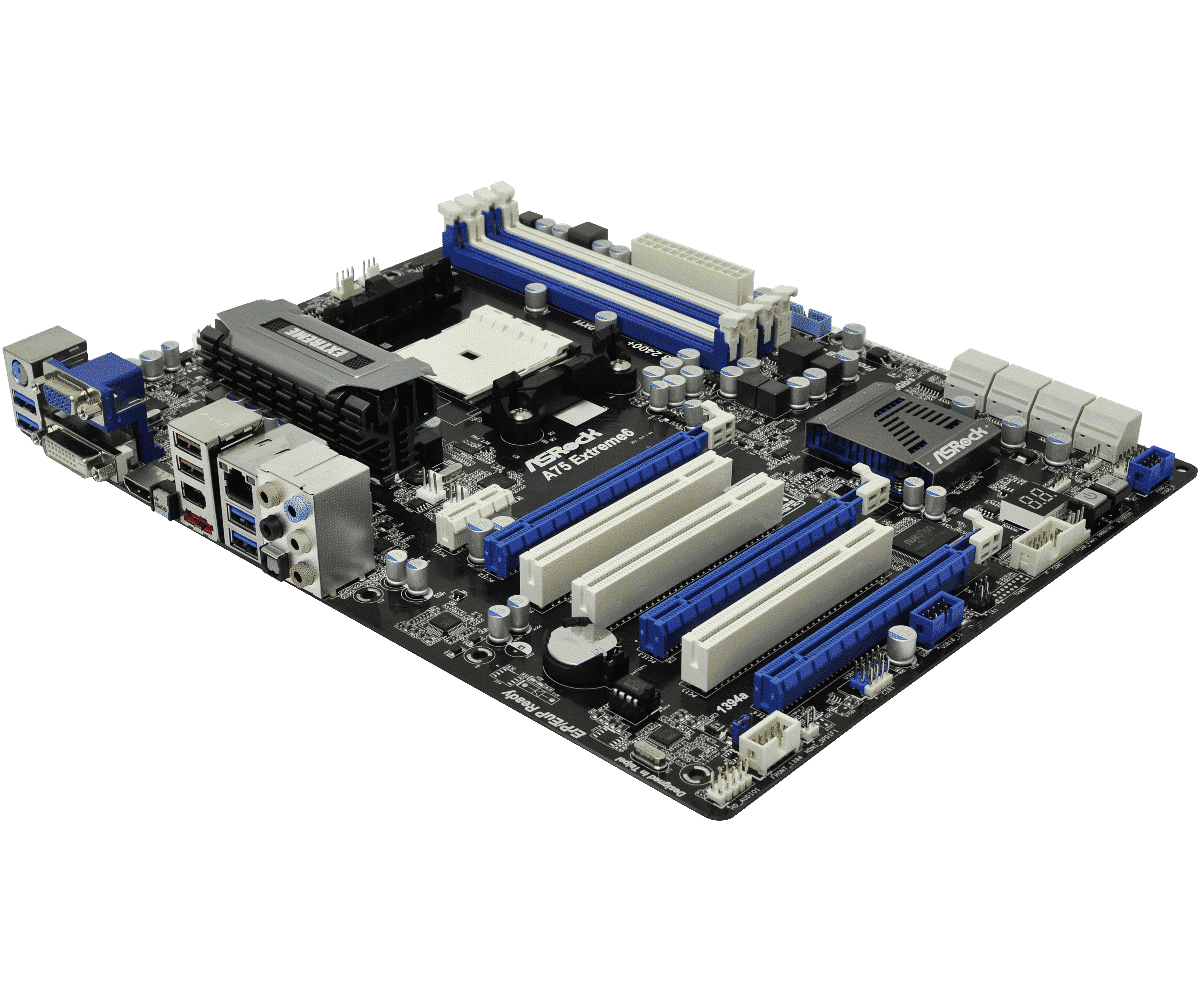

The ASRock A75 Extreme6 is an ATX AMD FM1 motherboard based on the AMD A75 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the ASRock A75 Extreme6 has 8 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC892 chip.
Features: Motherboard | ATX | AMD FM1 | 4x DDR3 | 8x SATA 600 | 3x PCI | PCI-e 2.0 x1 | 3x PCI-e 2.0 x16 | eSATA | Firewire 400 (6 pin) | 8x USB 2.0 | 6x USB 3.2 (Gen1, 5Gb/s) | DVI-D | HDMI | VGA (D Sub)
Product: ASRock A75 Extreme6
Connection: AMD FM1
Category: motherboards
Brand: ASRock
EAN: 4711140877648
State: Refurbished – BIOS updated to the latest version
SKU: A75 EXTREME6
Warranty: 6 months
package content:
– Motherboard (ASRock A75 Extreme6)
– Backplate (blended)
– instruction manual
– drivers CD
– cables
CPU
– Support for Socket FM1 100W processors
– Advanced V8 + 2 Power Phase Design
– Supports AMD’s Cool ‘n’ Quiet Technology
– UMI Link GEN2
Chipset
– AMD A75 FCH (Hudson-D3)
Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 2400+(OC)/1866/1600/1333/1066/800 non-ECC, unbuffered memory
– Max. capacity of system memory: 32GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Support “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumper free
– SMBIOS 2.3.1 Support
– DRAM, VDDP, VDDR, SB Voltage Multi-adjustment
Graphics
– Integrated AMD Radeon HD 65XX/64XX graphics in Llano APU
– DirectX 11, Pixel Shader 5.0
– Max. shared memory 512MB
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports Dual-link DVI with max. resolution up to 2560×1600 @ 75Hz
– Supports D-Sub with max. resolution up to 1920×1600 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
– Supports Blu-ray Stereoscopic 3D with HDMI
– Supports AMD Steady Video™: New video post processing capability for automatic jitter reduction on home/online video
– Supports HDCP function with DVI and HDMI ports
– Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
*Some of AMD FM1 CPU (i.e AMD Athlon/Sempron family FM1 CPU) does not have integrated graphics processor. When this kind of CPU is installed, a discrete VGA card is required.
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray audio support
LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
– 3 x PCI Express 2.0 x16 slots (PCIE2/PCIE3: single at x16 (PCIE2) / x8 (PCIE3), or dual at x8 (PCIE2) / x8 (PCIE3) ; PCIE4: x4 mode)
– 1 x PCI Express 2.0 x1 slot
– 3 x PCI slots
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™, CrossFireX™ and Dual Graphics
SATA3
– 6 x SATA3 6.0 Gb/s connectors by AMD A75 FCH (Hudson-D3), support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug functions
– 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug functions (SATA3_A2 connector is shared with eSATA3 port)
USB 3.0
– 2 x Rear USB 3.1 Gen1 ports by AMD A75 FCH (Hudson-D3), support USB 1.0/2.0/3.0 up to 5Gb/s
– 2 x Rear USB 3.1 Gen1 ports by ASMedia ASM1042, support USB 1.0/2.0/3.0 up to 5Gb/s
– 1 x Front USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) by AMD A75 FCH (Hudson-D3), supports USB 1.0/2.0/3.0 up to 5Gb/s
Connector
– 8 x SATA3 6.0 Gb/s connectors
– 1 x IR header
– 1 x CIR header
– 1 x COM port header
– 1 x HDMI_SPDIF header
– 1 x IEEE 1394 header
– 1 x Power LED header
– CPU/Chassiss/Power FAN connector
– 24 pin ATX power connector
– 8 pin 12V power connector
– Front panel audio connector
– 3 x USB 2.0 headers (support 6 USB 2.0 ports)
– 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)
– 1 x Dr. Debug with LED*
*Check the Dr. Debug code list here.

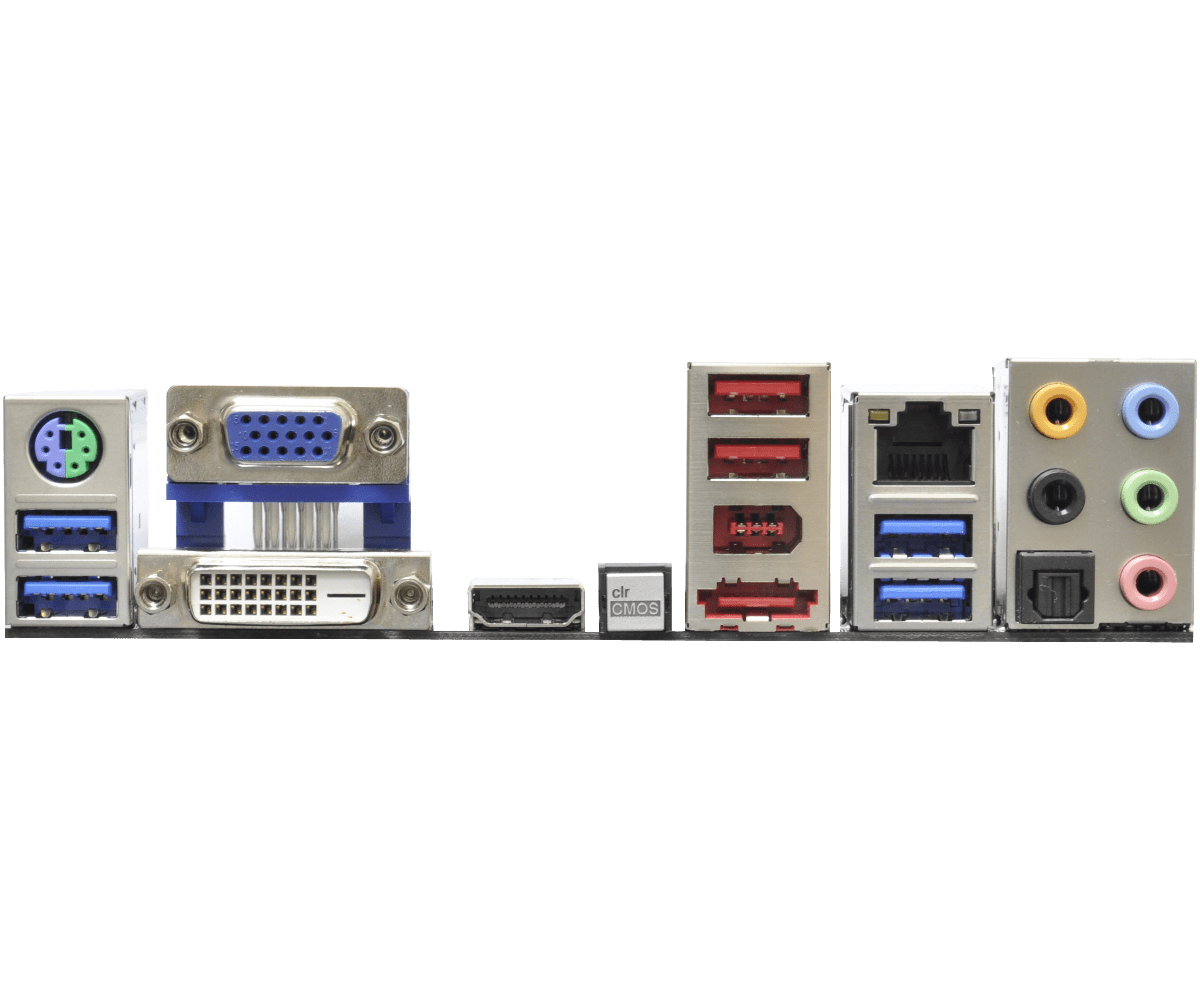

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x Ready-to-Use USB 2.0 Ports
– 1 x eSATA3 Connector
– 4 x Ready-to-Use USB 3.1 Gen1 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x IEEE 1394 Port
– 1 x Clear CMOS Switch with LED
– HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Unique Feature
– ASRock Extreme Tuning Utility (AXTU)
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock On/Off Play Technology
– Hybrid Booster:
– ASRock U-COP
Smart Switch
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– 1 x Clear CMOS Switch with LED
Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial
Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 4 x SATA Data Cables
– 1 x 3.5mm Audio Cable
Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– All Solid Capacitor design (100% Japan made high quality conductive polymer capacitors)
OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)
