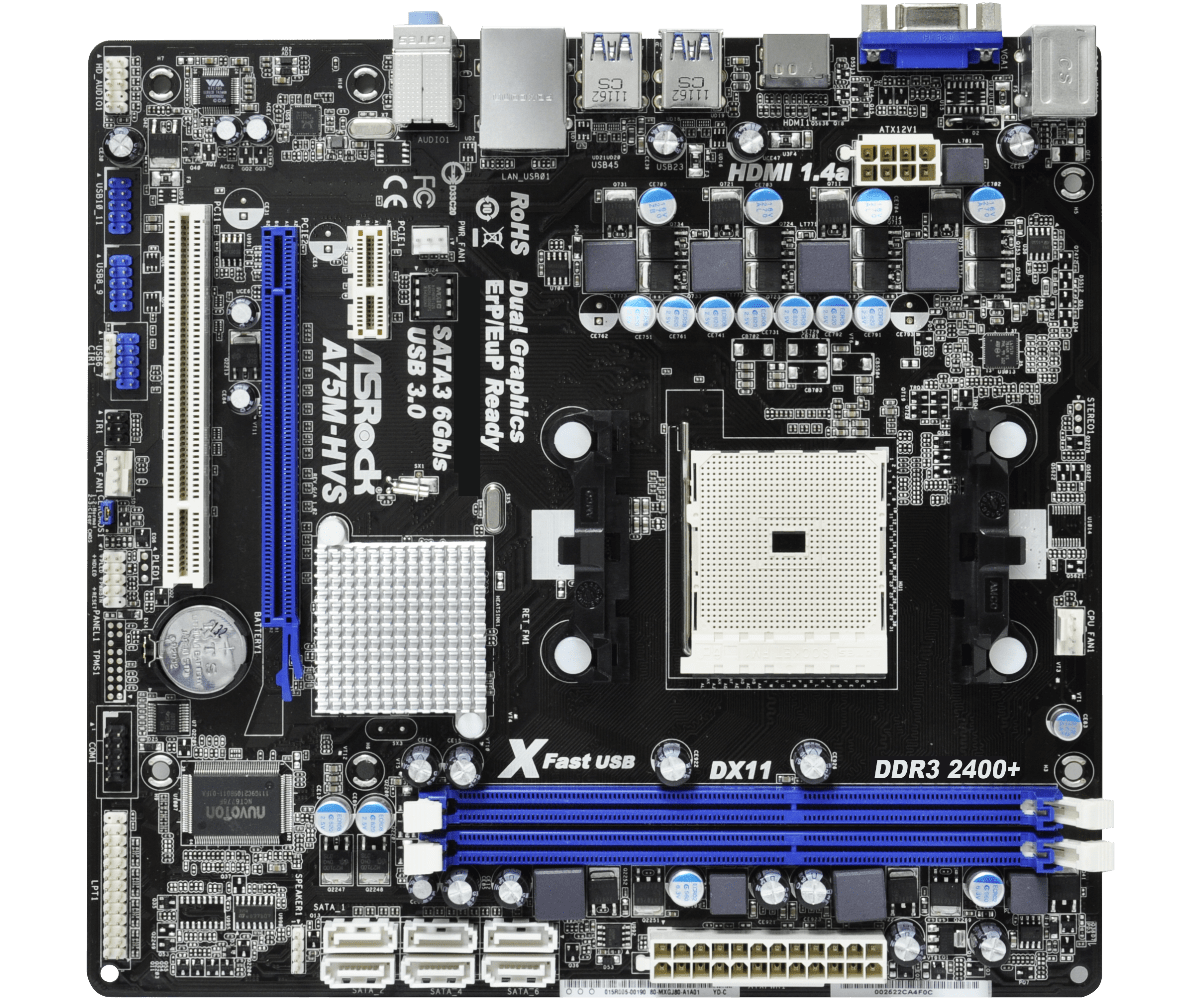

Asrock A75M-HVS AMD FM1 motherboard

  • AMD A75 FCH (Hudson-D3) Chipset
  • Support for Socket FM1 100W processors
  • Supports Dual Channel DDR3 2400+(OC)
  • Supports AMD Dual Graphics
  • Graphics Output Options : D-Sub, HDMI
  • Supports Blu-ray Stereoscopic 3D with HDMI
  • 5.1 CH HD Audio (VIA® VT1705 Audio Codec)
  • Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies
  • Supports Graphical UEFI, APP Charger

Out of stock

Vergelijk
SKU: A75M-HVS Categories: , , Tags: , ,

Description

Asrock A75M-HVS: Motherboard | Micro ATX | AMD FM1 | 2x DDR3 | 6x SATA 600 | PCI-e x16| PCI-e x1 | PCI | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | HDMI | VGA


Product: Asrock A75M-HVS
Socket: AMD FM1
Category: motherboards
Brand: ASrock
Condition: Used – BIOS updated to the latest version
EAN:
4711140877617
SKU: A75M-HVS
Warranty:
6 months


Package contents:
– Motherboard (Asrock A75M-HVS)
– Backplate (blended)
– No manual
– No drivers CD
– No cables


CPU
– Support for Socket FM1 100W processors
– Supports AMD’s Cool ‘n’ Quiet Technology
– UMI Link GEN2


Chipset
– AMD A75 FCH (Hudson-D3)

Memory
– Dual Channel DDR3 memory technology
– 2 x DDR3 DIMM slots
– Supports DDR3 2400+(OC)/1866/1600/1333/1066/800 non-ECC, unbuffered memory
– Max. capacity of system memory: 16GB*


*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Support “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumper free
– SMBIOS 2.3.1 Support
– DRAM, VDDP, SB Voltage Multi-adjustment


Graphics
– Integrated AMD Radeon HD 65XX/64XX graphics in Llano APU
– DirectX 11, Pixel Shader 5.0
– Max. shared memory 512MB
– Two graphics output options: Support HDMI and D-Sub ports by independent display controllers
– Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1600 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
– Supports Blu-ray Stereoscopic 3D with HDMI
– Supports AMD Steady Video™: New video post processing capability for automatic jitter reduction on home/online video
– Supports HDCP function with HDMI port
– Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI port

*Some of AMD FM1 CPU (i.e AMD Athlon/Sempron family FM1 CPU) does not have integrated graphics processor. When this kind of CPU is installed, a discrete VGA card is required.


Audio
– 5.1 CH HD Audio (VIA® VT1705 Audio Codec)


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 2.0 x16 slot
– 1 x PCI Express 2.0 x1 slot
– 1 x PCI slot
– Supports AMD Dual Graphics


Connector
– 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug functions
– 1 x IR header
– 1 x CIR header
– 1 x Print port header
– 1 x COM port header
– CPU/Chassis/Power FAN connector
– 24 pin ATX power connector
– 8 pin 12V power connector
– Front panel audio connector
– 3 x USB 2.0 headers (support 6 USB 2.0 ports)

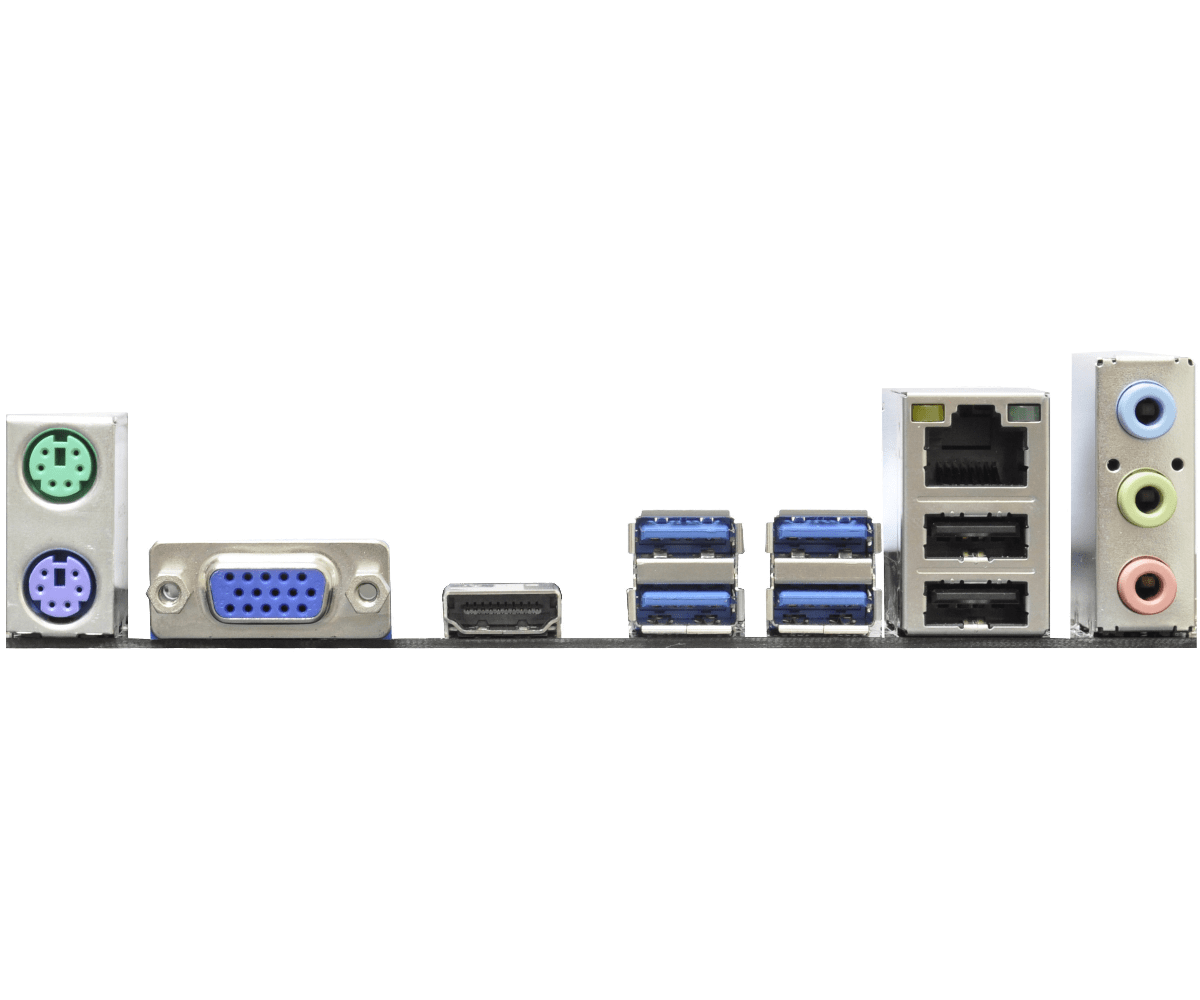

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports
– 4 x USB 3.1 Gen1 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone


Unique Feature
– ASRock Extreme Tuning Utility (AXTU)
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– Hybrid Booster:
– ASRock U-COP

Accessories
– I/O Shield


Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– Voltage Monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– Micro ATX Form Factor: 8.9-in x 8.5-in, 22.6cm x 21.6cm
– Solid Capacitor for CPU Power


OS
– Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant


Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)

Additional information

Weight 1 kg
AMD-en

FM1

Brand

Asrock

Chipset

AMD A75 FCH (Hudson-D3)

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), Ethernet (RJ-45), HDMI, USB 2.0, USB 3.2 (Gen1, 5Gb/s)

Storage Interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 3.0 x16
