ASRock B150M-DVS R2.0

Brand: ASRock
Model: B150M-DVS R2.0
Socket: LGA1151
Chipset: Intel B150
Memory: 2x DDR4 (32GB Max)
Form-Factor: Micro-ATX
EAN: 4717677330830
SKU: 90-MXB360-A0UAYZ, B150M-DVS R2.0

Out of stock

Vergelijk
SKU: B150 DVS-R2.0 Categories: , , Tags: , ,

Description

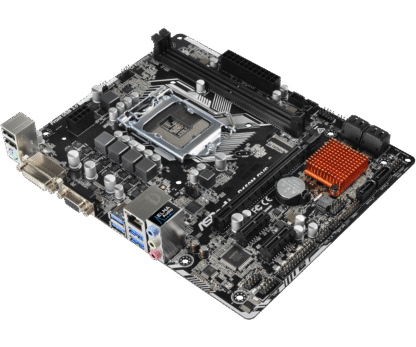

The ASRock B150M-DVS R2.0 is a Micro ATX LGA1151 motherboard based on the Intel B150 chipset. The board must be combined with DDR4 memory, for which 2 slots are available. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.

Features:
Motherboard – M-ATX | LGA1151 6th, 7th generation | 2x DDR4 | Intel ® B150 Chipset | DVI-D | VGA | 2x PCI-e 3.0 x1 | PCI-e 3.0 x16 | 6x USB 2.0 | 6x USB 3.2 (Gen1, 5Gb / s)

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock B150M-DVS R2.0
Socket: LGA1151
Supports: 6th en 7th Generation Processors
Category: Motherboards
Brand: ASRock
EAN: 4717677330830
Condition: Refurbished – Bios updated to the latest version
SKU: 90-MXB360-A0UAYZ, B150M-DVS R2.0
Warranty:
6 Months

Package Contents:
– Motherboard (ASRock B150M-DVS R2.0)
– Backplate (blende)
– no manual
– no driver CD
– no cables


Unique Feature
ASRock Super Alloy
– Matte Black PCB
– High-Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & amp; APP Shop


CPU
Supports 7th and 6th Generation Intel® Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
Supports CPU up to 91W
– Digi Power design
– 5 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology


Chipset
– Intel® B150
– Supports Intel® Small Business Basics


Memory
– Dual-Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
Supports DDR4 2133 non-ECC, un-buffered memory
Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 32GB *
– Supports Intel® Extreme Memory Profile (XMP) 2.0

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 5.0 Compliant wake-up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.0V, VCCIO Voltage Multi-adjustment


Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 510/530
Pixel Shader 5.0, DirectX 12
– Max. shared memory 1024MB *
Dual graphics output: Support DVI-D and D-Sub ports by independent display controllers
Supports DVI-D with max. Resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports Accelerated Media Codecs: HEVC, VP8, VP9
– Supports HDCP with DVI-D Port
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

* The size of maximum shared memory may vary from different operating systems.

** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

*** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit.

**** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.


Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec) *
Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb / s
– Realtek RTL8111GR / RTL8111C
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) **
– 2 x PCI Express 3.0 x1 Slots

* Supports NVMe SSD as boot disks


Storage
– 6 x SATA3 6.0 Gb / s Connectors, support NCQ, AHCI, and Hot Plug


Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)
– 2 x Chassis Fan Connectors (4-pin) *
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.


Rear Panel I / O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) *
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) *
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

* ACPI wake-up function is supported on the rear USB ports only.


Software and UEFI
Software
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)

UEFI
– ASRock EZ Mode
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI Tech Service
– ASRock Easy Driver Installer

* These utilities can be downloaded from ASRock Live Update & amp; APP Shop.


Accessories
– I / O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust the chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
Voltage monitoring: + 12V, + 5V, + 3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCIO


Form Factor
Micro ATX Form Factor: 8.9-in x 7.2-in, 22.6 cm x 18.3 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit *

* To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock’s website for details.


Certifications
– FCC, CE

Additional information

Weight 1 kg
Intel

Socket 1151

Brand

Asrock

Chipset

Intel B150

Form Factor

Micro-ATX

Memory Type

DDR4 SDRAM

Number of memory slots

2

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI-e 3.0 x1, PCI-e 3.0 x16

Socket
