Description

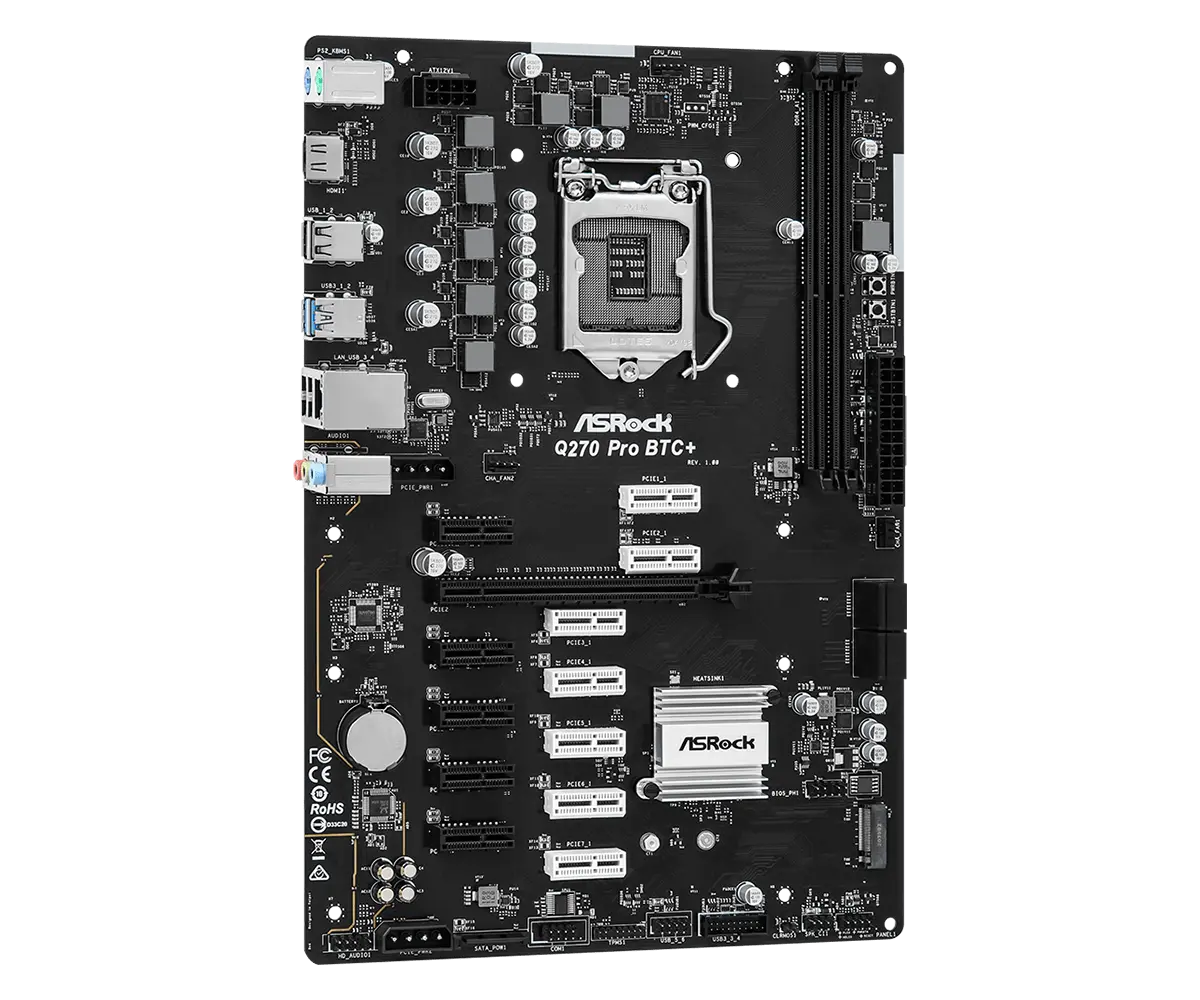

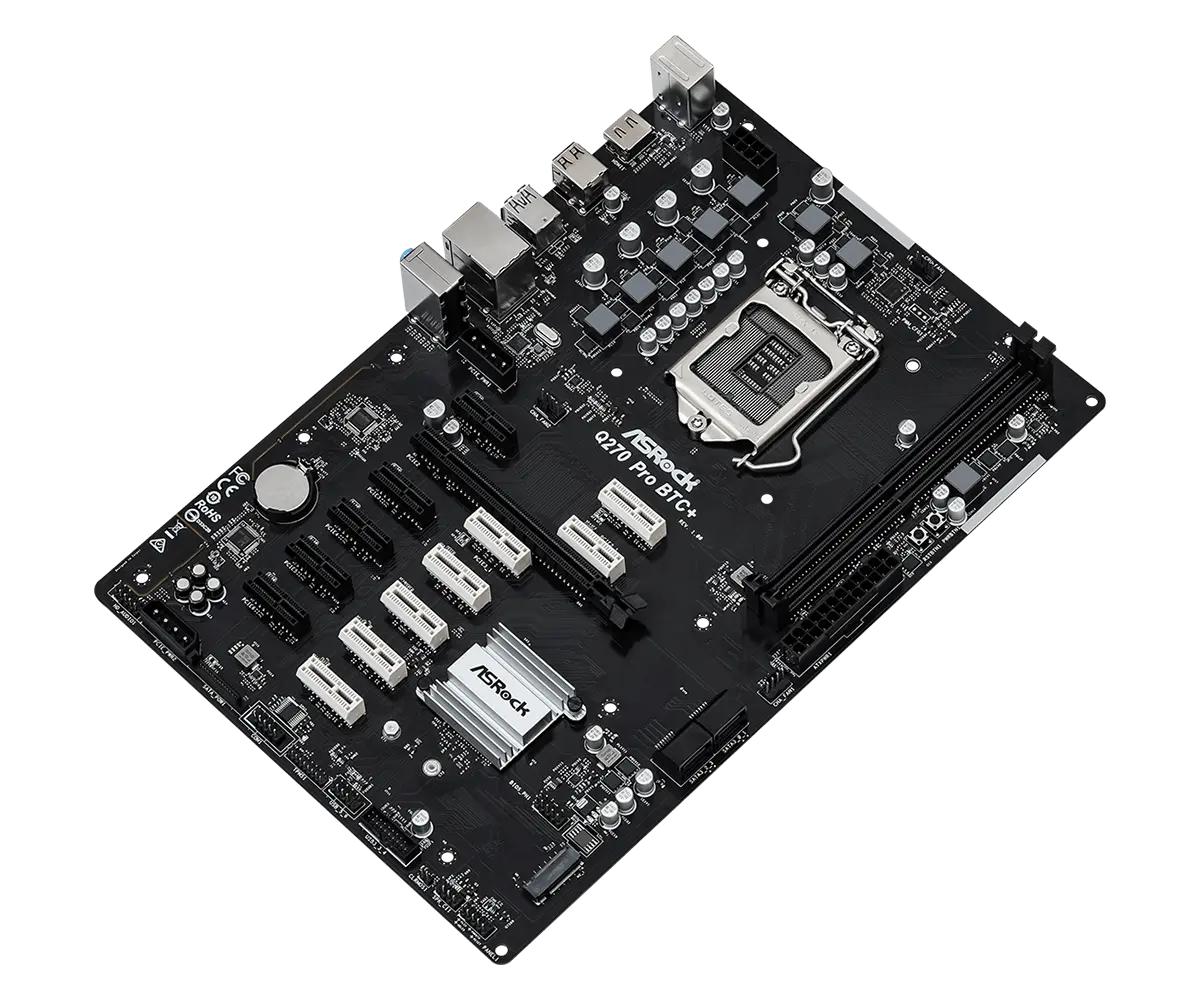

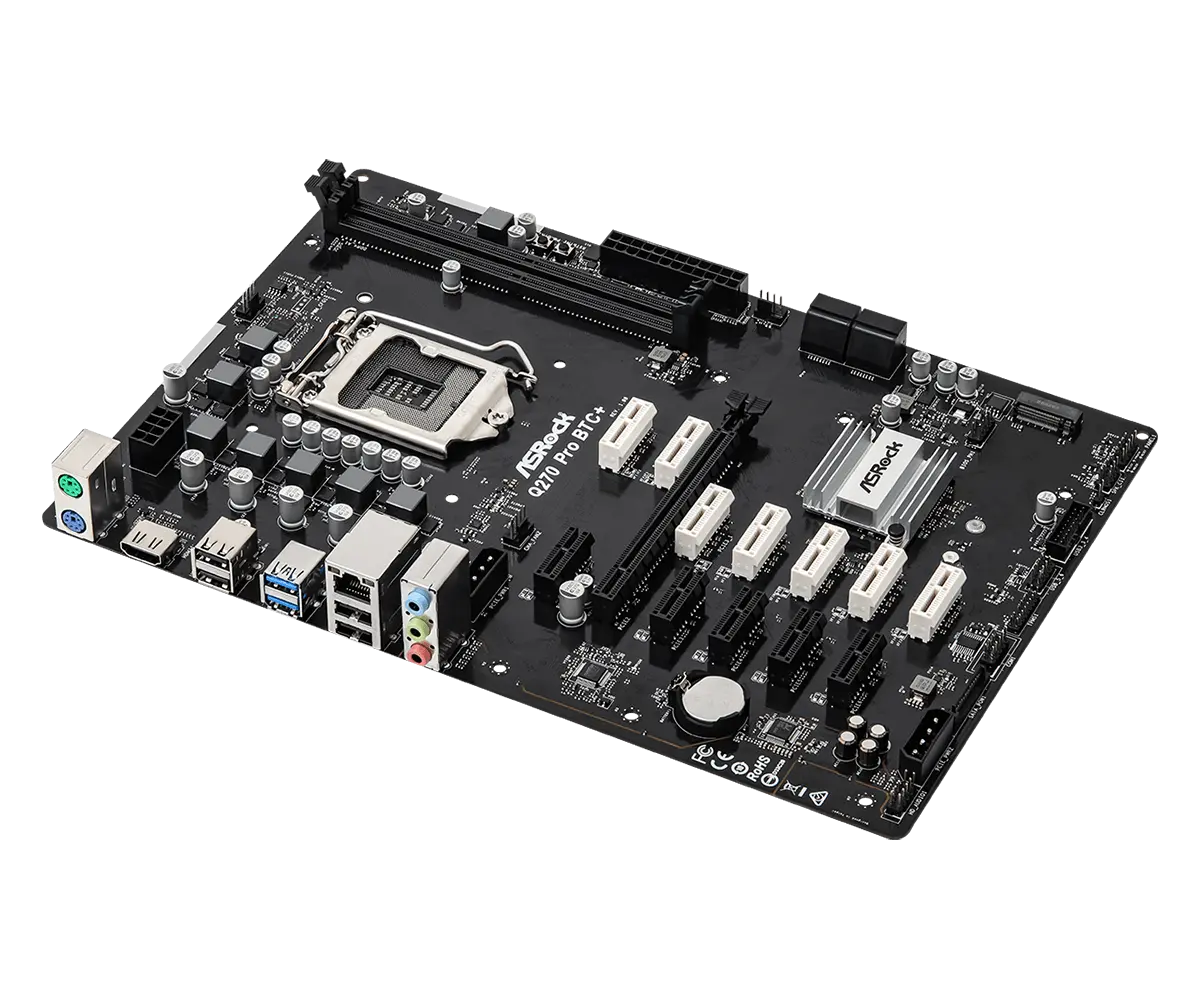

The ASRock Q270 Pro BTC+ Motherboard is an ATX motherboard based on the Intel Q270 chipset and supports 6th and 7th Generation Intel processors (Skylake and Kaby Lake). The motherboard is equipped with dual-channel DDR4 memory slots with a maximum capacity of 32GB RAM. Furthermore, the ASRock Q270 Pro BTC+ motherboard features no fewer than 13 PCI Express slots, making it highly suitable for mining systems and other applications where multiple PCI Express devices are used. The ASRock Q270 Pro BTC+ LGA1151 motherboard also features HDMI, DVI-D, Gigabit LAN, USB 3.1 Gen1 Type-A and USB 2.0 ports.
Click here for supported CPUs
Click here for drivers
Product: ASRock Q270 Pro BTC+
Category: Motherboards
Brand: ASRock
Condition: Used, latest BIOS version installed
EAN: 4710483935473
SKU: 90-MXBHM0-A0UAYZ, Q270 Pro BTC+
Package contents:
Motherboard
I/O Shield
Manual
Driver CD
Cables
Processor
– Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® processors (Socket 1151)
– Supports processors up to 91W – Digi Power design – 6 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
Chipset
– Intel® Q270
Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots – Supports DDR4 2400 / 2133 non-ECC, unbuffered memory*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Maximum system memory capacity: 32GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots
*7th Generation Intel® processors support DDR4 up to 2400MHz; 6th Generation Intel® processors support DDR4 up to 2133MHz.
**Due to operating system limitations, the actual available memory size may be less than 4GB under a 32-bit Windows® operating system because part of the memory is reserved for system usage. This limitation does not apply to a 64-bit Windows® operating system with a 64-bit processor.
BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual graphical user interface support
– ACPI 6.0 compliant wake-up events
– Supports SMBIOS 2.7
– Multi-adjustment of CPU, GT_CPU, DRAM, PCH 1.0V and VCCIO voltages
Graphics
– Supports HDMI 1.4 with a maximum resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) via the HDMI 1.4 port (a compatible HDMI monitor is required)
– Supports HDCP 1.4 via the HDMI 1.4 port
– Supports Full HD 1080p Blu-ray (BD) playback via the HDMI 1.4 port
*Intel® HD Graphics integrated graphics and the video outputs are supported only with processors that feature an integrated GPU.
Audio
– 7.1 Channel HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Expansion Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
– 12 x PCI Express 3.0 x1 Slots
*Supports NVMe SSDs as boot drives
Storage
– 4 x SATA3 6.0 Gb/s Connectors
– 1 x M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module
RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal Connectors
– 1 x System Panel Header
– 1 x TPM Header
– 1 x COM Port Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x 24-pin ATX Power Connector
– 1 x 8-pin 12V Power Connector
– 2 x PCIe Power Connectors
– 1 x SATA Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (supports 2 USB 2.0 ports) (supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (supports 2 USB 3.2 Gen1 ports) (supports ESD Protection)
– 1 x Power Button
– 1 x Reset Button
*The CPU Fan Connector supports a CPU fan with a maximum fan power of 1A (12W).
**The Chassis Fan Connector supports a chassis fan with a maximum fan power of 1A (12W).

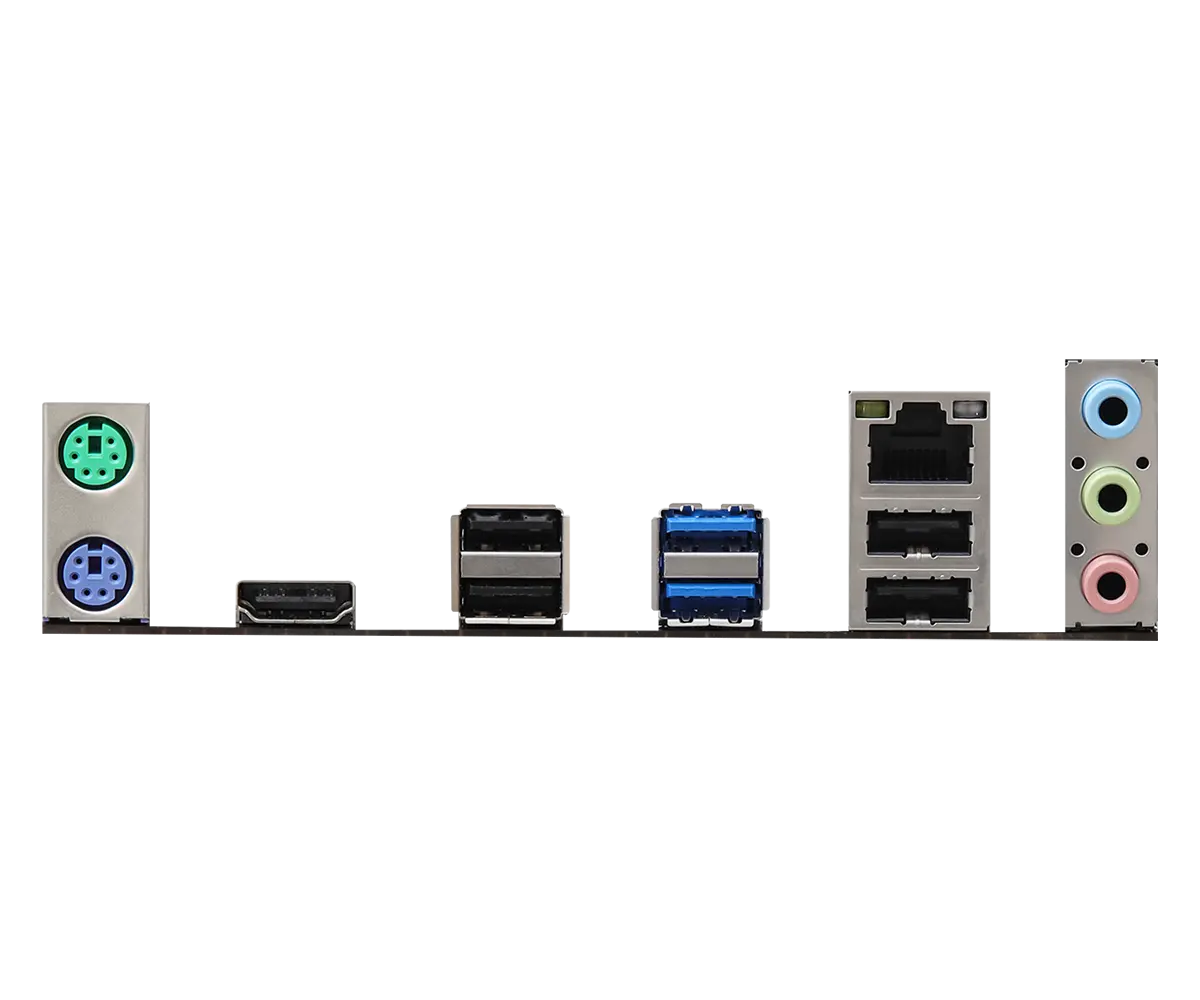

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line-in / Front Speaker / Microphone
Unique Features
ASRock Super Alloy
– Premium 45A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop
Accessories
– I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
Hardware Monitoring
– CPU/Chassis Fan Tachometer
– CPU/Chassis Quiet Fan (automatically adjusts fan speed based on CPU temperature)
– CPU/Chassis Fan multi-speed control
– Chassis intrusion detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
– ATX Form Factor: 12.0 x 8.2 inches, 30.5 cm x 20.8 cm
– Solid Capacitor design
Operating System
– Microsoft Windows® 10 64-bit (for 7th Generation Intel® processors) – Microsoft Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (for 6th Generation Intel® processors)*
*To install Windows® 7, a modified installation disk with xHCI drivers integrated into the ISO file is required. Please refer to the user manual for more detailed instructions.
Certifications
– FCC, CE
– ErP/EuP Ready (an ErP/EuP Ready power supply is required)
