Description

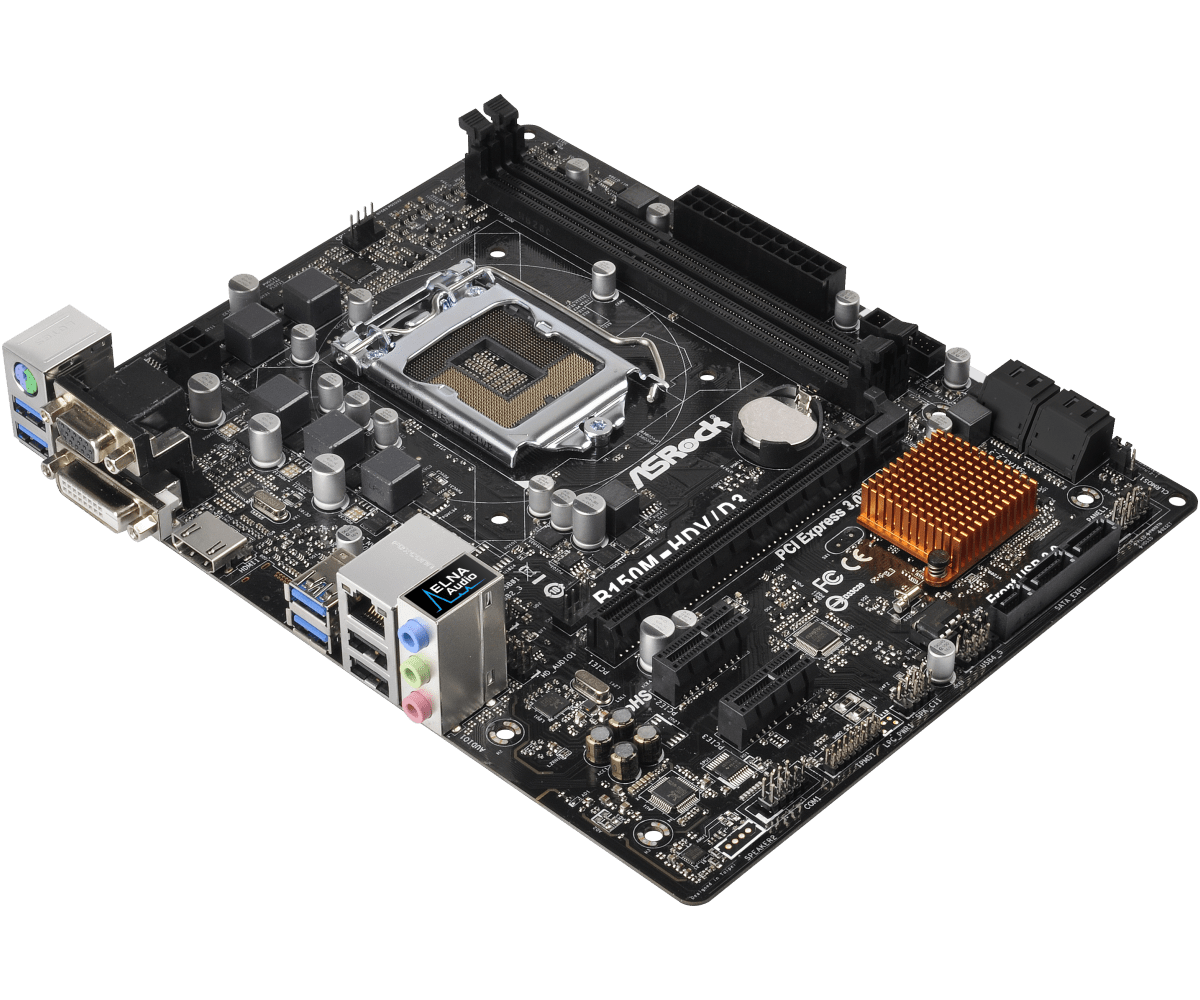

The ASRock B150M-HDV/D3 is a Micro ATX LGA1151 motherboard based on the Intel B150 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.
Features: Motherboard – M-ATX | LGA1151 6th, 7th generation | 2x DDR3 | Intel ® B150 Chipset | DVI-D | VGA | HDMI | SATA Express (Gen2, 10Gb / s) | 6x SATA-600 | 2x PCI-e 3.0 x1 | PCI-e 3.0 x16 | 6x USB 2.0 | 6x USB 3.2 (Gen1, 5Gb / s)
Click here for the supporting CPUs
Click here for the drivers
Product: ASRock B150M-HDV/D3
Socket: LGA1151
Supports: 6th en 7th Generation Processors
Category: Motherboards
Brand: ASRock
EAN: 4717677327083
Condition: Refurbished – Bios updated to the latest version
SKU: 90-MXGZ60-A0UAYZ, B150M-HDV/D3
Warranty: 6 Months
Package Contents:
– Motherboard (ASRock B150M-HDV/D3)
– Backplate (blende)
– no manual
– no driver CD
– no cables
Unique Feature
ASRock Super Alloy
– High-Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop
CPU
Supports 7th and 6th Generation Intel® Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
– Supports Intel® Turbo Boost 2.0 Technology
Chipset
– Intel® B150
– Supports Intel® Small Business Advantage 4.0
Memory
Dual-Channel DDR3 / DDR3L Memory Technology
– 2 x DDR3 / DDR3L DIMM Slots
Supports DDR3 / DDR3L 1866 (OC) / 1600/1333/1066 non-ECC, un-buffered memory *
Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 32GB **
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
* To prevent system instability, either install DDR3L DIMMs or DDR3 DIMMs with voltage lower than 1.5V.
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 5.0 Compliant wake-up events
– SMBIOS 2.7 Support
– CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO, VCCSA Voltage Multi-adjustment
Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 510/530
Pixel Shader 5.0, DirectX 12
– Max. shared memory 1024MB *
– Three graphics output options: D-Sub, DVI-D, and HDMI
– Supports Triple Monitor
Supports HDMI with max. Resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
Supports DVI-D with max. Resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports Accelerated Media Codecs: HEVC, VP8, VP9
Supports HDCP with DVI-D, and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, and HDMI Ports
* The size of maximum shared memory may vary from different operating systems.
** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
*** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit.
**** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.
Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec) *
Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
– PCIe x1 Gigabit LAN 10/100/1000 Mb / s
– Realtek RTL8111E
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) *
– 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
* Supports NVMe SSD as boot disks
Storage
– 6 x SATA3 6.0 Gb / s Connectors, support NCQ, AHCI, and Hot Plug
– 1 x SATA Express 10 Gb / s Connector **
* Support to be announced
Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
Rear Panel I / O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)
UEFI
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI Tech Service
– ASRock Easy Driver Installer
* These utilities can be downloaded from ASRock Live Update & amp; APP Shop.
Accessories
– I / O Shield
Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust the chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
Voltage monitoring: + 12V, + 5V, + 3.3V, CPU Vcore
Form Factor
Micro ATX Form Factor: 9.1-in x 7.3-in, 23.1 cm x 18.5 cm
– Solid Capacitor design
OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit *
* To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please see our online tutorial or check our User Manual for more detailed instructions.
* For the updated Windows® 10 driver, please visit ASRock’s website for details.
Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)
